XCMG Official Xga16 16m Used Towable Boom Lift Cherry Picker for Sale

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Articulated Lift

Send Inquiry

Product Description

Overview Parameters Product Show FAQ

Basic Information

Model NO.

XGA16

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Total Mass

6900kg

Max. Load Capacity

230kg

Rated Working Height

16.05m

Max. Gradeability

30%

Power

38kw

Product Description

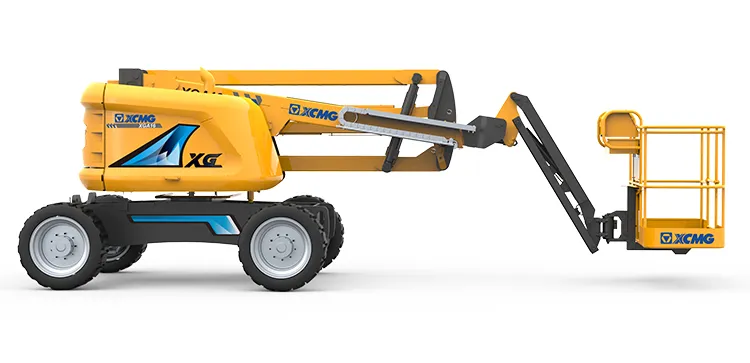

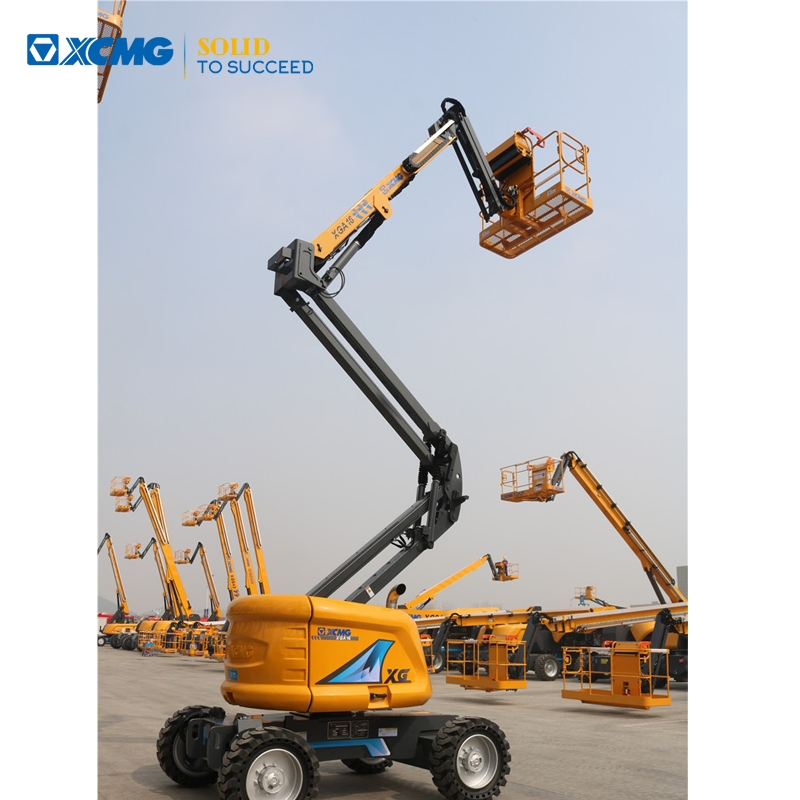

XGA16 16m Articulated Boom Lift Cherry Picker

The 16M articulated mobile elevating work platform is designed to satisfy diverse operational requirements. Featuring an intelligent control system with a humanized layout, it offers maintenance-free design and ease of use, ensuring comprehensive safety and multiple options for the operator.

Advantages and Highlights:

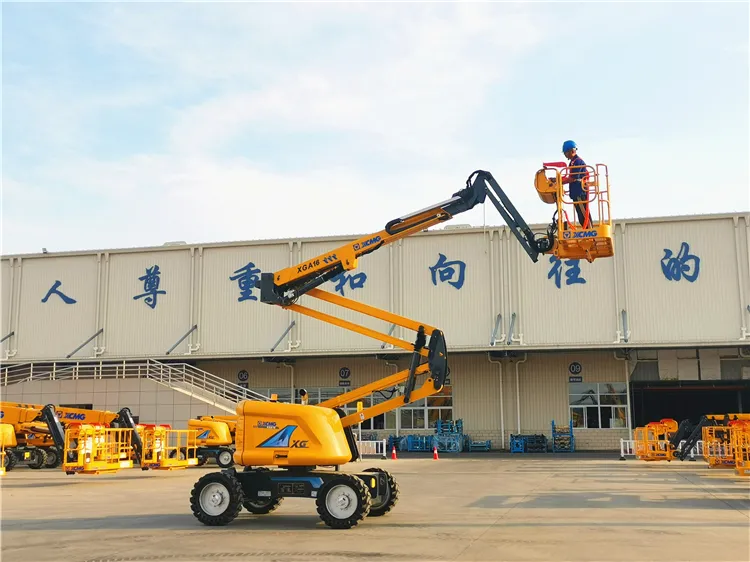

Σ-shaped boom: Compact and flexible, capable of vertical ascent/descent or horizontal extension to cross obstacles.
160° Platform Rotation: Creates a wider operation area for precise positioning.
Off-road Chassis: 4WD system with solid wide tires and a 38kw power engine for excellent adaptation to any terrain.
Full-range Work: Precise electric-hydraulic proportional system with chassis tilting protection and overloading warnings.
Safety Features: Includes emergent lowering, safety speed limits, and flexible start/stop technologies.
Professional Quality: Professional institute test reports and detailed maintenance records included.

Product Parameters

Item	XGA16 Specification
Traveling State Parameters
Overall dimensions (L × W × H)	6.69×2.26×2.13 m
Working platform dimensions	1.83×0.76×1.15 m
Max. speed	6.12 km/h
Max. gradeability	≥30%(2WD) ≥45%(4WD)
Min. external turning radius	≤4.5m
Ground clearance (centre)	0.41 m
Total mass	6900 kg
Operation Performance
Rated working height	16.05m
Max. platform height	14.05m
Max. working range	8.22m
Slewing angle	355° discontinuous
Max. Load capacity	230 kg
Engine Parameters
Engine rated power	38KW/3000rpm

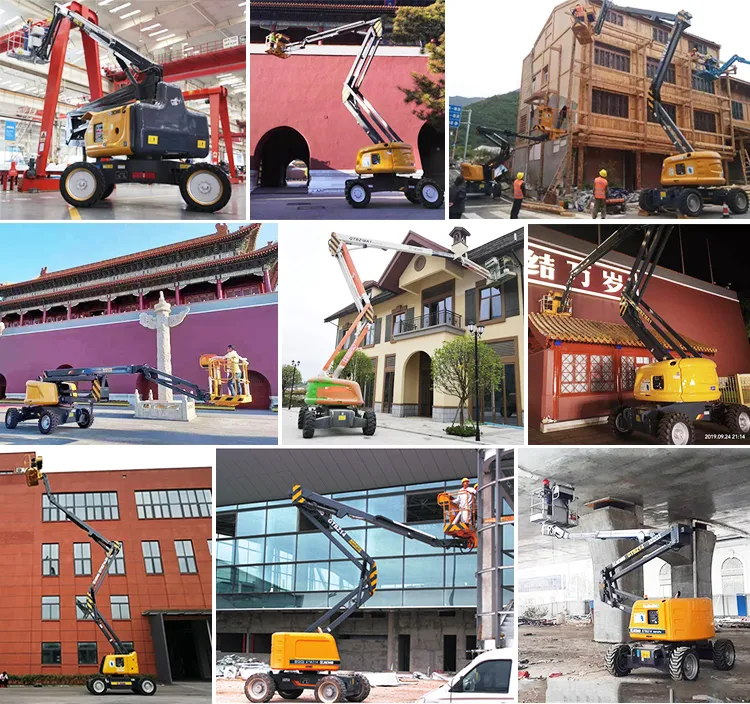

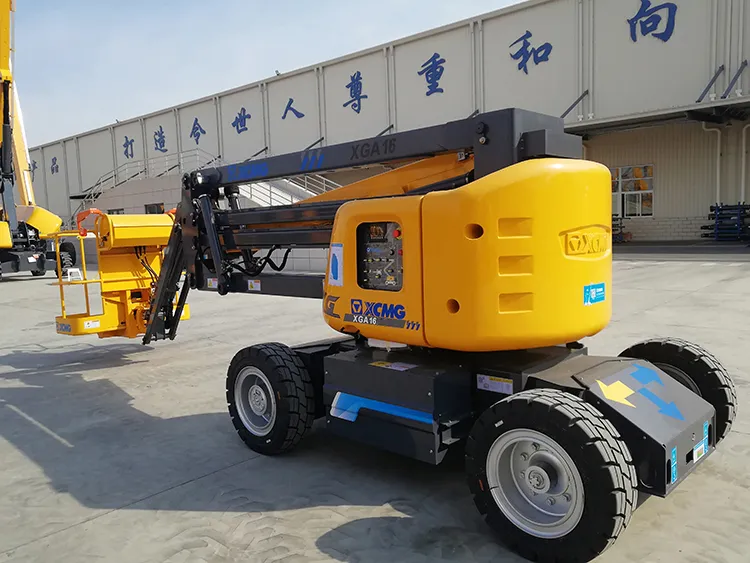

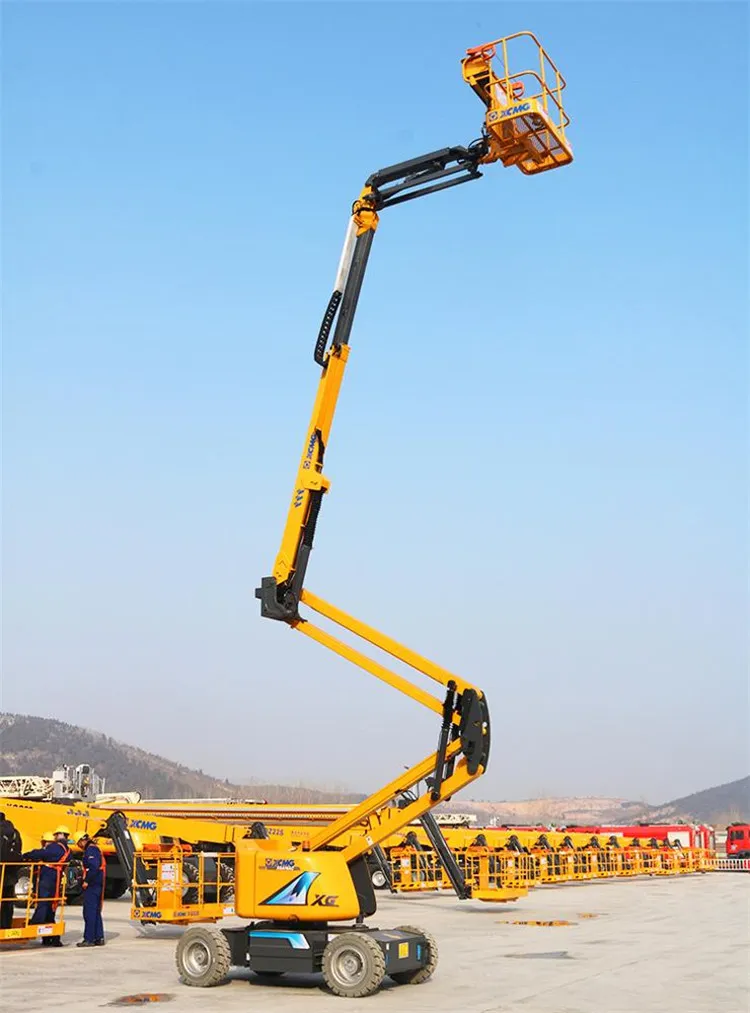

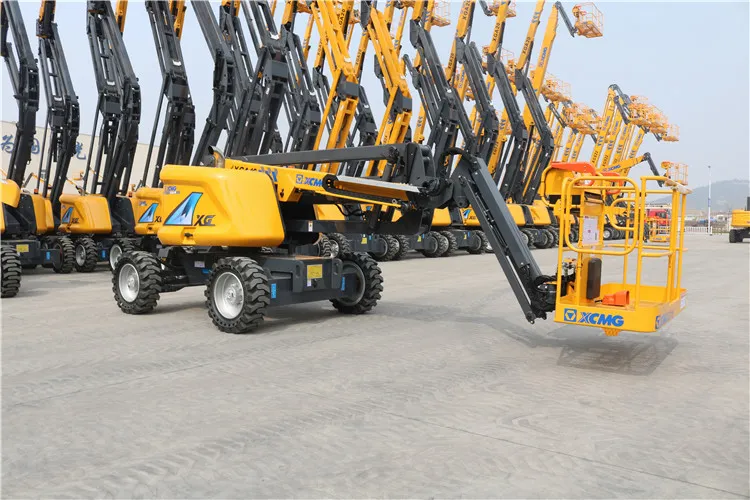

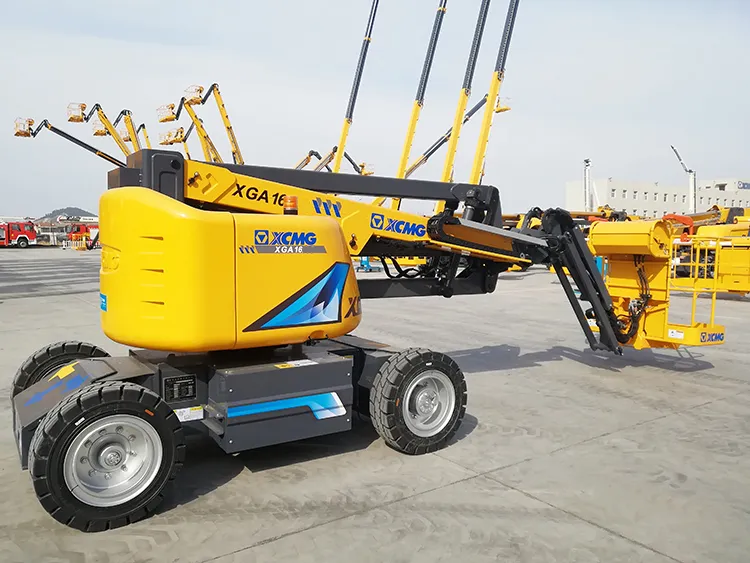

Product Show

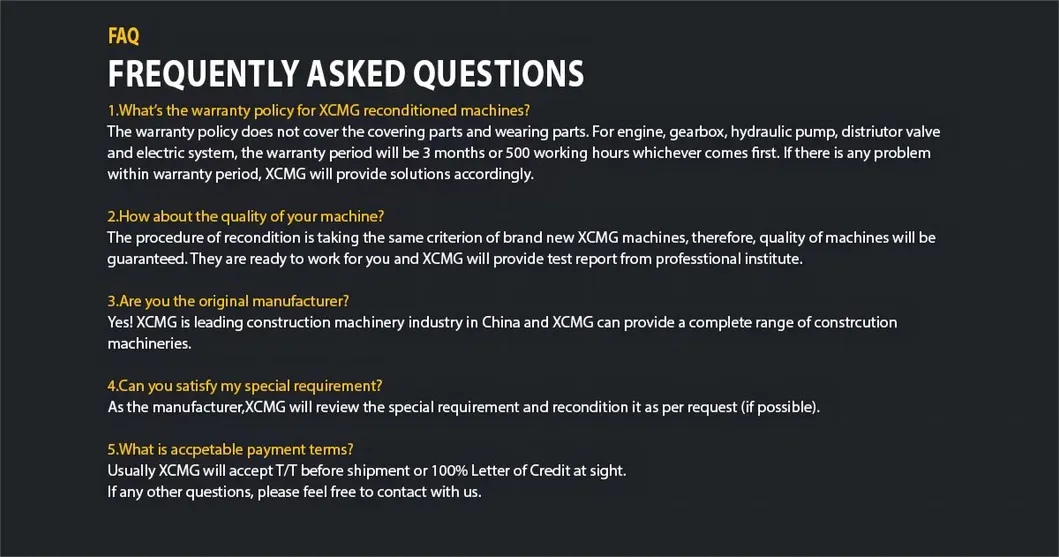

Frequently Asked Questions

1. What is the maximum working height of the XGA16?

The XGA16 offers a rated working height of 16.05 meters, with a maximum platform height of 14.05 meters.

2. What is the load capacity of this boom lift?

The platform has a rated load capacity of 230kg, suitable for operators and their necessary tools.

3. Can the XGA16 handle off-road terrain?

Yes, it features an off-road chassis, a 4WD system, and solid off-road wide tires, allowing it to adapt to various terrains with a gradeability of up to 45% in 4WD mode.

4. What are the advantages of the Σ-shaped boom?

The Σ-shaped boom is compact and flexible. It can ascend and descend vertically or extend horizontally to cross obstacles, making it ideal for complex work environments.

5. What safety systems are integrated into the machine?

It includes chassis tilting protection, platform overloading warnings, emergent lowering systems, safety speed limits, and flexible start/stop technologies for maximum operator safety.

6. Is the control system easy to use?

Yes, it features a direct and friendly control panel with a precise electric-hydraulic proportional system for smooth and effective operation.
