10m to 24m Electric Movable Aerial Manlift Cherry Picker with Towable Tow-Ball

Still deciding? Get samples of $ !
Request Sample

Product Description

1

Basic Information

Model NO.
TBL
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Driven Type
DC
Certification
GS, CE, RoHS, ISO 9001
Lifting Height
10 M - 22 M
Load Capacity
300 Kg
Platform Size
1.2*0.8 M
Working Radius
5.5 M - 11 M
Rotation
359 Degree (Customize for 360)
Power Source
AC/DC/Diesel/Gasoline
Package
High Quality Wooden Box
2

Product Description

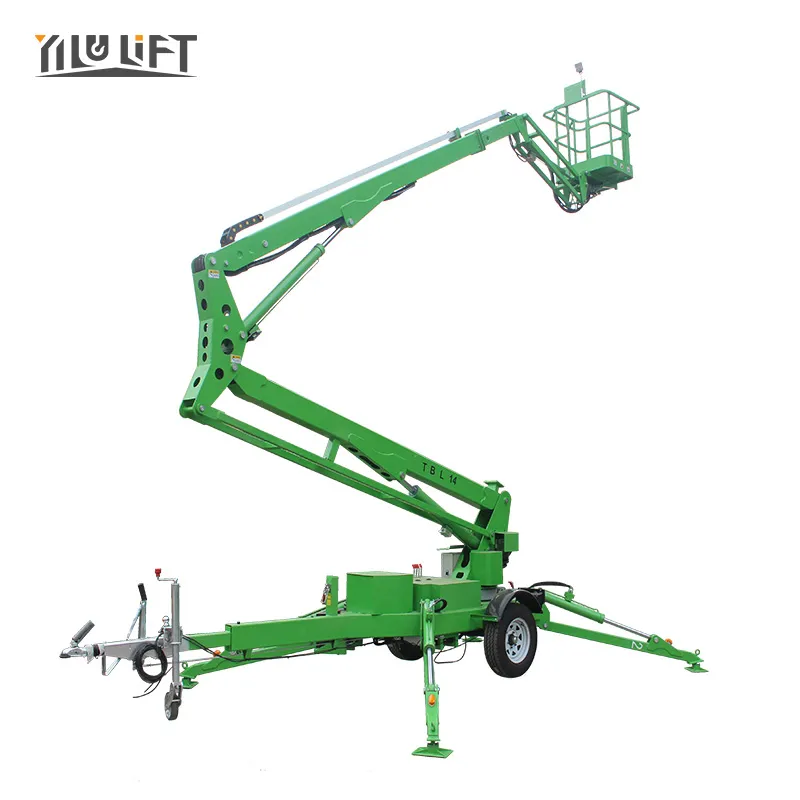

Towable Boom Lift
High Quality & Cost-Effective

Leveraging efficient manufacturing processes, our towable lifts offer exceptional quality that rivals world-renowned brands at a significantly more competitive price point.

Manual Setup of Tilt Angle

Through the touch-screen panel, users can input a desired maximum tilt angle (e.g., 3 degrees). The system automatically disables operations if the gradienter detects an angle exceeding the safety limit.

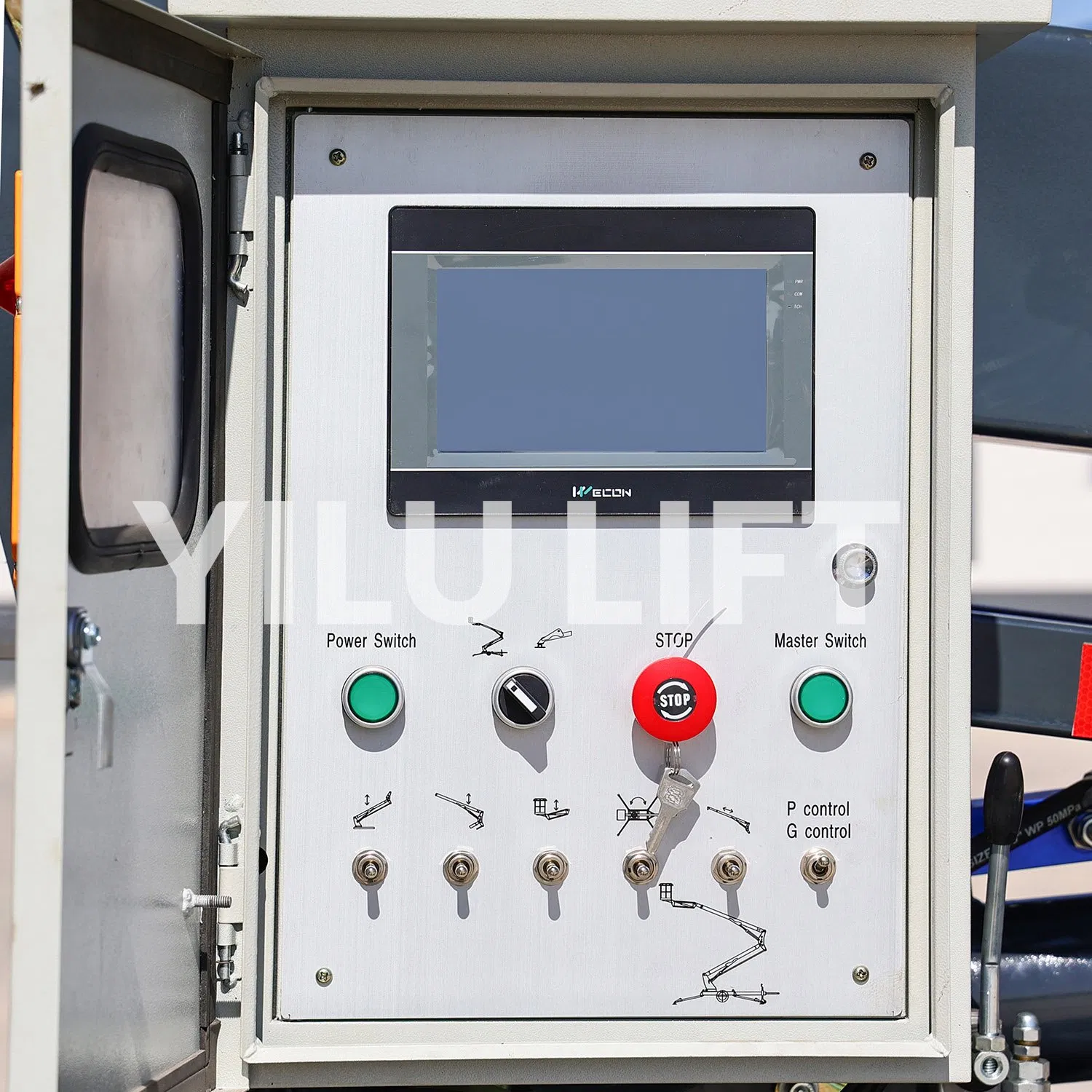

Touch Screen Operations

Upgraded with user-friendly touch-screen panels at man-height, making arm movements simpler and more intuitive without the need to bend down.

Torsion Axle Technology

The specialized torsion axle design ensures constant wheel-to-ground contact and friction, even on uneven terrain, preventing wheels from becoming airborne.

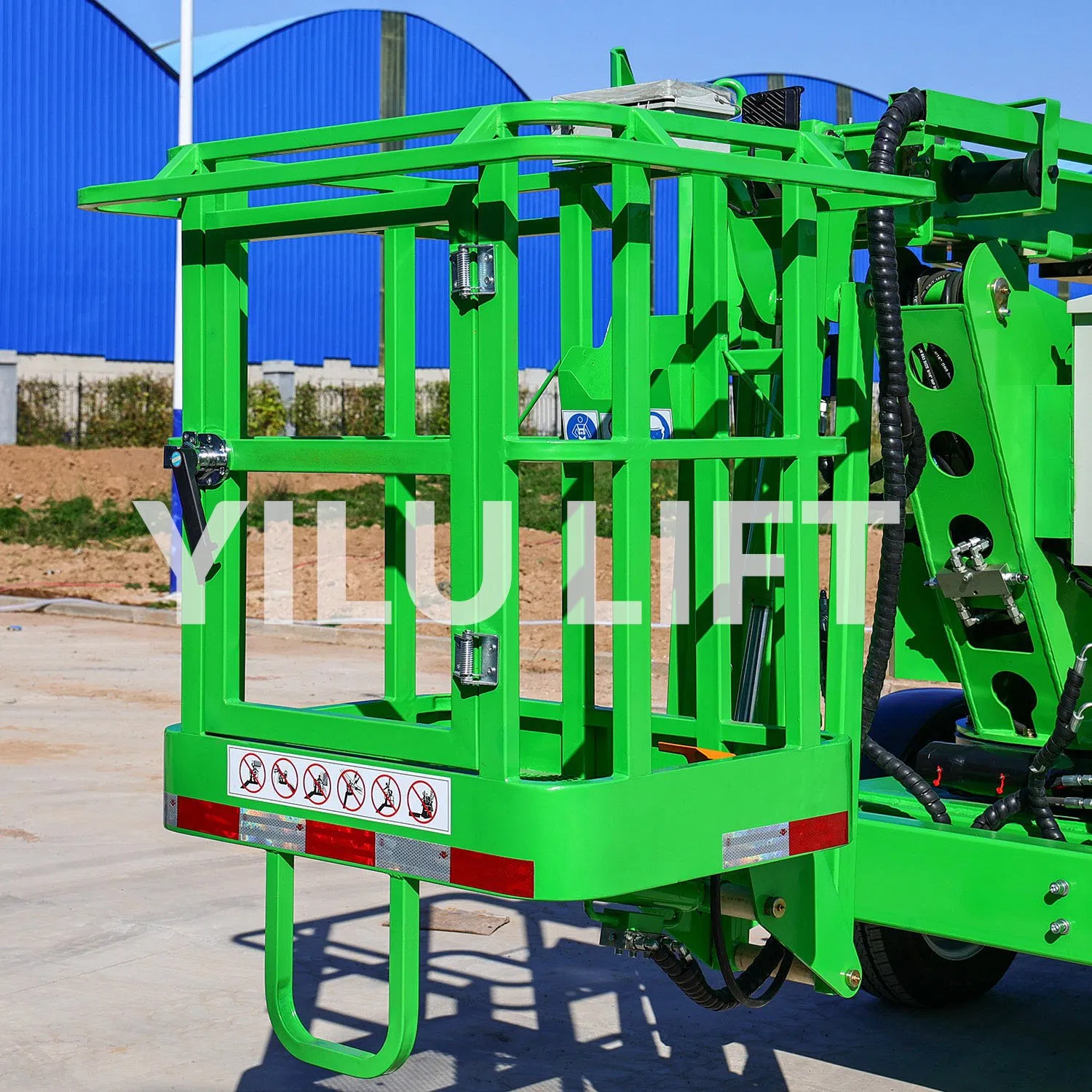

360° Swivel & Basket Rotation

The main boom features a 359/360-degree range with a working radius up to 11m. Optional basket rotation allows precise access to work areas without moving the entire boom.

Multiple Power Sources

Available in DC, AC, Diesel, Gas, or hybrid combinations to suit various indoor and outdoor environments.

3

Technical Parameters

Model TBL-12A TBL-14A TBL-14AT TBL-16A TBL-18A TBL-22A TBL-24A
Lifting Height 10M 12M 12M 14M 16M 20M 22M
Working Height 12M 14M 14M 16M 18M 22M 24M
Load Capacity 300KG 220KG 300KG 300KG 220KG 220KG 220KG
Working Radius 5.5M 6.5M 7.8M 8.5M 10.5M 11M 11M
Net Weight 1950KG 2100KG 2150KG 2150KG 2350KG 4500KG 5000KG
Rotation 359 degree (Optional 360) 360 degree
4

Safety Precautions

  • Anti-burst valve prevents accidents in case of hydraulic hose rupture.
  • Spillover valve releases pressure when necessary.
  • Emergency decline valve allows for safe descent during power failures.
  • Anti-dropping device prevents falls during operation.
5

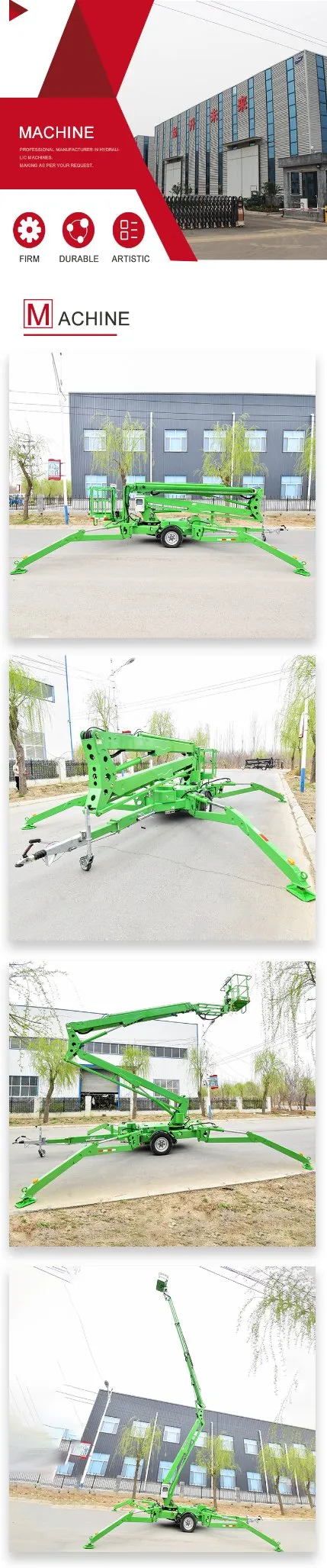

Photos Display

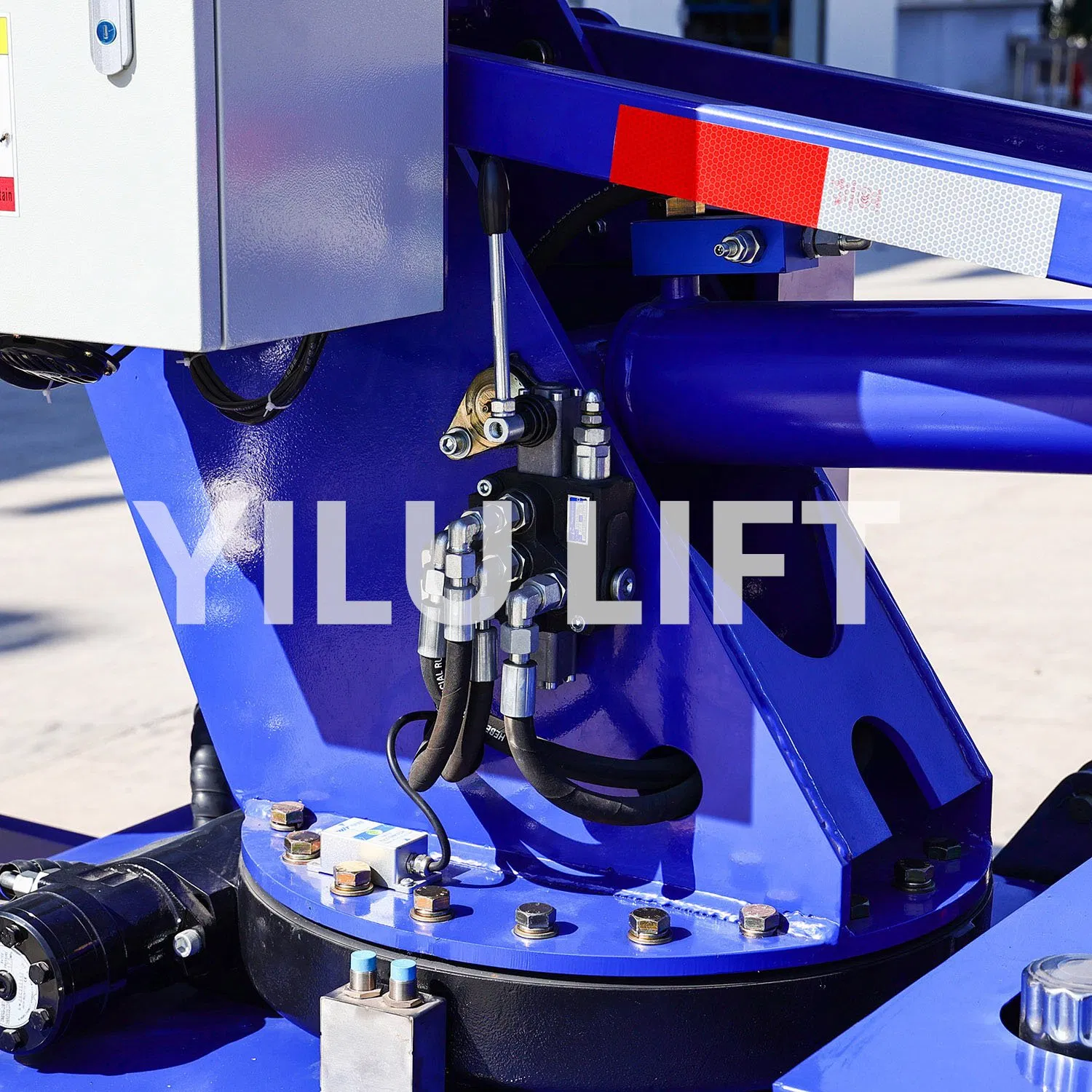

Product Display 1
6

Our Professional Team

Team 1
Team 2
Team 3
?

Frequently Asked Questions

1. How to place an order?
Please provide your detailed requirements (material, dimensions, and weight). We will send technical parameters and a formal quotation as soon as possible.
2. What are the pricing terms?
Pricing depends on equipment specifications and shipment terms such as FOB, CIF, or DDP.
3. What payment methods are accepted?
We accept Wire Transfer (T/T), Letter of Credit (L/C), PayPal, and Western Union.
4. What is the standard delivery time?
For standard products, delivery is typically within 7 days. For customized orders, the timeline depends on production status.
5. What does the warranty cover?
We provide a 1-year warranty and lifelong technical support via email or video consultation.
6. What modes of transportation are available?
Customers can choose from sea, air, or rail transportation based on their location and urgency.
