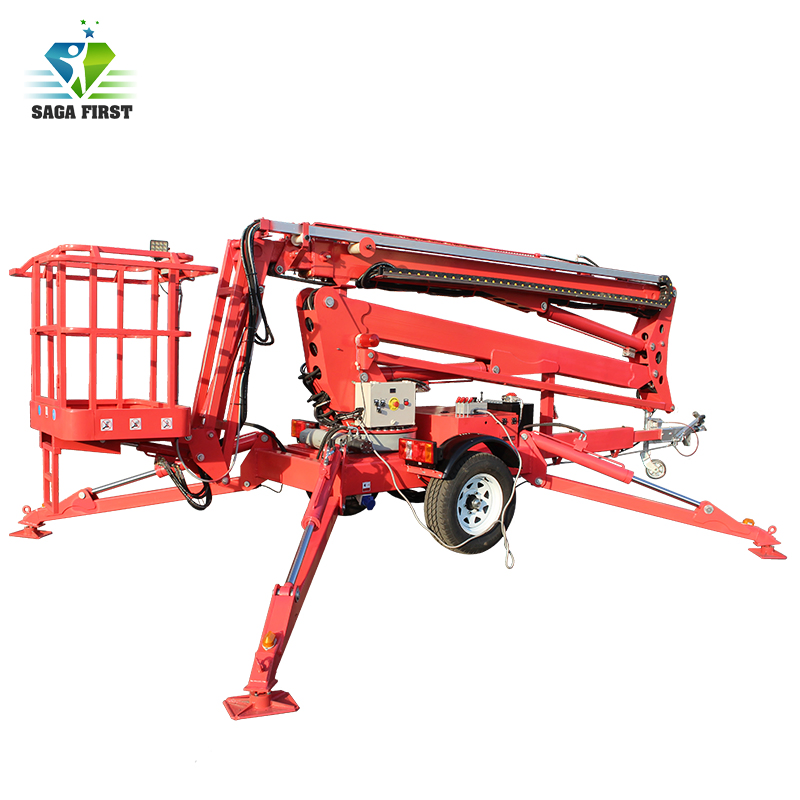

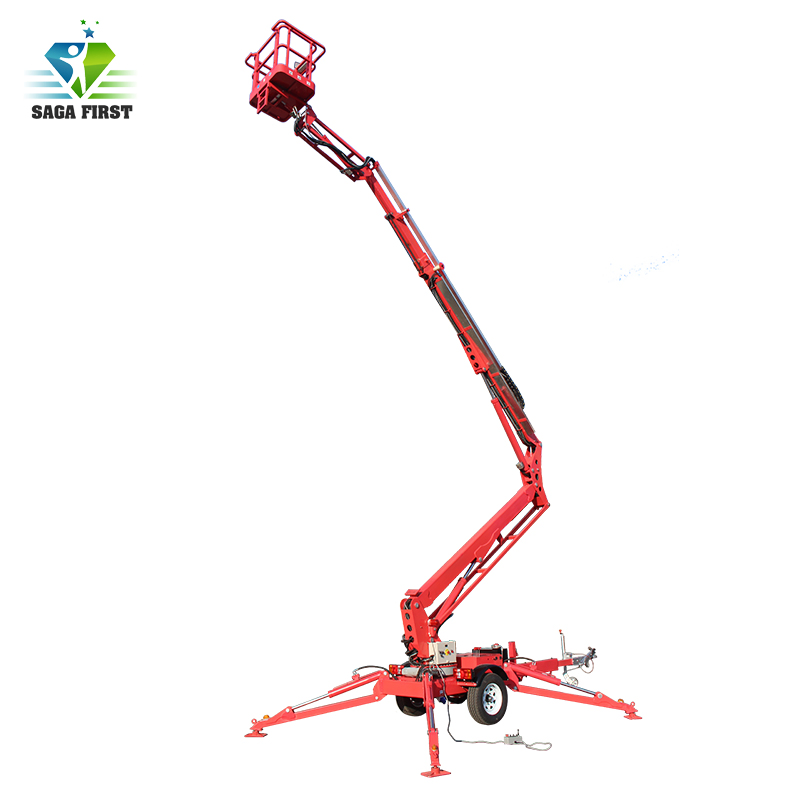

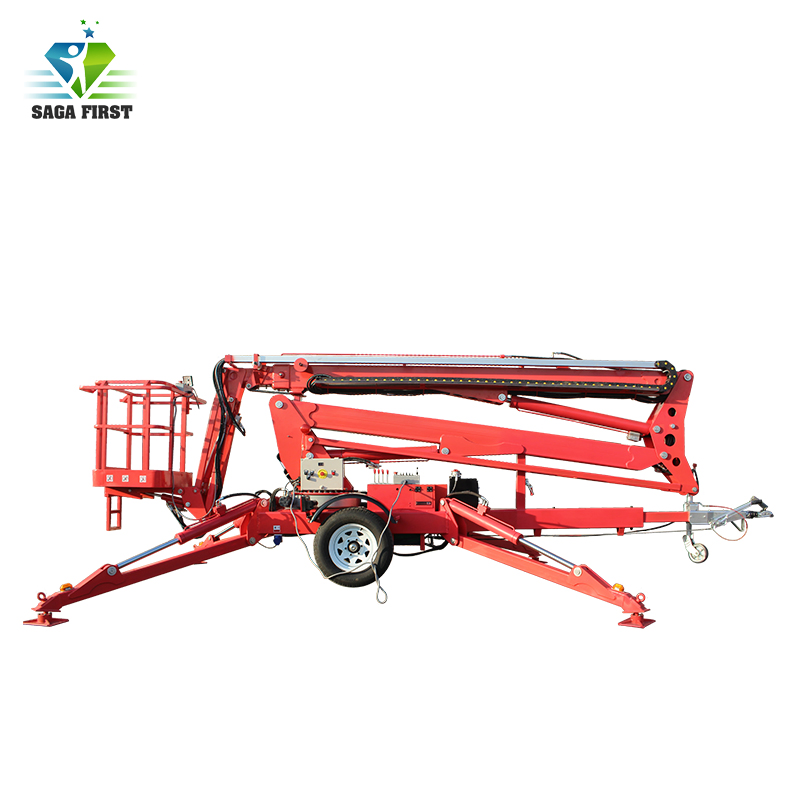

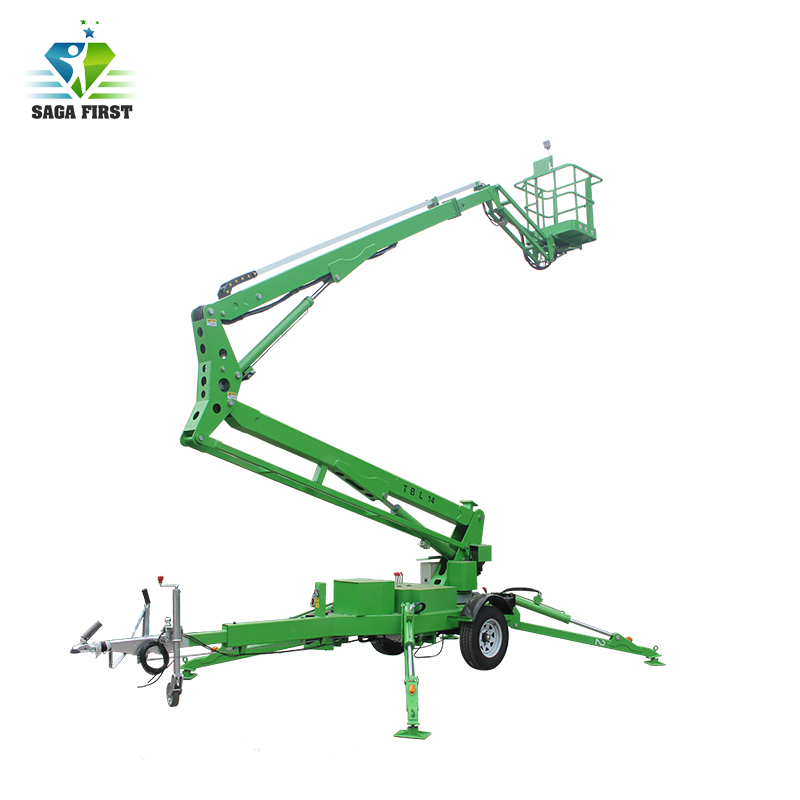

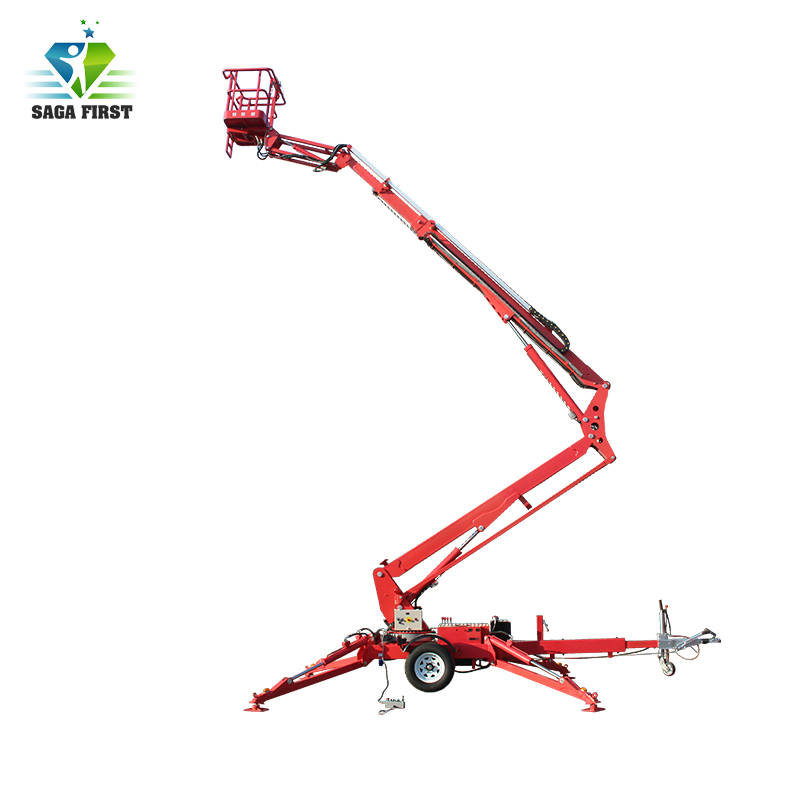

14m Electric Hydraulic Movable Trailed Towable Powered Cherry Picker

📋

Basic Specifications

Model NO.

TBL

Carrying Capacity

Light Level

Driven Type

DC

Certification

GS, CE, ISO 9001

Load Capacity

200kg

Lifting Height

8m, 10m, 12m

Platform Size

1100*700mm

Power

DC Battery / Diesel

Lifting Motor

3kw

Warranty

12 Months

Customized

Yes

Origin

China

🏗️

Product Description

14m Electric Hydraulic Movable Trailed Towable Powered Access Cherry Picker

The Trailing Cherry Picker is one of the most ideal aerial lift platforms for both indoors and outdoors maintenance work. It features a compact structure that allows it to operate in tight spaces, with a 360-degree air rotation capability and platform heights ranging from 6m to 16m.

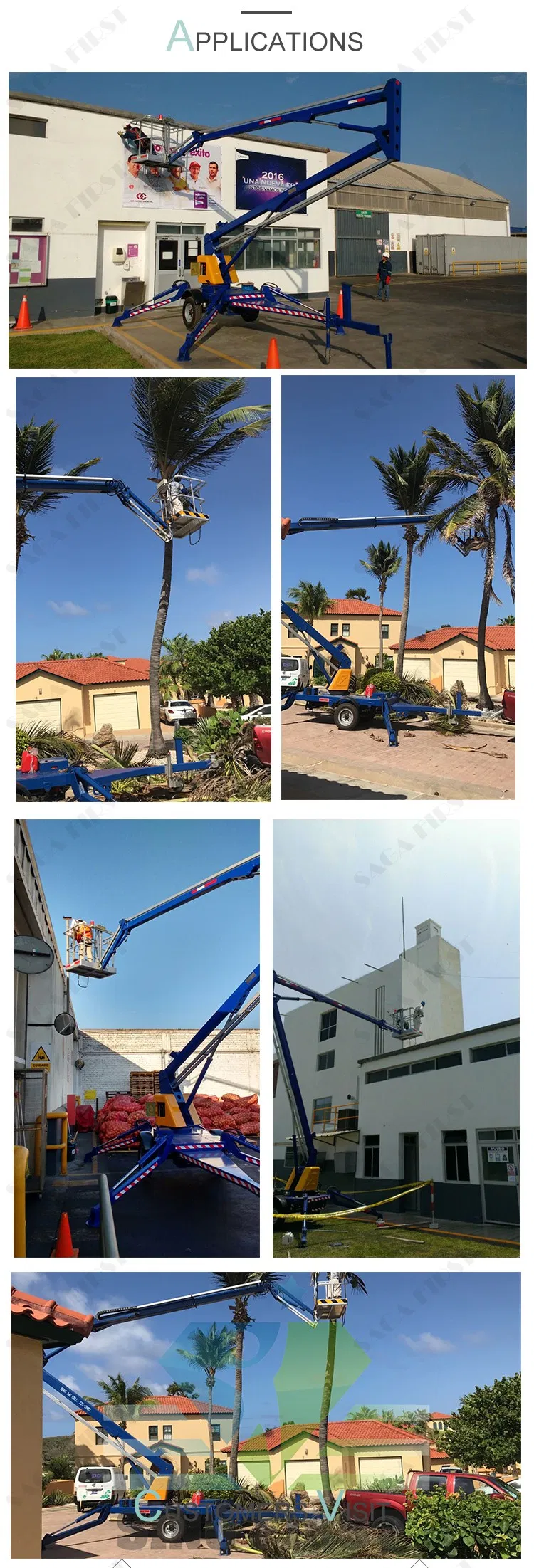

Easily towable by car or tractor, it is widely utilized for neighborhood maintenance, road lighting repairs, high-altitude factory work, and construction sites.

⚙️

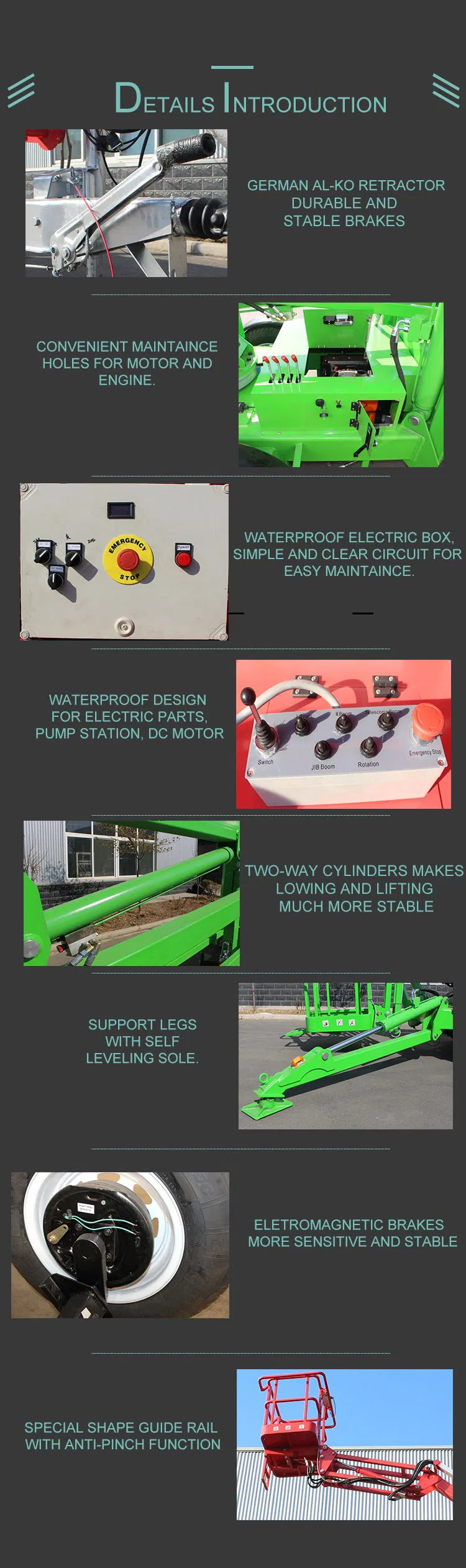

Key Features & Configurations

Main Configurations

Four Hydraulic Support Legs with Control Handle
Dual Lifting Control Panels (Body & Basket)
Diesel Engine & Electric Motor Options
Hydraulic Pump Station & Cylinder
Retractor & Support Wheel
Safety Siren

Product Highlights

360-degree arm rotation
Japan NOK brand sealing parts (300,000 cycles guarantee)
Automatic shut-off valves on cylinder outlets
Emergency dropping device for safety
Lubricated bearings and grease cups for silent rotation
Sliding track rollers to reduce vibration

🛡️

Safety Precautions

Explosion-proof valves: Protects the hydraulic pipe from rupture.
Spillover valve: Prevents high pressure when the machine moves upward and allows pressure adjustment.
Emergency decline valve: Enables safe descent during power outages or emergencies.
Anti-dropping device: Prevents accidental falling of the platform.

📊

Technical Parameters

Model Type	TBL-8	TBL-10	TBL-12	TBL-14	TBL-16	TBL-18	TBL-20
Lifting height(m)	8	10	12	14	16	18	20
Working height(m)	10	12	14	16	18	20	22
Load capacity(kg)	200
Working radius(m)	4.5	5	6	8.5	9	10.9	12.5
Net Weight(kg)	1538	1700	1800	2350	2600	4300	4450
Overall Length(mm)	5200	5400	6400	6200	7000	7100	7700
Overall Width(mm)	1585	1665	1665	1730	1730	1850	1850
Platform size(mm)	1200*800
