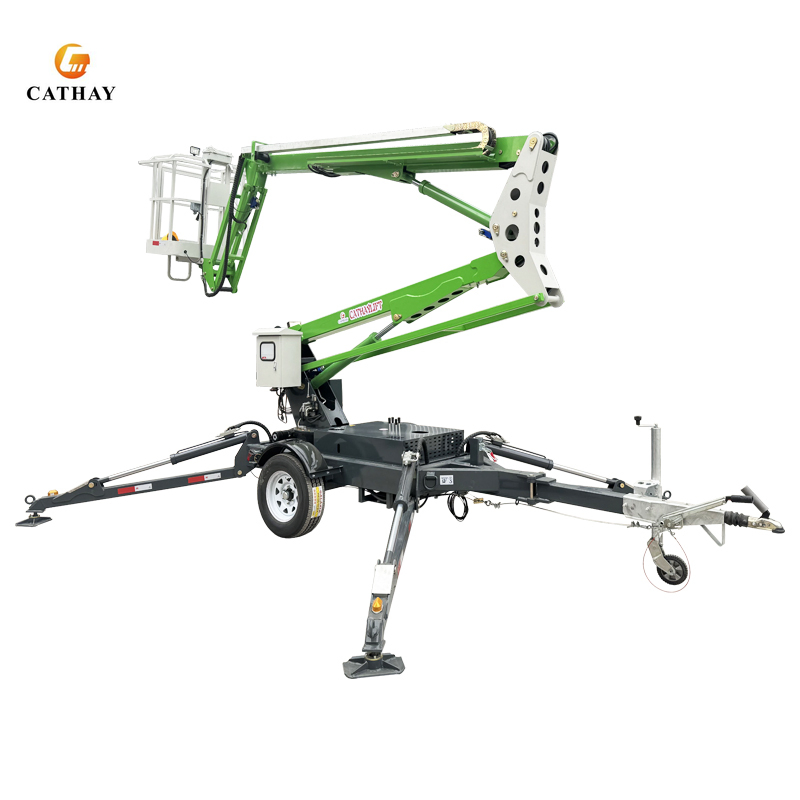

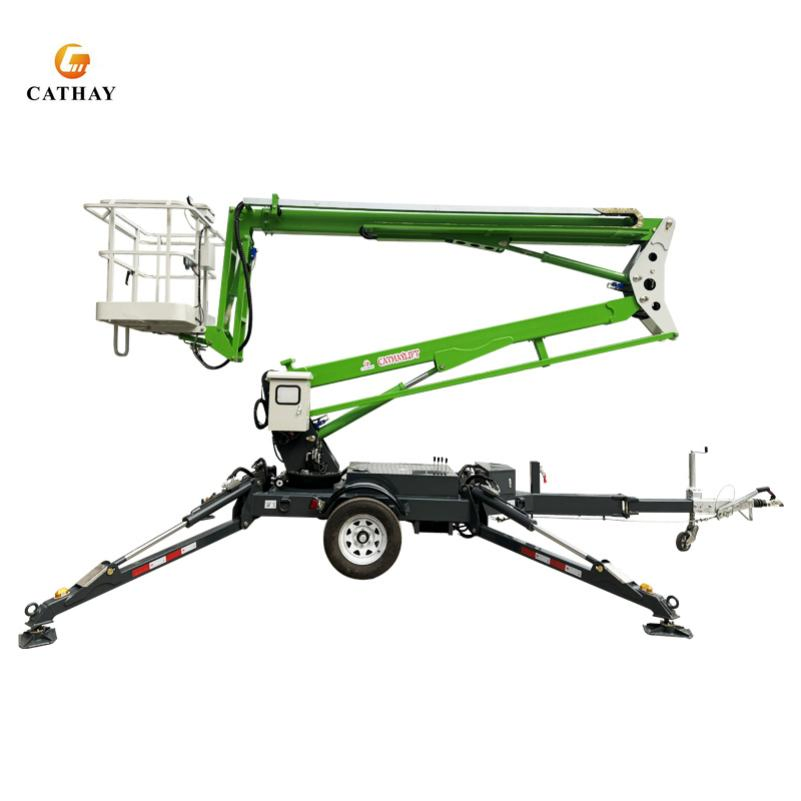

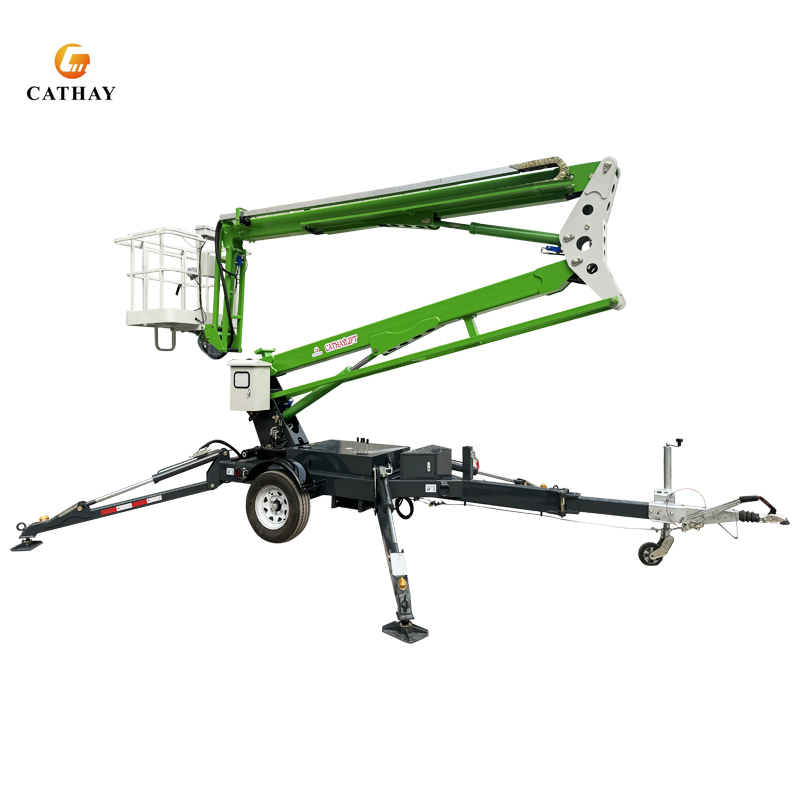

AC/DC Powered Towable Cherry Picker with 24m Working Height

1 / 5

AC/DC Powered Towable Cherry Picker with 24m Working Height

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.CTA-12A/CTA-14T/CTA-16T/CTA-18T/CTA-20T/CTA-22T

ApplicationWorkshop, Shipboard, Warehouse, Building Crane

Lift MechanismArticulated Lift

Carrying Capacity227kg

Driven TypeAC / DC / Diesel / Gasoline

Working Height12m-24m

Working Radius5.5-11m

CertificationGS, CE, RoHS, ISO 9001

Product Description

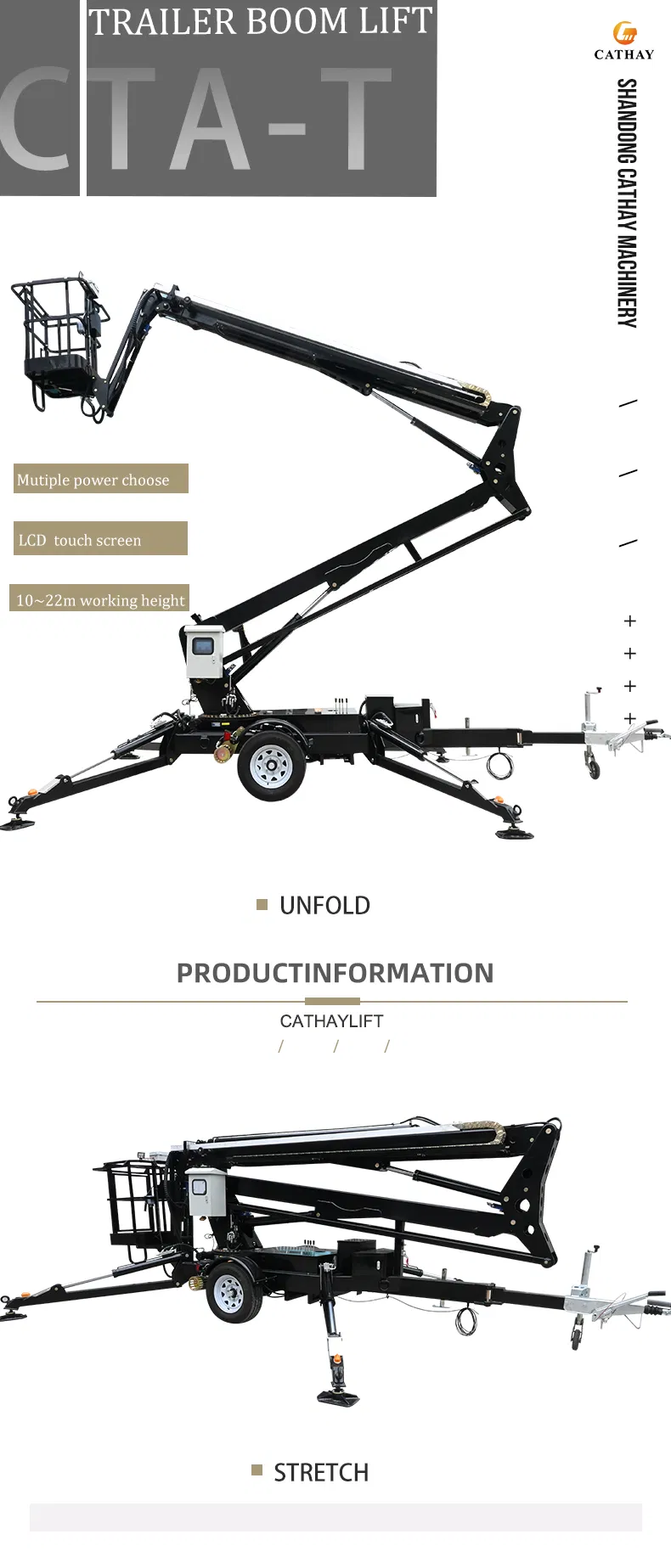

Towable Aerial Cherry Picker Electric Spider Boom Lift

The trailer boom lift is divided into two different types: telescopic and articulated. The maximum platform height is 14m, and the models with higher lift heights are all telescopic versions. The horizontal working radius of 5.5m~11m, and its 360-degree rotating table, make it have outstanding performance in various aerial work projects.

Product Parameters

Model Type	CTA-12A	CTA-14T	CTA-16T	CTA-18T	CTA-20T	CTA-24T
Version	Articulated	Telescopic	Telescopic	Telescopic	Telescopic	Telescopic
Lifting Height	10M	12M	14M	16M	18M	22M
Working Height	12M	14M	16M	18M	20M	24M
Load Capacity	227Kg
Working Radius	5.5M	7.8M	8.5M	10.5M	11M	11M
Net Weight	1750KG	1850KG	2150KG	2350KG	3000KG	5000KG

Note: Tailored requirements such as large slope work, one-key leg leveling, insulated baskets, and remote control are available.

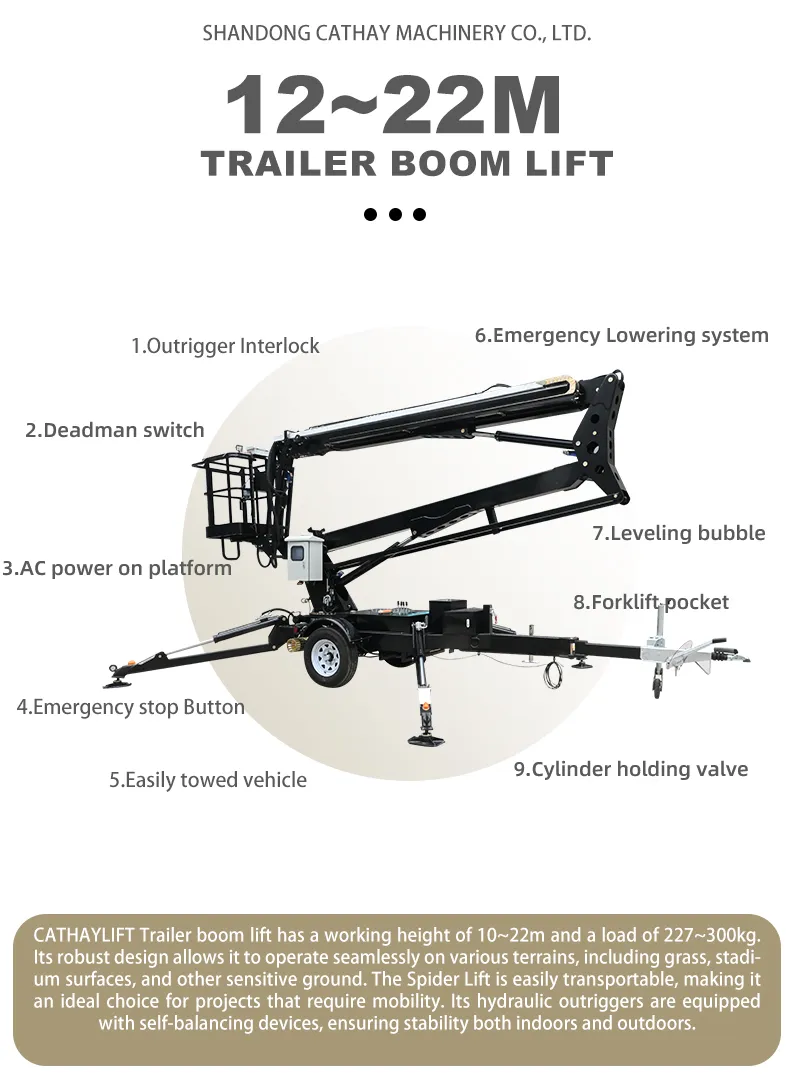

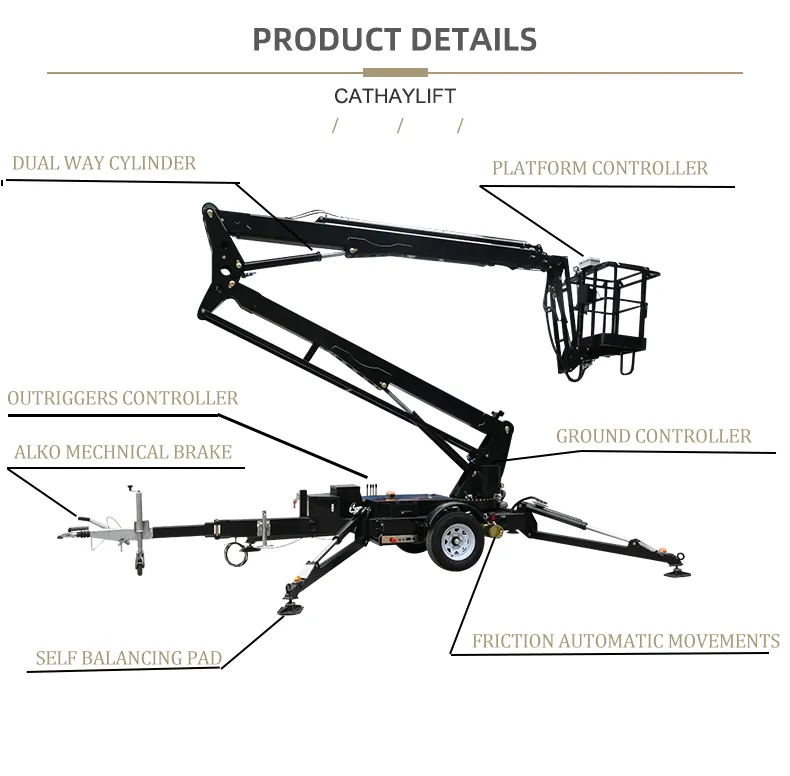

Product Advantages

Compact & portable, towable over long distances by various vehicles.
Hydraulic outriggers with an automatic leveling device.
Full proportional hydraulic control with a large platform.
360˚ continuous turntable rotation.
Friction wheel walking device (Optional) with remote control for small workplaces.

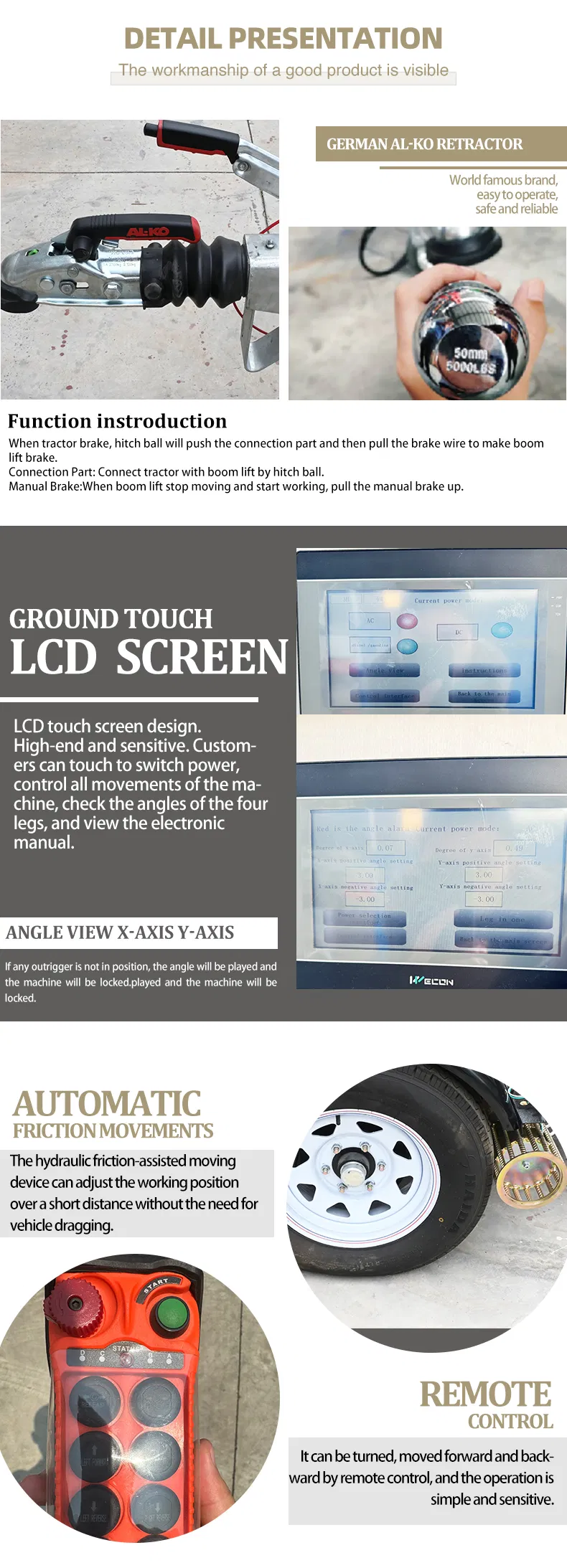

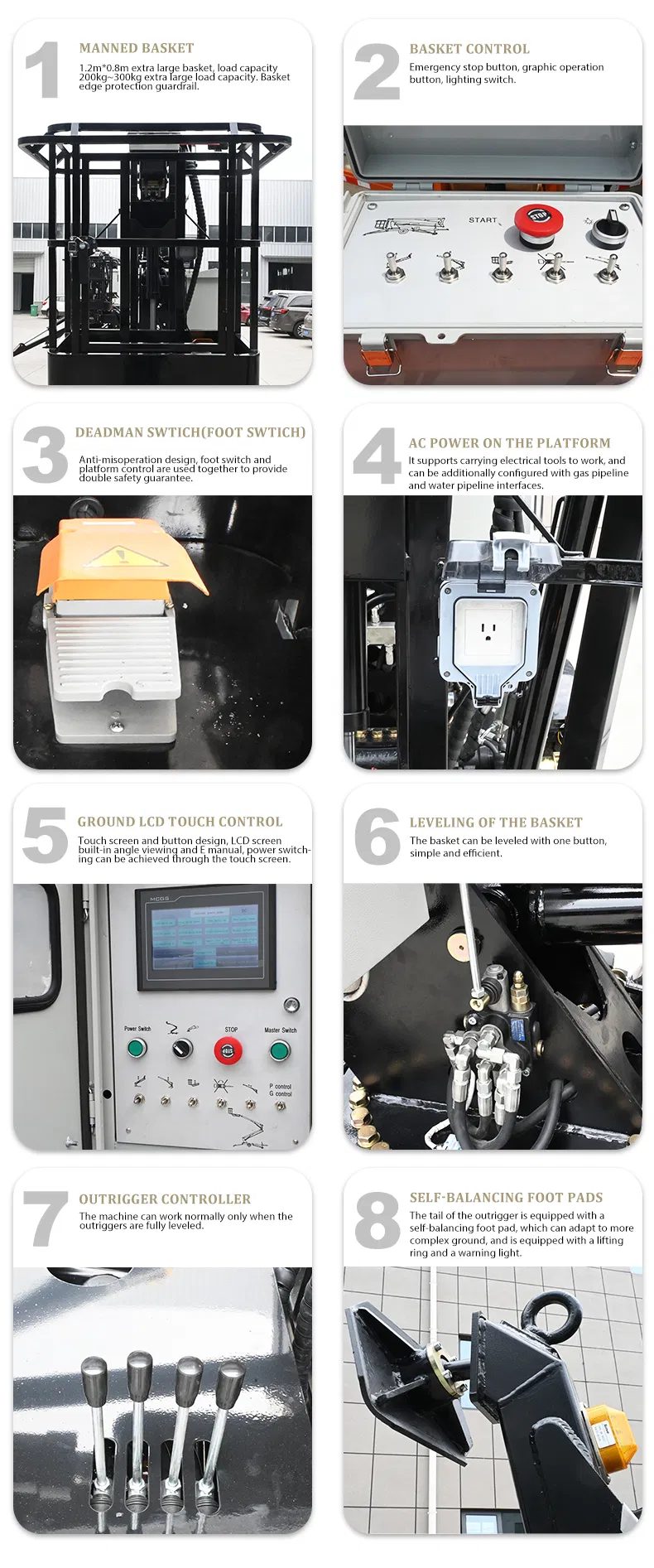

Waterproof control panel with LCD touch screen and E-manual check.
Deadman switch design for safe and reliable operation.
German AL-KO Retractor with electromagnetic and manual brakes.

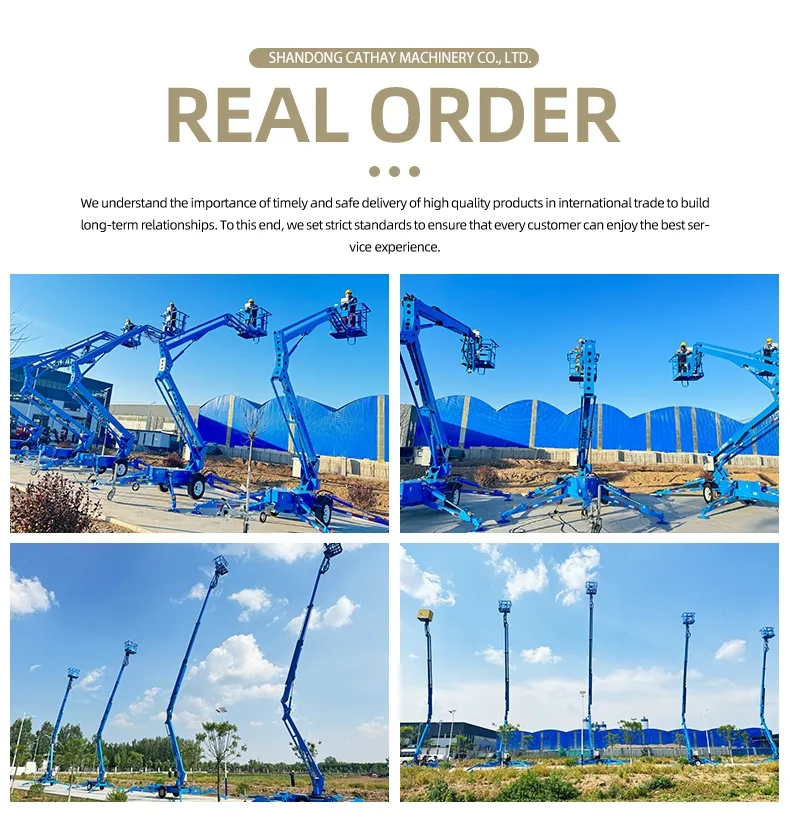

Application & Real Orders

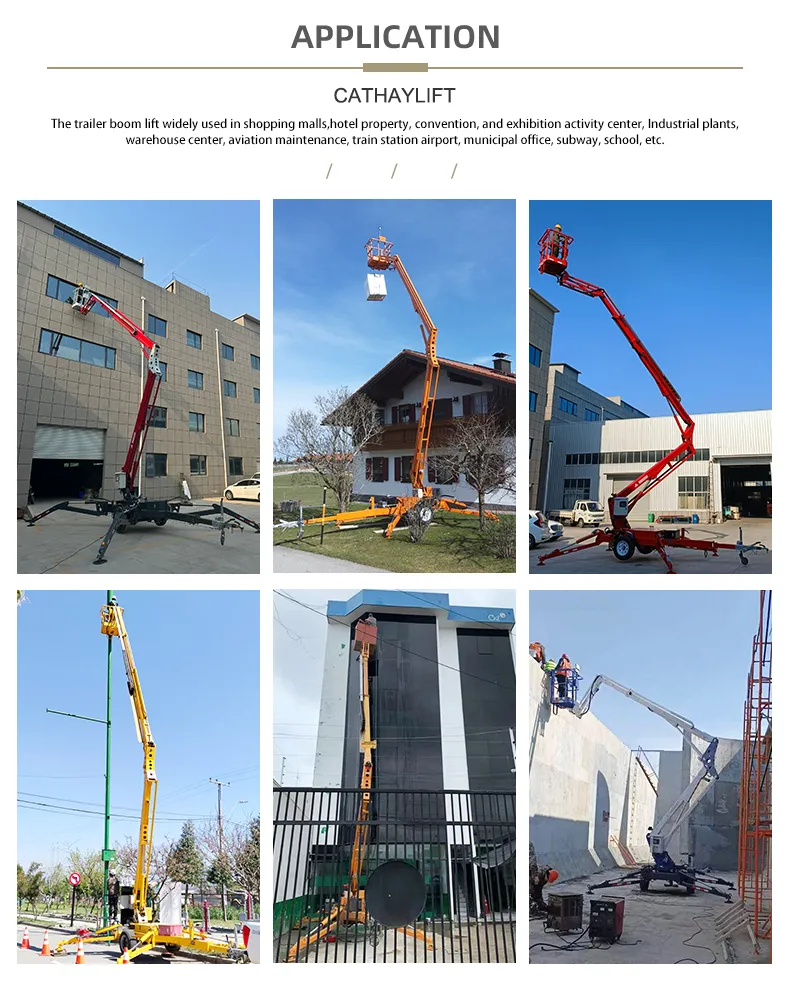

Versatile machines used across various industries: construction (steel structures), maintenance (HVAC, lighting), agriculture (pruning, harvesting), and utilities (electrical line maintenance).

Quality & Certification

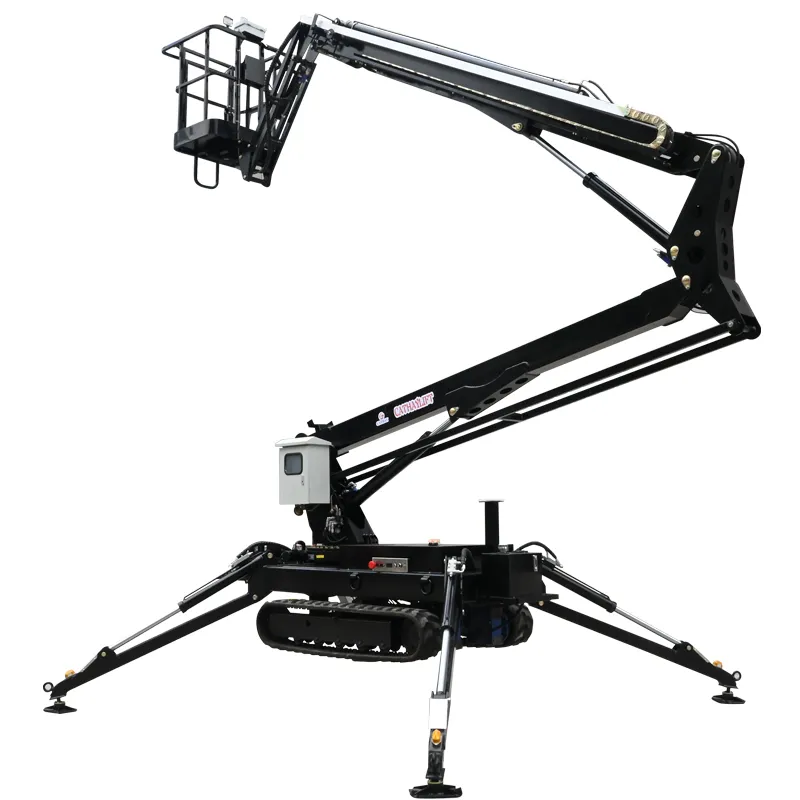

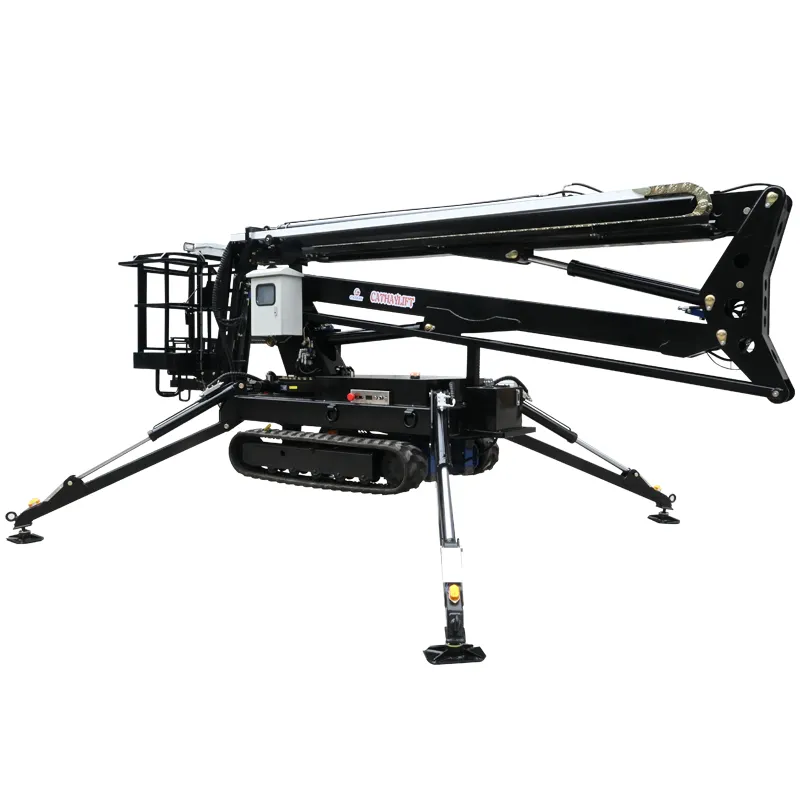

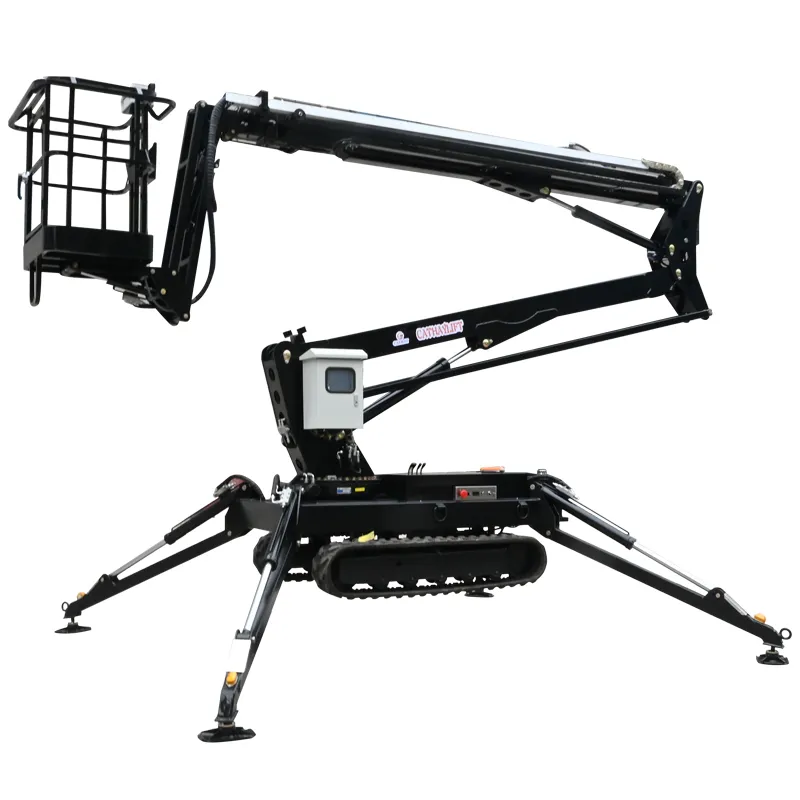

Related Products

Frequently Asked Questions

Q1: What is the maximum working height of your towable boom lifts? A: Our models offer a range of working heights from 12 meters up to 24 meters to suit various project requirements.

Q2: What power options are available for the lift? A: We provide multiple power configurations including AC electric, DC battery, Diesel, Gasoline, and Dual Power options (e.g., AC + Diesel).

Q3: Can the boom lift be towed on public roads? A: Yes, equipped with the German AL-KO retractor and braking system, it can be safely towed at speeds up to 120km/h.

Q4: Does the platform support automatic leveling? A: Yes, the hydraulic outriggers feature an automatic leveling device, and the basket includes a one-button leveling function for ease of use.

Q5: What is the load capacity of the work basket? A: The standard load capacity for all models in this series is 227kg, which is sufficient for two workers plus tools.

Q6: Is it possible to move the lift locally without a towing vehicle? A: Yes, we offer an optional friction wheel auxiliary moving device with remote control for easy positioning within the job site.
