Low profile U shape stationary type electric lift table with CE
Key Features

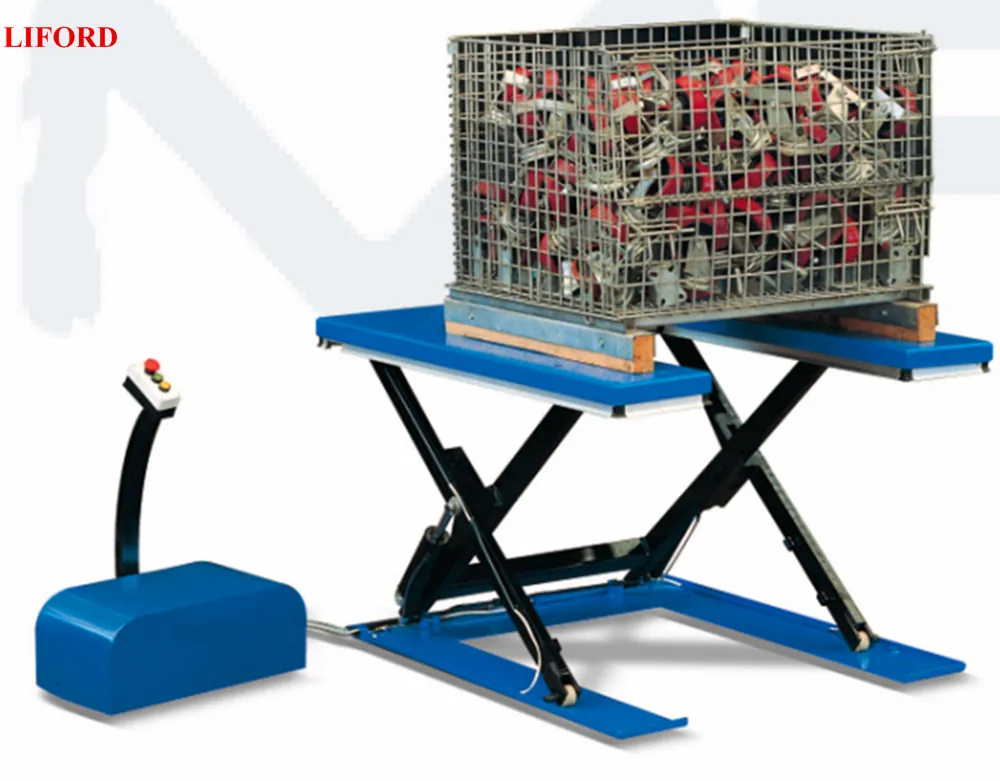

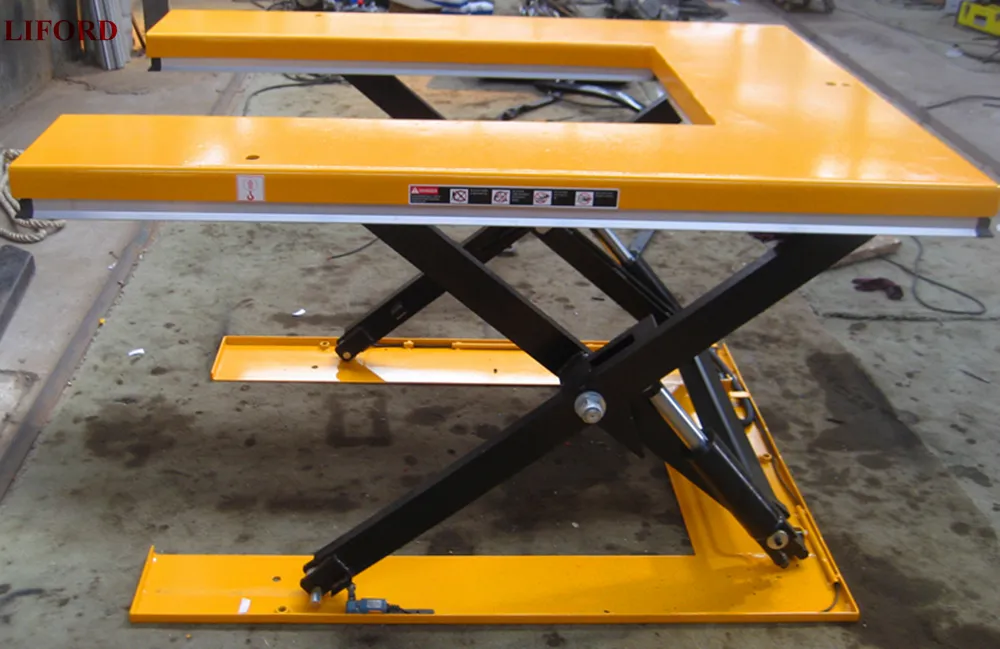

U-Shaped Platform: Specially designed for handling pallets without the need for a pit or load ramps.
Heavy Duty Design: Capacity ranging from 600kg to 1500kg to suit industrial needs.
Safety Standards: Complies with EN1570 norm and ANSI/ASME safety standards.
Remote Power Pack: Equipped with pedestal and controls, protected to IP54.
Safety Perimeter: Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
Advanced Controls: 24V control box featuring UP/DOWN buttons and an emergency stop.

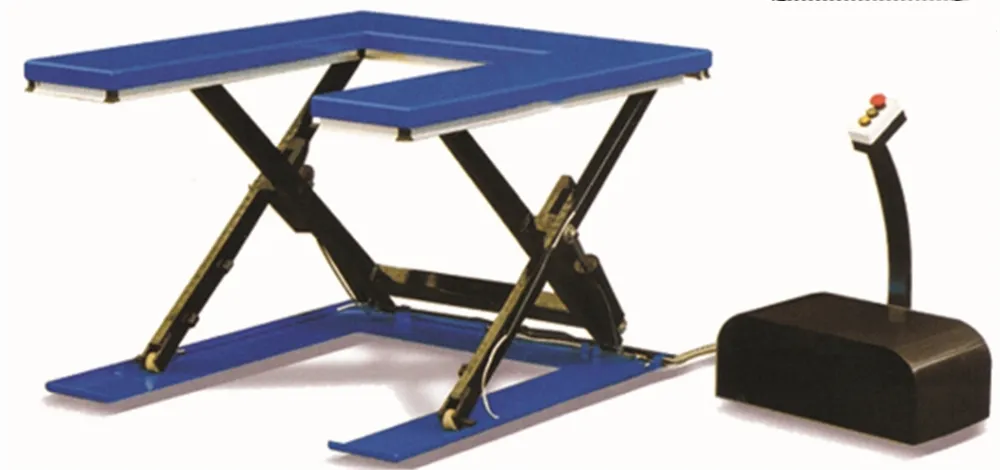

Reliable Hydraulics: External power pack with a relief valve against overloading and a hose burst safety valve.
Technical Data
Model
Unit
HU600
HU1000
HU1500
Capacity
kg
600
1000
1500
Platform Size
mm
1450*985
1450*1140
1600*1180
Min./Max. Height
mm
85/860
85/860
105/860
Base Size
mm
1335*947
1335*947
1335*947
Lift Time
s
25-35
25~35
20~40
Power Supply
V/Hz
380V/50Hz
380V/50Hz
380V/50Hz
Net Weight
kg
207
280
380
Why Choose Us?
Expertise: More than 10 years' professional experience in the material handling industry.
Timely Delivery: Fast production and in-time delivery that respects your project schedule.
Customization: OEM/ODM services available to produce various non-standard parts according to your specific needs.
Quality Assurance: 100% inspection of all finished products before shipment.
Robust Packaging: Strong pallets for sea delivery and reinforced cartons for air delivery ensuring perfect arrival condition.
Frequently Asked Questions
What is the main benefit of the U-shaped design?

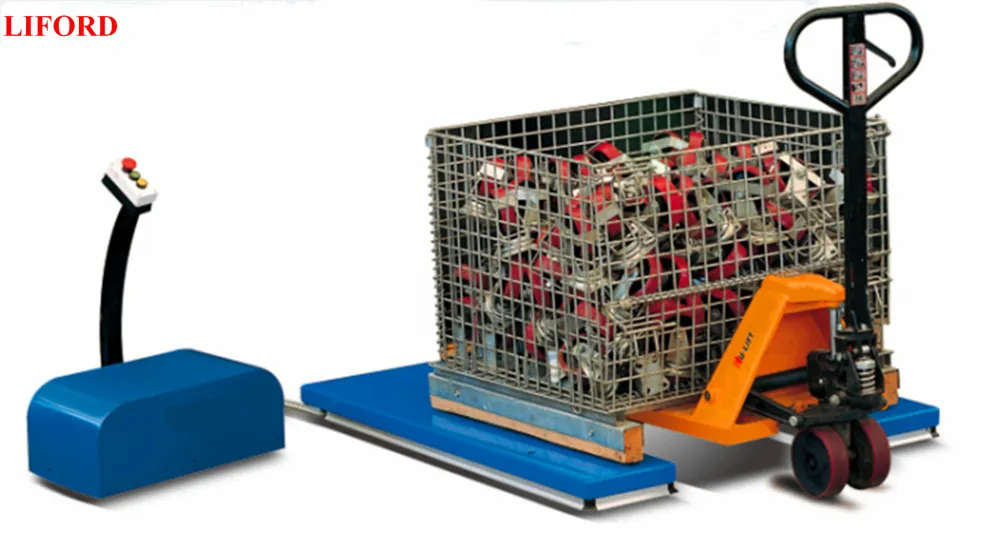

The "U" shaped top platform is specifically designed for handling pallets easily using a pallet truck, eliminating the need for a floor pit or loading ramps.
What are the safety features included?
It includes a safety perimeter to stop descent upon contact with obstructions, a hose burst safety valve for emergency stops, and a 24V control box with an emergency stop button.
What power supply is required for these lift tables?
The standard power supply required is 380V/50Hz, driven by an efficient electric motor.
What is the maximum weight capacity available?
We offer three main models: HU600 (600kg), HU1000 (1000kg), and HU1500 (1500kg) to handle various industrial loads.
Do you offer customized solutions?
Yes, OEM and ODM services are available. we can design and produce various non-standard lift tables based on your specific application requirements.
Are your products internationally certified?
Yes, all our lift tables meet CE certification, ISO 9001 standards, and comply with EN1570 and ANSI/ASME safety norms.
