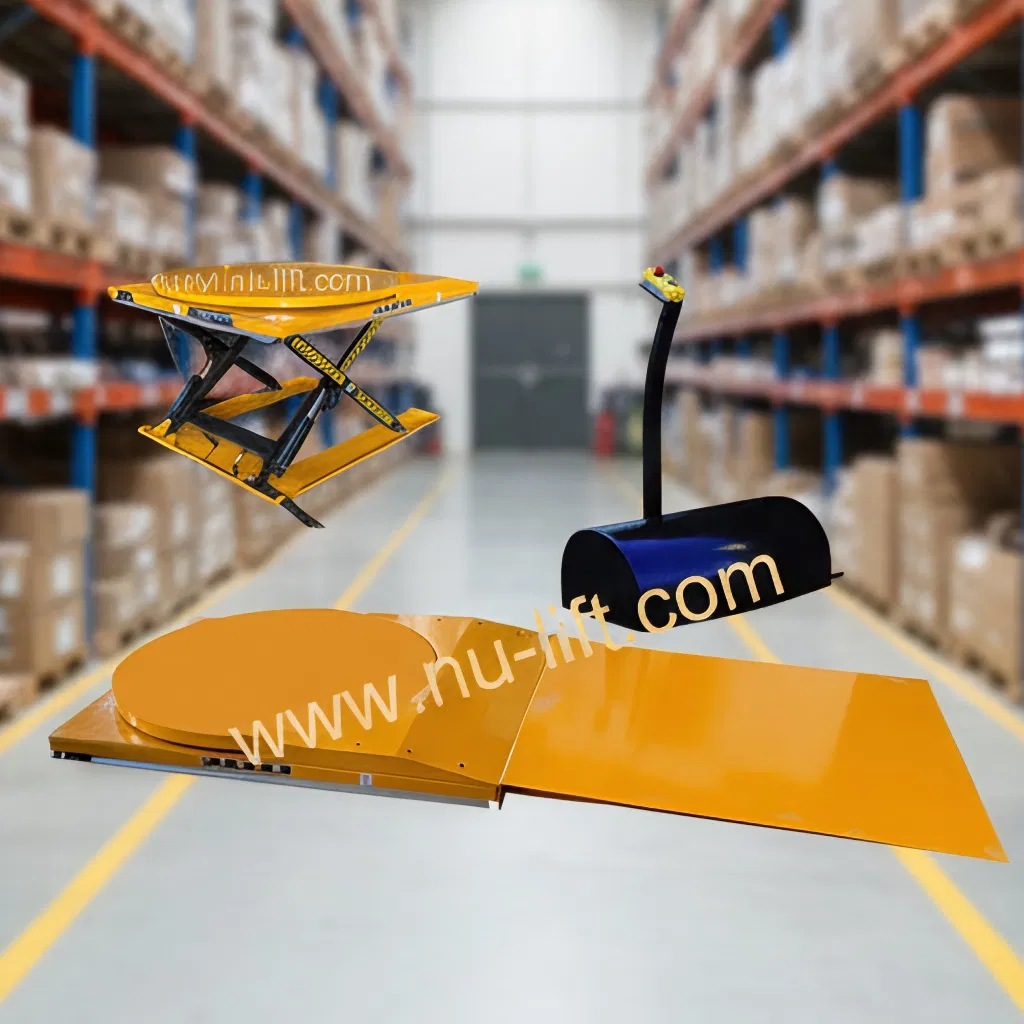

Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series
1 / 3
Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series

Low Profile Rotating Lift Tables-Hy. R Series

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

⚙️ Basic Information

Model NO.
HY1000R, HY1500R, HY2000R
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Driven Type
AC (Electric)
Certification
GS, CE
Material
Steel
Min. Height
105mm
Lifting Height
900mm
Origin
China
Capacity
1000kg - 2000kg

📋 Product Description

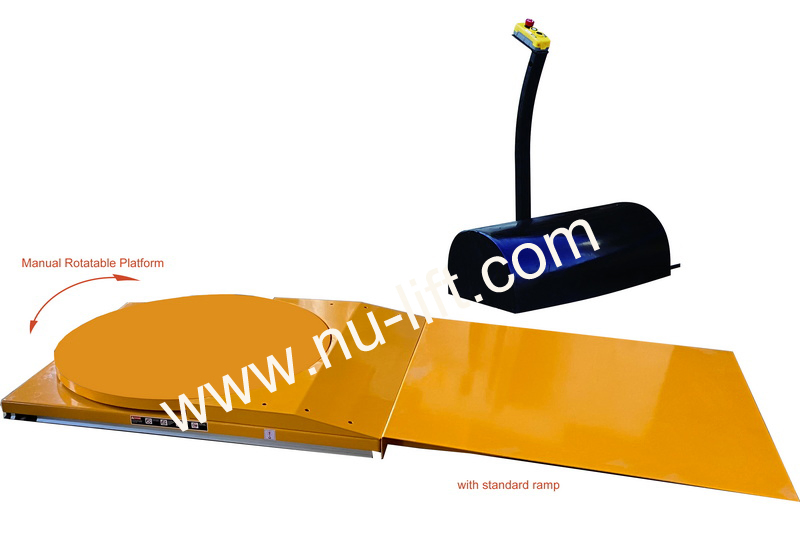

  • ✔Low profile lift table featuring a rotatable platform for versatile industrial applications.
  • ✔Available capacities: 1 Ton (1000kg), 1.5 Ton (1500kg), and 2 Ton (2000kg).
  • ✔Standardized Round Table Size: Dia. 1200mm for efficient material handling.
  • ✔Ultra-low lowered height of 170mm for easy loading.
  • ✔Equipped with a standard loading ramp for seamless transitions.
  • ✔Maintenance-friendly design with oiless bushings on all pivot points.

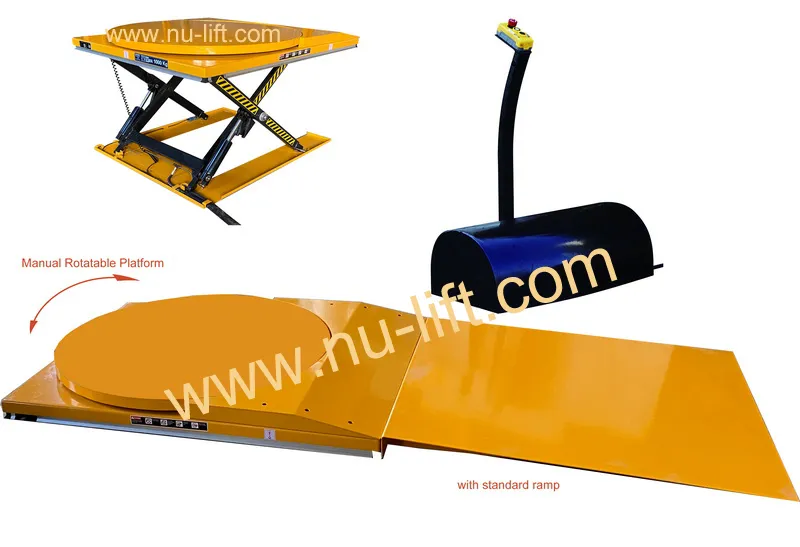

Low Profile Rotating Lift Tables

📊 Technical Specifications

Model Capacity (kg) Square Platform (mm) Round Platform (mm) Min. Height (mm) Max. Height (mm) Stroke (mm) Lifting Time (s) Power Pack Net Weight (kg)
HY1000R 1000 1600 × 1200 Dia.1200 170 900 730 25 380V/50HZ, 0.75kw 400
HY1500R 1500 1600 × 1200 Dia.1200 170 900 730 30 380V/50HZ, 1.5kw 465
HY2000R 2000 1600 × 1200 Dia.1200 170 900 730 35 380V/50HZ, 2.2kw 475

🖼️ Product Gallery

Rotating Table Detail 1
Rotating Table Detail 2
Rotating Table Detail 3
Rotating Table Detail 4
Rotating Table Detail 5
Rotating Table Detail 6

❓ Frequently Asked Questions

💡 What is the maximum load capacity for the Hy. R series?
The series offers three capacity options: 1000kg (HY1000R), 1500kg (HY1500R), and 2000kg (HY2000R).
💡 Does the lift table include a loading ramp?
Yes, a loading ramp is provided as standard equipment to facilitate easy loading and unloading.
💡 What are the dimensions of the rotating platform?
The rotating round platform has a standard diameter of 1200mm.
💡 What are the power requirements for operation?
The system requires a 380V/50HZ AC power supply. The motor power ranges from 0.75kw to 2.2kw depending on the model.
💡 What is the range of vertical movement?
The lift tables have a lowered height of 170mm and can reach a maximum height of 900mm, providing a total stroke of 730mm.
💡 Is frequent lubrication required for the pivot points?
No, these lift tables are designed with oiless bushings on pivot points to reduce maintenance needs.
