Product Description

Basic Specifications

Model NO.
HY1001, HY1501, HY2001
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
AC
Certification
CE, ISO 9001
Capacity
1000-2000kg
Min. Height
85mm
Product Name
U-Shape Lift Table

Packaging & Delivery

Package Size
175.00cm * 135.00cm * 60.00cm
Gross Weight
500.000kg
Transport
Pallet with Stretch Film or Cartons

Product Description

Ultra Low Profile Scissor Lift

Ultra Low Profile Electric Scissor Lifts Hydraulic Platform

Lift Detail 1

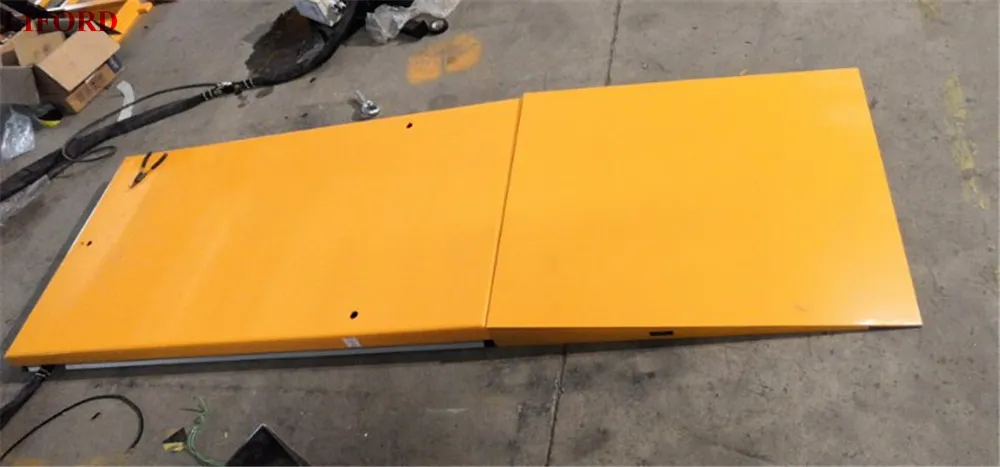

Lift Detail 2
Technical Layout
Product Use 1
Product Use 2
Product Use 3

Key Features

  • Closed height only 85mm, no ramp needed for pallet.
  • Mechanical safety chocks for maintenance support.
  • Eliminates the need for a pit installation due to super low profile.
  • Fully complies with EN1570 norm and ANSI/ASME safety standards.

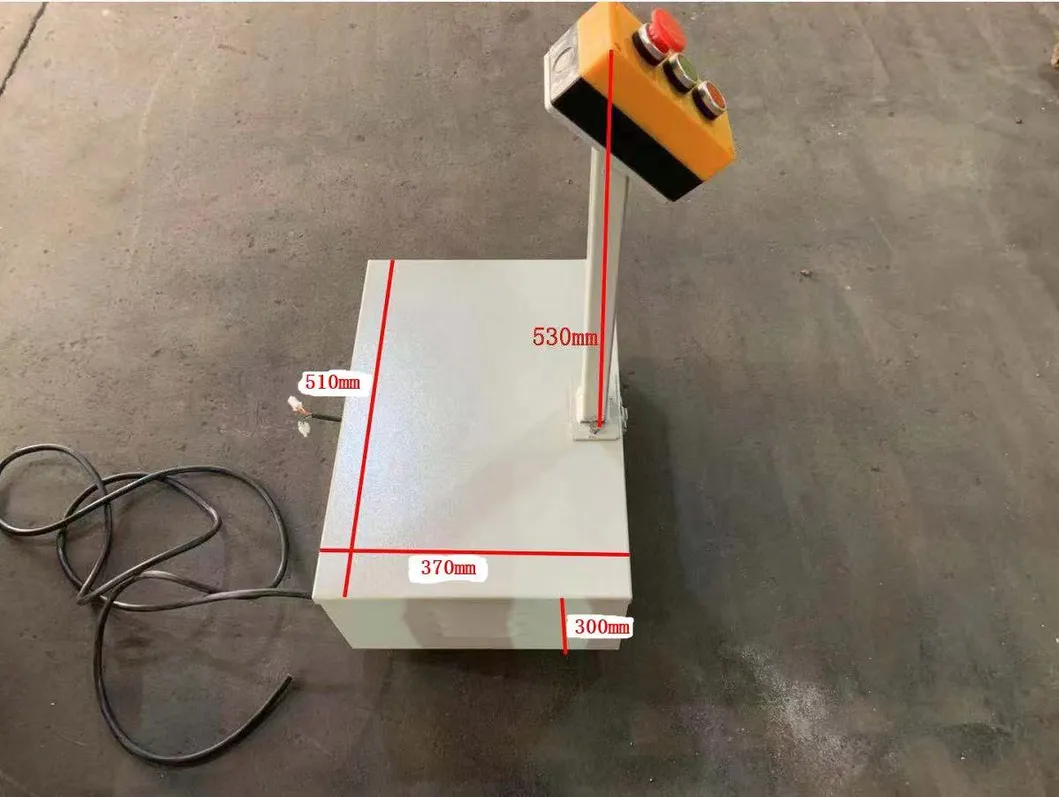

  • Remote power pack with pedestal and IP54 protected controls.
  • Safety perimeter on upper platform to prevent descent on contact with obstructions.
  • 24V control box with emergency stop and UP/DOWN buttons.
  • Hose burst safety valve to prevent lowering in case of breakage.

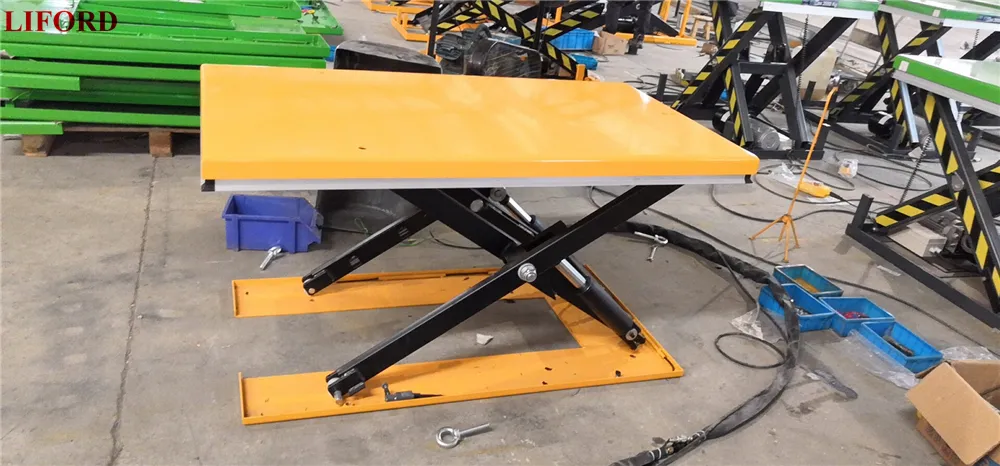

Component 1
Component 2

Technical Data

Model Capacity (kg) Min./Max. Height (mm) Table Size (mm) Lifting Time (s) Power N.W. (kg)
HY1001100085/8601450*114025380V/50Hz357
HY1002100085/8601600*114025380V/50Hz364
HY15011500105/8701600*80030380V/50Hz302
HY20012000105/8701600*118035380V/50Hz419

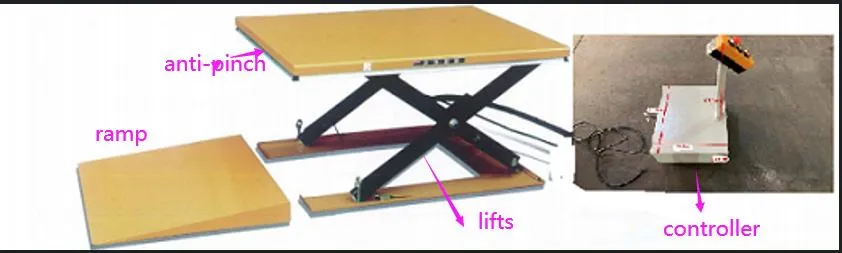

Data Sheet 1
Data Sheet 2

Why Choose Our Equipment?

  • More than 10 years' professional experience in material handling.
  • Fast production and in-time delivery.
  • One-stop custom service and OEM/ODM availability.
  • 100% inspection before shipment for all finished products.
  • Strong packaging for sea and air delivery to ensure perfect condition.
Production Process
Factory View

Frequently Asked Questions

What is the minimum height of this lift table?
The minimum height is as low as 85mm, which allows for easy pallet handling without needing a pit or a ramp.
Which safety standards do your scissor lifts meet?
Our lift tables meet the EN1570 norm and ANSI/ASME safety standards, ensuring high operational safety.
Is the control system protected against environmental factors?
Yes, the remote power pack and controls are protected to IP54 standards, offering resistance against dust and water splashes.
Can the lowering speed be adjusted?
Yes, the external power pack is equipped with a compensated flow valve specifically designed for controlling the lowering speed.
What is the production capacity per month?
Our current production capacity is approximately 600 pieces per month to ensure timely delivery for all projects.
Do you provide custom OEM services?
Yes, we provide one-stop custom OEM/ODM services to design and produce various non-standard parts based on your specific needs.
