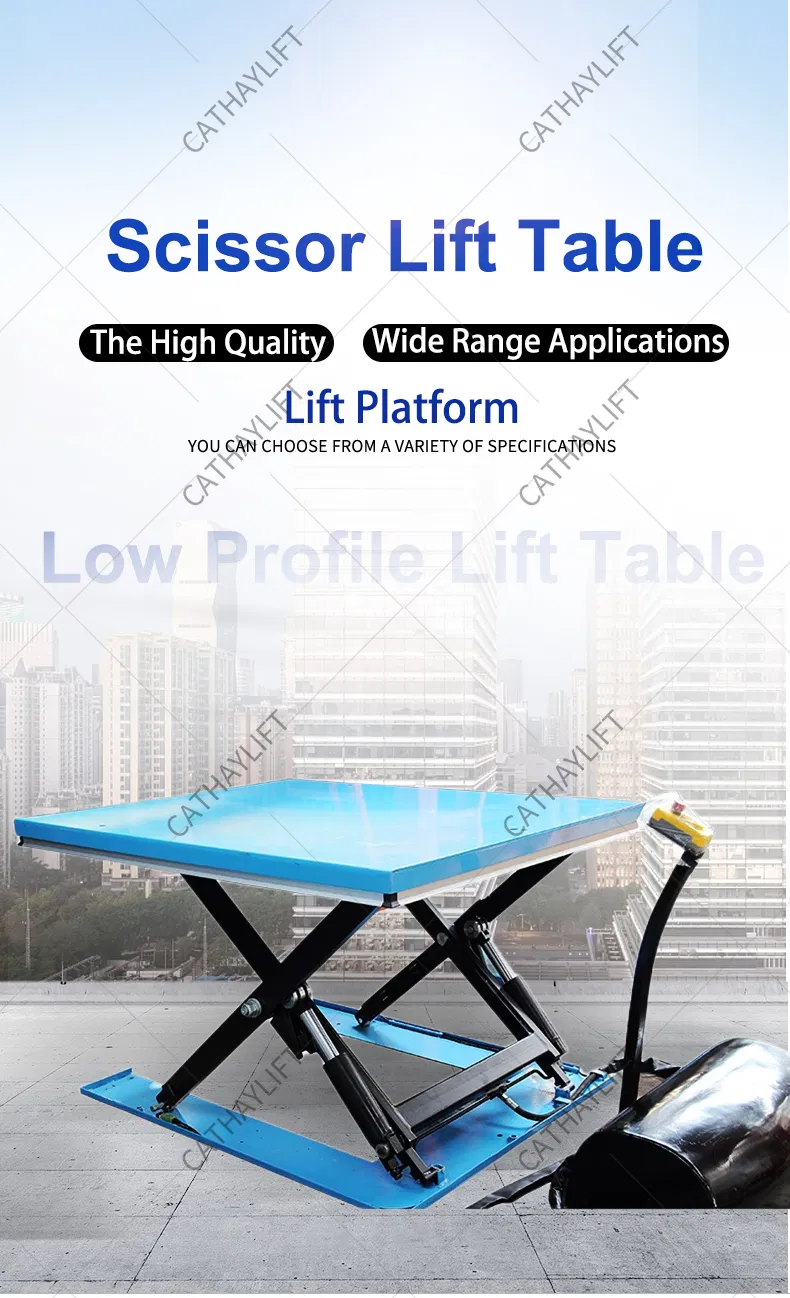

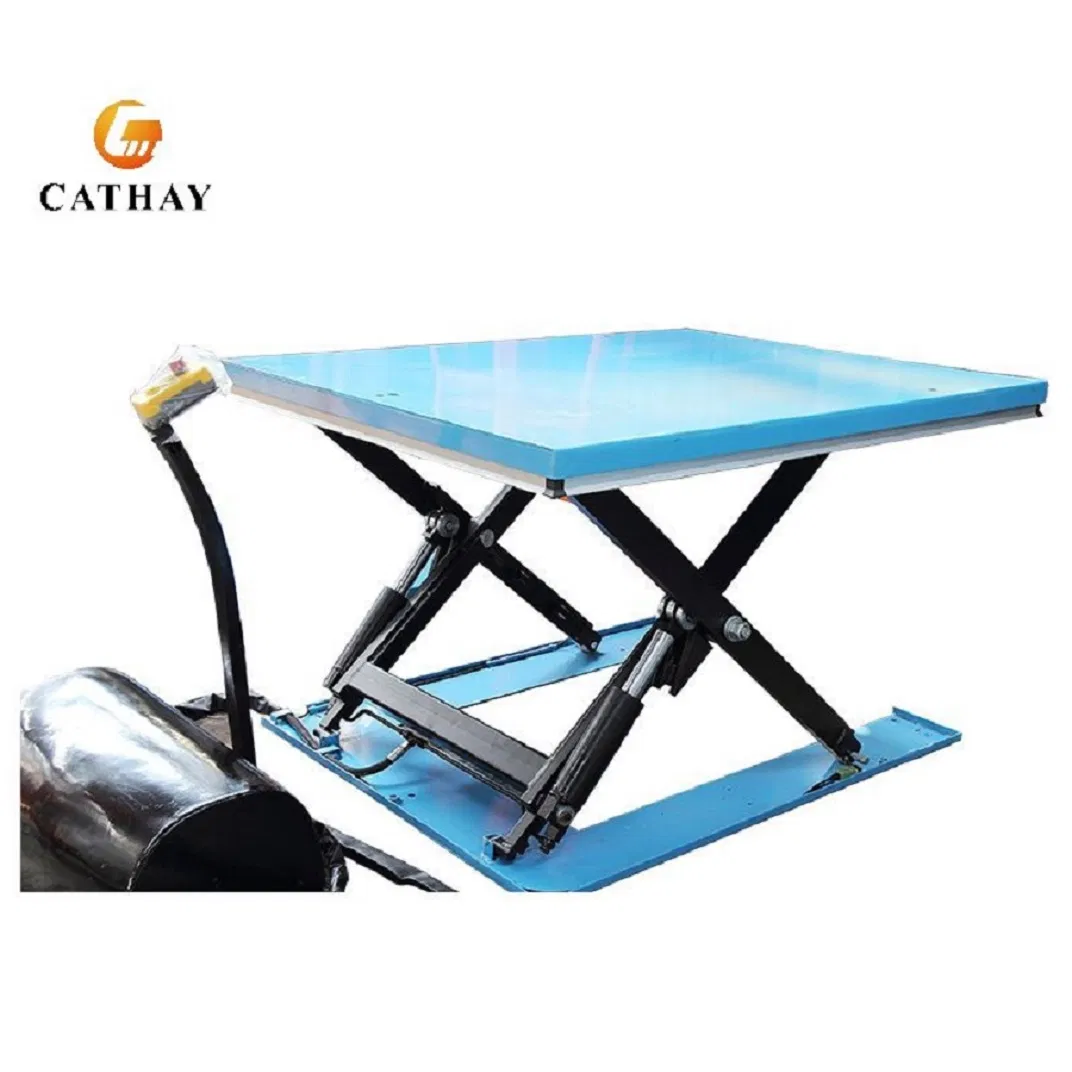

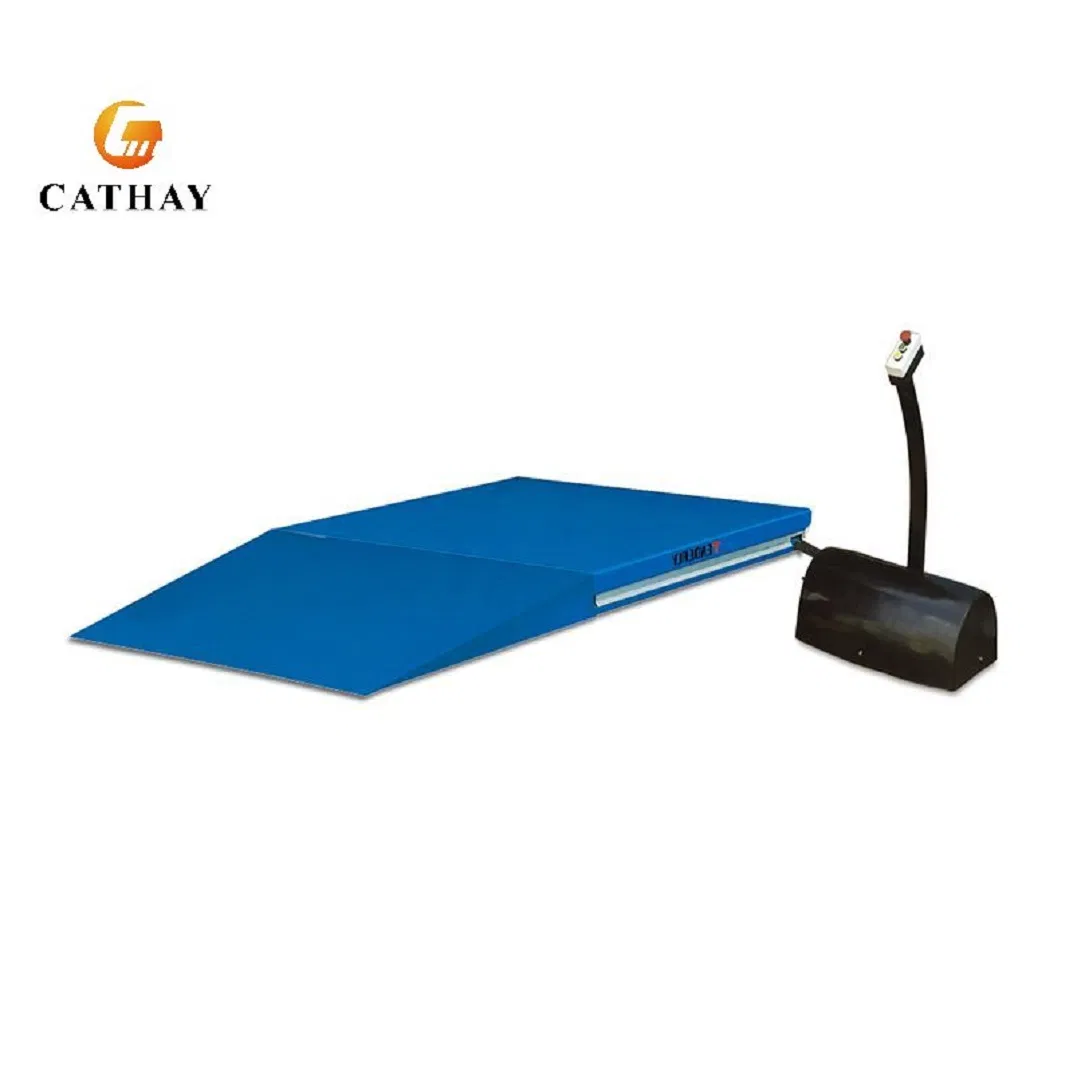

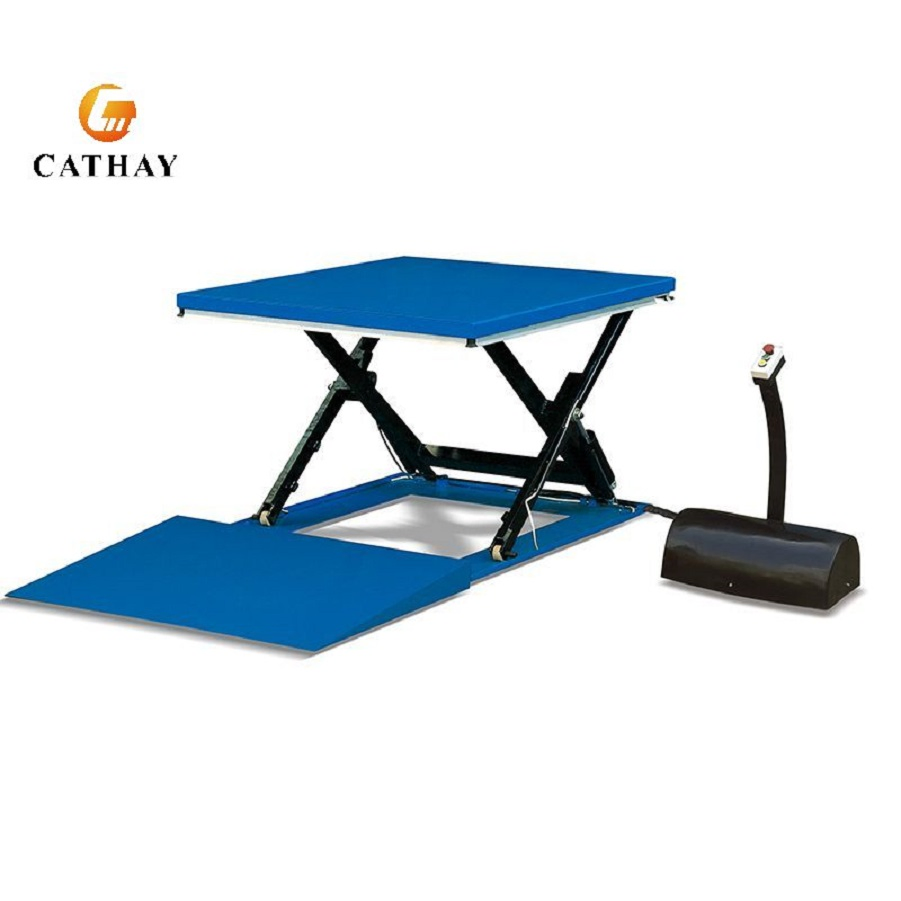

1 Ton & 2 Ton Super Low-Profile Hydraulic Electric Scissor Lift Table

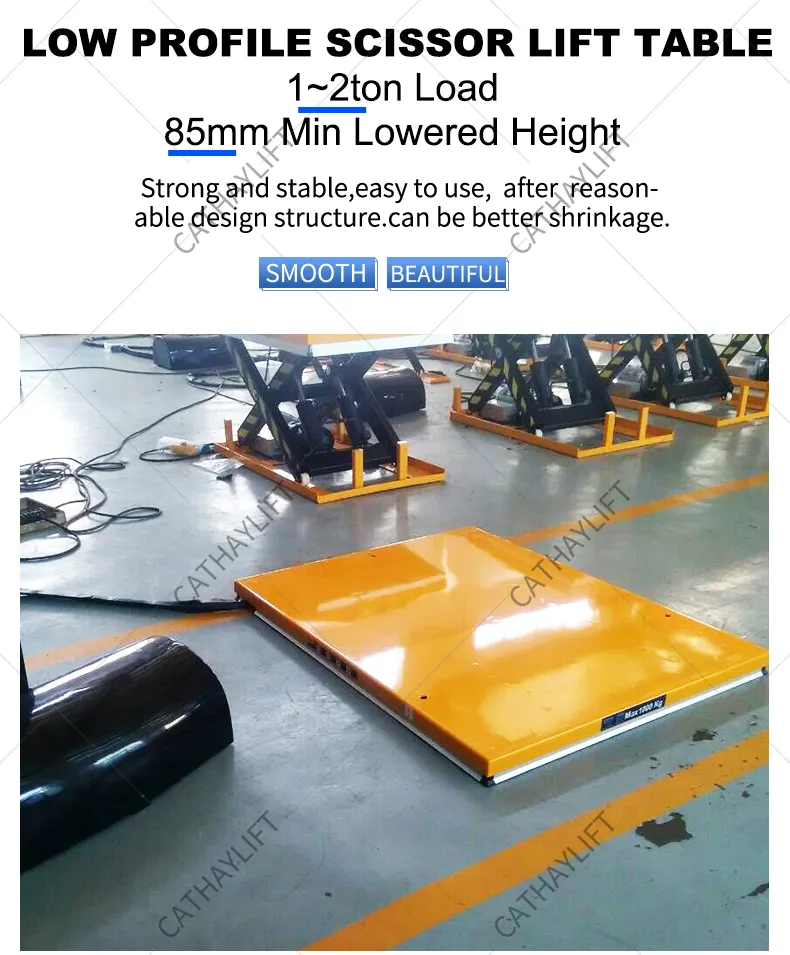

The Low Profile Scissor Lift is designed for efficient material handling, with a load capacity between 1000kg and 2000kg and a remarkably low platform height of just 85mm when fully lowered. This design allows for smooth loading and unloading without the need for a floor pit. The equipment supports full customization, including table dimensions, lifting height, and weight capacity, making it a practical solution for a wide range of industrial applications.
| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Lift Mechanism | Scissor Lift | Load Capacity | 500kg - 4000kg (Customizable) |
| Driven Type | AC Power | Lifting Height | 1m - 4m (Customizable) |
| Certification | GS, CE, RoHS, ISO 9001 | Lifting Motor | 12V / 0.8kw |
| Battery Charger | 12V / 15A | Platform Size | 1300×820mm (Customizable) |
| Feature | Explosion-Proof, Insulating | Transport Package | Wooden Box |
| Model | Capacity (kg) | Platform (mm) | Self Height (mm) | Max Height (mm) | Time (s) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| HL1001 | 1000 | 1450x1140 | 85 | 860 | 25 | 357 |
| HL1002 | 1000 | 1600x1140 | 85 | 860 | 25 | 364 |
| HL1003 | 1000 | 1450x800 | 85 | 860 | 25 | 326 |
| HL1004 | 1000 | 1600x800 | 85 | 860 | 25 | 332 |
| HL1005 | 1000 | 1600x1000 | 85 | 860 | 25 | 352 |
| HL1501 | 1500 | 1600x800 | 105 | 870 | 30 | 302 |
| HL1502 | 1500 | 1600x1000 | 105 | 870 | 30 | 401 |
| HL1503 | 1500 | 1600x1200 | 105 | 870 | 30 | 415 |
| HL2001 | 2000 | 1600x1200 | 105 | 870 | 35 | 419 |
| HL2002 | 2000 | 1600x1000 | 105 | 870 | 35 | 405 |

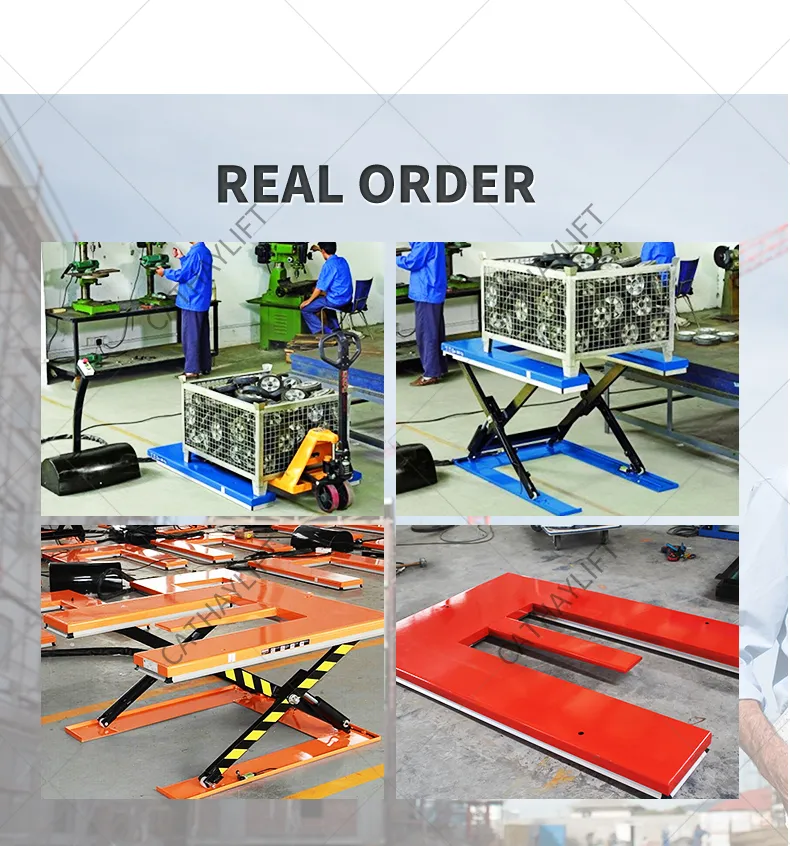

These lift tables provide exceptional convenience for working in narrow areas, such as entering elevators, indoor workshops, and under eaves. With a versatile load capacity, they easily accommodate both personnel and heavy materials, saving time and effort during storage and maintenance tasks.
