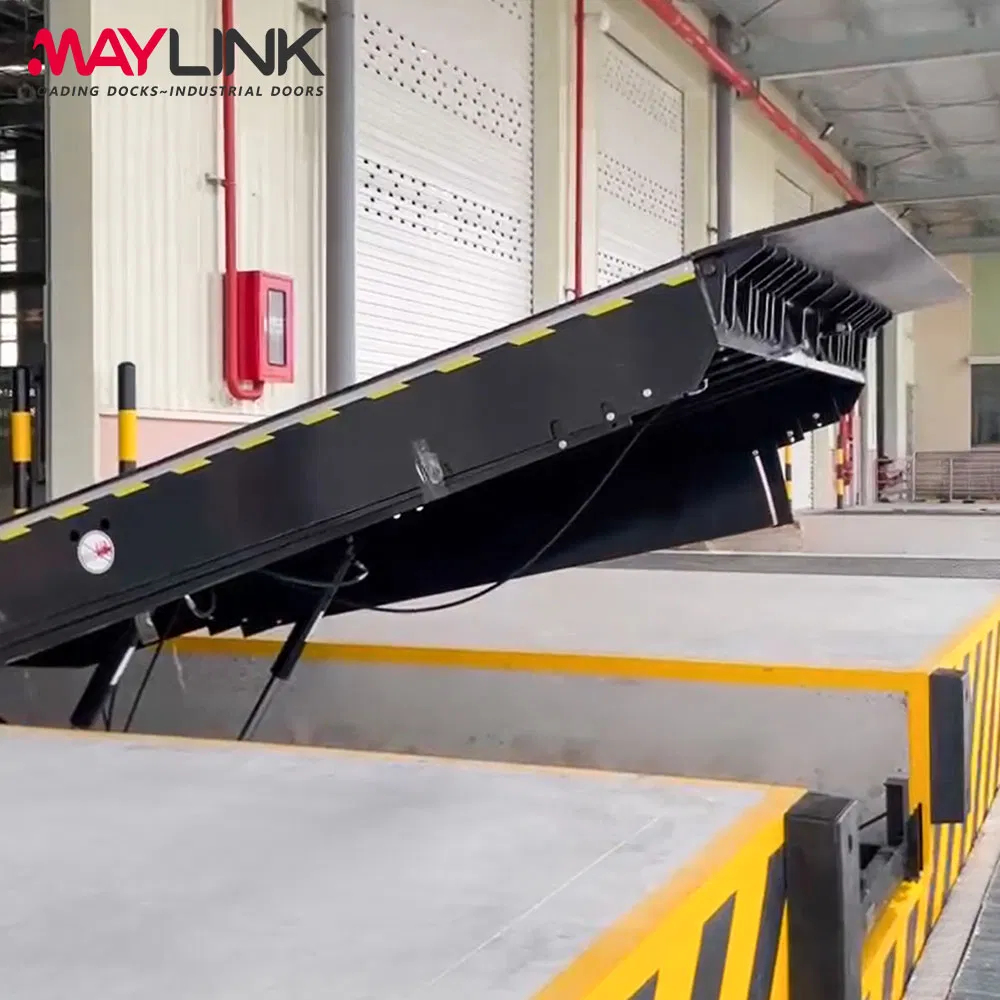

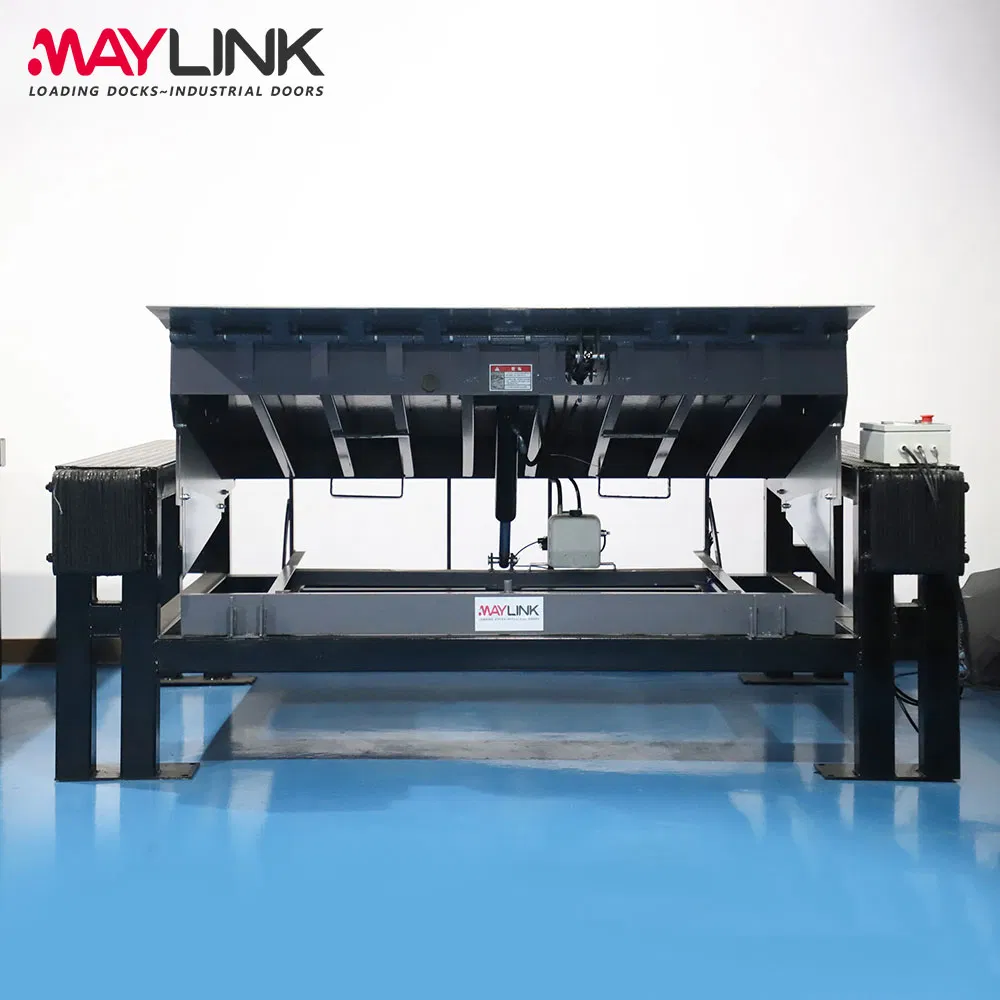

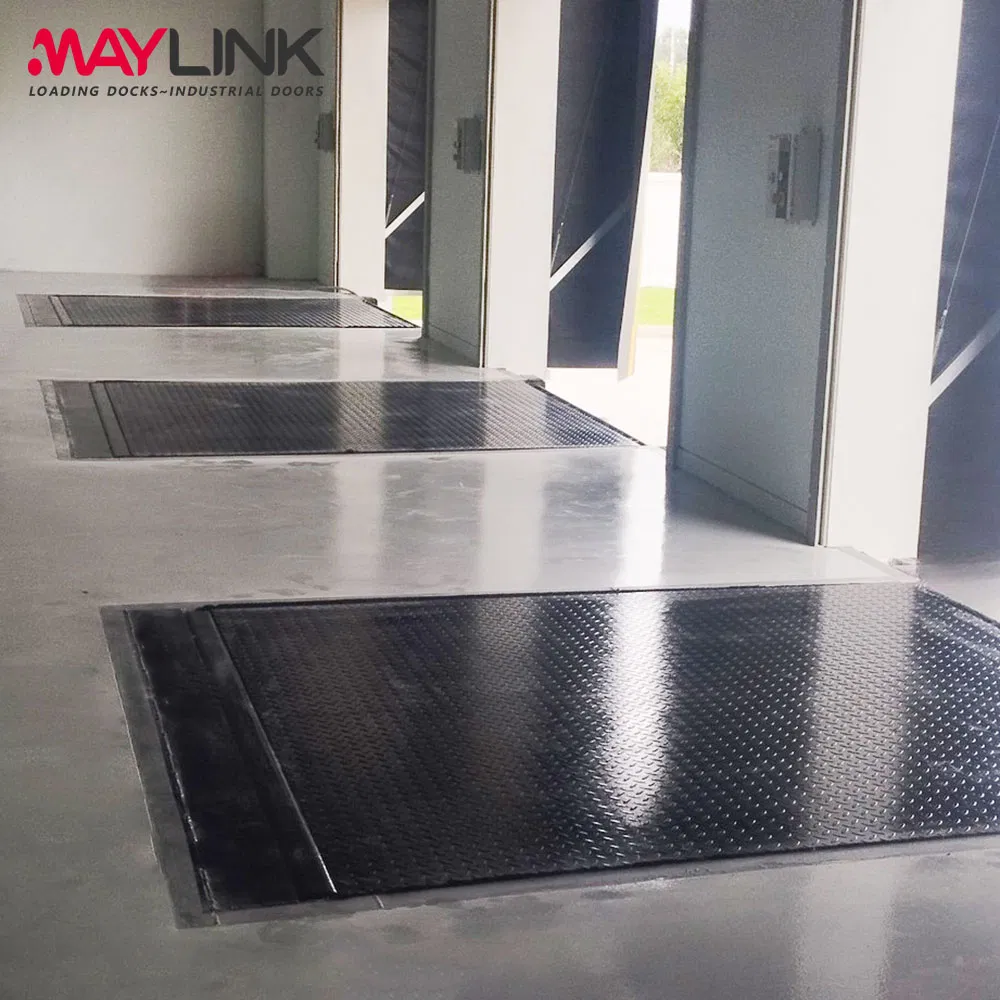

Maylink Heavy Duty 10t High Efficient Loading Unloading Hydraulic Dock Leveler

1 / 5

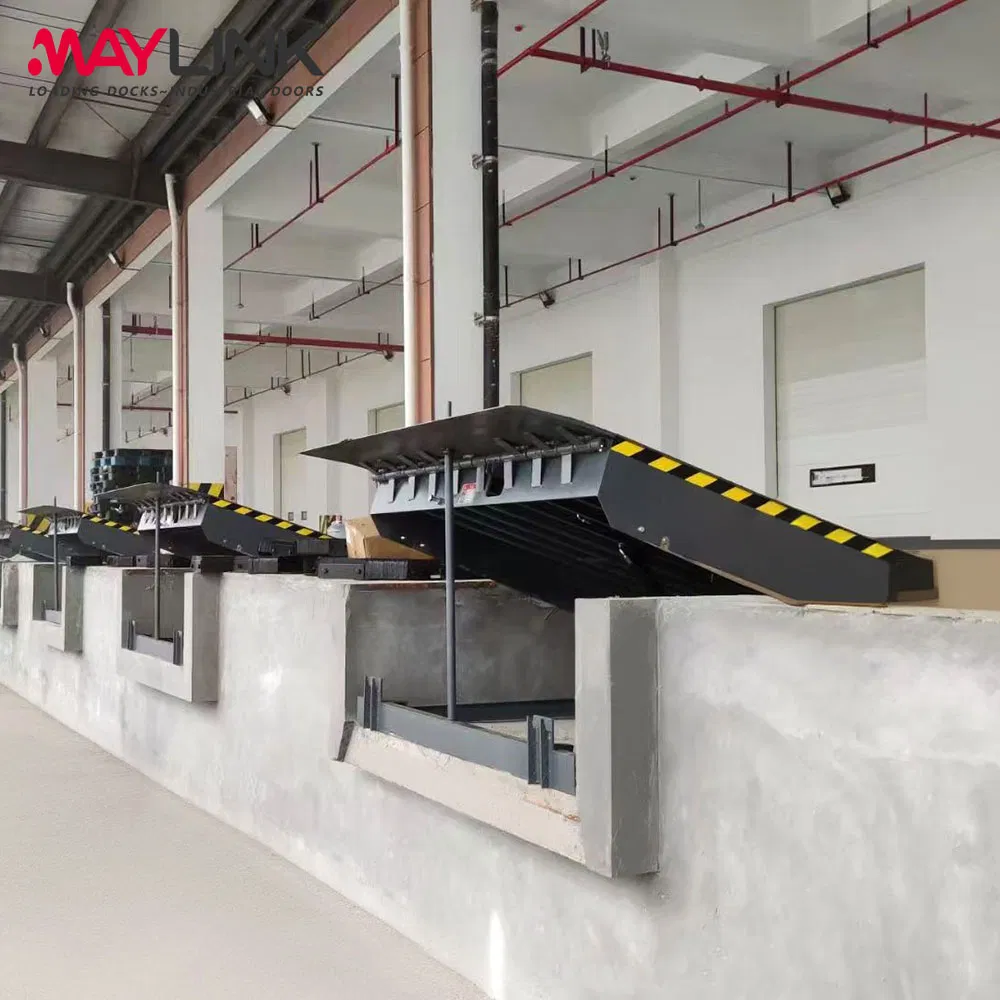

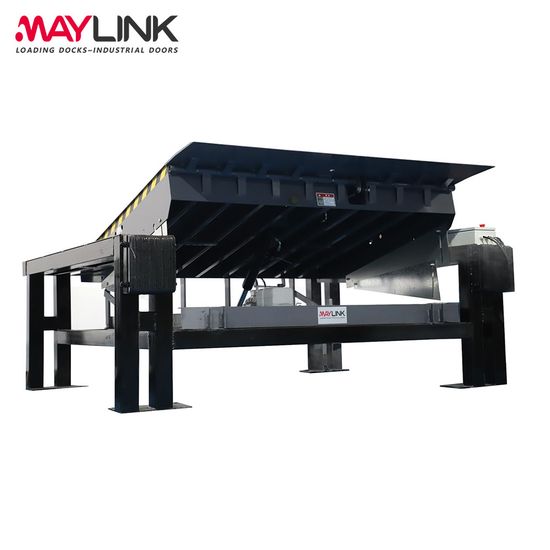

Maylink Heavy Duty 10t High Efficient Loading Unloading Hydraulic Dock Leveler

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model	MLK-HDL-001
Application	Warehousing Docking
Lift Mechanism	Hydraulic Lift
Carrying Capacity	Dynamic 8 Tons, Static 16 Tons
Driven Type	Hydraulic
Certification	GS, CE, RoHS, ISO 9001
Standard Size	W2000L2000H600mm (Customizable)
Power	3 Phase / 380V / 50Hz (0.75/1.1/1.5kw)
Adjust Range	+350mm to -300mm
Dock Plate	8mm Non-Slip Pattern Steel
Tongue Plate	16mm Non-Slip Pattern Steel (400/500mm)
Hydraulic System	German Argo-Hytos / Switzerland Bucher
IP Grade	IP55

Product Description

The electric hydraulic dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With a simple button operation, the dock plate automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, significantly improving loading and unloading efficiency.

Key Advantages

🛡️

Strength & Durability: Heavy-duty steel frame handles loads up to 20 tons with corrosion-resistant finishes.

⚙️

Effortless Operation: Smooth, low-noise one-button control reduces operator fatigue.

✅

Enhanced Safety: Equipped with lip locks, safety legs, and anti-slip surfaces.

🔧

Low Maintenance: Fully sealed hydraulic system minimizes servicing requirements.

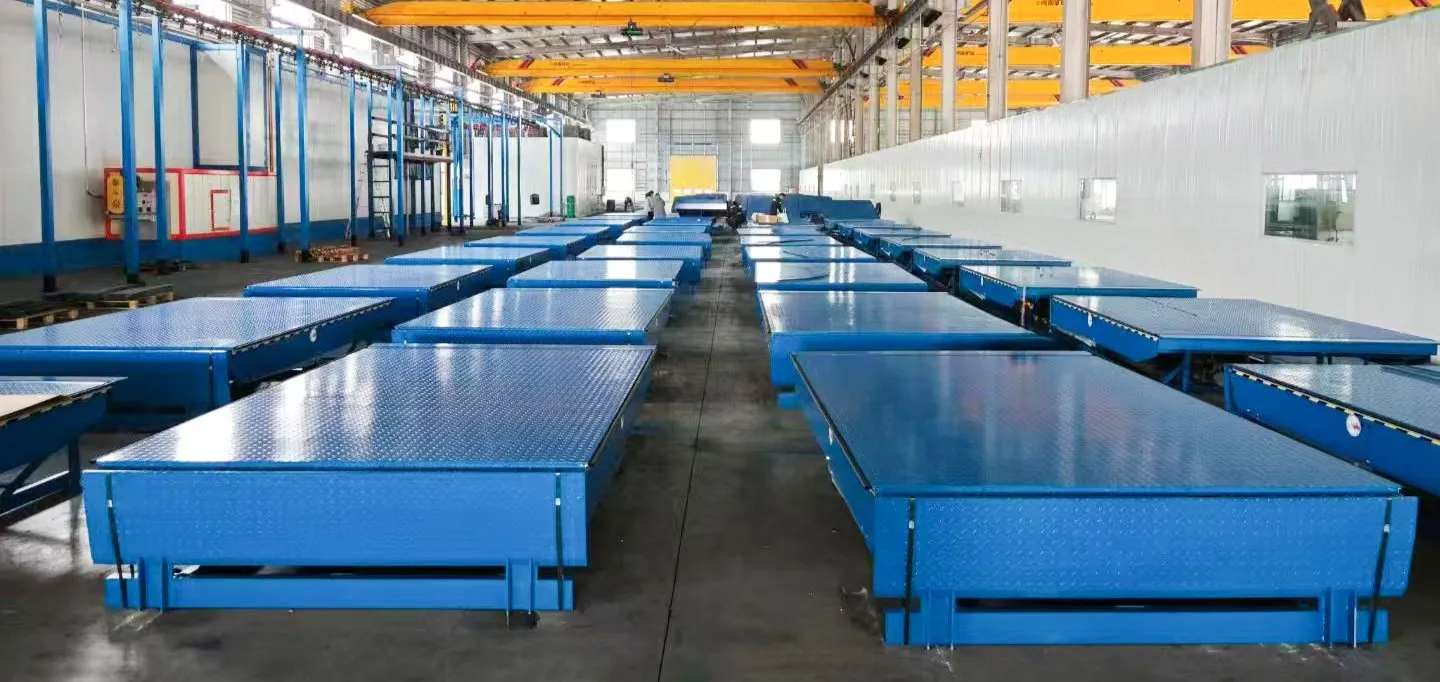

Configuration Details

Quality Standards: All dock levelers meet CE certification EN1389:2009 standards. We utilize modern laser cutting, robot welding, and fully automated painting systems to ensure high precision and reliability.

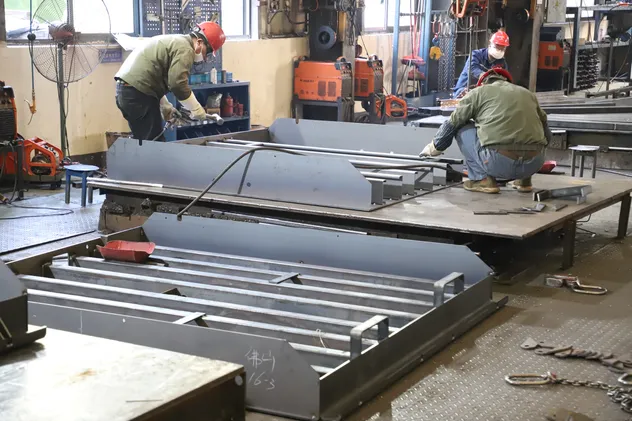

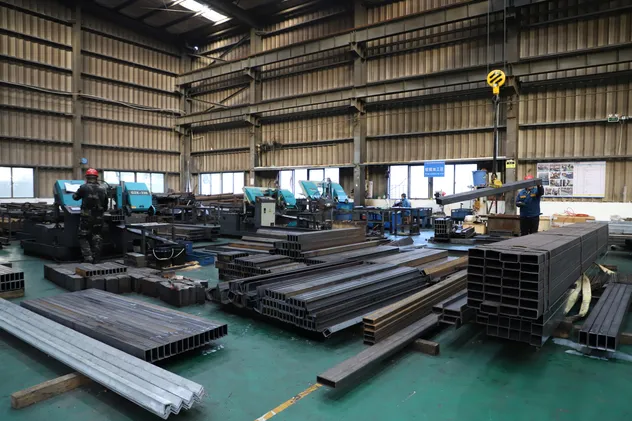

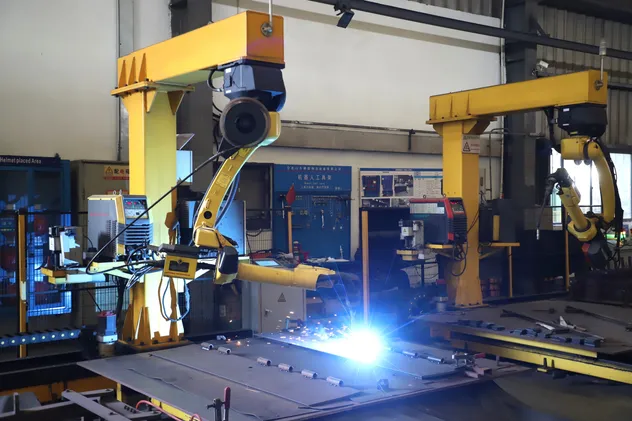

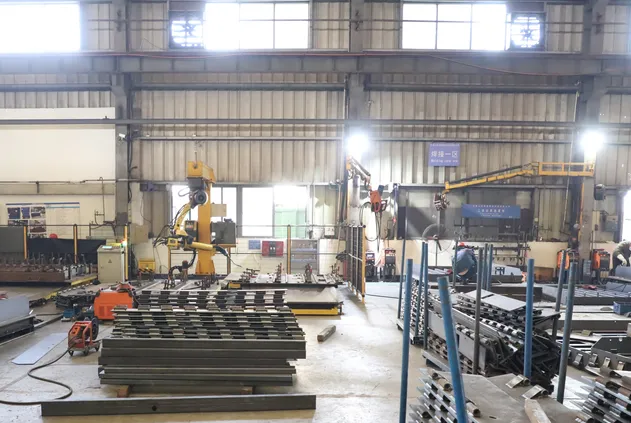

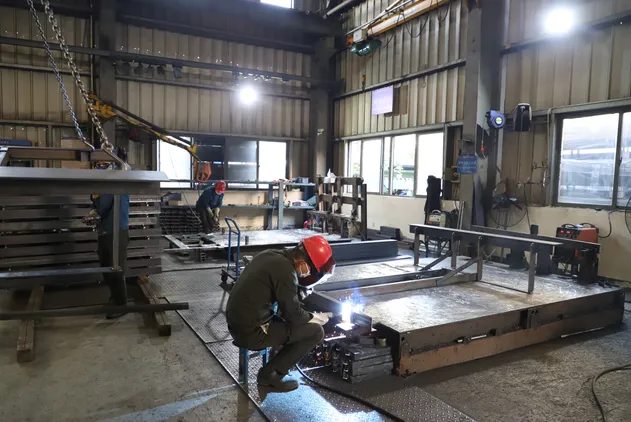

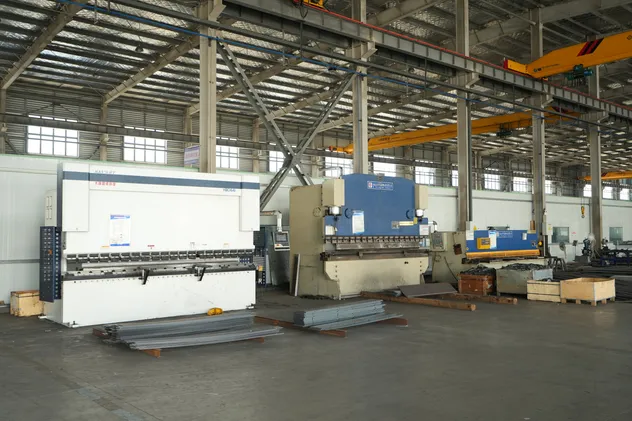

Production Process

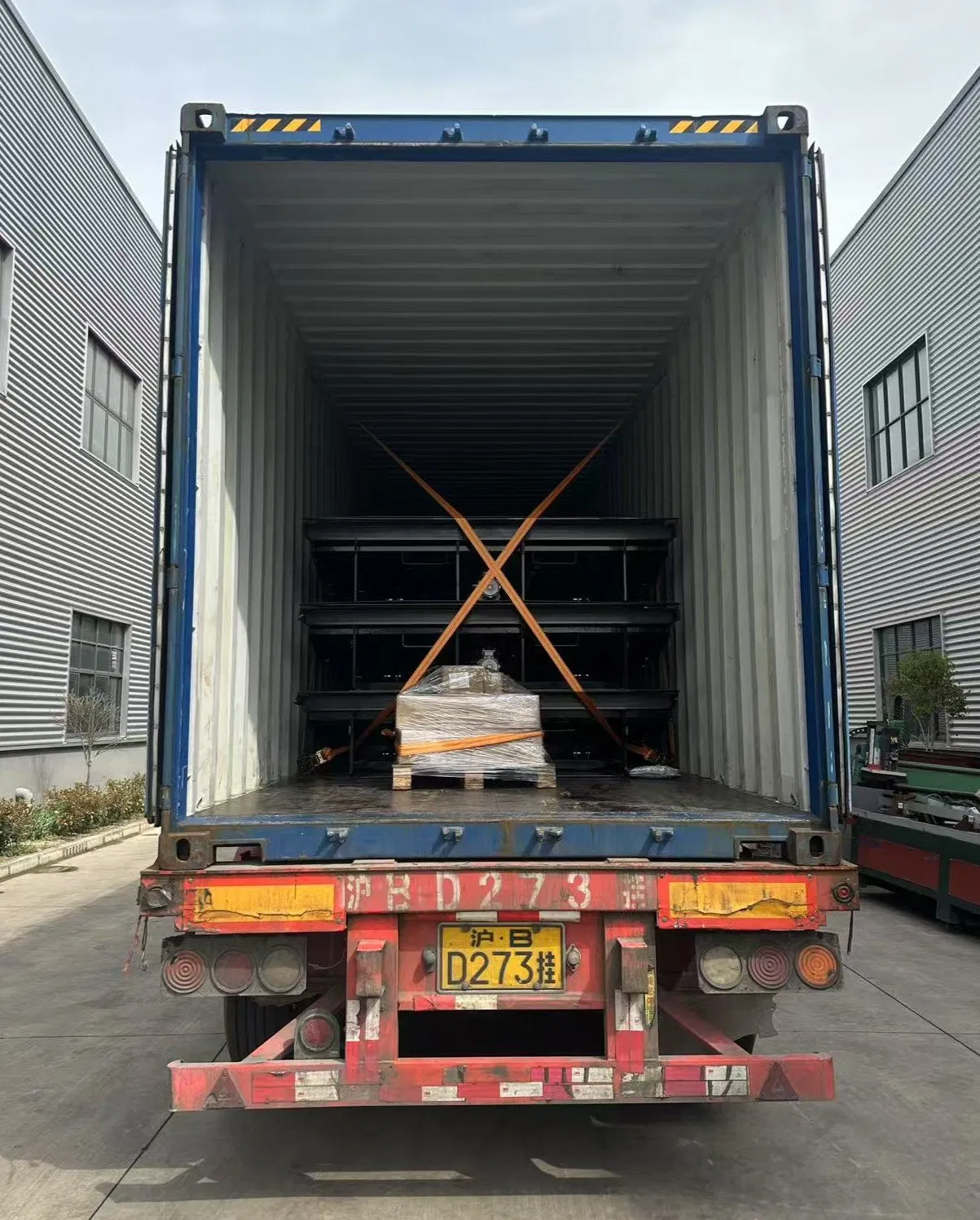

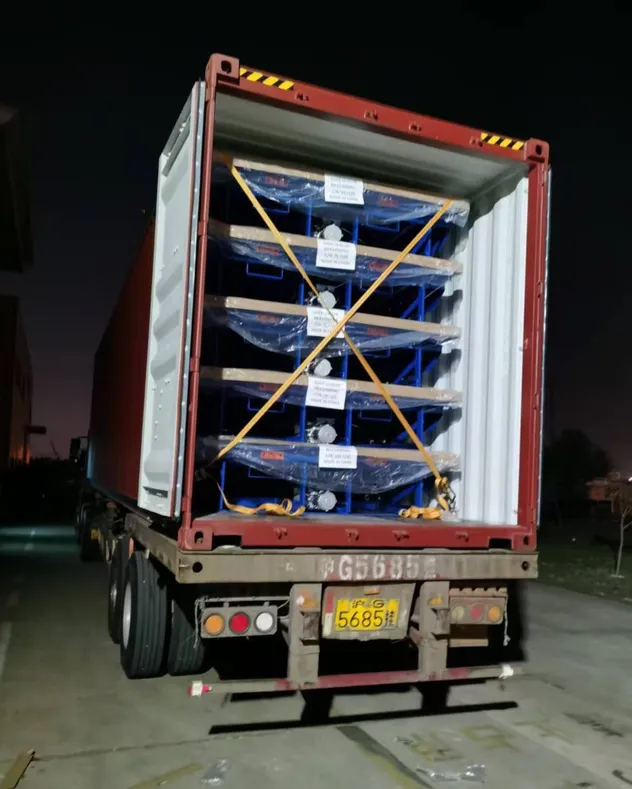

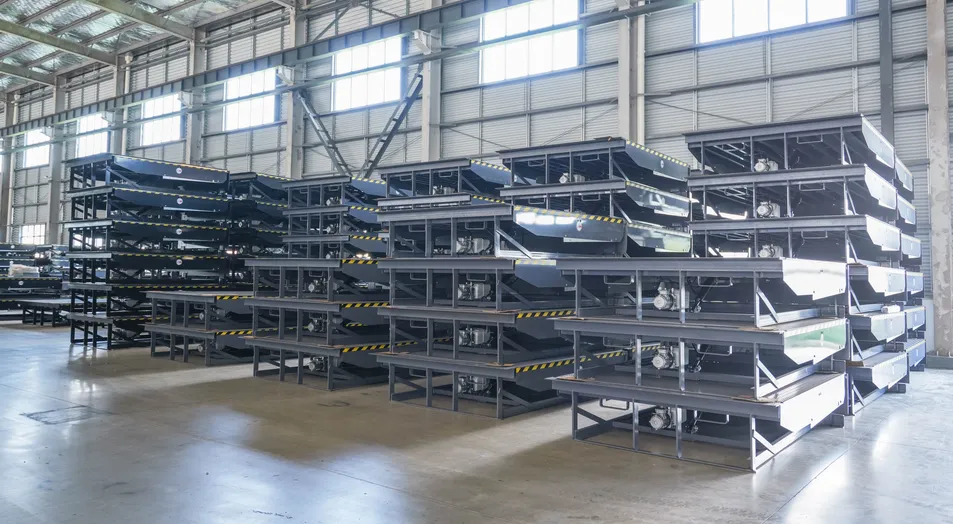

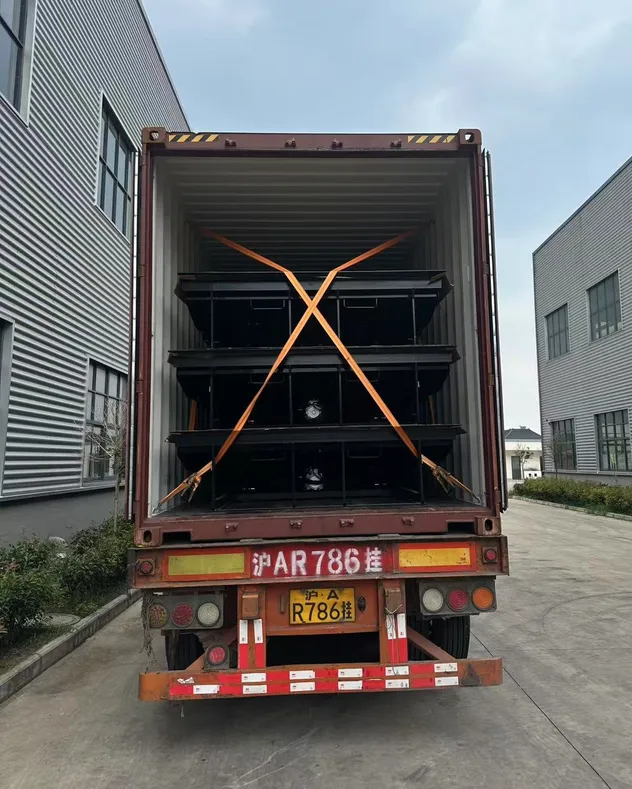

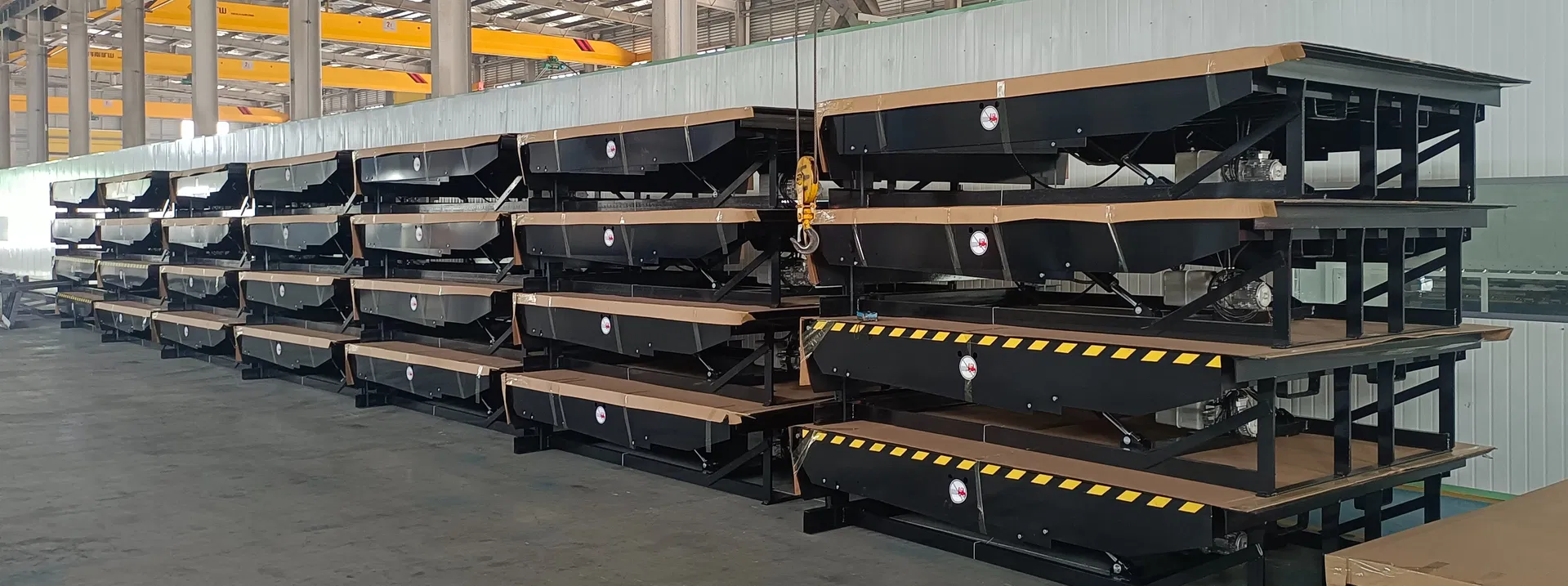

Packing & Delivery

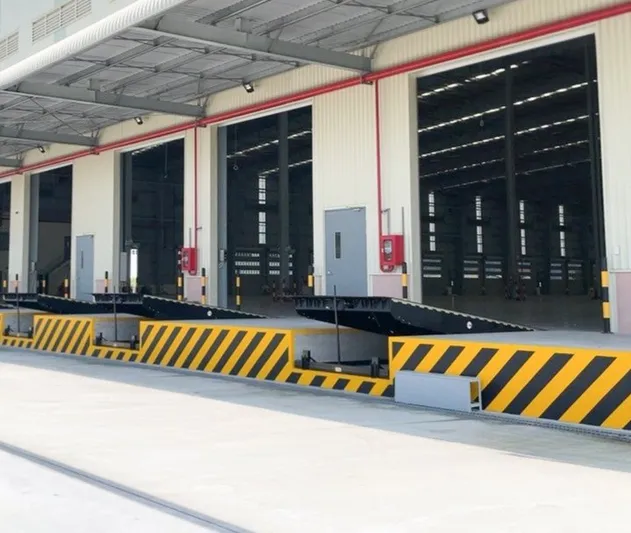

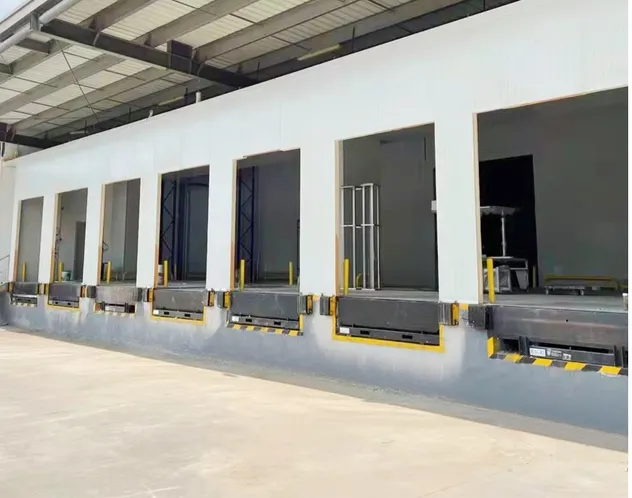

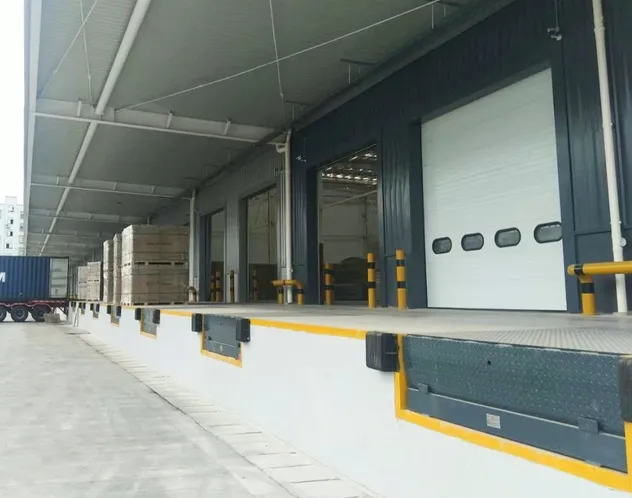

Successful Cases

Related Logistics Equipment

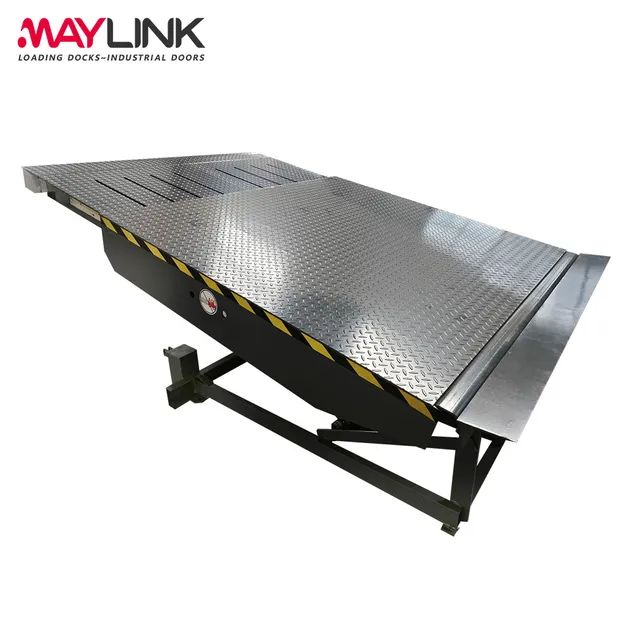

Telescopic Dock Leveler

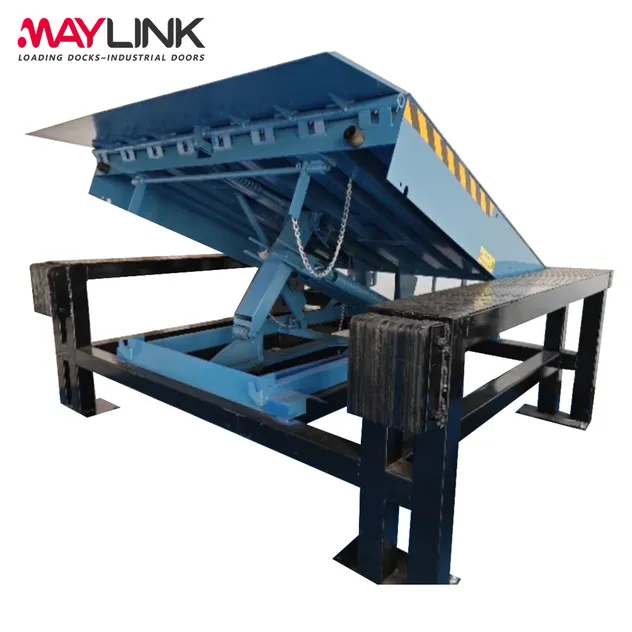

Mechanical Dock Leveler

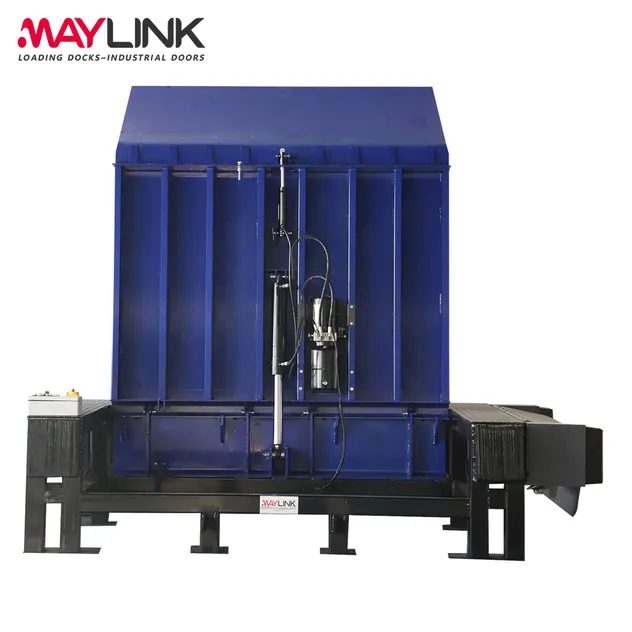

Vertical Dock Leveler

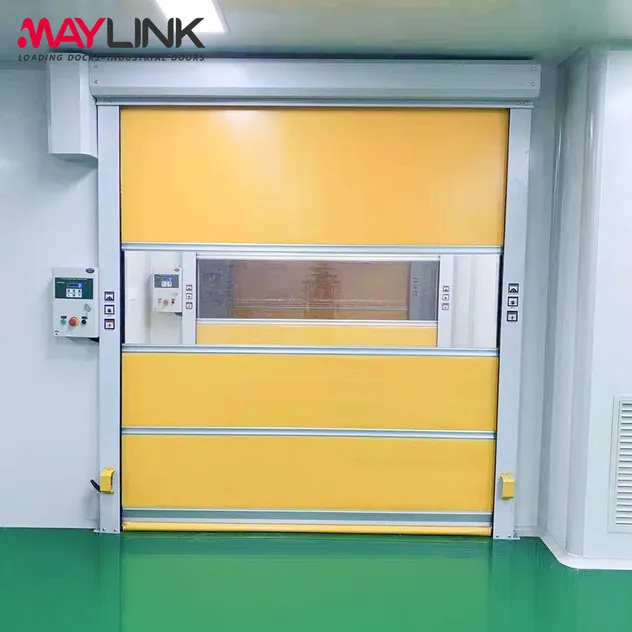

PVC High Speed Door

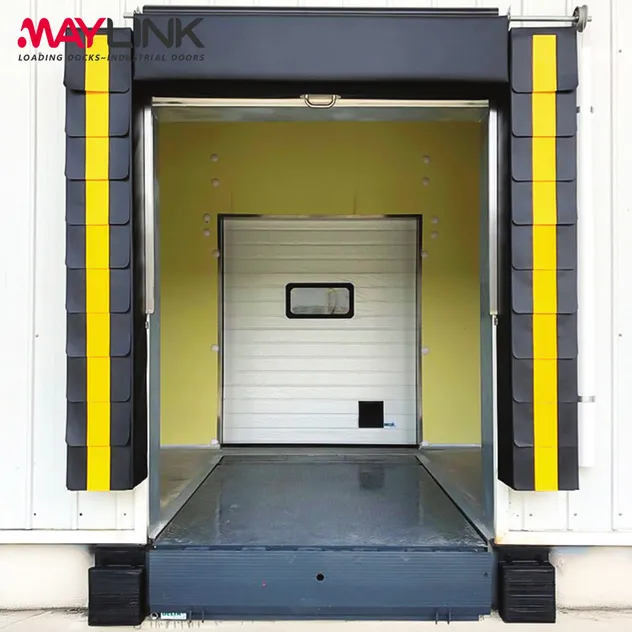

Sponge Dock Seal

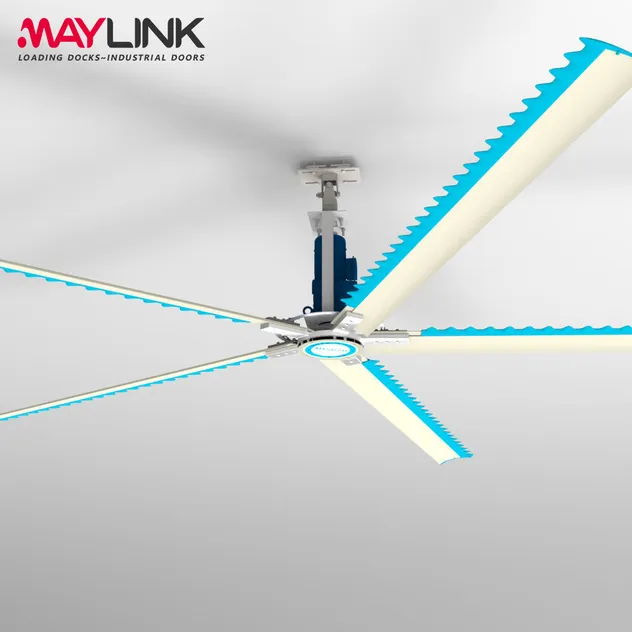

HVLS Industrial Fan

Frequently Asked Questions

1. What is the primary function of a hydraulic dock leveler? It bridges the gap and height difference between the loading dock and the transport vehicle, allowing forklifts to drive directly into the truck for efficient loading and unloading.

2. Can the size and capacity be customized for specific warehouses? Yes, we offer full customization for dimensions, colors, and load capacities (up to 20 tons static) to meet your specific operational requirements.

3. What safety features are integrated into the system? The system includes an emergency stop button, safety skirts to protect feet, a safety support rod for maintenance, and lip self-locking mechanisms.

4. What is the typical lead time for an order? The standard lead time is generally 2 to 4 weeks, depending on the order volume and customization requirements.

5. How durable is the dock plate material? The plate is constructed from high-strength 8mm non-slip pattern steel, while the tongue plate uses 16mm thickness to ensure long-term durability under heavy use.

6. Is the hydraulic system reliable for extreme temperatures? Yes, we use high-quality aviation hydraulic oil that remains effective in temperatures as low as -25℃, ensuring reliable performance in cold storage environments.
