📋 Basic Specifications
Application
Workshop/Warehouse Crane
Dynamic Load
6.8t / 10t / 15t
Table Size
W2000mm*L2500mm*H600mm
Opening Mode
Electro-Hydraulic
⚙️ Product Features & Details
- Efficient Control: Integrated hydraulic power unit for reliable operation of the platform and tongue.

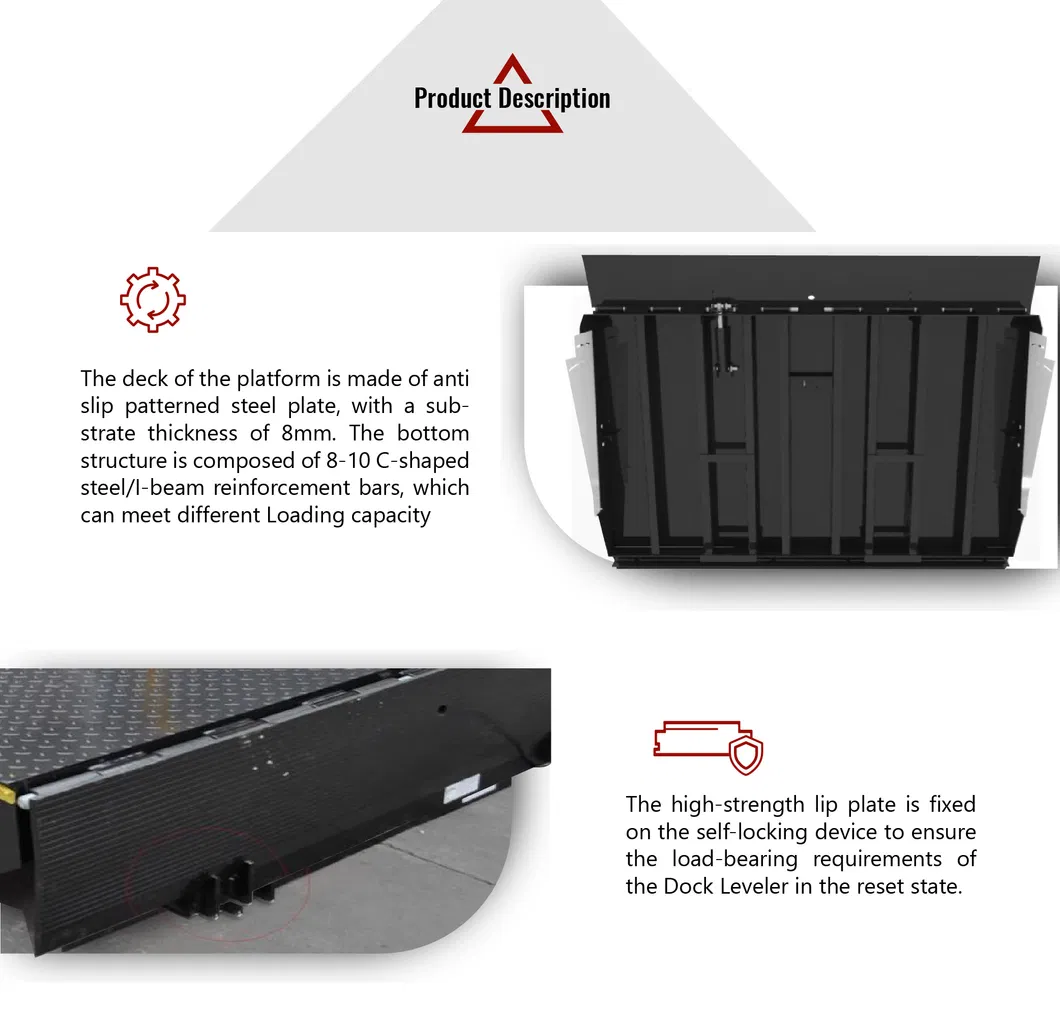

- Advanced Deck Construction: High-strength non-slip pattern steel plate (8mm thickness) reinforced by 8-10 C-rope steel reinforcements.
- Heavy-Duty Lip Plate: 14/15mm thickness with a double 5-degree arch design to increase lap area and transition safety.
- Patented Arc Transition: Specialized rear design reduces forklift bumps and minimizes cargo damage during height adjustments.
- Intelligent System: Features fault code display, operation status monitoring, fire linkage, and interlock protection.

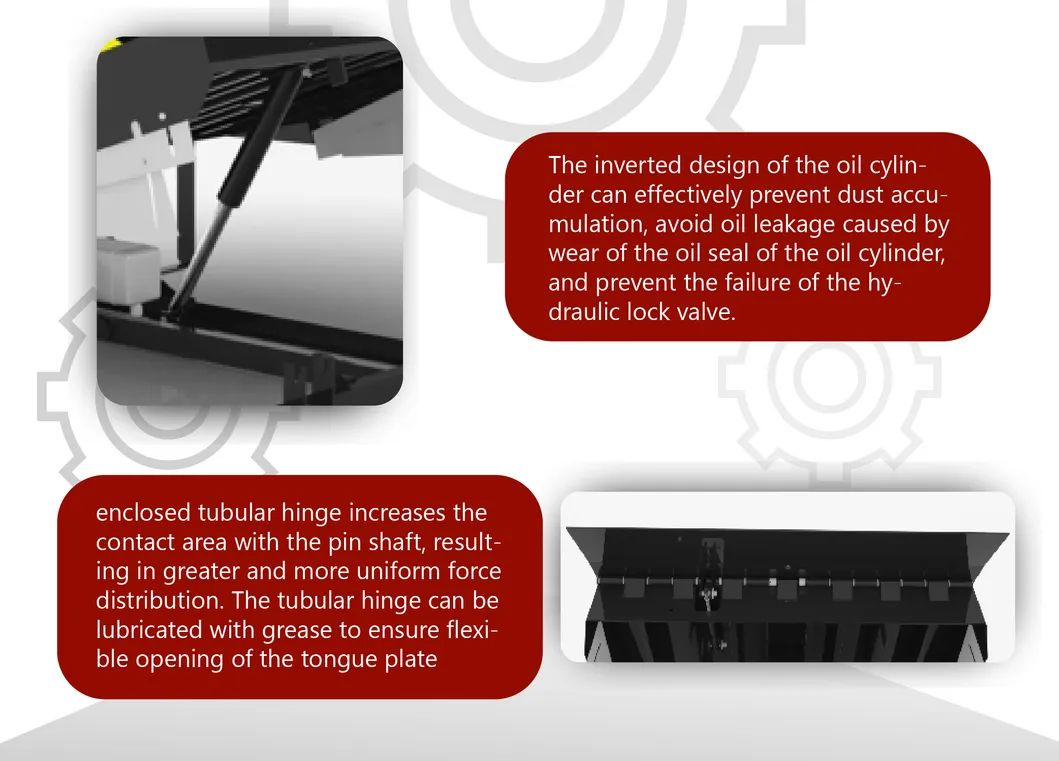

- Closed Tubular Hinges: Increases contact area with pins for uniform force distribution and allows for grease lubrication.

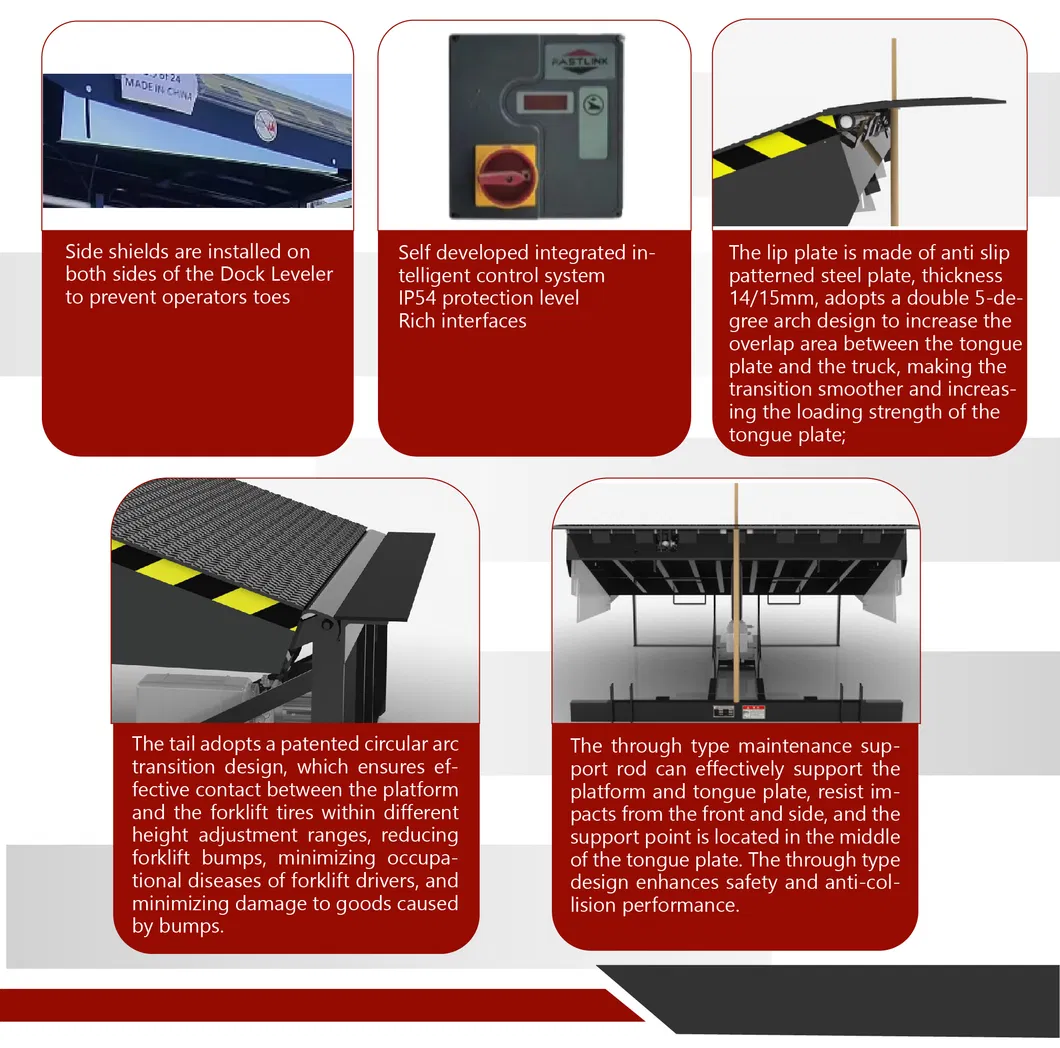

🛡️ Security & Manufacturing Excellence

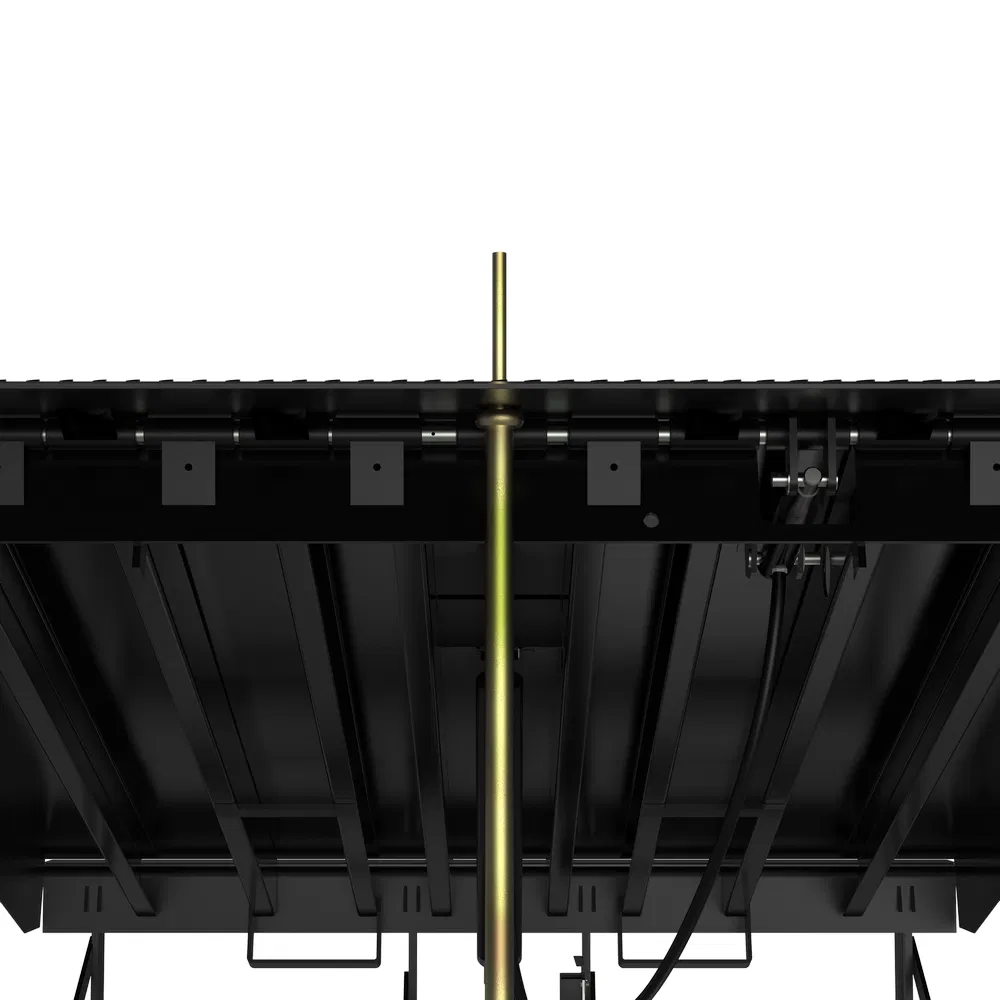

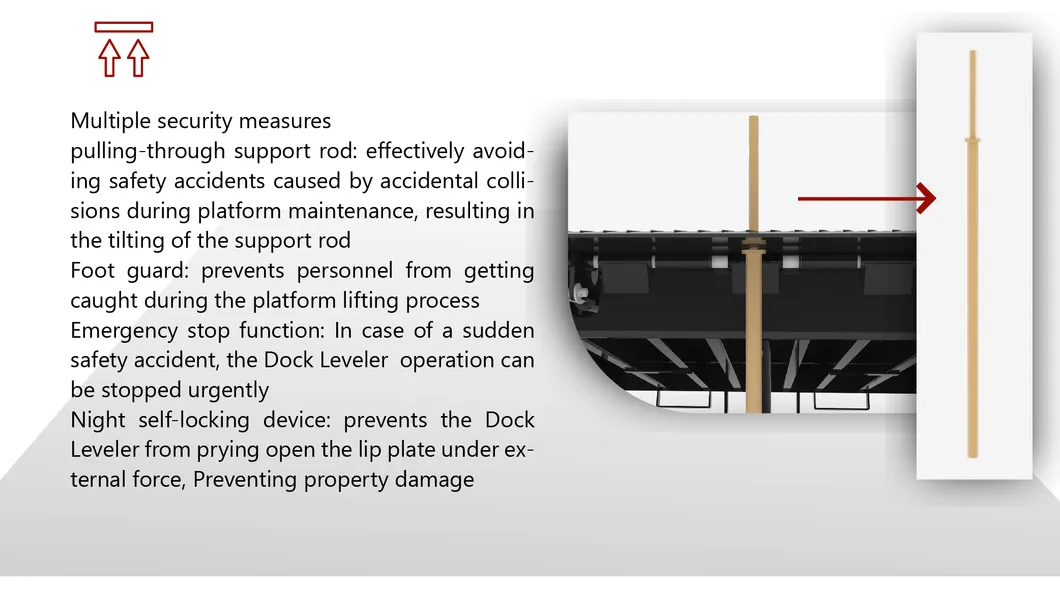

Maintenance Support: Penetrating support rods effectively secure the platform and tongue during service.
Toe Protection: Side foot protectors on both sides prevent operator injury.

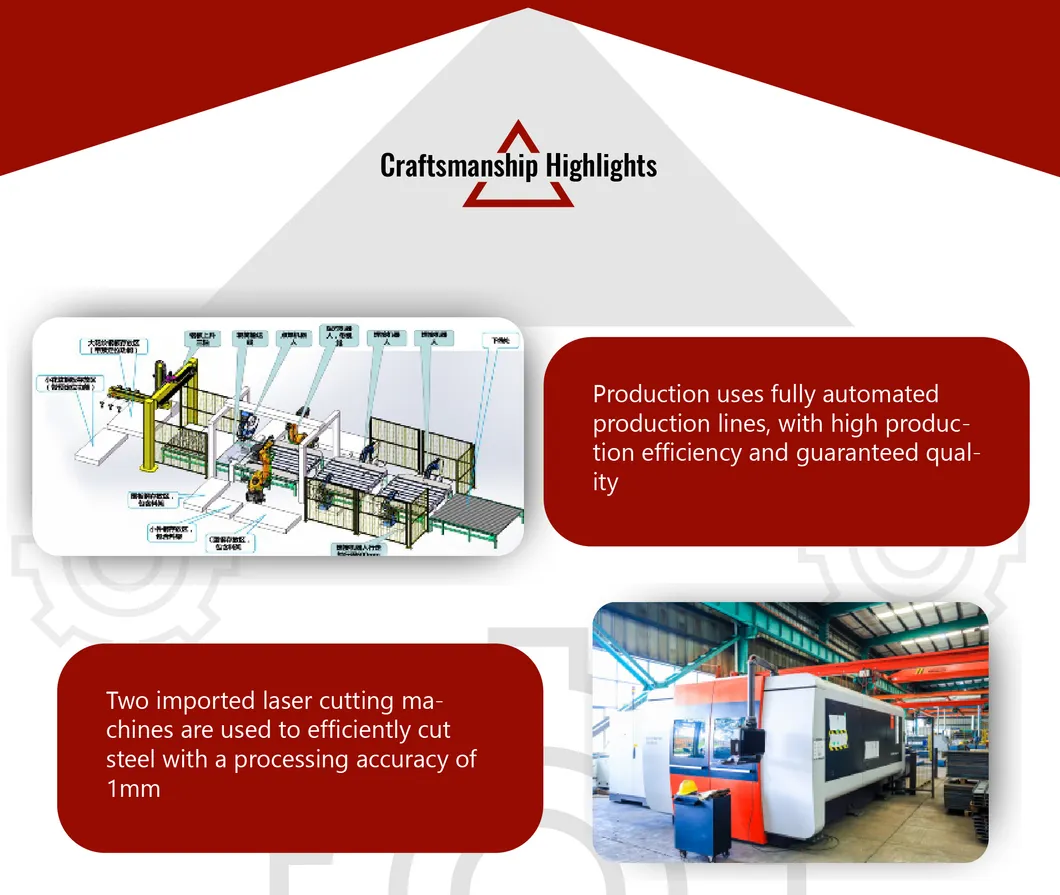

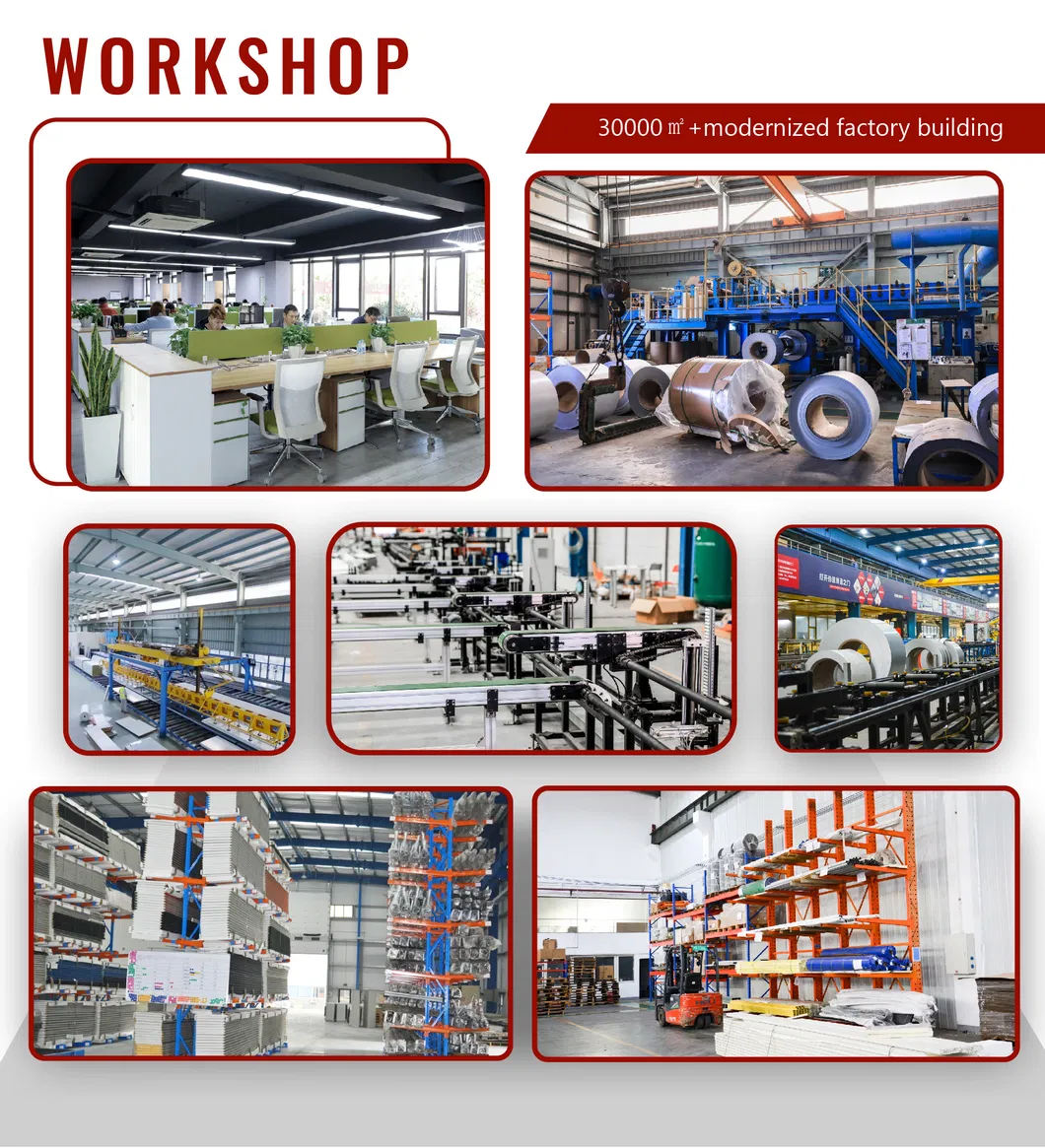

Production: Imported full-automatic laser cutting and welding assembly lines.
💡 FAQ
How do I choose the correct length for the Hydraulic Dock Leveler?
The length depends on the height difference between the carriage floor and the platform. The formula used is: Platform length L = h (height difference) / 0.125.
What are the standard sizes available for this model?
Common sizes typically include W2000mm * L2000mm * H600mm, with customization options available for specific warehouse requirements.
What is the difference between dynamic and static platform loads?
Dynamic load is the maximum combined weight of the forklift and cargo moving over the platform. Static load refers to the maximum weight of stationary objects the platform can support in its reset state.
What safety features are included for operator protection?
The system includes penetrating maintenance support rods for platform stability, side foot protectors to prevent toe injuries, and intelligent interlock functions in the control system.
What material is used for the deck and lip plates?
The deck uses high-strength non-slip pattern steel (8mm), and the lip plate uses anti-slip tread steel plate (14/15mm) with a 5-degree arch design for smooth transitions.
What are the power requirements for installation?
The standard power configuration is 380V, 3-phase, at 50Hz, suitable for most industrial and warehouse electrical systems.
