600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
1 / 5
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table

600kg Low Profile U-Shape Stationary Electric Lift Table

Customization: Available
After-sales Service: 24 Hours
Warranty: 2 Years
Send Inquiry

Product Description

📋 Basic Information
Model NO.
UL
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
AC
Feature
Explosion-Proof, Insulating, Spillover Valve
Certification
GS, CE, RoHS, ISO 9001
Load Capacity
600kg to 1500kg
Lifting Height
860mm
Voltage
As per Local Standard
Installation
On Ground or In Pit
Warranty
12 Months
Production Cap.
20,000 PCS/Year
🚀 Product Description

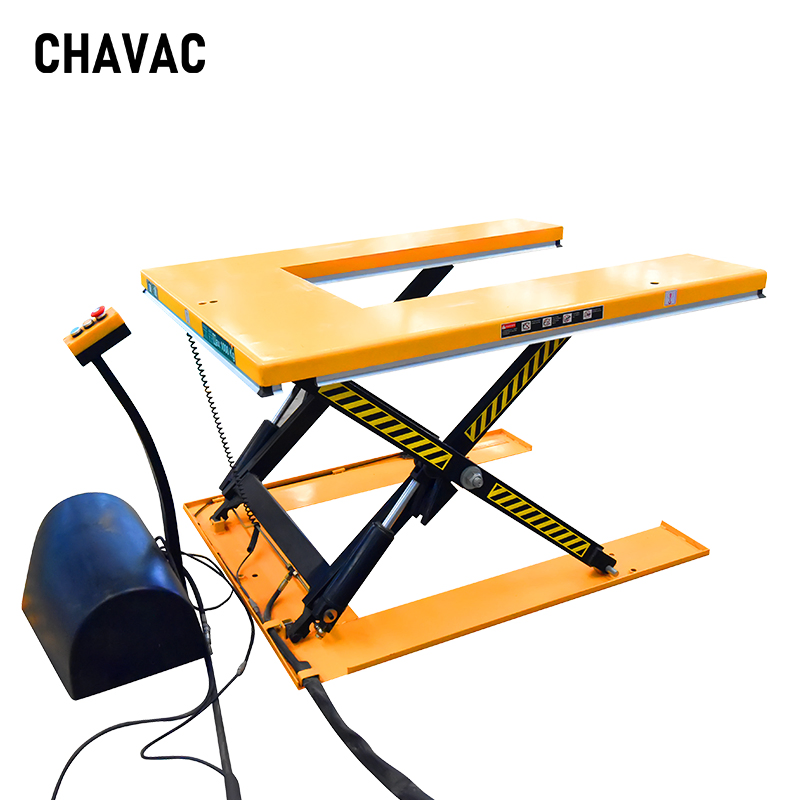

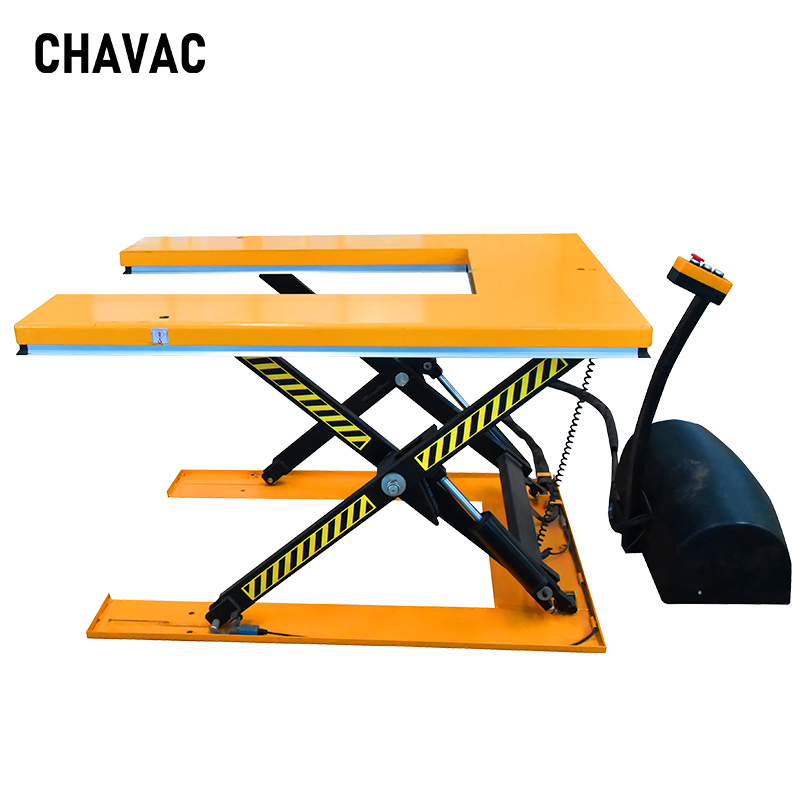

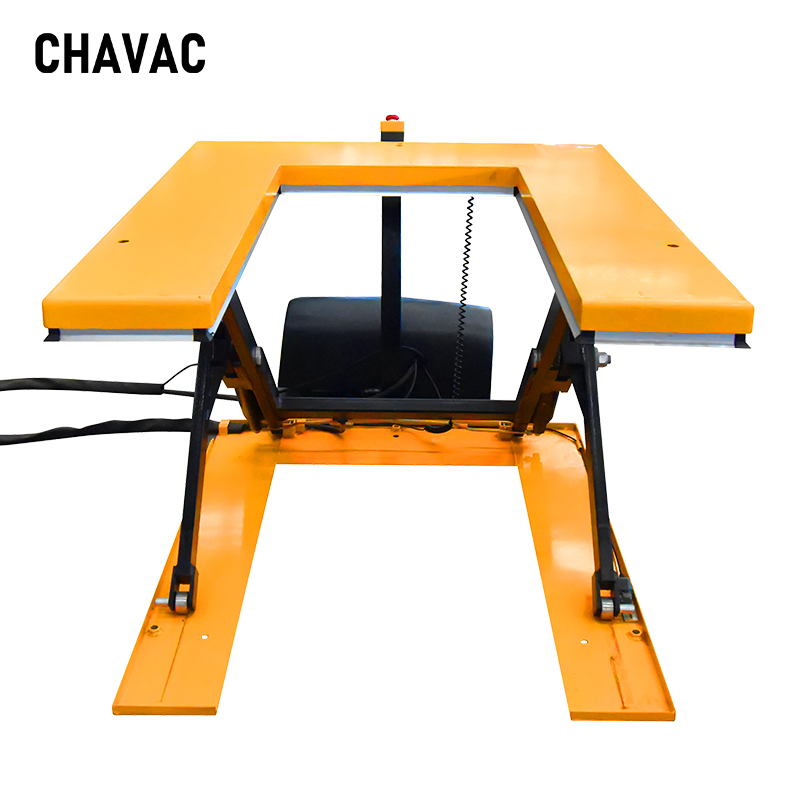

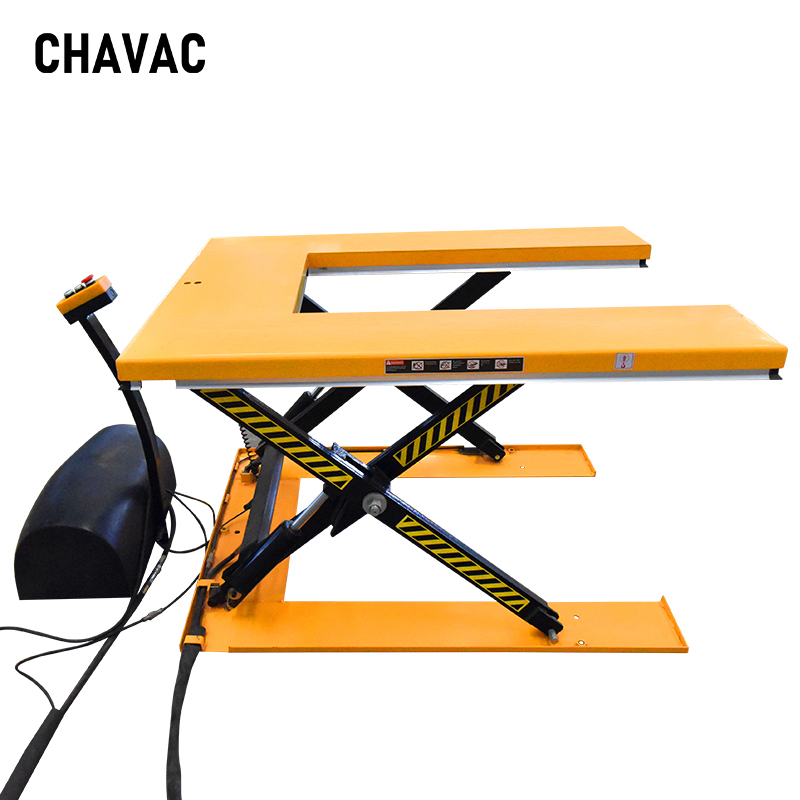

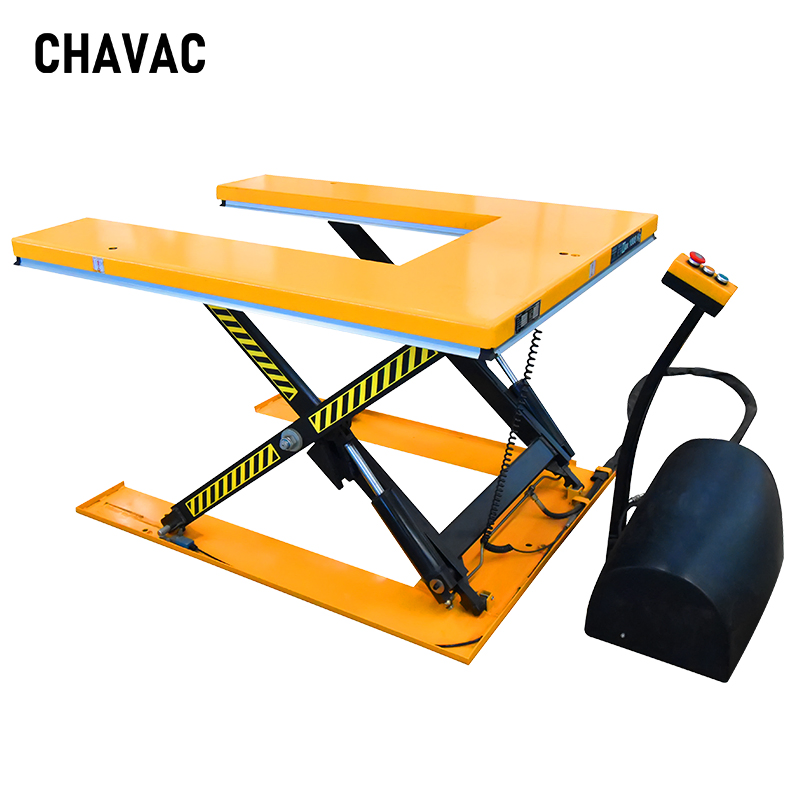

600kg Low Profile U-Shape Stationary Electric Lift Table

U Shape Low Profile Hydraulic Scissor Lift tables are high-quality electronic hydraulic scissor lifts with loading capacities from 600KG to 1500KG and lifting heights up to 860mm. It is specifically designed to lift 2-way entry pallets directly from a pallet truck without the need for a ramp.

Model Load Capacity (kg) Self Height (mm) Max Height (mm) Platform Size (mm) Base Size (mm) Size A (mm) Motor (kw) Net Weight (kg)
UL600 600 85 860 1450*985 1335*947 200 1.1 207
UL1000 1000 85 860 1450*1140 1335*947 280 1.1 280
UL1500 1500 105 860 1600*1180 1335*947 300 2.2 380
🔍 Detailed Instruction

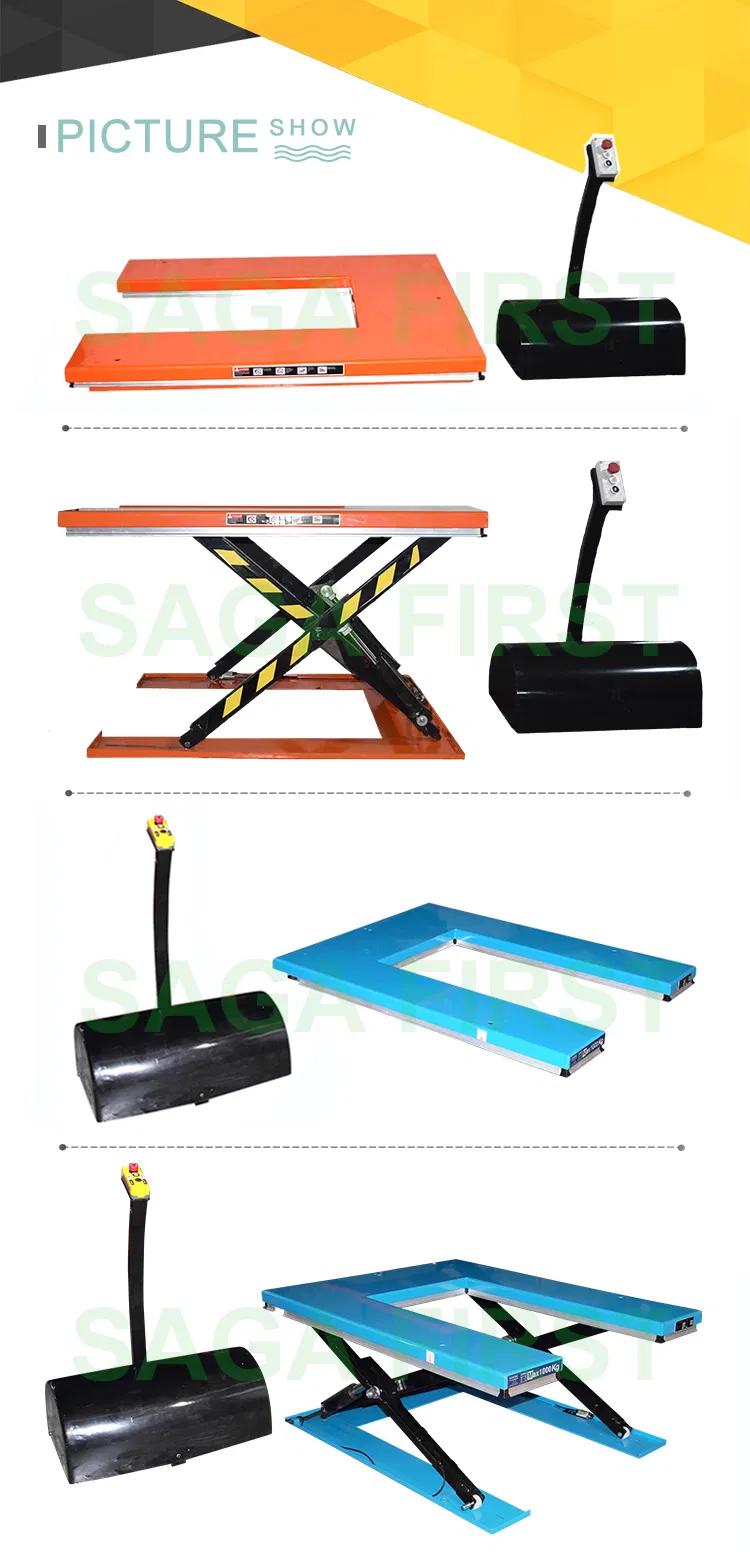

Instruction detail 1

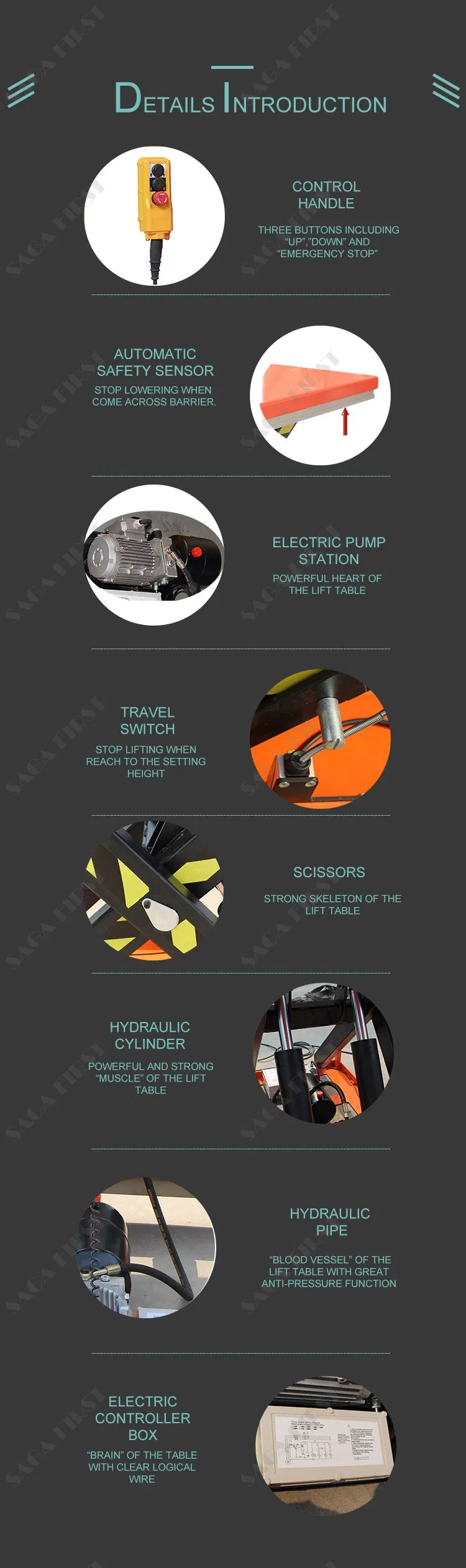

Instruction detail 2
  • ✔ Control Handle: Includes "up", "down", and "emergency stop" buttons.
  • ✔ Automatic Safety Sensor: Stops lowering immediately upon encountering barriers.
  • ✔ Electric Pump Station: High-performance core for reliable lifting.
  • ✔ Travel Switch: Automatically stops lifting at the preset height.
  • ✔ Hydraulic Cylinder & Pipe: Heavy-duty components with anti-pressure functions.
💡 Key Advantages

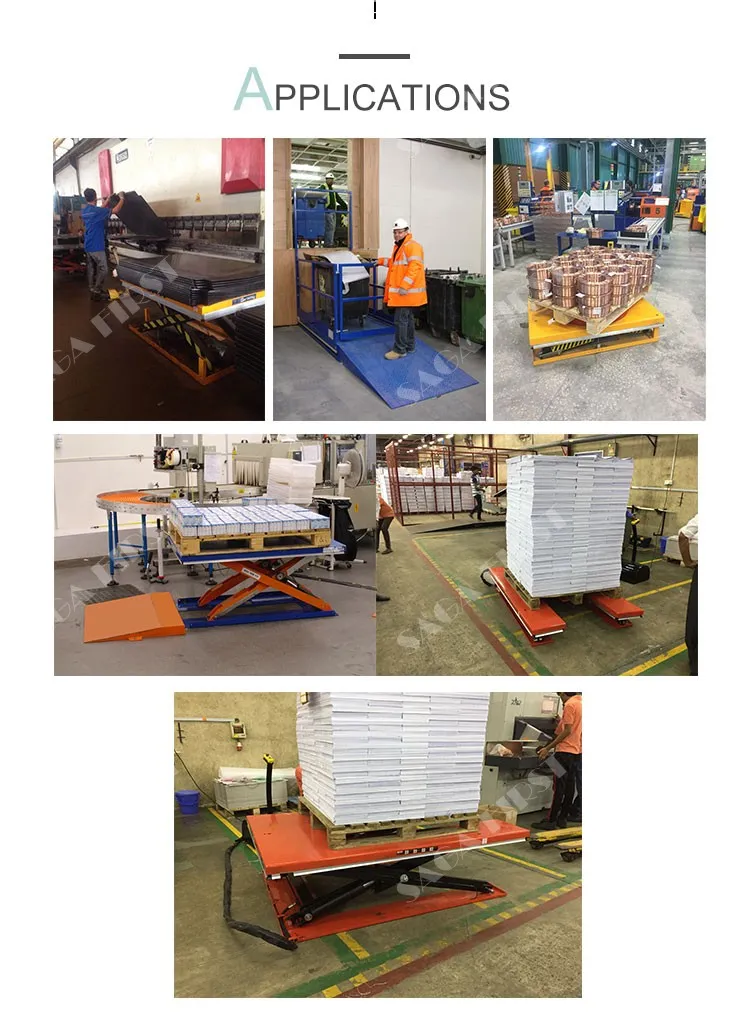

Application
Package
  • ⭐ Precise hierarchical control with multi-control points.
  • ⭐ High-quality AC power packs made in Europe.
  • ⭐ Safe clearance between scissors to prevent operational damage.
  • ⭐ Heavy-duty cylinders with drainage systems and check valves.
  • ⭐ Sensitive overload protection and locking devices for safety.
🛡️ Safety Precautions
Safety 1
Safety 2
1. Explosion-proof valves: Protects hydraulic pipes from rupture.
2. Spillover valve: Prevents high pressure and allows pressure adjustment.
3. Emergency decline valve: Allows manual lowering during power failure.
4. Anti-dropping device: Prevents accidental platform falling.
🛠️ Our Service
Service 1
Service 2
Service 3
  • ● Customized scissor lift table design as per your requirements.
  • ● Model recommendations based on specific application needs.
  • ● Full maintenance and operational video support.
  • ● Fast express delivery for spare parts within 7 days.
❓ Frequently Asked Questions
How can I buy spare parts if the lift breaks down?
The lift table uses common hardware parts. You can easily find them in local hardware markets or forklift parts shops.
How is the scissor lift table repaired?
The equipment has a very low failure rate. If needed, we provide repair guidance via video and detailed instruction manuals.
What is the quality guarantee period?
We provide a one-year quality guarantee. If parts fail within this period, we will send replacements free of charge.
Can the platform size be customized?
Yes, we accept customized requirements for platform size and lifting height to fit your specific workspace.
What voltage is used for the electric lift?
The voltage is configured according to the customer's local industrial standard (e.g., 110V, 220V, 380V).
How is the product packaged for shipping?
Standard packaging is a high-strength carton, with customized wooden boxes available as an optional upgrade.
