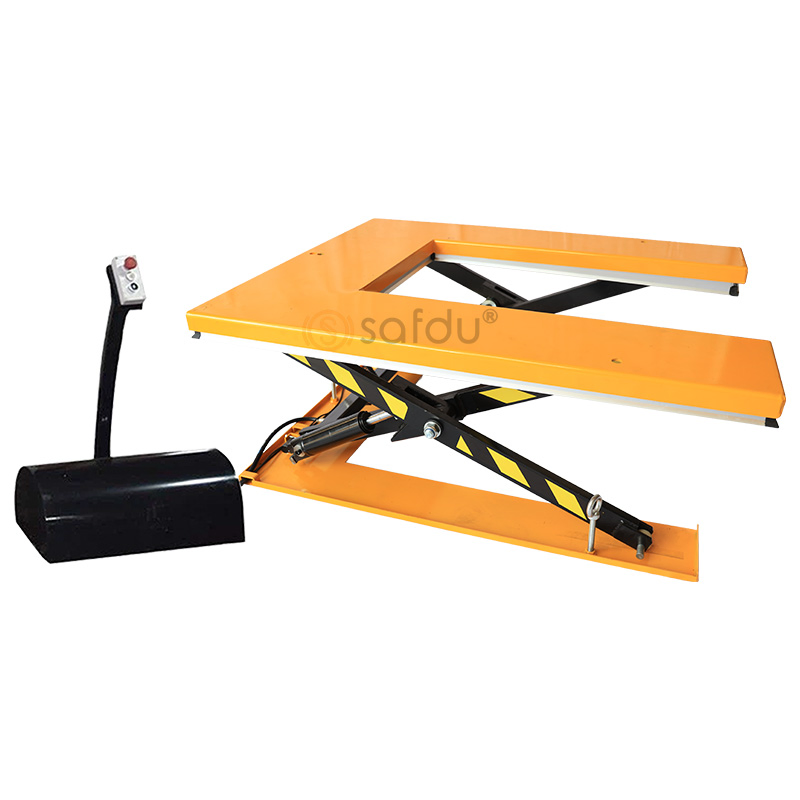

Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
1 / 5
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting
Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting

Hu1000 U Type Low Profile Electric Scissor Lift Table for Efficient Lifting

Customization: Available
After-sales Service: Lifetime
Warranty: 1 Year
Send Inquiry

Product Description

ⓘ Basic Information
Model NO.
HU1000
Application
Workshop, Shipboard, Warehouse, Building, Logistics
Lift Mechanism
Scissor Lift
Carrying Capacity
1000kg
Driven Type
AC 380V
Certification
CE, ISO 9001
Lowered Height
85mm
Raised Height
860mm

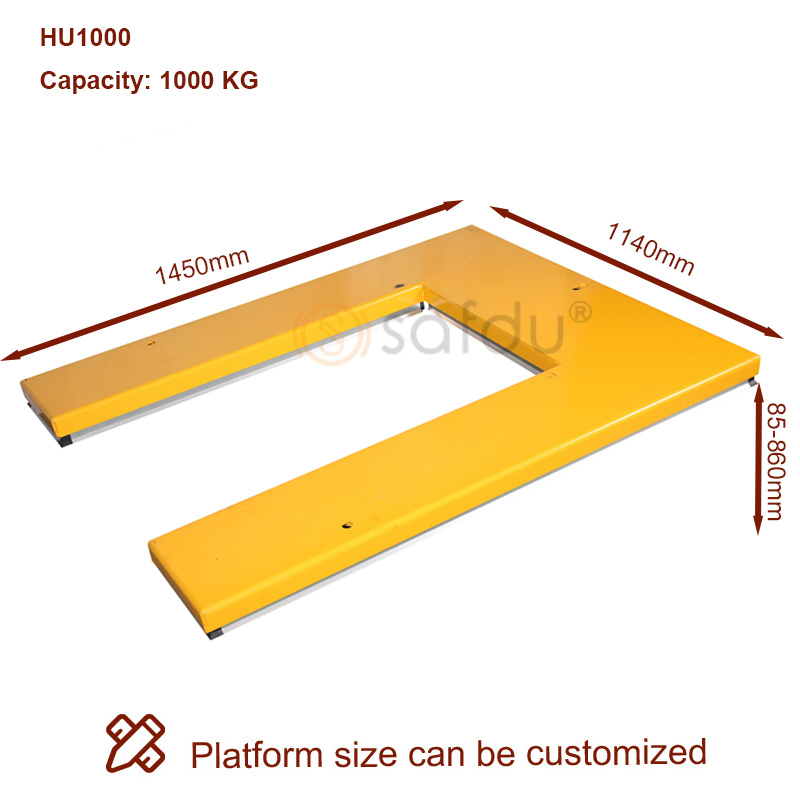

Platform Size
1450*1140mm
Weight
280 Kg
Package Size
160.00cm * 130.00cm * 15.00cm
HS Code
8428909090
★ Product Introduction

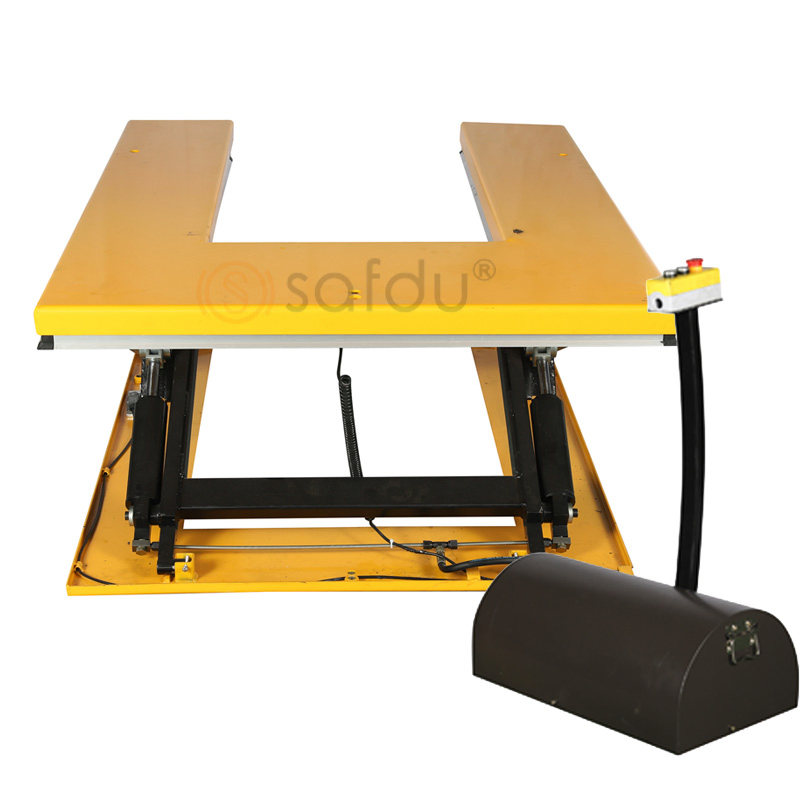

Electric Scissor Lift Table U shape
Electric Scissor Lift Table - U shape

Our Stationary Hydraulic U-Shape Lift Table is a premium industrial positioning device, engineered to the rigorous EN1570 and ANSI/ASME safety standards. It is specifically designed to provide a safe, ergonomic, and highly efficient interface for palletized load handling, eliminating the need for pits or ramps.

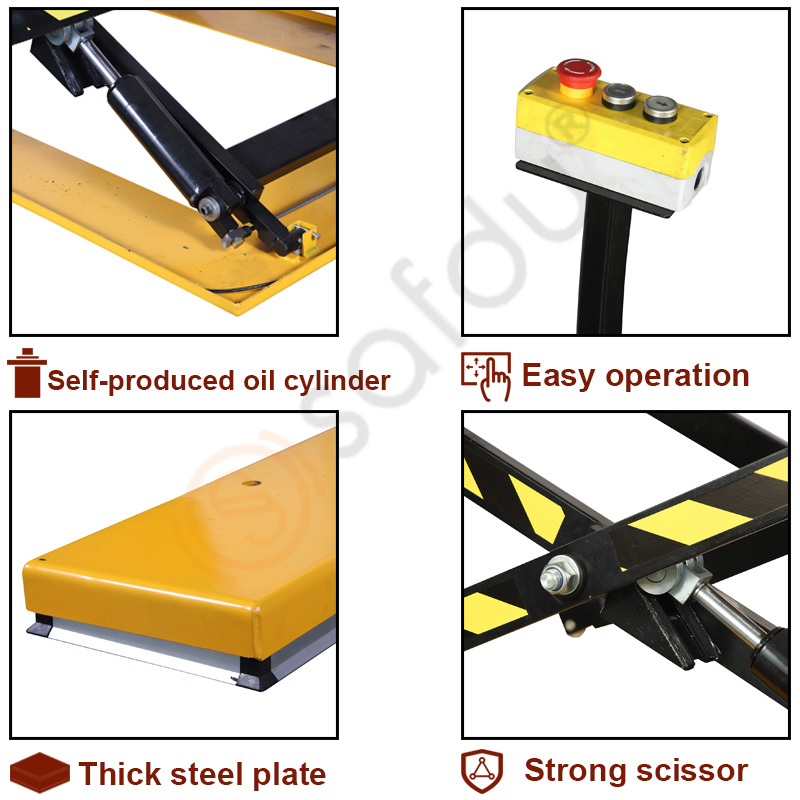

▶ Operation & Advantages
▶
🚀 U-Shape Design

Enables efficient three-sided pallet access and space-saving operation.

💪 Durable Performance

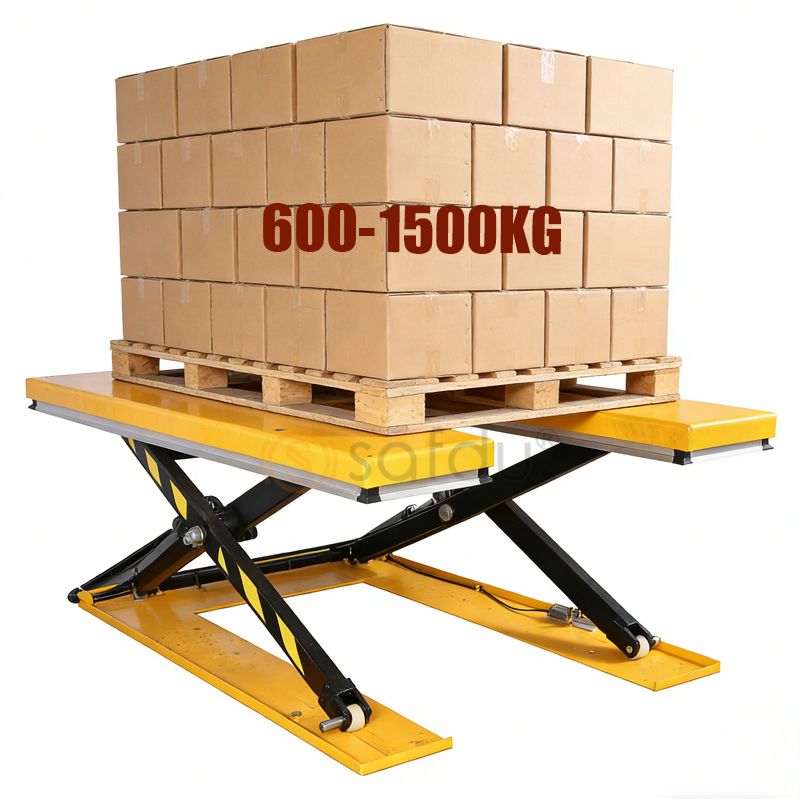

600-1500kg capacities with IP54-rated external power pack.

🛡 Integrated Safety

Full protection system meets EN & ANSI international standards.

⚙ Technical Specifications
Model Capacity (kg) Lowered Height (mm) Raised Height (mm) Platform Size (mm) Lift Time (sec) Power Motor (KW) Net Weight (kg)
HU600600858601450*98525-35AC380V1.1207
HU10001000858601450*114025-35AC380V1.1280
HU150015001058701600*120030-40AC380V1.5380
📍 Applications

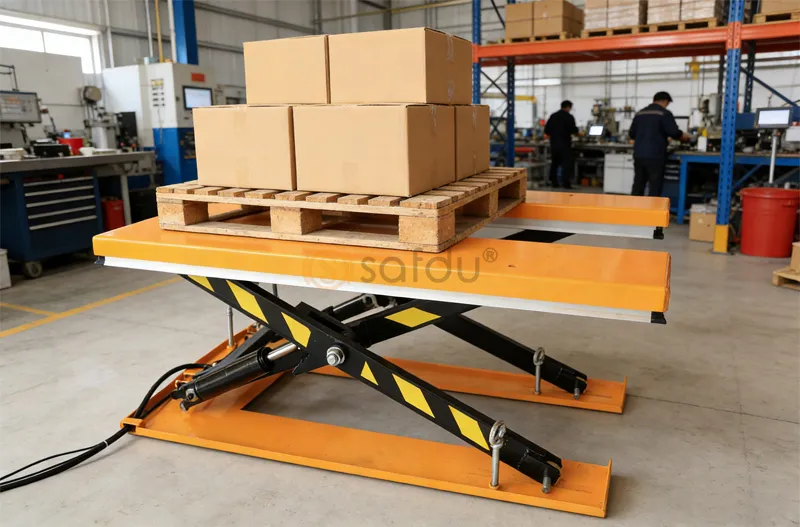

Application 1

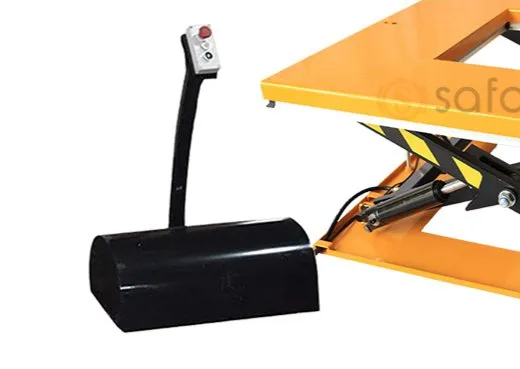

Application 2
  • ✔ Logistics: Essential for pallet handling at loading docks.
  • ✔ Packaging: Streamlines workflows on sorting lines.
  • ✔ Assembly: Ergonomically positions materials.
  • ✔ Workshop: Fits tight spaces perfectly.
📸 Product Gallery

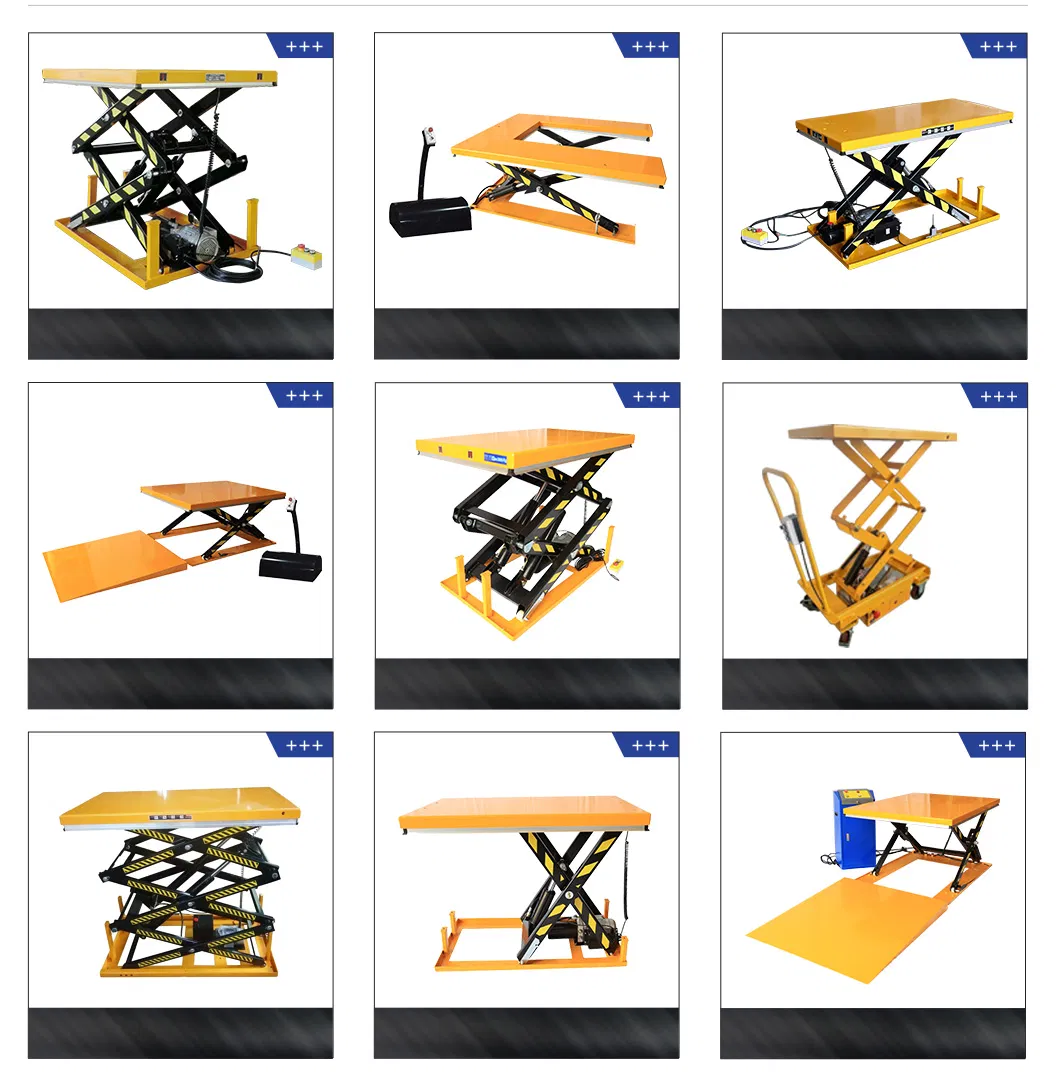

Main Products

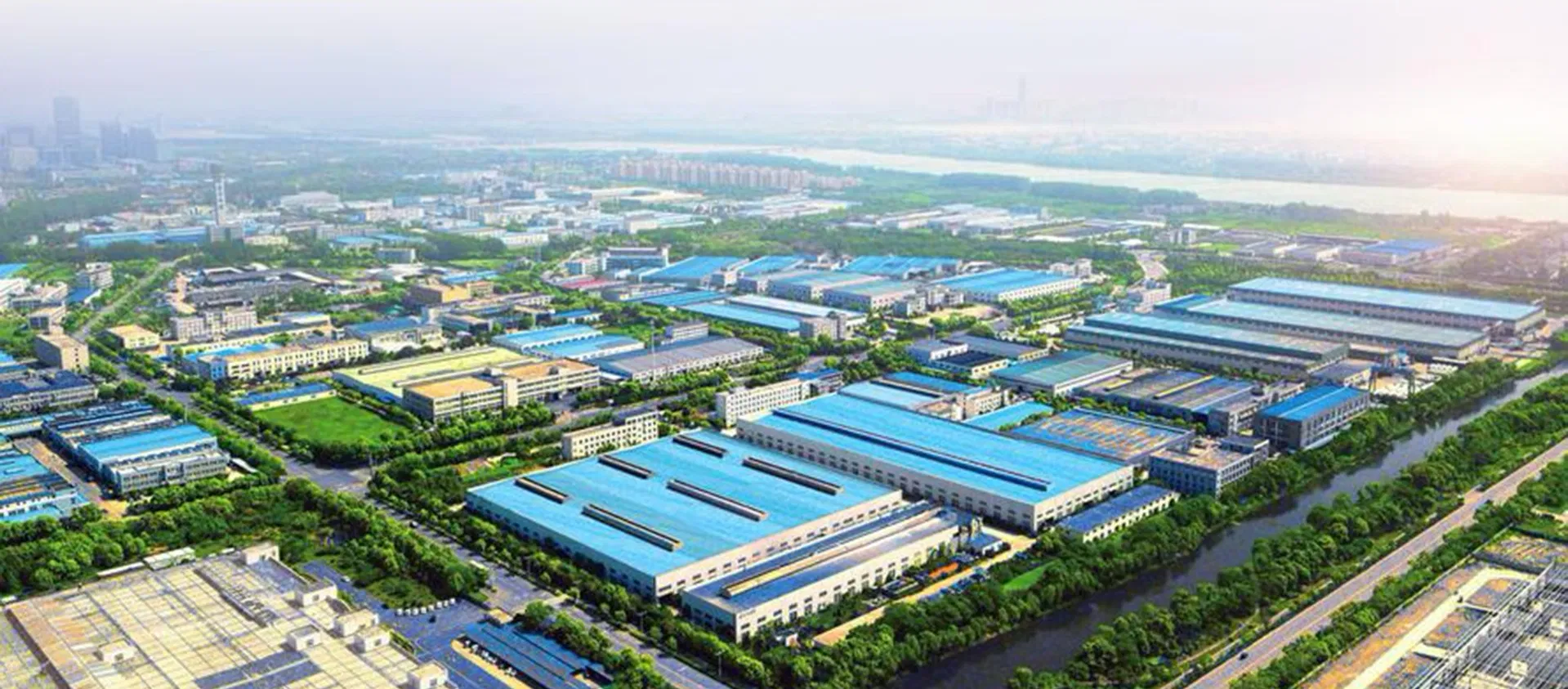

Quality Control
Certificates
Shipping

Frequently Asked Questions

Q1: What is the main advantage of the U-shape design?
The U-shape design allows a pallet truck to drive directly into the center of the table to drop or pick up loads, eliminating the need for a floor pit or a long access ramp.
Q2: What safety standards do these lift tables comply with?
All tables are engineered to meet rigorous EN1570 (European) and ANSI/ASME (American) safety standards, ensuring high-level protection for operators.
Q3: Is the lifting operation manual or electric?
It is fully electric, powered by a 1.1–1.5KW motor. One-button lifting replaces manual labor, increasing material handling efficiency by approximately 35%-60%.
Q4: Can the platform size be customized?
Yes, we offer custom solutions for platform dimensions, load capacities, and materials to fit your specific workshop layout or production line requirements.
Q5: What certifications come with the equipment?
Our products are ISO 9001 certified and CE marked. Detailed test reports and certification documents are available upon request.
Q6: What is the lead time for standard models?
Standard lead time for production is typically 15-30 days. We use export-standard wooden case packaging to ensure the safety of the equipment during transit.
