Top Quality Manufacturer Factory Direct High Quality Hydraulic Equipment Loading Dock Leveler with Dock Leveler Power Unit

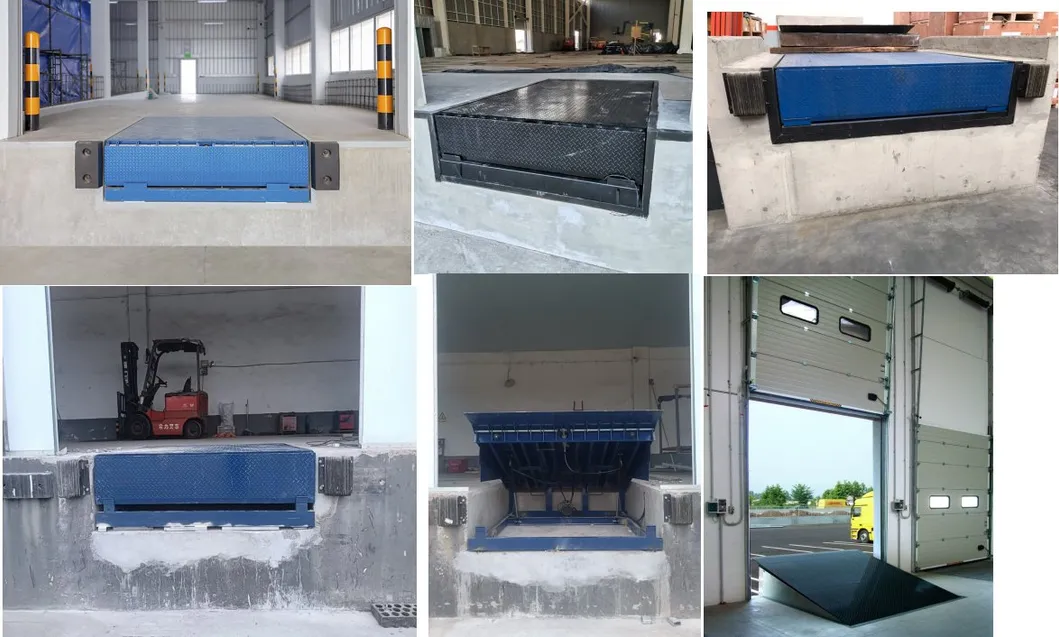

The dock leveler is the optimal solution for adjusting height differences between loading platforms and container trucks. It allows for arbitrary height adjustment within a large range, significantly improving loading/unloading efficiency while saving manpower.
Applications: Widely used in large enterprises with frequent logistics needs, warehouses, stations, docks, postal transportation, and distribution bases.
Loading Capacity & Type Selection
Dynamic Load
Panel Thick
Reinforcement
Mouth Plate
Static Load
Forklift Range
5 Tons
6mm
4mm L Steel
12mm
8 Tons
2.5 Tons
8 Tons
8mm
4mm L Steel
16mm
11 Tons
3.5 Tons
10 Tons
8mm
14# I-Beam
16mm
13 Tons
5 Tons
14 Tons
10mm
16# I-Beam
16mm
17 Tons
6 Tons

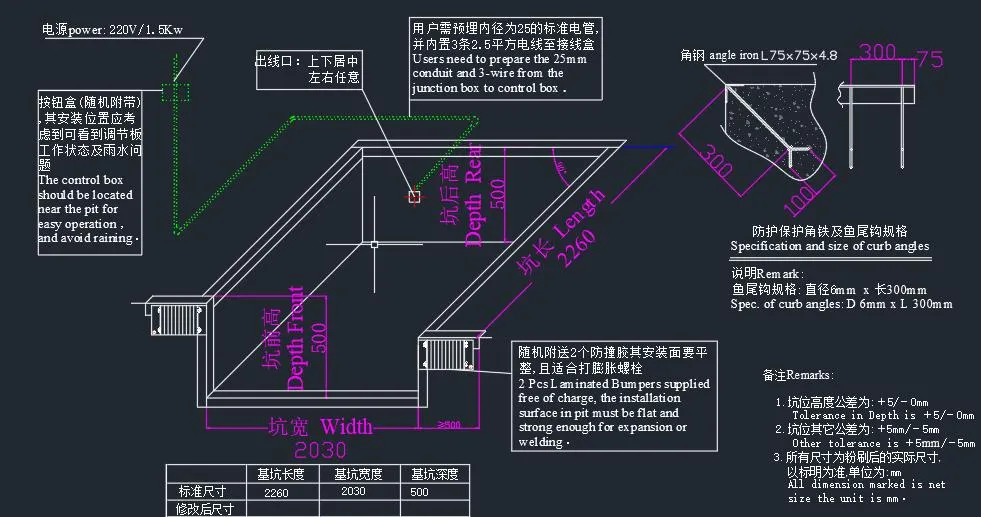

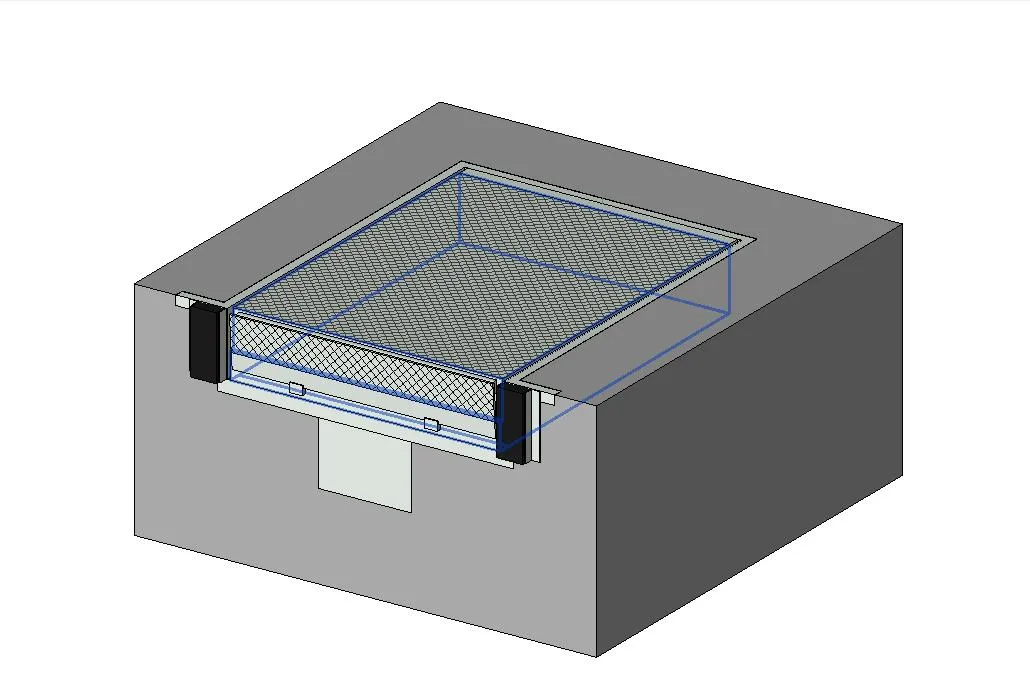

Engineering & CAD Drawings
Accurate shop drawings ensure clear pit dimensions and precise construction, eliminating any misunderstanding during installation.

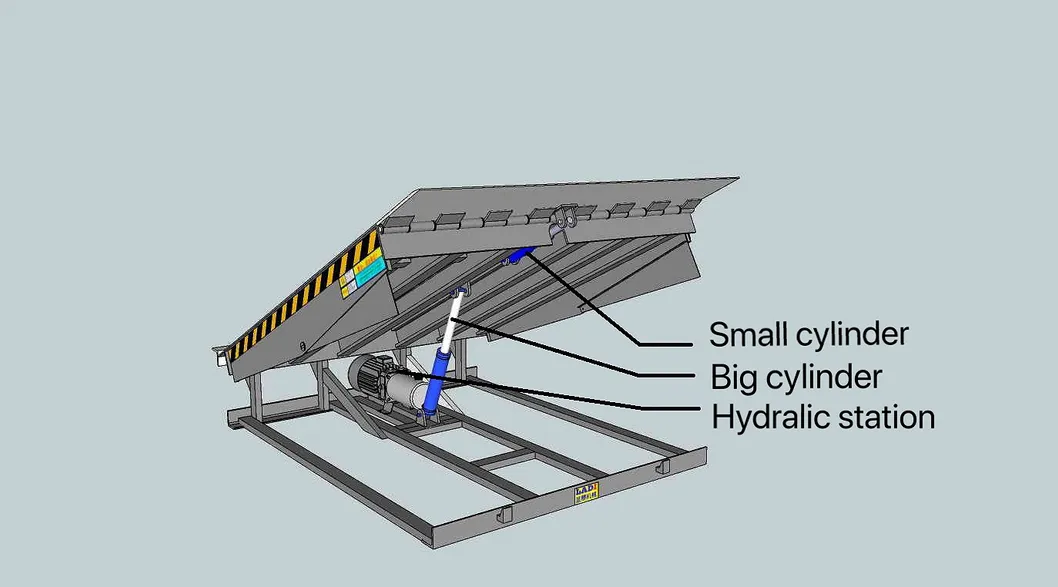

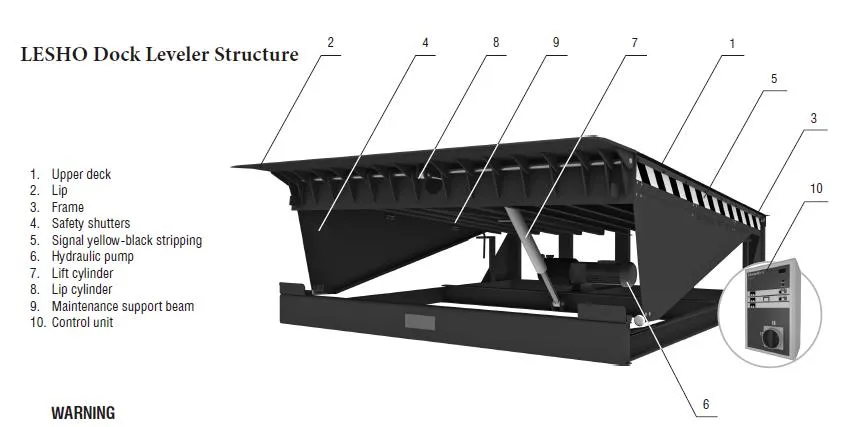

Main Features & Components
Main Platform: Whole-piece 6mm-8mm thick steel plate with high-density C-channel support.

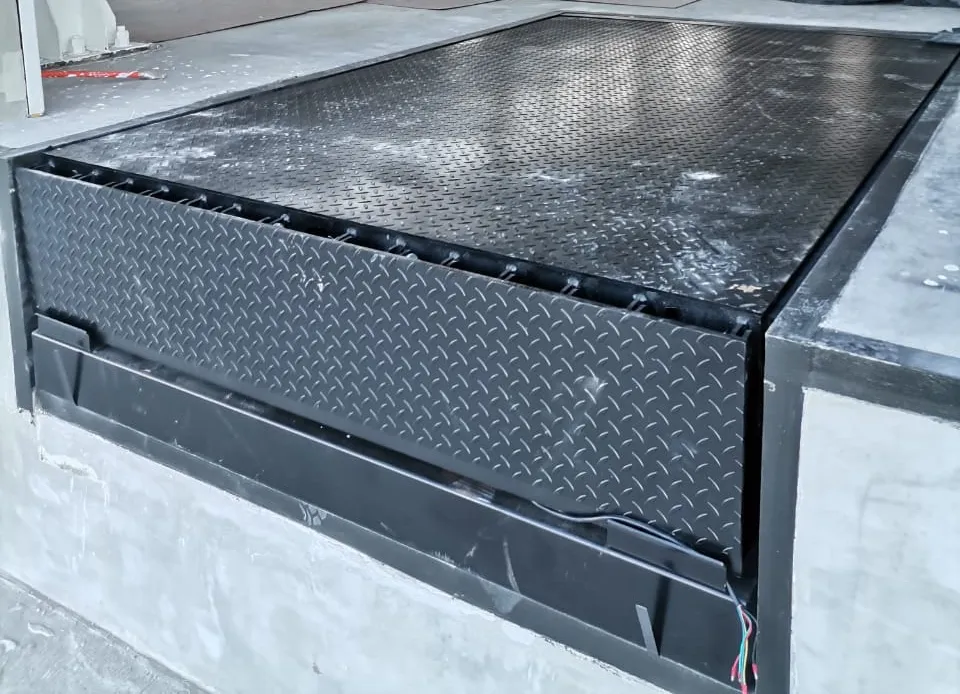

Top Lip: 12-16mm thick steel with embossed anti-skidding treatment.

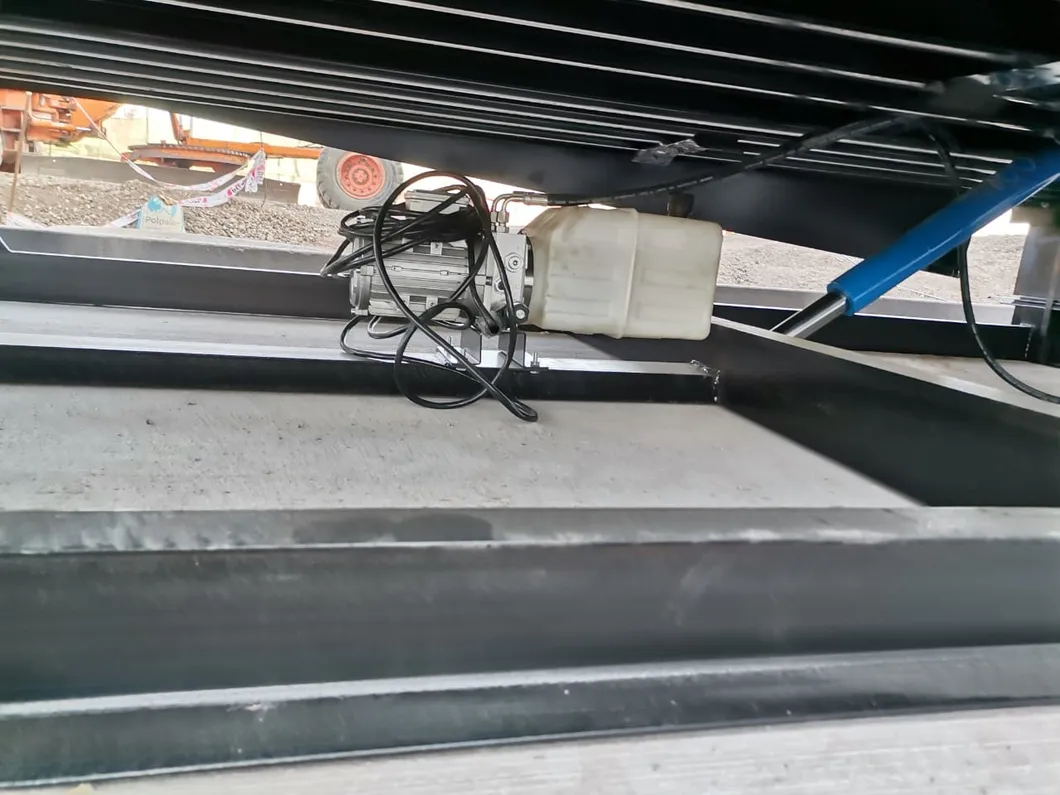

Hydraulic Motor: 0.75KW-1.5KW power with overheating self-protection.

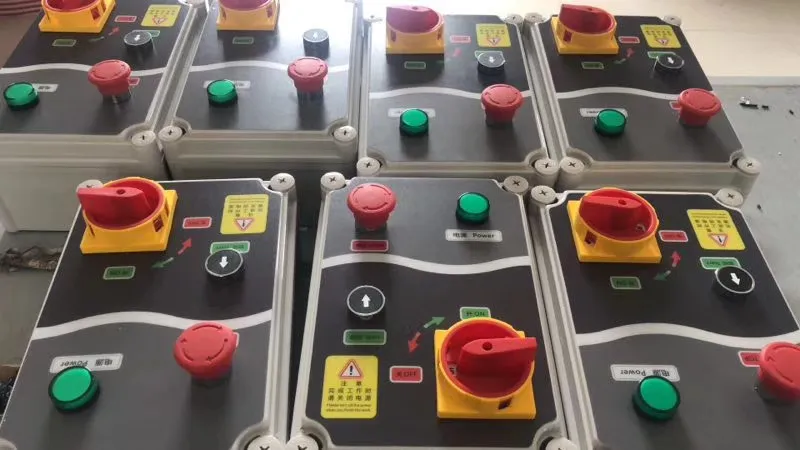

Control Panel: Features emergency stop and one-touch operation buttons.
Dock Bumper: Wear-proof high-strength rubber material for concrete fixing.
Precision Welding: Robotic welding ensures superior accuracy and structural integrity.

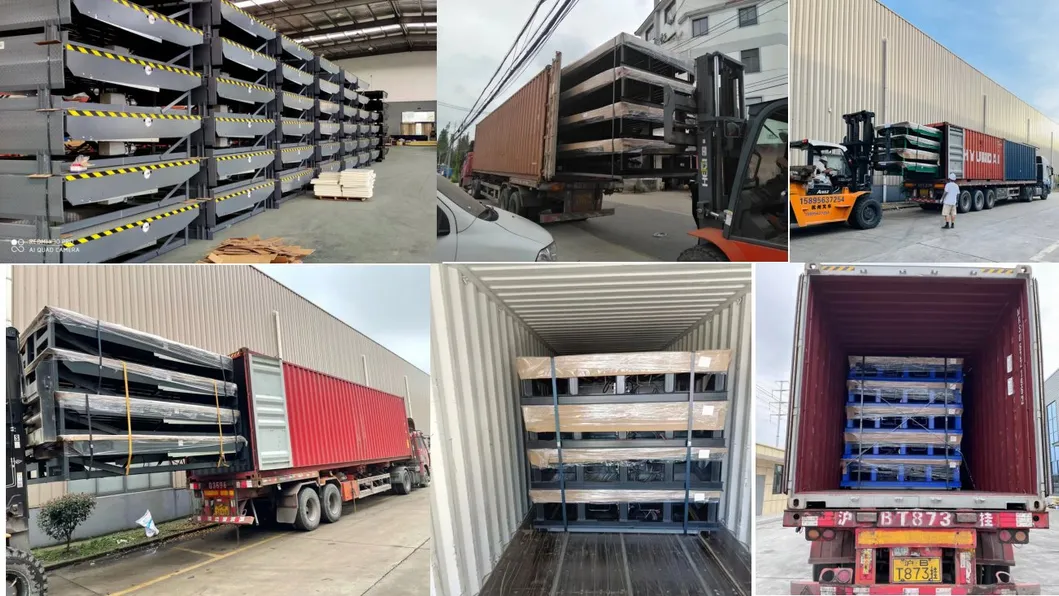

Packaging & Logistics
Standard size (L2000*W2000*H600 mm) optimized for container loading:
• One 40ft HQ container: 20 sets
• One 20ft container: 8 sets
Frequently Asked Questions
Why choose our products?
We provide cost-effective solutions with stable quality, backed by over 20 years of production and customization experience.
How can we start a project?
Simply provide your basic background and site information. Factory site drawings are preferred to help us provide a complete solution.
How is the installation handled?
We provide clear installation manuals, videos, and precaution documents. For complex projects, engineering guidance is available.
What payment terms do you accept?
We usually accept T/T in advance, L/C for large sums, and Western Union. Other terms can be discussed upon request.
What is the standard lead time?
The typical production time is approximately 7-10 days, depending on the order volume and customization requirements.
How about the after-sale service?
Spare parts can be delivered within 24 hours via international couriers like DHL, UPS, or TNT to ensure minimal downtime.
