He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
1 / 5
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform
He200 Low Profile Scissor Lift Table E-Shaped Top Platform

He200 Low Profile Scissor Lift Table E-Shaped Top Platform

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i
Basic Specifications
Model NO.
HE500, HE1000, HE1500, HE2000
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
Electric Motor
Certification
CE, ISO 9001
Product Name
E-Shape Lift Table
Capacity
500-2000kg
Power Pack
380V/50Hz, AC0.75kw
HS Code
84279000
Production Capacity
600PCS/Month
P
Product Overview

HE200 Low Profile Scissor Lift Table E-Shaped Top Platform

E-Shaped Top Platform

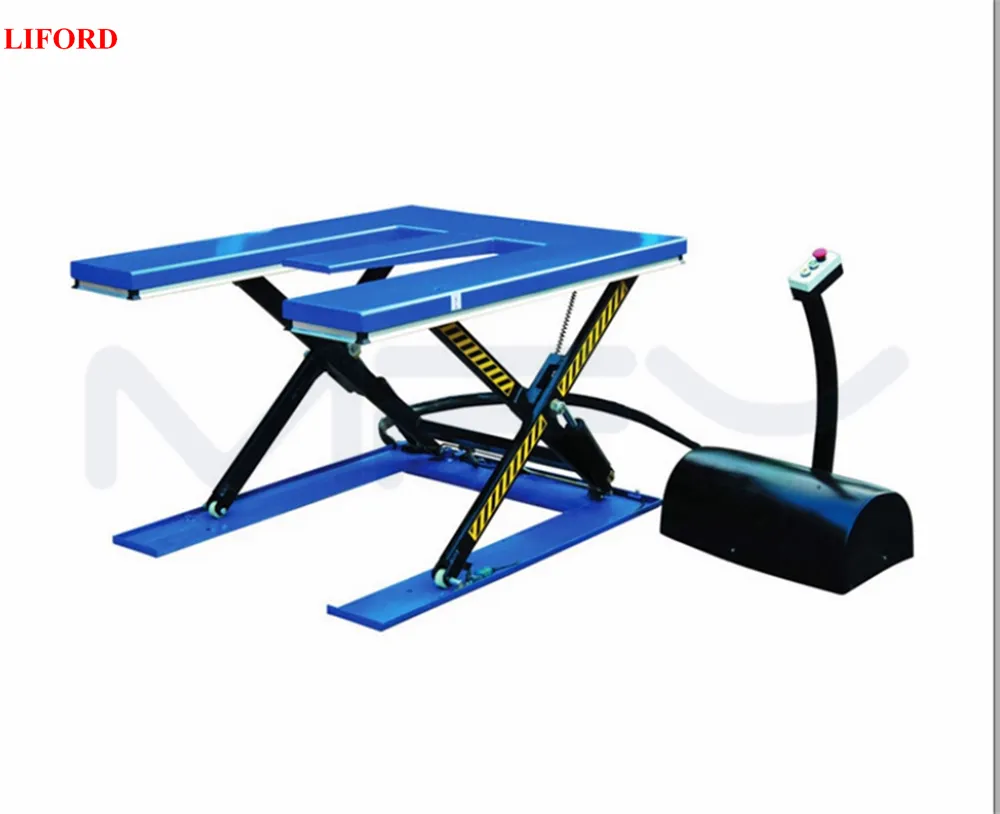

Scissor Lift Table Detail 1
Scissor Lift Table Detail 2
F
Key Features
'E' Shaped Top Platform specially for handling pallets.
No need for a pit or load ramps.
Manufactured to European safety standards EN1570:1990.
Remote power pack with pedestal and controls (IP54).
Safety perimeter to prevent descent on contact with obstructions.
24V control box with emergency stop.
Relief valve against overloading and compensated flow valve.
Hose burst safety valve for emergency protection.
Removable lifting eyes for easy installation.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.
T
Technical Data
Model HE500 HE1000 HE1500 HE2000
Capacity (kg) 500 1000 1500 2000
Max. height H(mm) 580 580 580 580
Collapsed height h(mm) 85 85 105 105
Platform L×W(mm) 1400×1200 1450×1140 1600×1180 1600x1180
Lifting Time (sec) 25~35 25~35 30~40 30~40
Power Pack (KW) AC0.75KW AC0.75KW AC1.5KW AC2.2KW
Net Weight (kg) 207 285 390 420
Application View 1

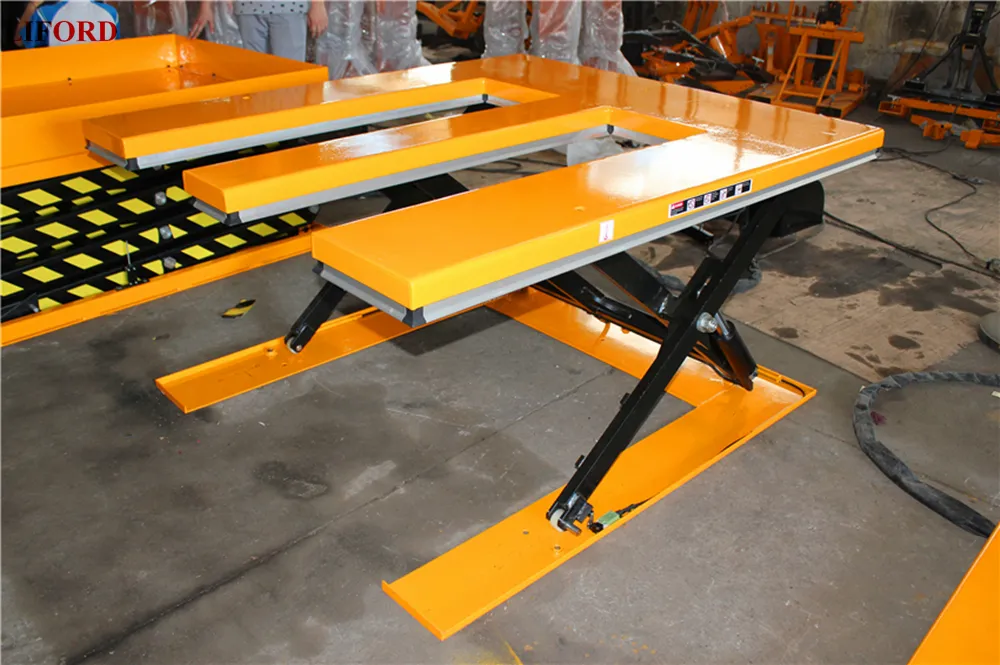

Application View 2

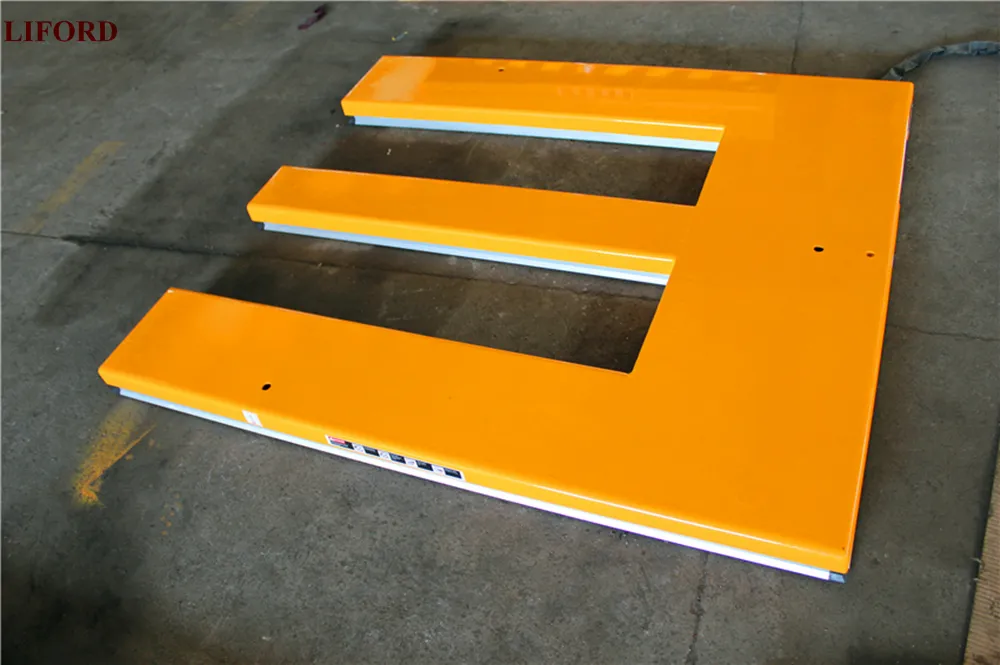

Product Structure

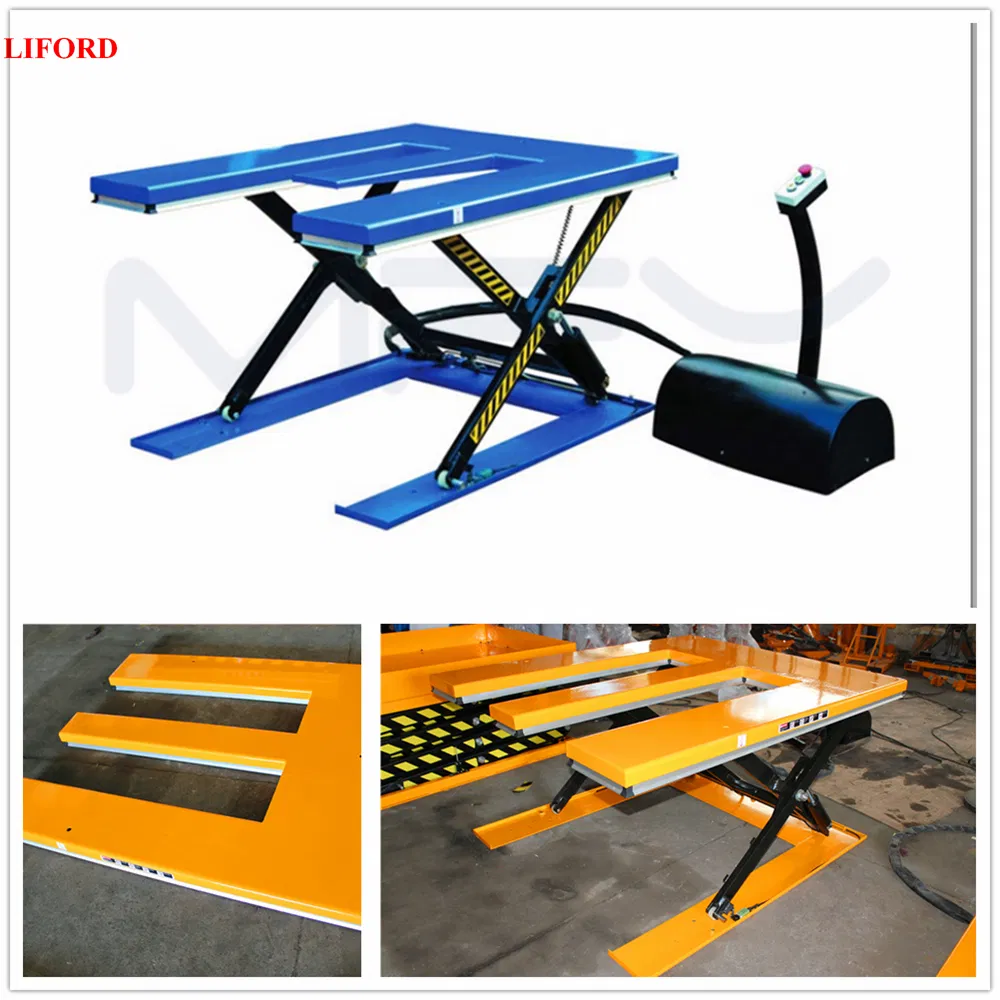

Control Unit
R
Related Equipment & Feedback
Related Handler 1
Related Handler 2

Our team adheres to implementing quality in every detail by strictly arranging production and inspection. We have established cooperative relations with over 100 leading enterprises and merchants in more than 20 countries and areas.

Customer Feedback
?
Why Choose Us?
More than 10 years' professional experience in material handling industry.
Fast production & in-time delivery to ensure project timelines.
One-stop custom service and value-added service.
OEM/ODM Services available for non-standard parts.
100% inspection of all finished products before shipment.
Strong and perfect packing for air and sea delivery.
Production Line
Shipping Preparation
Q
Frequently Asked Questions
What is the advantage of the E-shaped platform?
The 'E' shape is specifically designed for handling pallets directly with a pallet truck, eliminating the need for a floor pit or additional loading ramps.
Does this lift table meet international safety standards?
Yes, all units are manufactured to meet European safety standards, including EN1570:1990, and are CE and ISO 9001 certified.
What safety features are included to protect operators?
It includes a safety perimeter to stop descent upon contact with obstructions, a 24V control box with an emergency stop, and hose burst safety valves.
Can I customize the lift table for specific requirements?
Yes, OEM and ODM services are available. We can design and produce various non-standard parts according to your specific industrial needs.
What is the power requirement for these tables?
The standard power pack is 380V/50Hz AC, with motor capacities ranging from 0.75KW to 2.2KW depending on the model.
How is the product packaged for international shipping?
For sea delivery, products are packed in strong cartons on pallets. For air delivery, reinforced cartons with packing belts are used to ensure perfect condition upon arrival.

Related Products

Workshop Low Profile AC Power Electric Fixed Scissor Lift Table Truck Electric Stationary Hydraulic Scissors Lifting Working Platform for Factory Heavy Duty

Workshop Low Profile AC Power Electric Fixed Scissor Lift Table Truck Electric Stationary Hydraulic Scissors Lifting Working Platform for Factory Heavy Duty
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001

Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Low Profile Mini Hydraulic Scissor Lift Table 1000kg

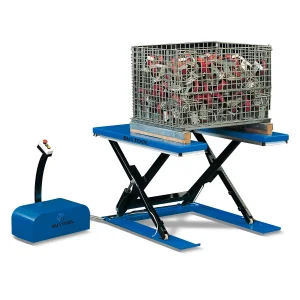

Low Profile U Shape Electric Hydraulic Scissor Lift Table 1000kg

Low Profile U Shape Electric Hydraulic Scissor Lift Table 1000kg

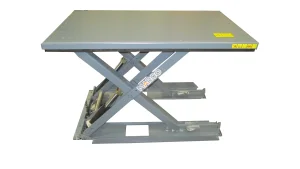

U Shape E Shape Low Profile Electric Hydraulic Scissor Lift Table with CE

U Shape E Shape Low Profile Electric Hydraulic Scissor Lift Table with CE

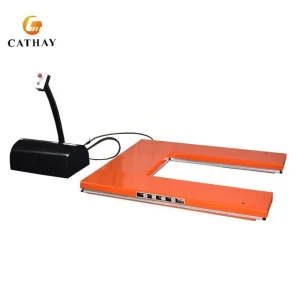

U Shape E Super Low Profile Stationary Hydraulic Scissor Lift Table

U Shape E Super Low Profile Stationary Hydraulic Scissor Lift Table

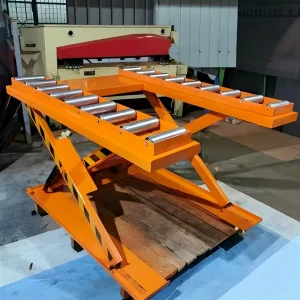

U Shaped Electric Roller Scissor Lift Table for Industrial Low Profile Hydraulic Rollers Lift Table

U Shaped Electric Roller Scissor Lift Table for Industrial Low Profile Hydraulic Rollers Lift Table

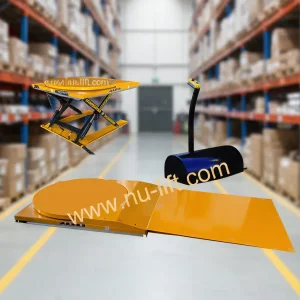

Low Profile Rotating Lift Tables-Hy. R Series

Low Profile Rotating Lift Tables-Hy. R Series

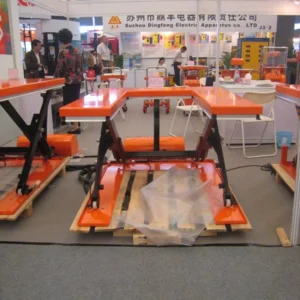

2021 Low Profile Hydraulic Scissor Lift Table Platform for Sale

2021 Low Profile Hydraulic Scissor Lift Table Platform for Sale

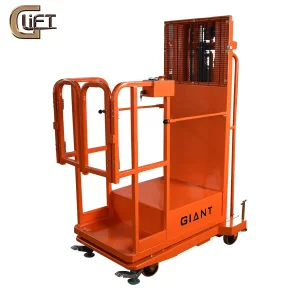

Semi Electric Cargo Picker Work Positioner Giant Lift Aerial Order Picker Low Profile Hydraulic Order Lift Table (SEP3)
