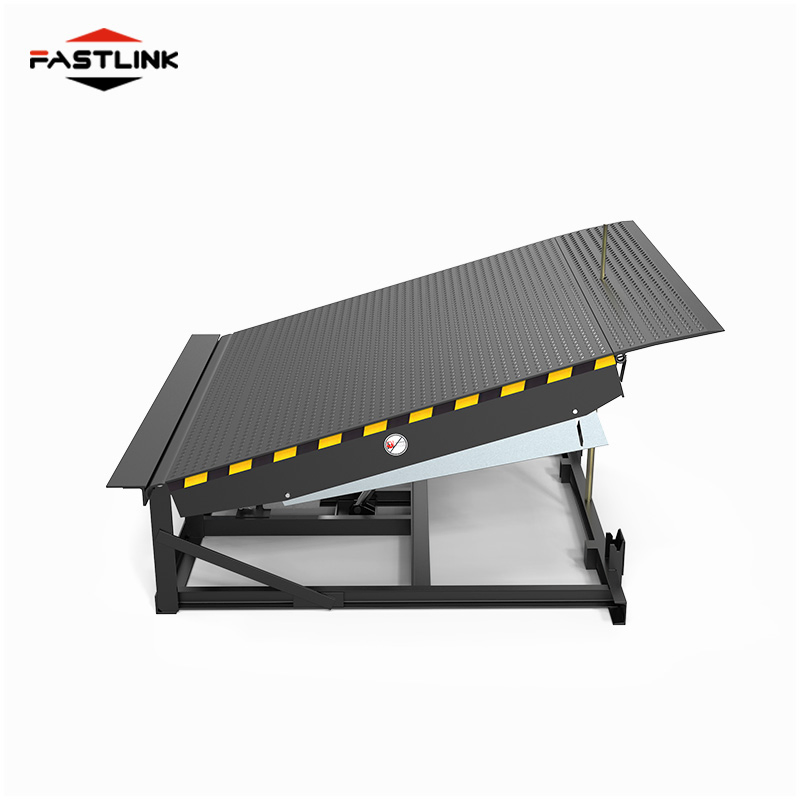

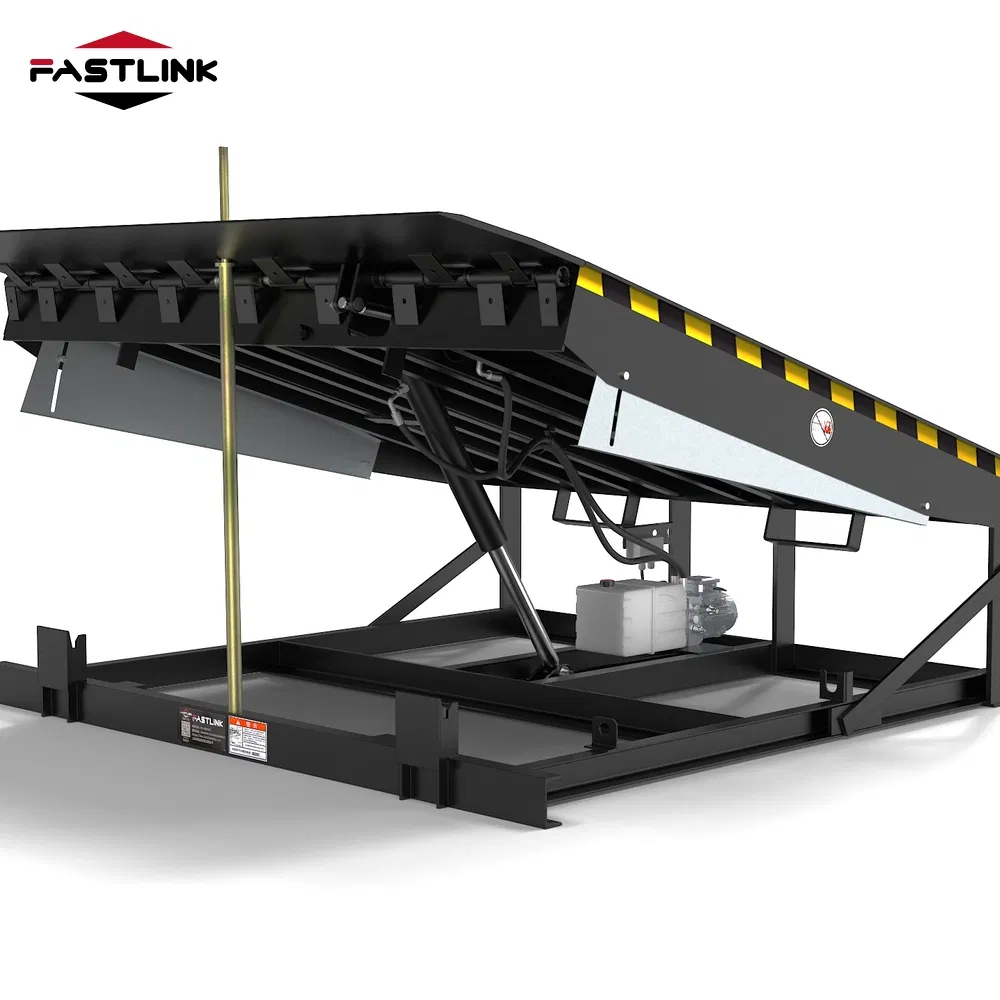

Fastlink Leading Technology Industrial Factory Logistics Security Remote Electric Control Intelligent Loading Hydraulic Dock Door Leveler

1 / 5

Fastlink Leading Technology Industrial Factory Logistics Security Remote Electric Control Intelligent Loading Hydraulic Dock Door Leveler

Customization:	Available
After-sales Service:	2years
Warranty:	1year

Send Inquiry

Product Description

Product Basic Info.

Model NO.

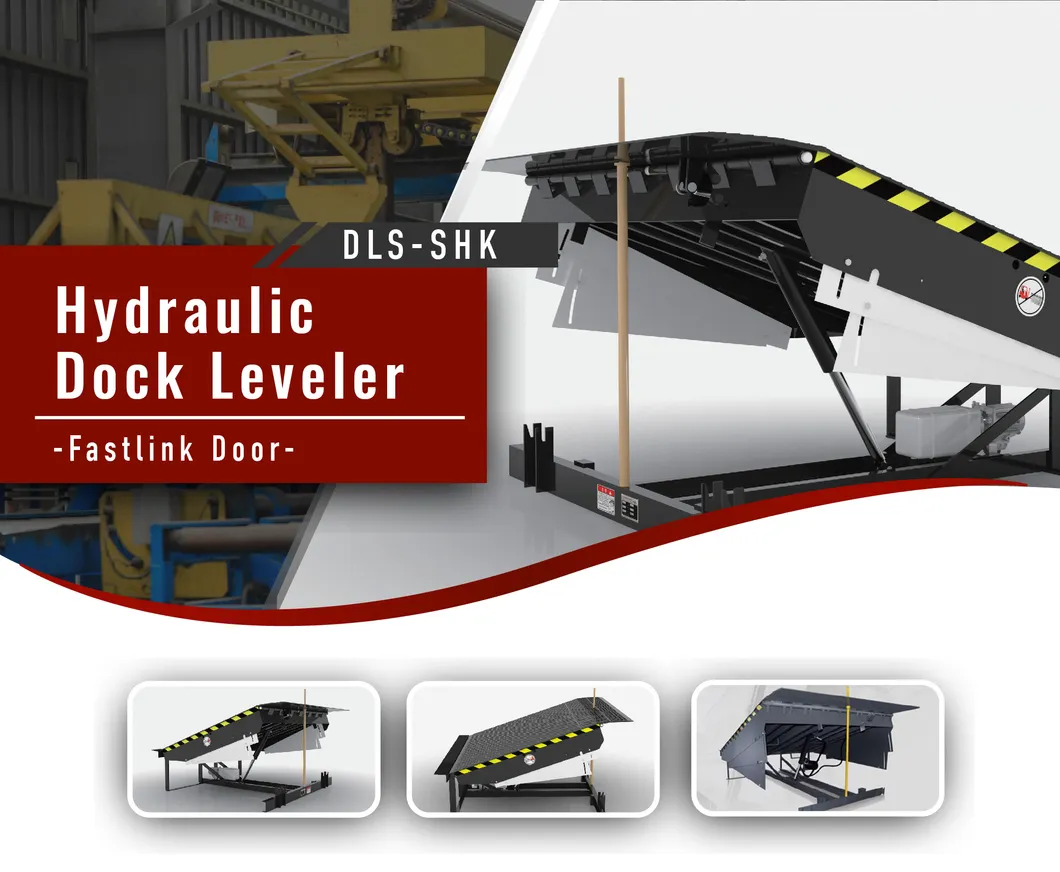

DLS-SHK

Application

Workshop/Warehouse Crane

Mechanism

Hydraulic

Load Capacity

6.8t / 10t / 15t

Driven Type

Hydraulic

Certification

Opening Mode

Electro-Hydraulic

Table Size

W2000mm*L2500mm*H600mm

Lip Length

400mm

Power Supply

380V, 3Phase, 50Hz

⚡ Efficient Control

Electro-hydraulic integrated power unit for smooth and fast operation.

🛡️ Safety First

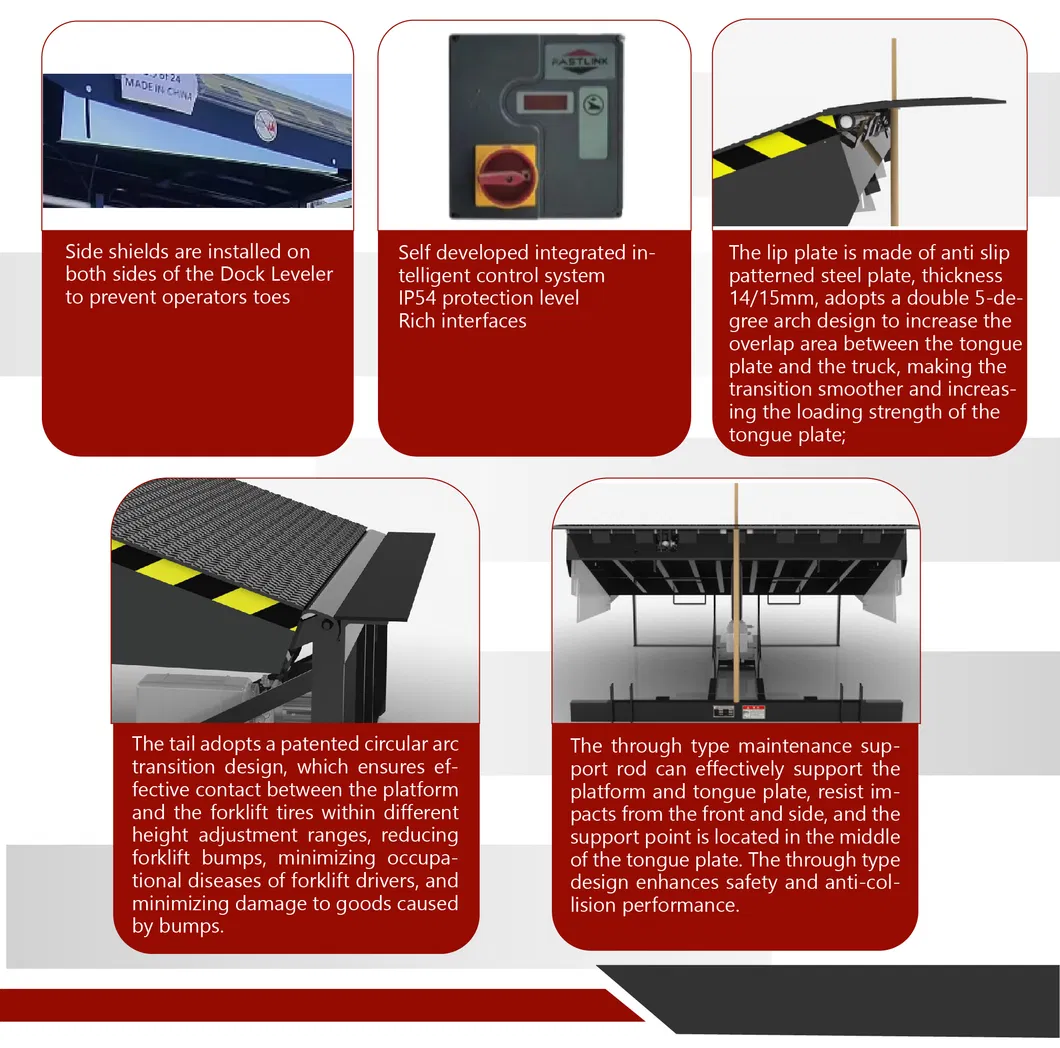

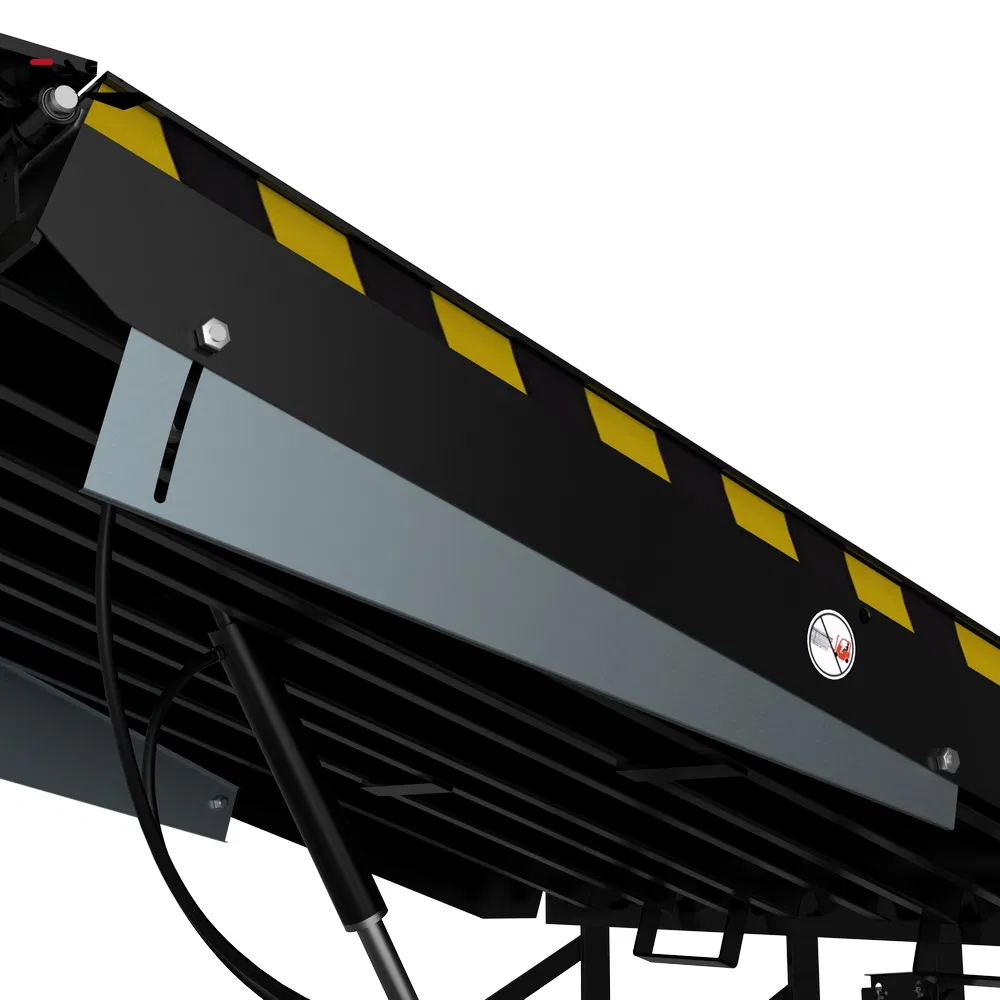

Equipped with side foot protectors and maintenance support rods.

🧠 Intelligent System

Features fault code display and fire linkage interlock functions.

Product Technical Attributes

Attribute	Details

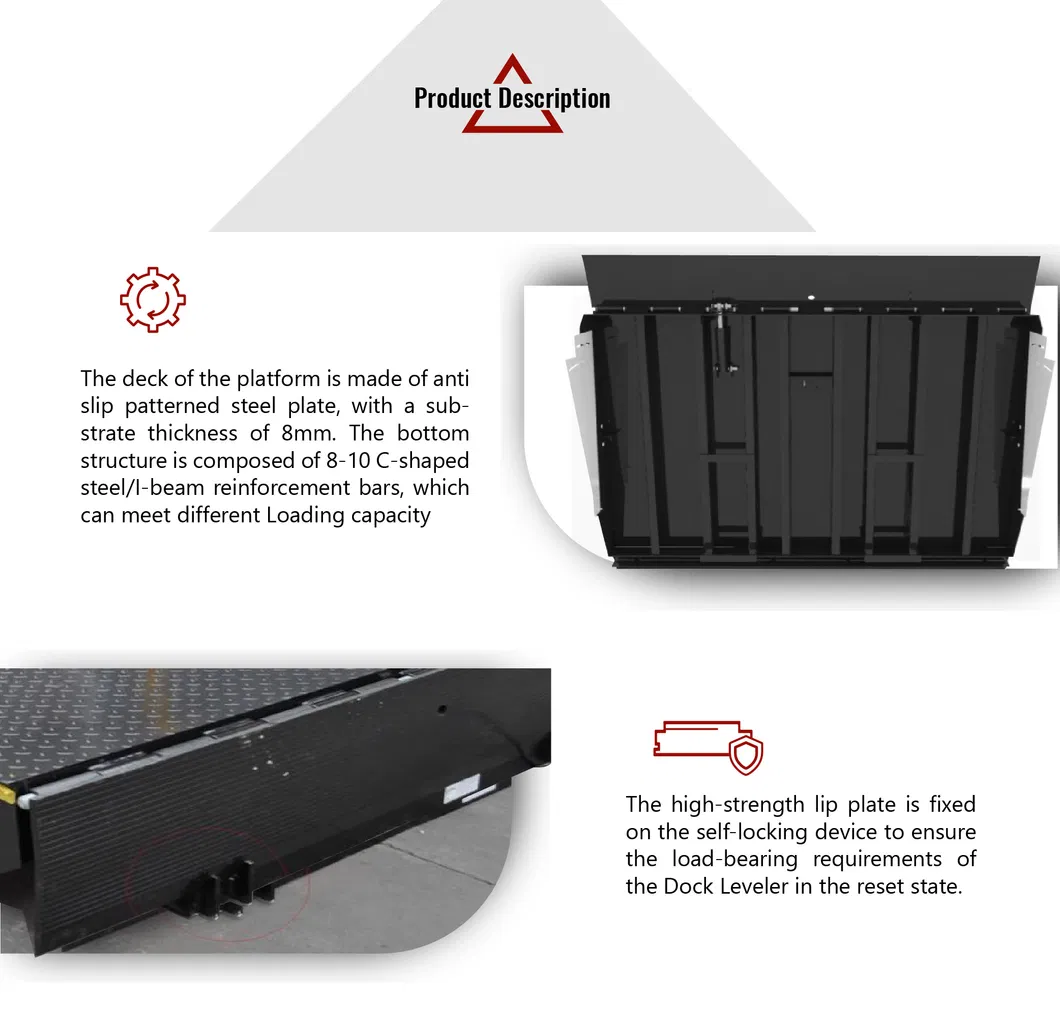

Deck Plate	High strength non-slip pattern steel, substrate thickness 8mm
Lip Plate	Thickness 14/15mm, double 5-degree arch design for better lap area
Rear Deck Design	Patented arc transition design to reduce forklift tire bumps
Structure	Reinforced by 8-10 C-rope steel reinforcements for optimal support

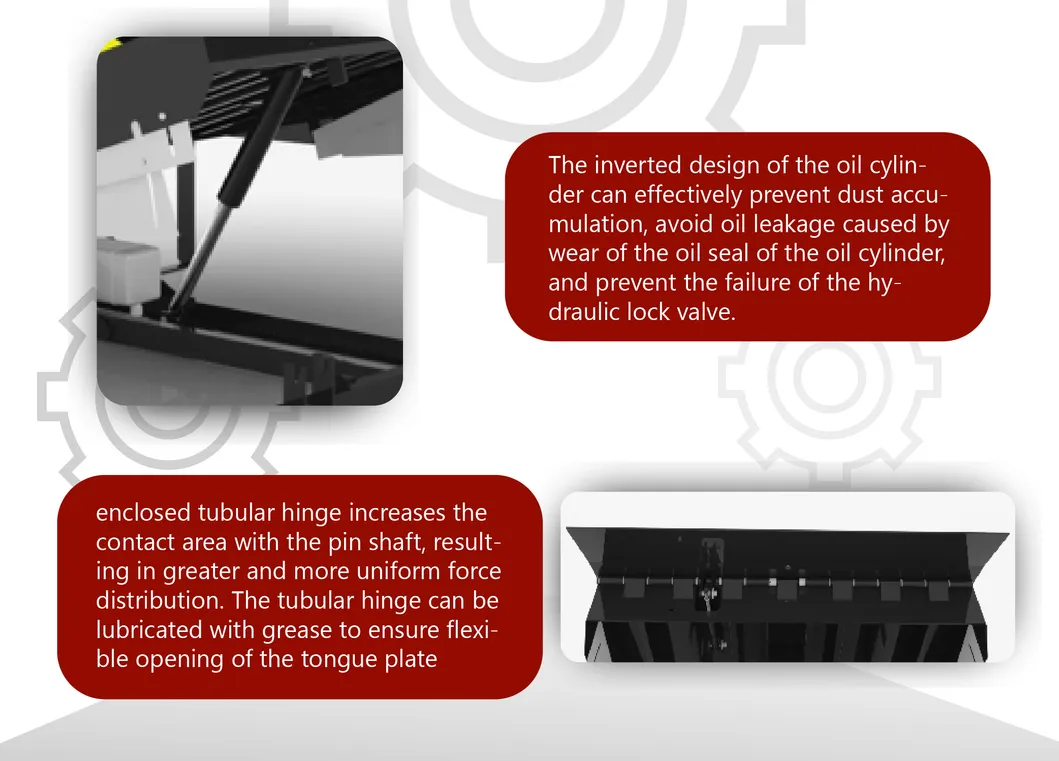

Hinges	Closed tubular hinge design with grease lubrication points
Hydraulic System	Integrated power unit controlling both deck and tongue
Control Box	Intelligent display with operation status and safety protection
Color Options	RAL9011 (Black) / RAL7012 (Gray) / RAL5002 (Blue)

Visual Presentation

Frequently Asked Questions

How to choose the length of the Hydraulic Dock Leveler?

The length depends mainly on the height difference between the carriage floor and the platform. Formula: Platform length L = h (height difference) / 0.125.

What are the common sizes for this equipment?

The standard common size is W2000mm * L2000mm * H600mm, but sizes can be customized from W1400mm up to W2200mm and lengths up to 4000mm.

What is the difference between dynamic and static loads?

Dynamic load is the maximum combined weight of forklift and cargo during operation while hitched. Static load is the maximum weight the platform can support in its reset (stored) state.

What safety configurations are included?

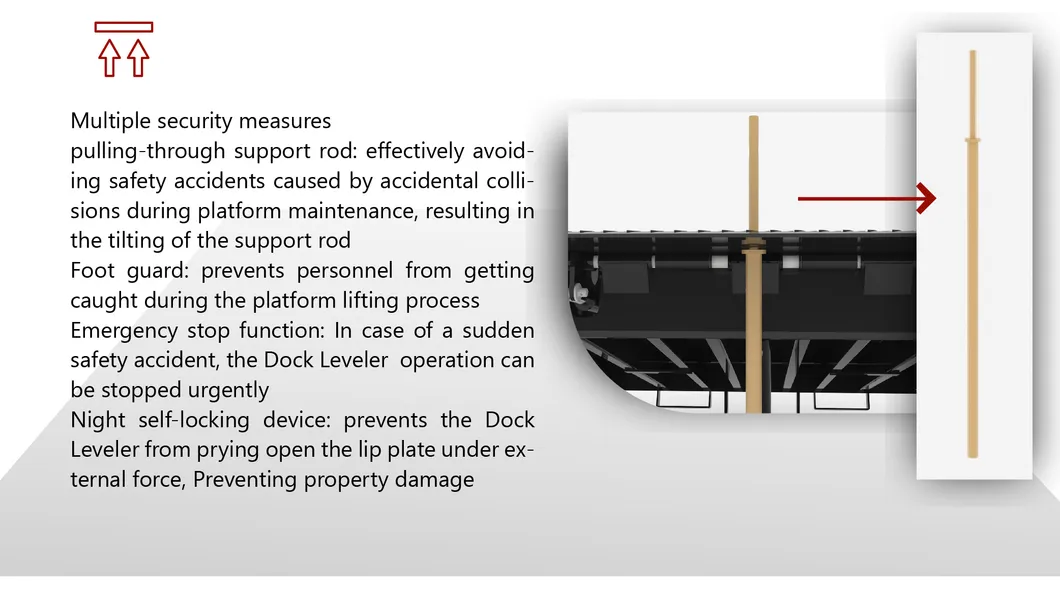

It includes penetrating maintenance support bars to resist impacts and side foot protectors to prevent operator injury during use.

What material is used for the deck and lip plates?

The deck uses high-strength non-slip pattern steel (8mm substrate), and the lip plate uses 14/15mm thick anti-slip tread steel with a double 5-degree arch design.

What kind of intelligent control functions are provided?

The control system provides fault code displays, operation status monitoring, fire linkage, and interlocking functions for safe facility management.
