Basic Specifications
Platform Size
1600X1140mm
Power Pack
380V/50Hz, AC0.75kw
Certification
GS, CE, ISO 9001
Product Description

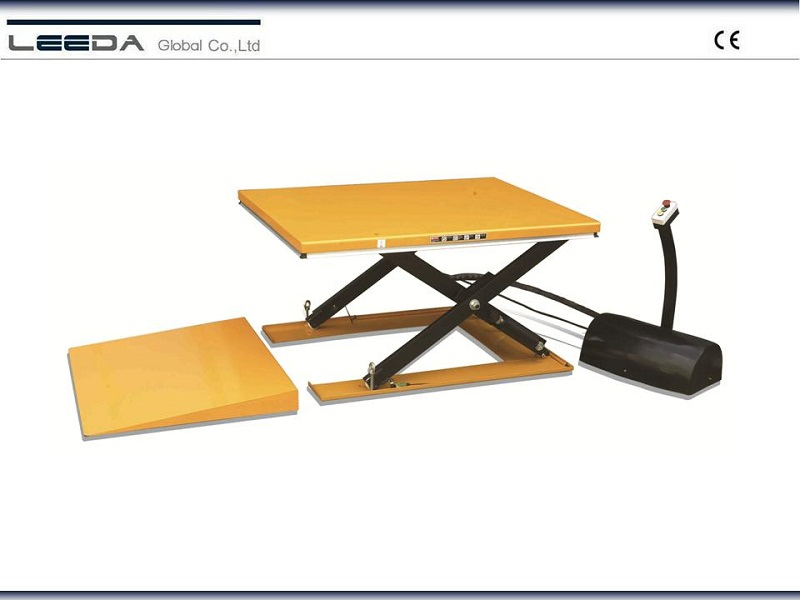

Low Profile Lift Table (HL-Y SERIES) - Professional Material Handling Solution
◈
Heavy Duty Design: Built with a larger platform for robust industrial applications.
◈
Low Closed Height: Achieves a minimum height of 85mm, eliminating the need for a pit installation.
◈
Safety Standards: Manufactured to all European safety standards including EN1570: 1999.
◈

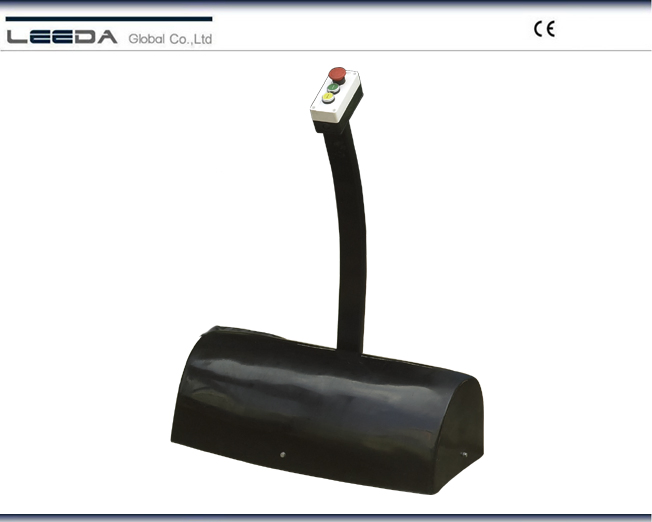

Remote Power Pack: IP54 protected remote power pack with pedestal and controls.
◈

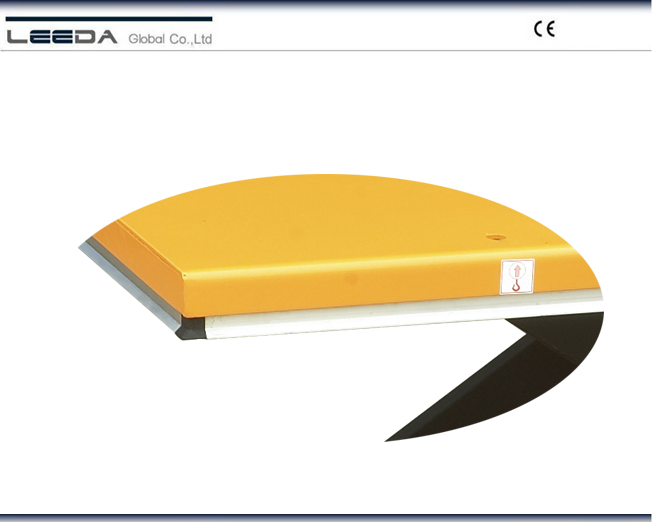

Safety Perimeter: Upper platform fitted with a safety frame to prevent descent on contact with obstructions.
◈
Advanced Controls: 24V control box featuring UP/DOWN buttons and Emergency Stop.
◈
Hydraulic Safety: Hose burst safety valve prevents table lowering in case of breakage.
◈
Maintenance Free: Equipped with oil-less bushings on all pivot points.
Technical Parameters
| Model |
Capacity (kg) |
Platform Size (mm) |
Min. Height (mm) |
Max. Height (mm) |
Stroke (mm) |
Lifting Time (s) |
Power Pack |
Weight (kg) |
| HL-Y1001 |
1000 |
1450 × 1140 |
85 |
860 |
775 |
25 |
380V/50HZ, AC 0.75kw |
357 |
| HL-Y1002 |
1000 |
1600 × 1140 |
85 |
860 |
775 |
25 |
364 |
| HL-Y1003 |
1000 |
1450 × 800 |
85 |
860 |
775 |
25 |
326 |
| HL-Y1004 |
1000 |
1600 × 800 |
85 |
860 |
775 |
25 |
332 |
| HL-Y1005 |
1000 |
1600 × 1000 |
85 |
860 |
775 |
25 |
352 |
| HL-Y1501 |
1500 |
1600 × 800 |
105 |
870 |
775 |
30 |
380V/50HZ, AC 1.5kw |
367 |
| HL-Y1502 |
1500 |
1600 × 1000 |
105 |
870 |
775 |
30 |
401 |
| HL-Y1503 |
1500 |
1600 × 1200 |
105 |
870 |
775 |
30 |
415 |
| HL-Y2001 |
2000 |
1600 × 1200 |
105 |
870 |
775 |
35 |
380V/50HZ, AC 2.2kw |
419 |
| HL-Y2002 |
2000 |
1600 × 1000 |
105 |
870 |
775 |
35 |
405 |

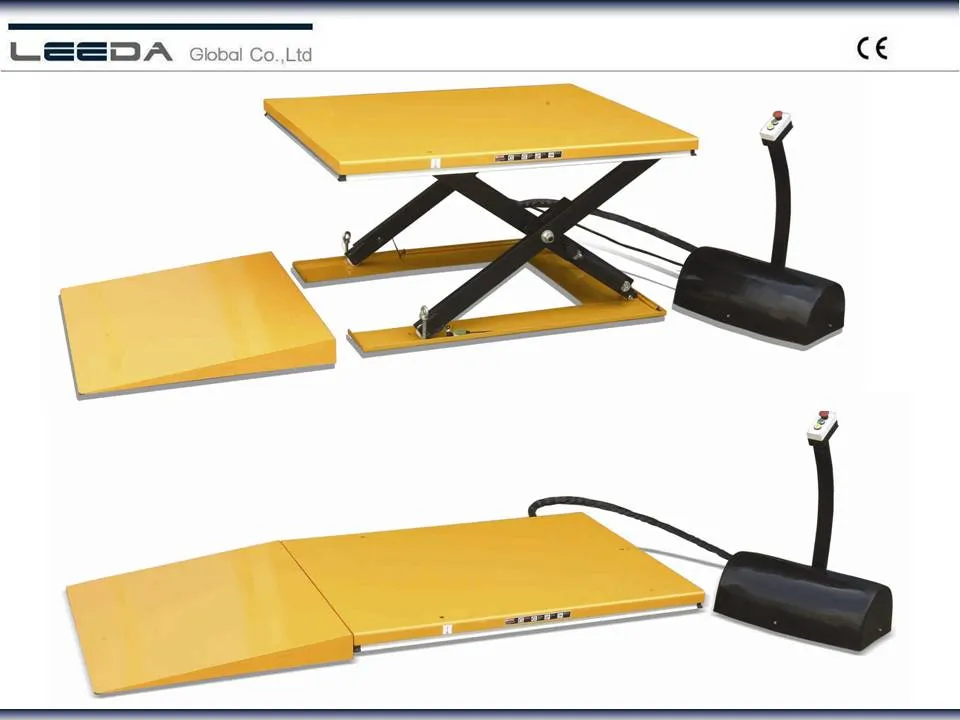

Product Gallery
Frequently Asked Questions
What are the main advantages of a low profile lift table?
The main advantage is its extremely low closed height (starting from 85mm), which allows for easy loading with a pallet truck without the need for digging a floor pit.
Does this equipment meet international safety standards?
Yes, it is manufactured to comply with European safety standards, specifically EN1570: 1999, and carries CE, GS, and ISO 9001 certifications.
What safety features are included to protect operators?
Safety features include a safety perimeter frame on the upper platform to stop descent upon obstruction, a hose burst safety valve, and an emergency stop button on the 24V control box.
What is the standard power supply required?
The standard power supply is AC 380V/50Hz/3phase, which powers the external hydraulic pack.
Is maintenance difficult for the pivot points?
Maintenance is simplified as the lift table uses oil-less bushings on all pivot points, reducing the need for frequent lubrication.
Is a loading ramp included with the purchase?
Yes, a loading ramp is provided as standard equipment to facilitate the easy movement of goods onto the low-profile platform.
