1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1 / 5
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003
1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003

1000kg Low Profile Electric Lift Table with 1450X800mm Platform Size Hl-Y1003

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
HL-Y1003
Moves
Stationary
Driven Type
AC
Certification
GS, CE, ISO 9001
Capacity
1000kg
Platform Size
1450X800mm
Min Height
85mm
Max Height
860mm
Power Pack
380V/50Hz, AC 0.75kw
Lifting Time
25s
🛠️ Product Description

Low Profile Lift Table (HL-Y SERIES)

  • ✔ Heavy duty design with a larger platform.
  • ✔ Low closed height eliminates the need for pit installation.
  • ✔ Manufactured to European safety standards including EN1570: 1999.
  • ✔ Remote power pack with pedestal and controls (IP54 protected).

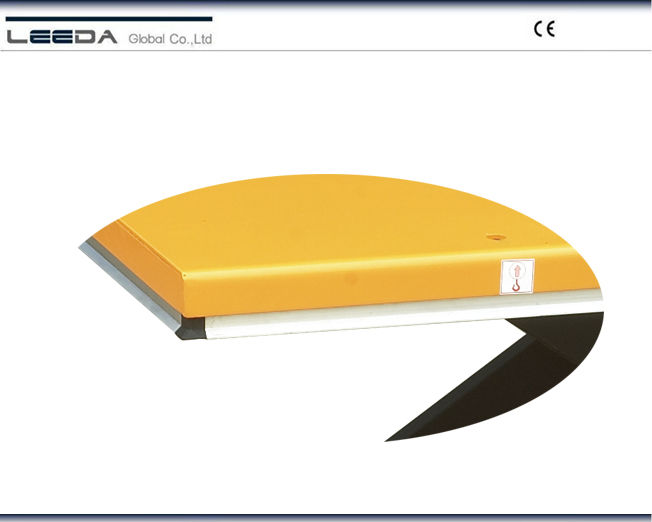

  • ✔ Safety perimeter on upper platform prevents descent upon obstruction contact.
  • ✔ 24V control box featuring UP/DOWN buttons and emergency stop.
  • ✔ External power pack with relief valve (overload protection) and compensated flow valve.
  • ✔ Hose burst safety valve to prevent sudden lowering in case of breakage.
  • ✔ Removable lifting eyes for easy handling and installation.
  • ✔ Oil-less bushings on pivot points for low maintenance.
  • ✔ Standard loading ramp included.

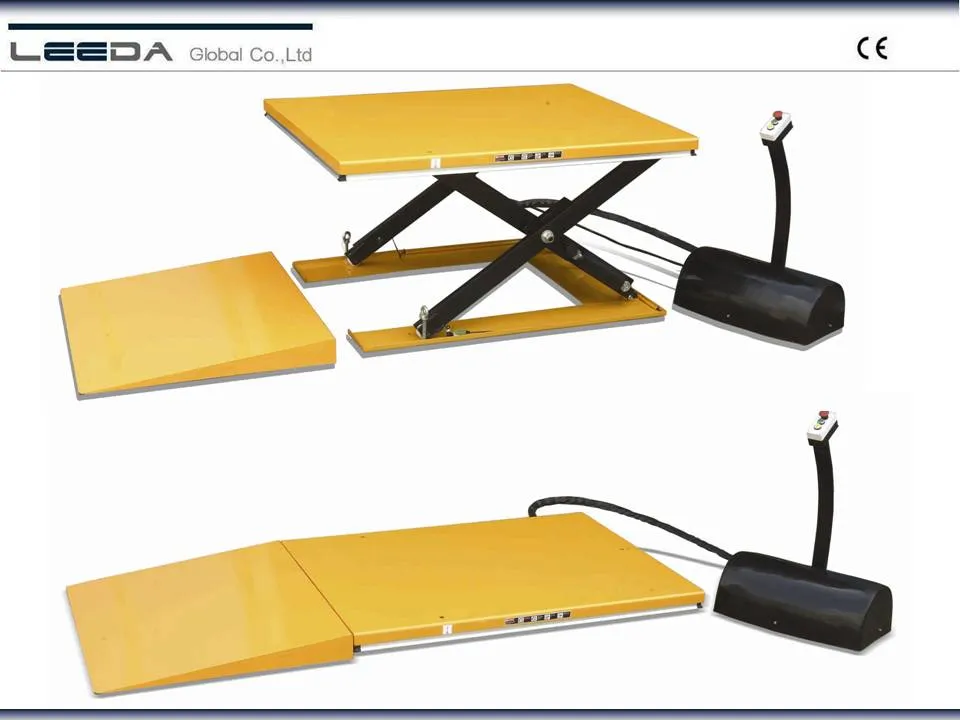

Low Profile Electric Lift Table HL-Y1003
Electric Lift Table Side View

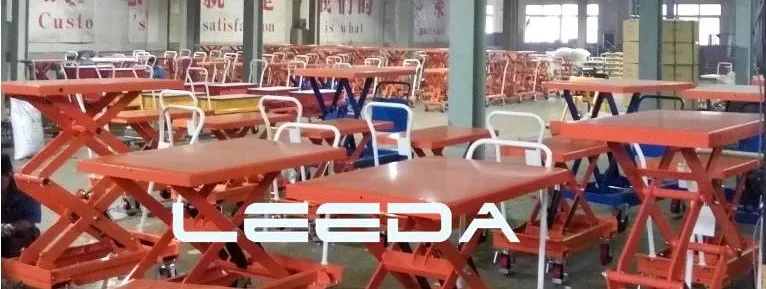

Lift Table Detail View

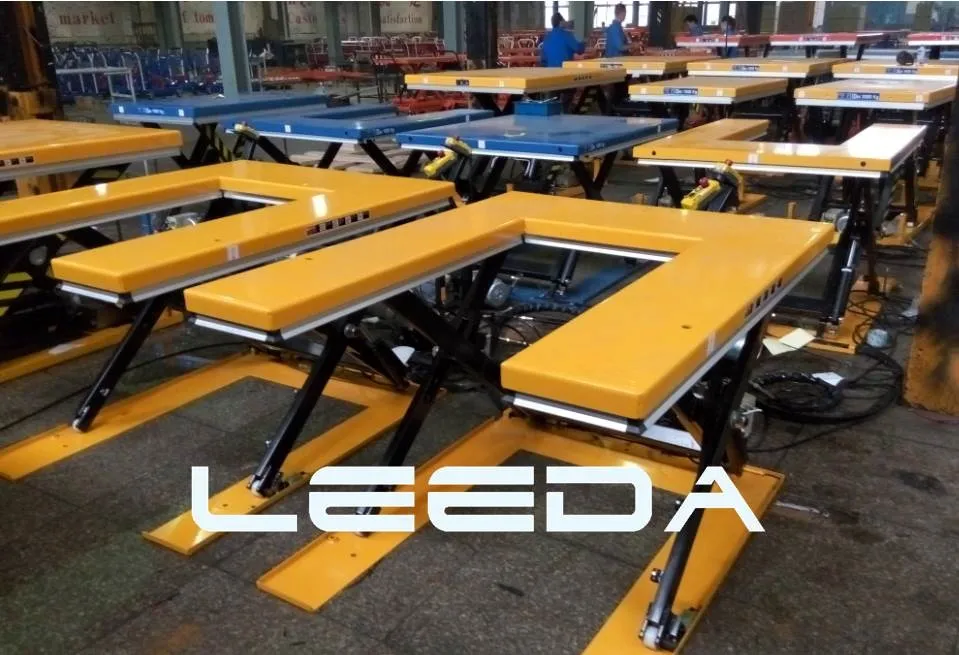

Low Profile Platform

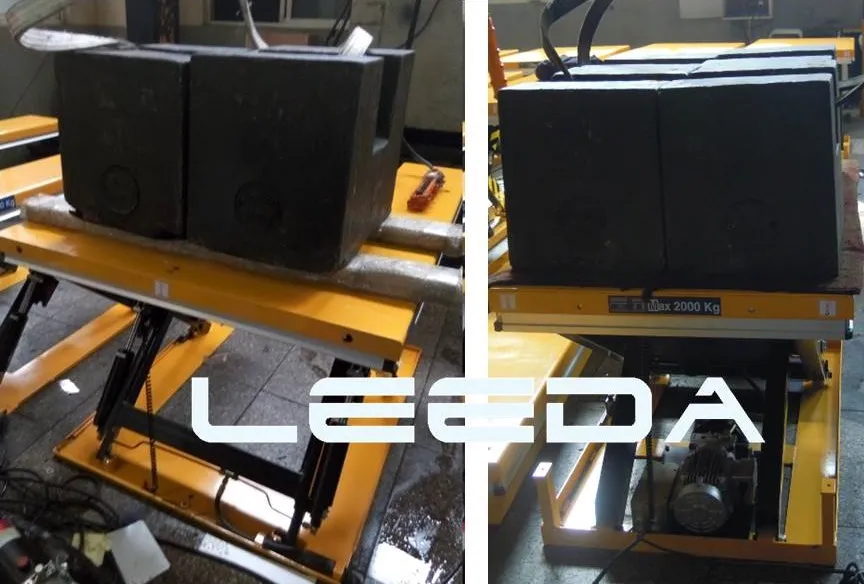

Hydraulic Power Unit

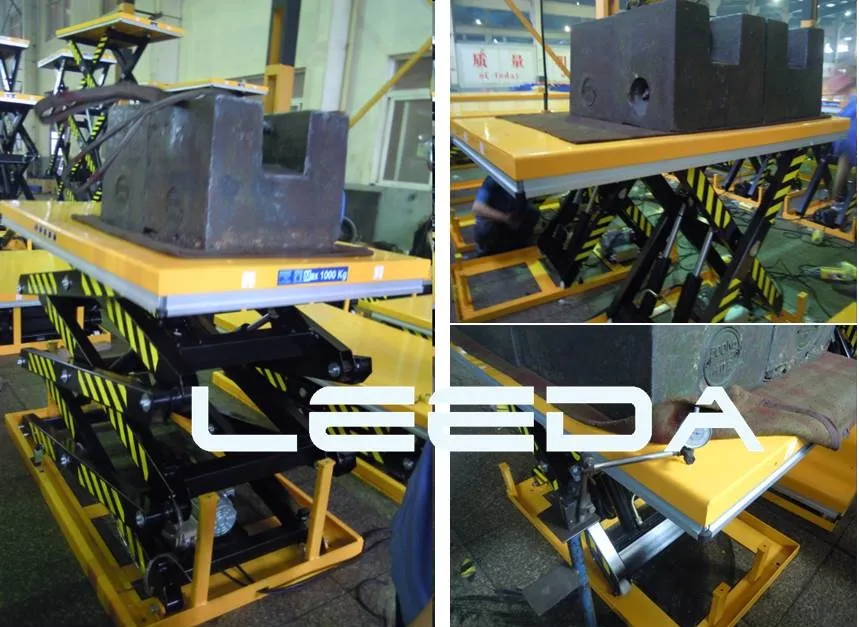

Lift Table Components
📊 Technical Specifications
Model Capacity Platform Size Min. Height Max. Height Stroke Lifting Time Power Pack Net Weight
(kg) LXW(mm) (mm) (mm) (mm) (second)   (kg)
HL-Y100110001450×11408586077525380V/50HZ, AC 0.75kw357
HL-Y100210001600×11408586077525364
HL-Y100310001450×8008586077525326
HL-Y100410001600×8008586077525332
HL-Y100510001600×10008586077525352
HL-Y150115001600×80010587077530380V/50HZ, AC 1.5kw367
HL-Y150215001600×100010587077530401
HL-Y150315001600×120010587077530415
HL-Y200120001600×120010587077535380V/50HZ, AC 2.2kw419
HL-Y200220001600×100010587077535405
❓ Frequently Asked Questions
Does the HL-Y series lift table require a pit for installation?
No, these tables achieve a very low closed height (starting from 85mm), which eliminates the need for a pit installation and simplifies the setup process.
What safety standards do these lift tables comply with?
All HL-Y series lift tables are manufactured to meet European safety standards, including the EN1570: 1999 regulation, ensuring high operational safety.
How is the lift table protected against overloading?
The external power pack is equipped with a dedicated relief valve that prevents overloading, protecting both the operator and the equipment.
What happens if a hydraulic hose breaks during operation?
The system includes a hose burst safety valve. This valve immediately stops the lift table from lowering in the event of a hose breakage, providing a critical fail-safe.
Is the loading ramp included as standard equipment?
Yes, the loading ramp is part of the standard equipment for the HL-Y series to facilitate easy loading and unloading of goods.
What is the standard power supply for these units?
The standard power supply is AC 380V/50Hz/3phase, with power pack ratings varying from 0.75kw to 2.2kw depending on the specific model capacity.
