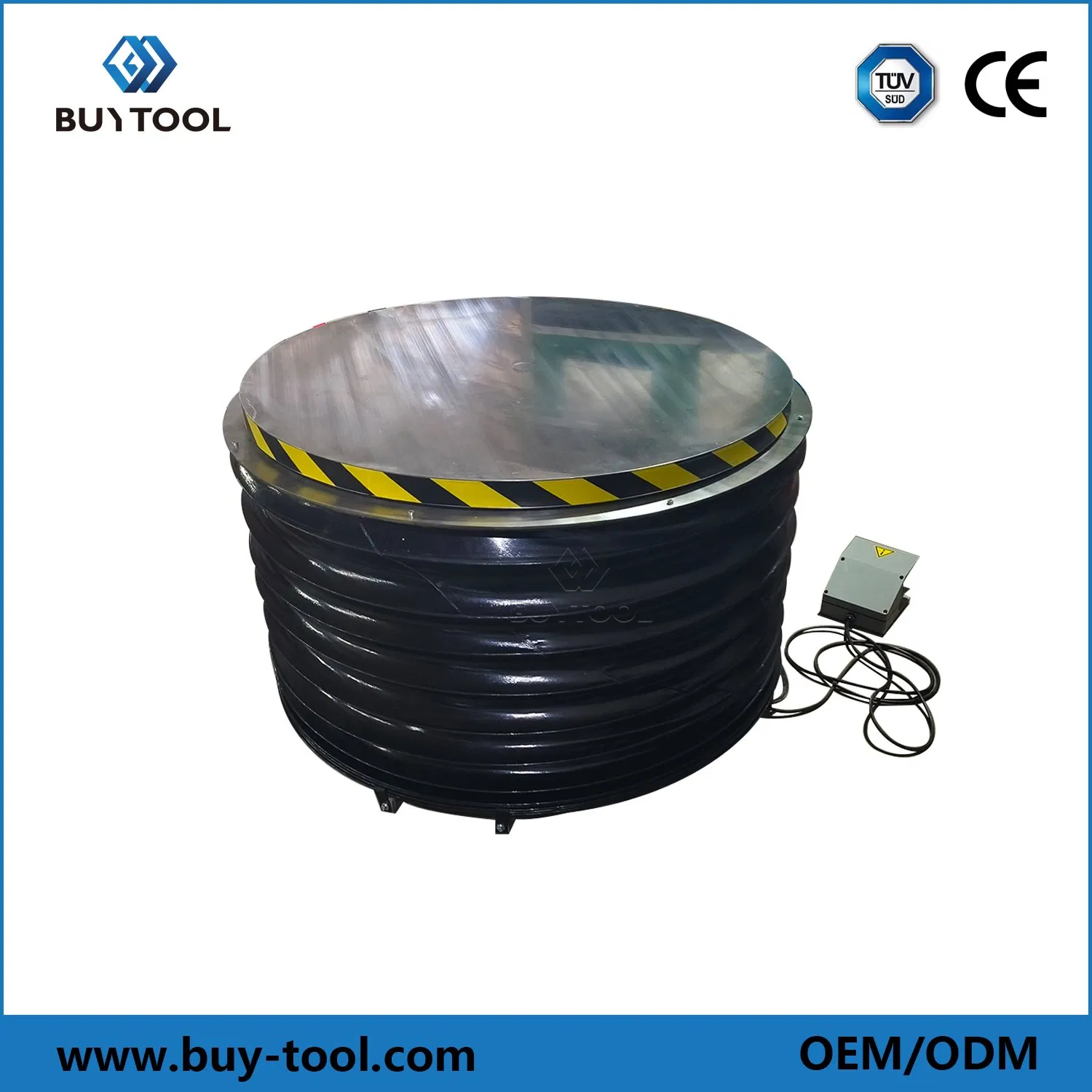

SS304 Stainless Steel Rotary Lift Table with Dust Cover

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	One-Year

Basic Specifications

Model NO.

BT360-1000EFB

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Scissor Lift

Driven Type

Hydraulic

Feature

Explosion-Proof

Certification

GS, CE, ISO 9001

Capacity

1000kg / 2000kg

Texture

SS304 Stainless Steel

Rotation Mode

360° Manual Rotation

Protector

Dust Cover

Production Capacity

1000PCS/Month

HS Code

8428909090

Product Description

SS304 Stainless Steel Rotary Lifting Table With Dust Cover

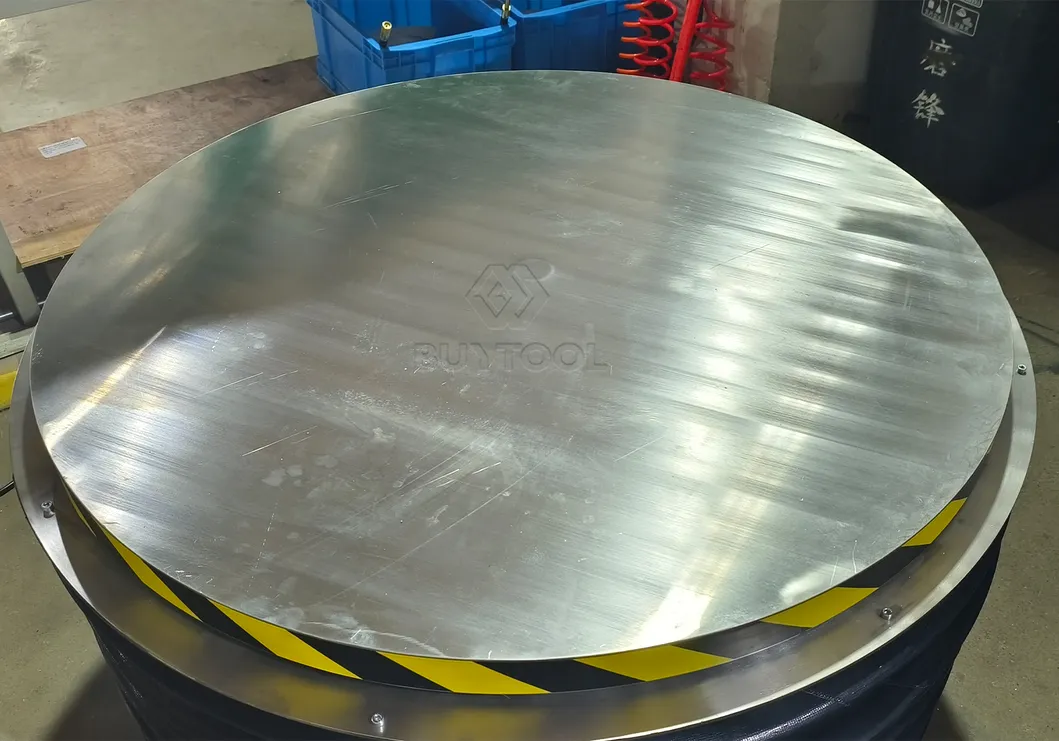

360 degree rotating closed platform for versatile positioning.
Easy to be moved by the forklift truck for flexible warehouse use.
Internal power pack equipped with relief valve against overloading.
Compensated flow valve for precisely controlled lowering speed.
Heavy duty cylinders with drainage system and check valve for safety in case of hose burst.

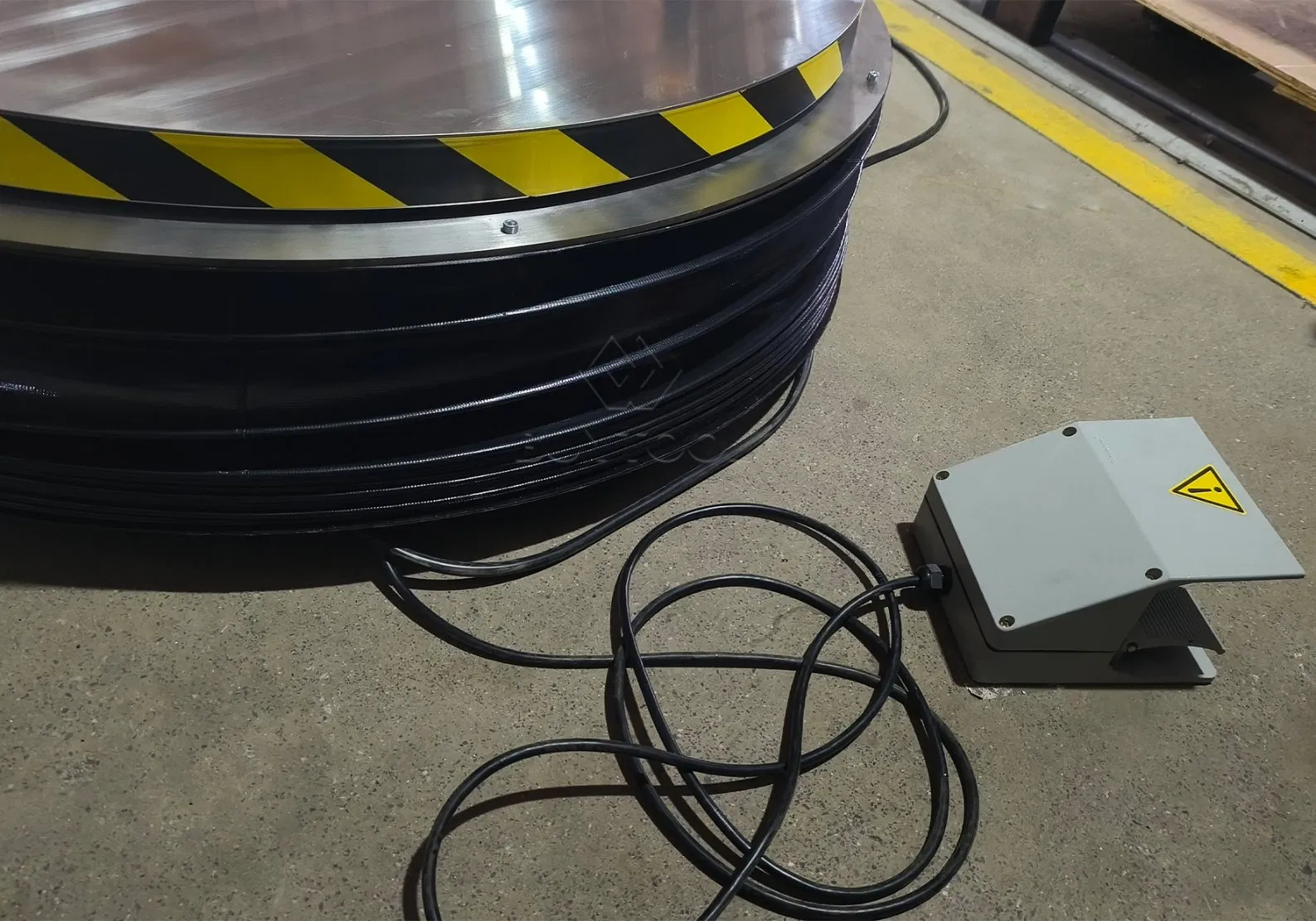

Equipped with foot pedal controller (hand controller optional).
The integrated dust cover prevents debris from entering the interior, protecting machinery and extending lifespan.

Technical Parameters

Model	Unit	BT360-1000E	BT360-2000E
Capacity	kg	1000	2000
Operation Type	-	Electric (Pedal)	Electric (Pedal)
Diameter of Platform	mm	1110	1110
Min. Platform Height	mm	300	300
Max. Platform Height	mm	710	710
Basement Size (L*W)	mm	930 x 920	930 x 920
Lift Time	Sec	15-20	20-25
Power Pack	-	380V/50HZ, 1.1KW	380V/50HZ, 2.2KW
Net Weight	kg	163	175

Detailed Features

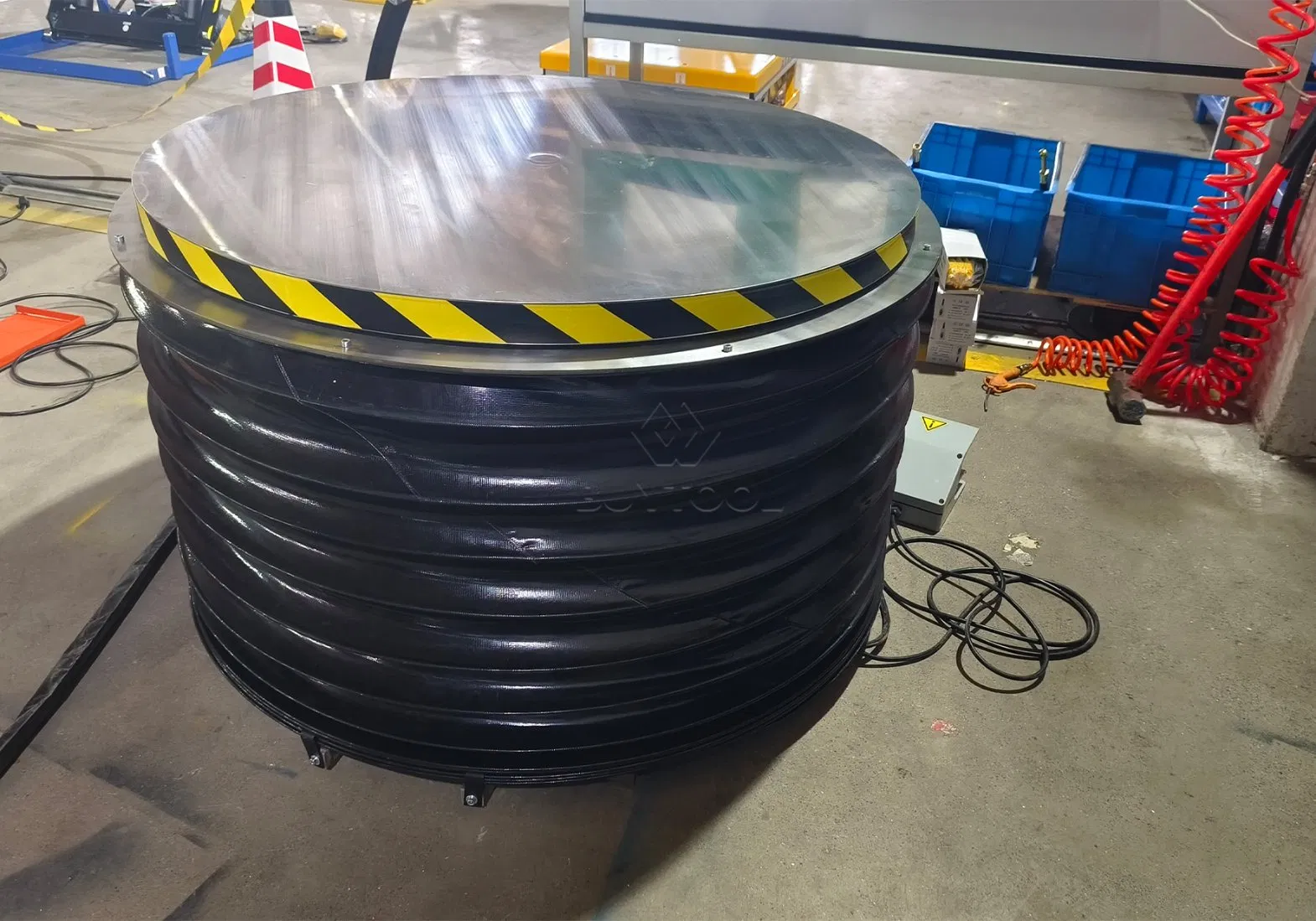

SS304 Stainless Steel Rotary Lift Table with Dust Cover

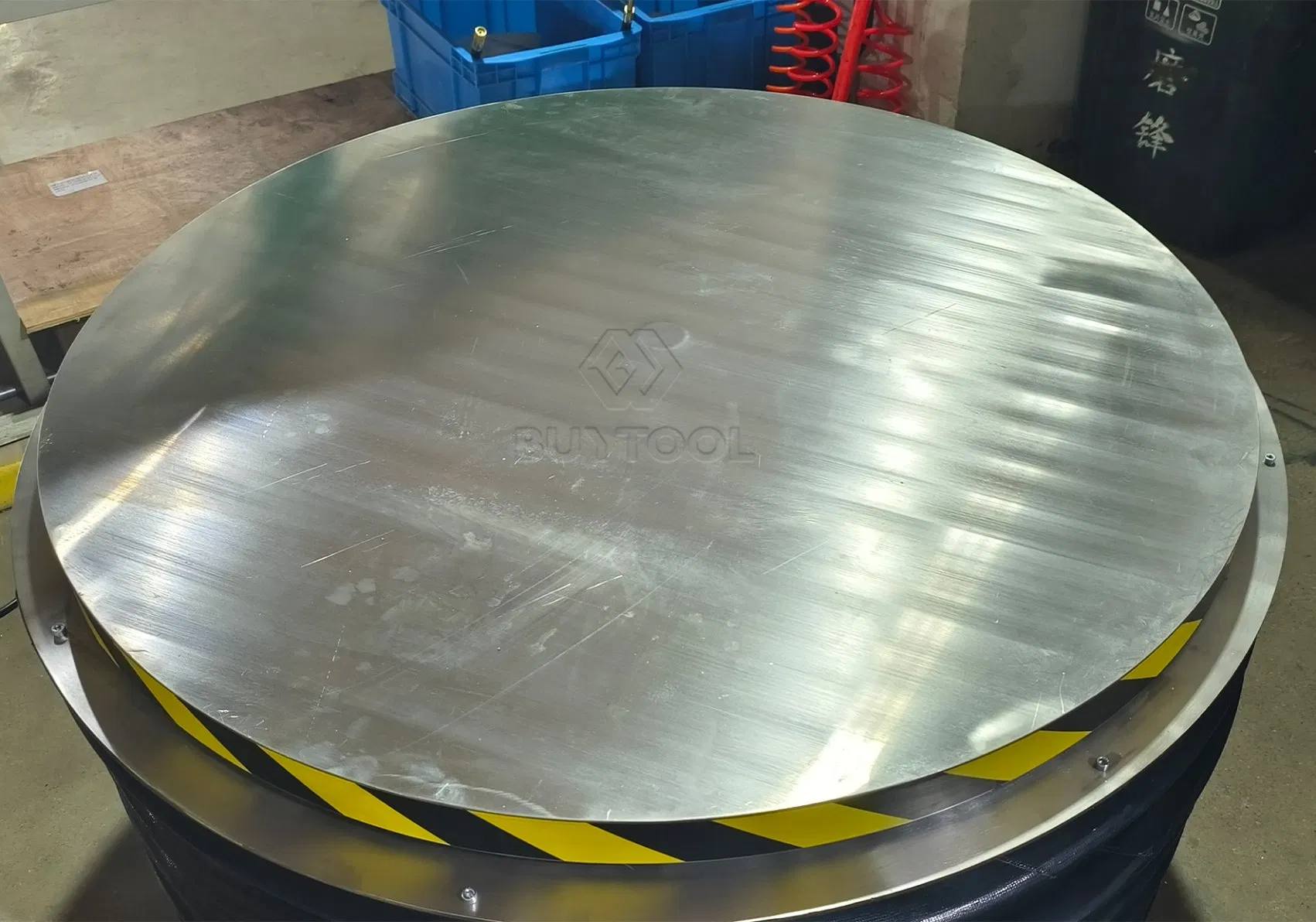

Corrosion & Wear Resistance: SS304 surface prevents chemical erosion and maintains a clean, scratch-free appearance.

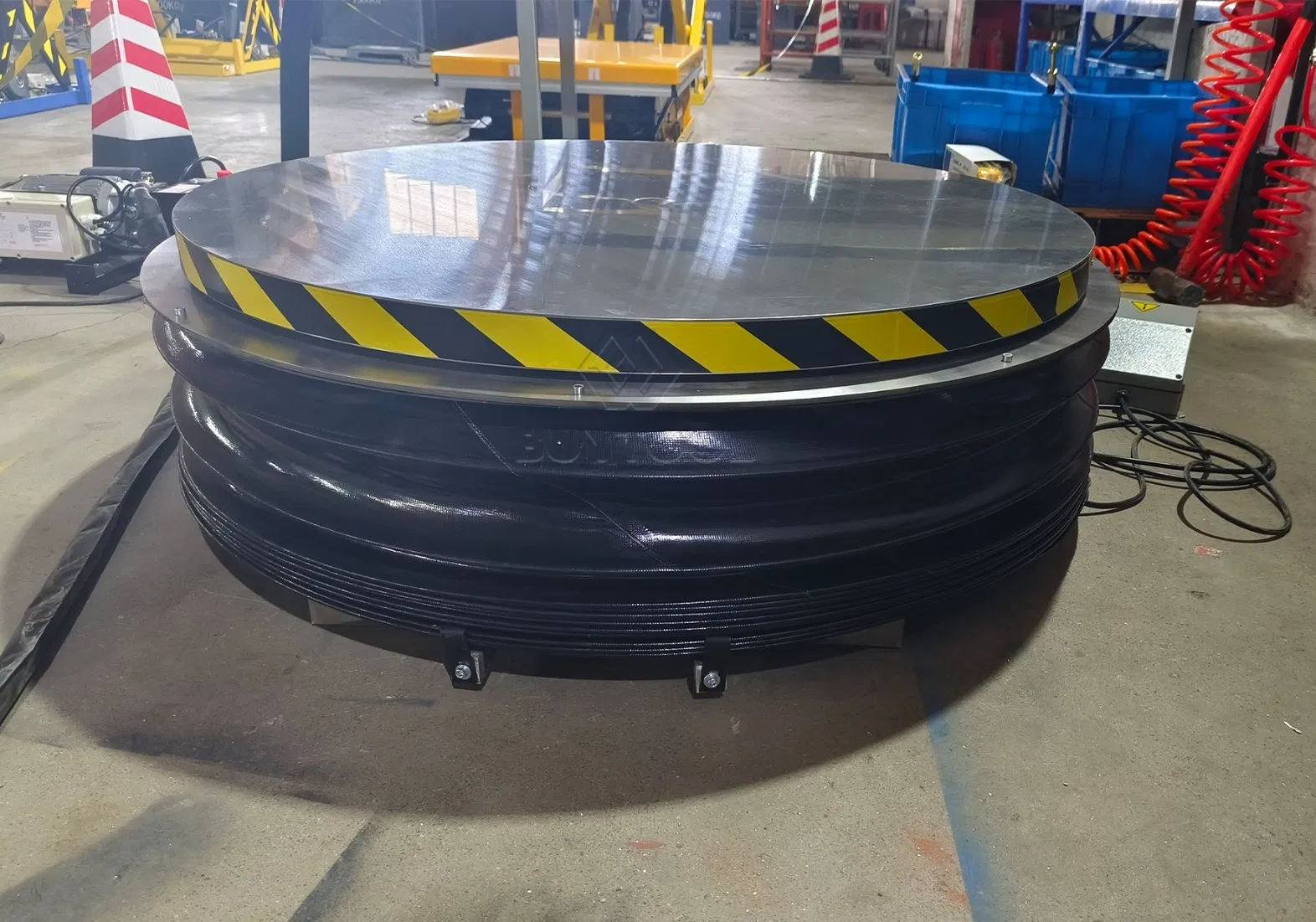

Protective Equipment: The dust cover shields key components from sand, metal chips, and external impacts.

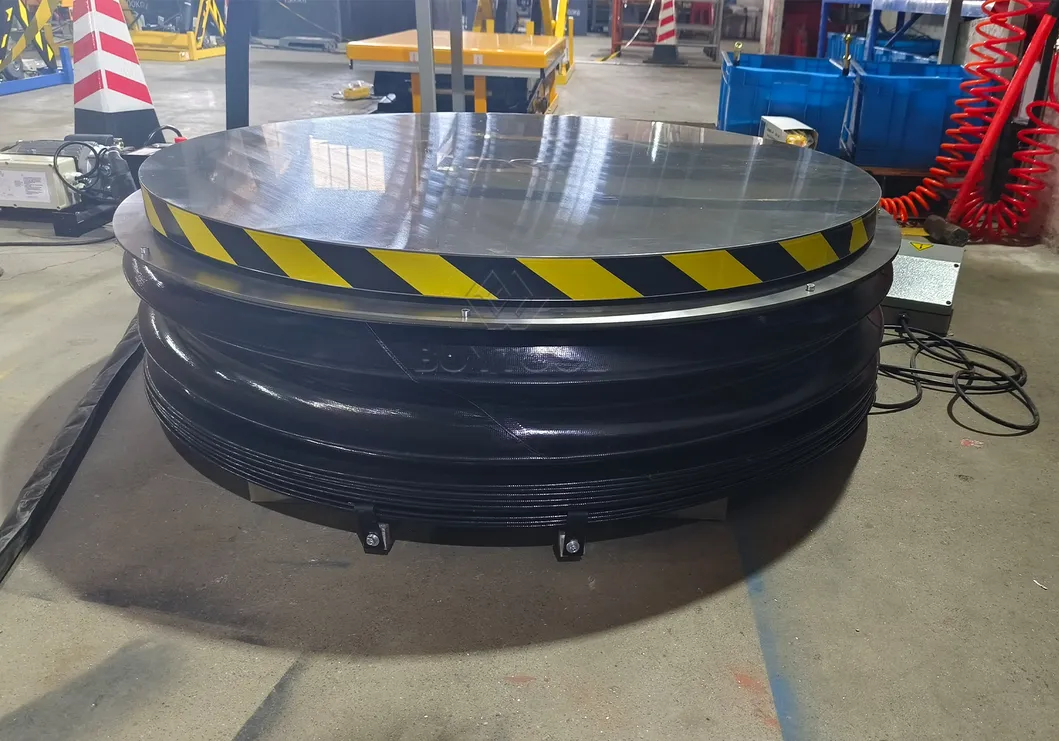

SS304 Stainless Steel Rotary Lift Table Detail

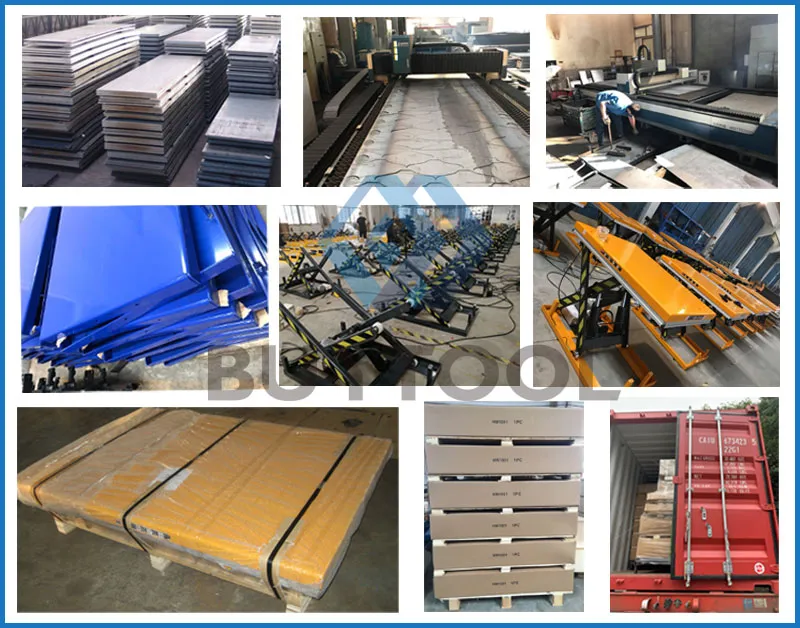

Packing & Shipping

Package Size

103.00cm * 102.00cm * 50.00cm

Gross Weight

1020.000kg

Transport Package

1PC/Carton

Frequently Asked Questions

What about the quality of the products?

Our products are CE approved with a 5-step inspection: raw material ISO9001 check, production process monitoring, load limit testing, 100% pre-shipment inspection, and optional buyer inspection.

How long is the quality guarantee?

All of our products carry a one-year warranty for quality assurance.

What is the standard lead time for orders?

Normally 30 days. It may vary from 20 days for single items to 45 days for mixed containers (more than 5 items).

What are the advantages of SS304 Stainless Steel?

SS304 provides excellent corrosion and wear resistance, ensuring the machine remains clean, beautiful, and durable even in harsh environments.

How does the dust cover improve equipment stability?

By reducing the influence of external factors like debris and dust, the cover helps maintain operational stability and significantly reduces the failure rate.

Are the specifications and colors customizable?

Yes, the specifications are customizable, and the standard yellow color can be changed based on your requirements.
