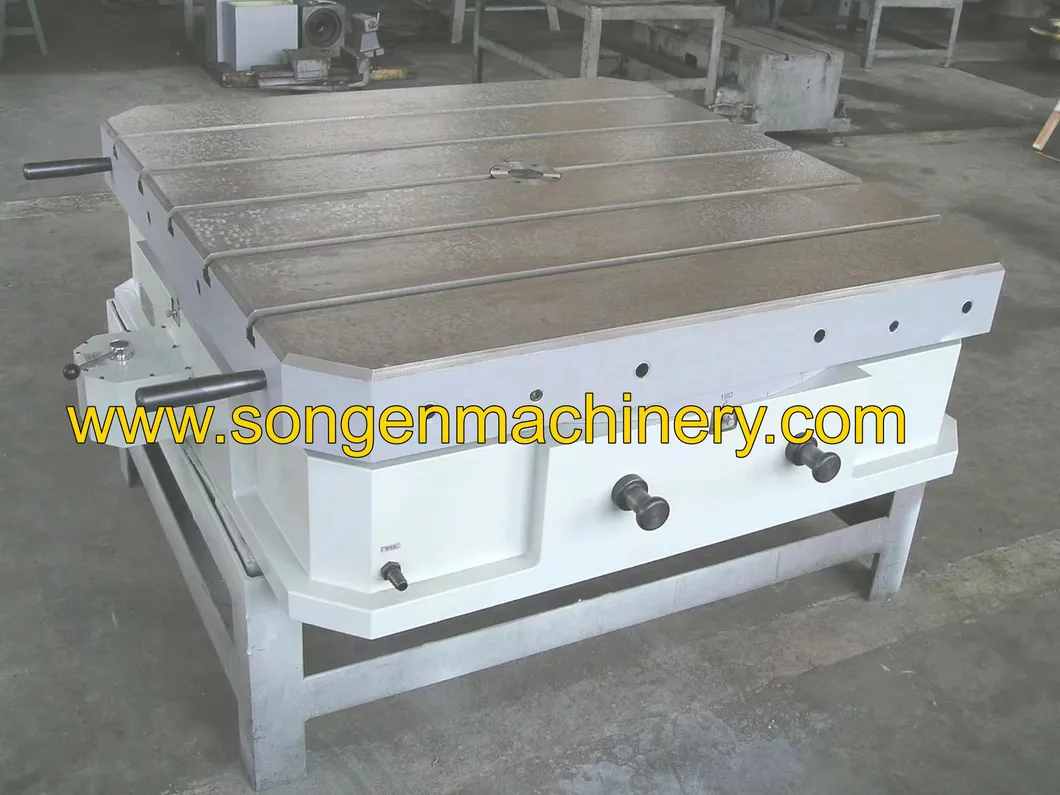

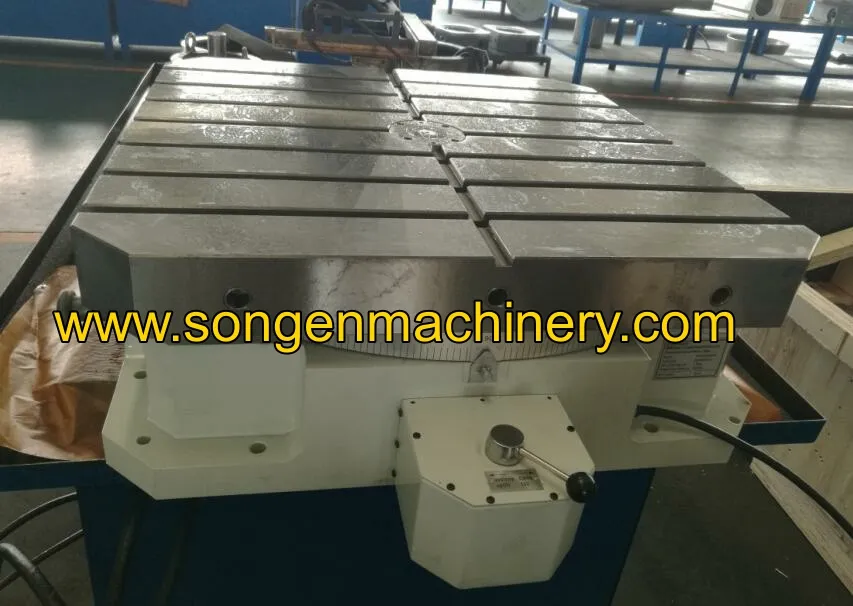

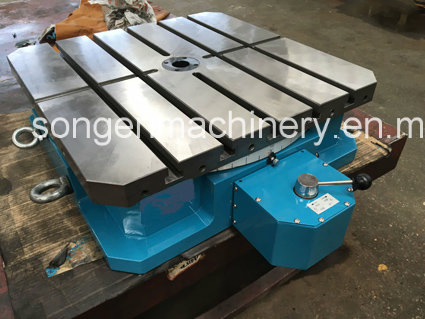

Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
1 / 5
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm

Air lift rotary table 800x800mm

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

📋
Basic Information
Model NO.
RT800X800PM
Size
Middle
Type
Pneumatic manual equal indexing rotary table
Certification
ISO 9001:2008, ISO 9001:2000, CE
Equal Indexing Unit
1 degree or 5 degree
Turntable
800X800mm, optional as round 800mm
Positioning Components

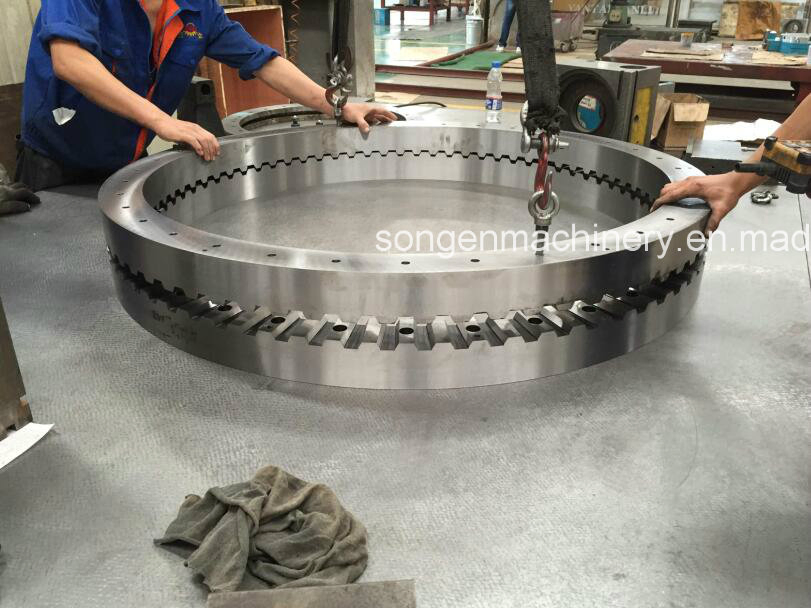

Hirth couplings, 72 teeth or 360 teeth
Operating Type
Manual
Driving Mode
Air lift and manual indexing

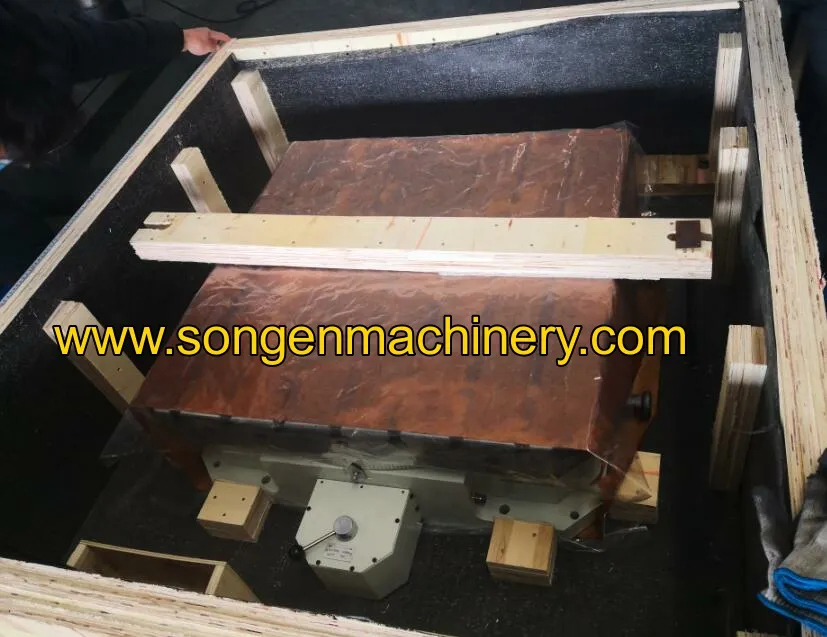

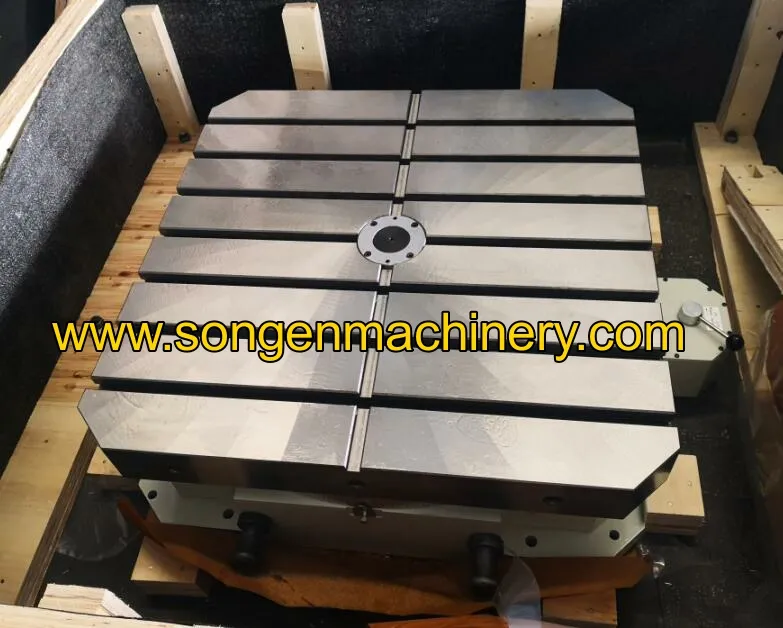

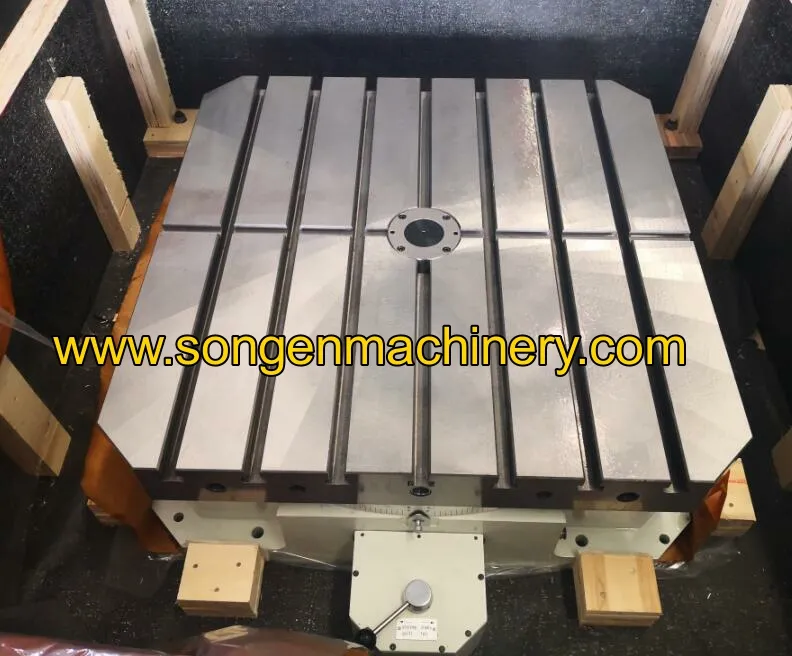

Transport Package
Plywood Case
Origin
China
HS Code
84663000
⚙️
Product Description

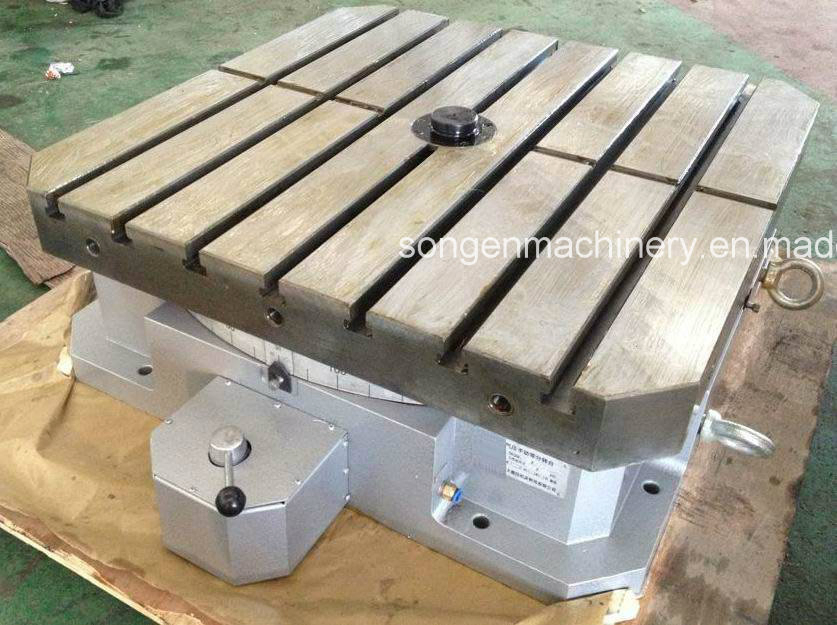

The pneumatic & manual indexing rotary table operates in a style of pneumatic lifting and manual rotating and can achieve high-precision machining process together with the main machine. It has the characteristic of low rotating torque, high load capacity and reliable clamping.

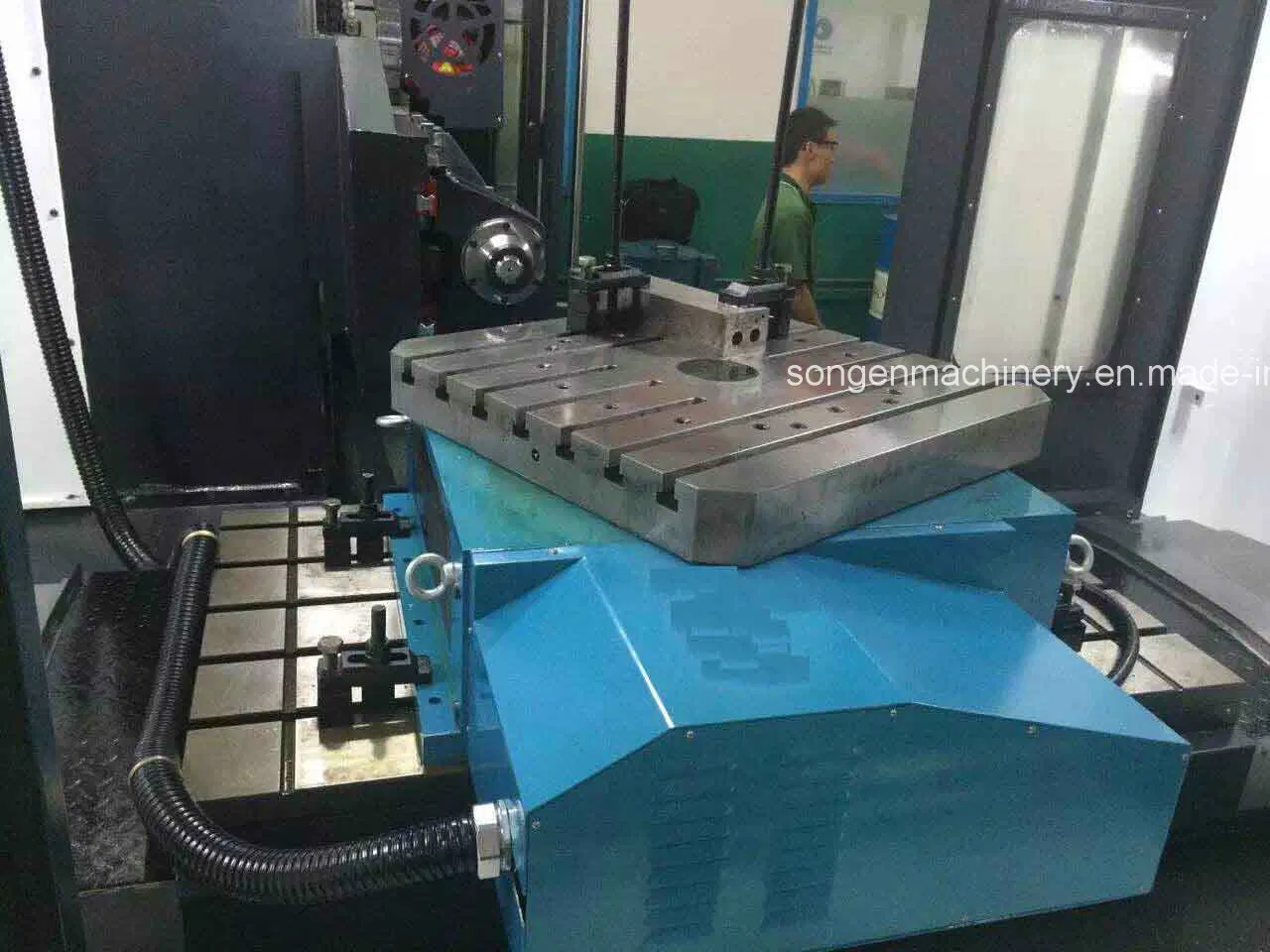

With the ability to achieving indexing accuracy as 10 seconds and repeatability accuracy as 3 seconds, this series of rotary tables are widely used for various borers, millers and grinders to obtain high-precision machining.

Specifications RT800X800PM
Turntable size (length X width), mm 800X800
Total thickness, mm 290

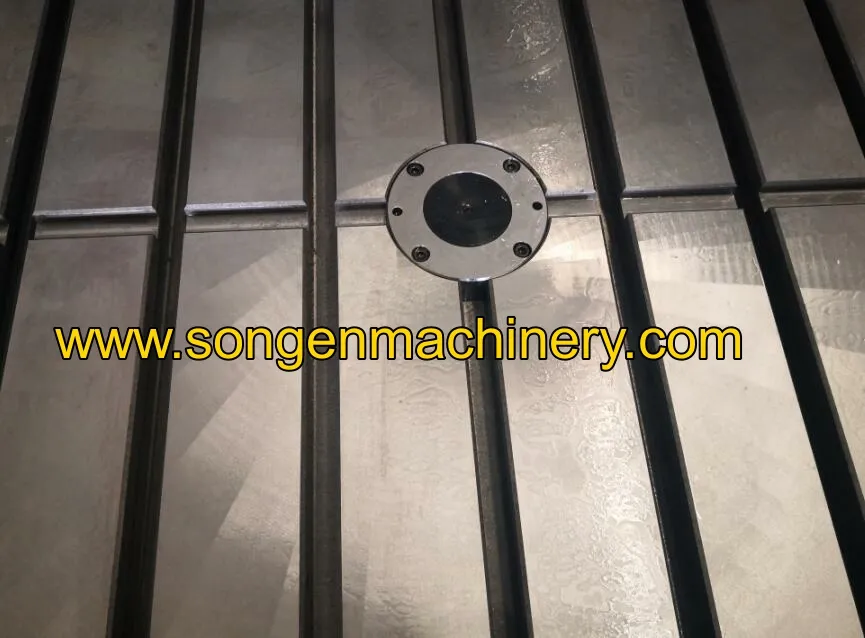

Center bore diameter, mm 60H6
T-slot size, mm 18
Rotation direction Clockwise & anti-clockwise
Table loosing/clamping stroke, mm 6
Driving mode Clamping/loosing Air 5~8 Bar
Rotation Manual

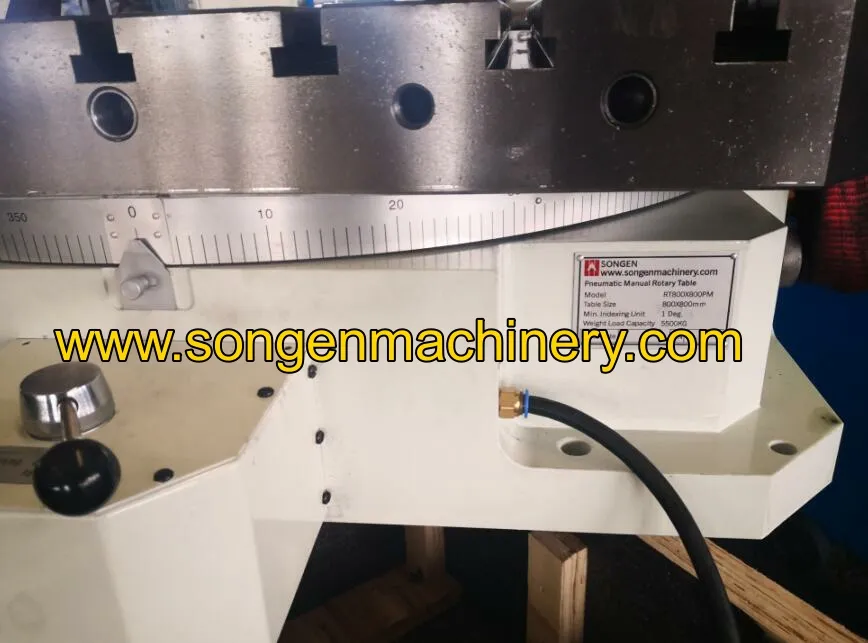

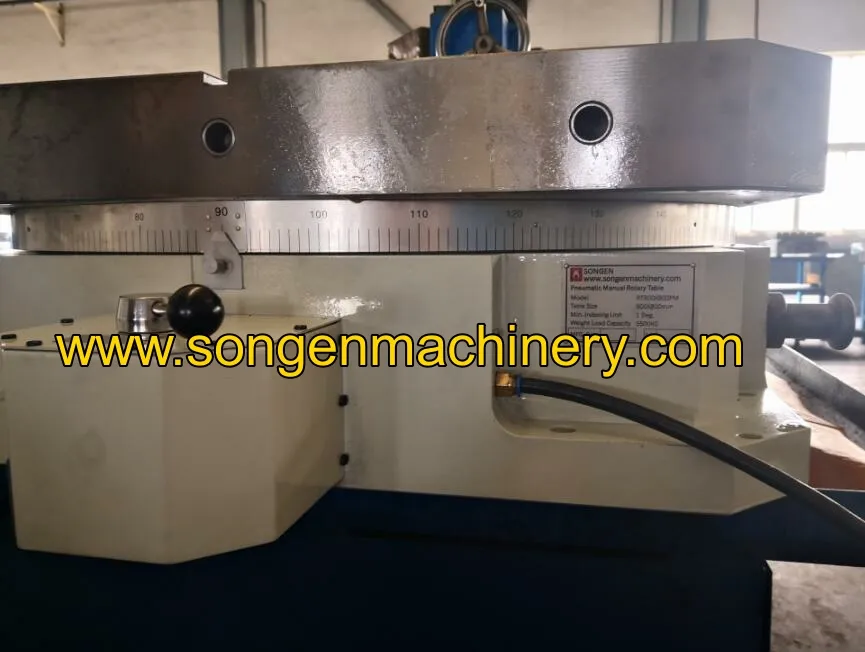

Min. unit of indexing, Deg 5 or 1
Max. load capacity, Kgf 5500
Clamping force, Kgf 5900
Weight, Kgs 1400
🖼️
Product Gallery
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Air lift rotary table 800x800mm
Frequently Asked Questions
What is the indexing accuracy of the RT800X800PM?
The RT800X800PM rotary table achieves high-precision results with an indexing accuracy of 10 seconds and a repeatability accuracy of 3 seconds.
How does the driving mode work for this rotary table?
It uses a dual-mode operation: the clamping and loosening are powered by air (5~8 Bar), while the rotation and indexing are performed manually.
What is the maximum load capacity for this model?
This rotary table is designed for heavy-duty applications with a maximum load capacity of 5500 Kgf.
What kind of positioning components are used?
The system utilizes high-quality Hirth couplings with options for 72 teeth or 360 teeth to ensure precise positioning.
What are the common applications for this series?

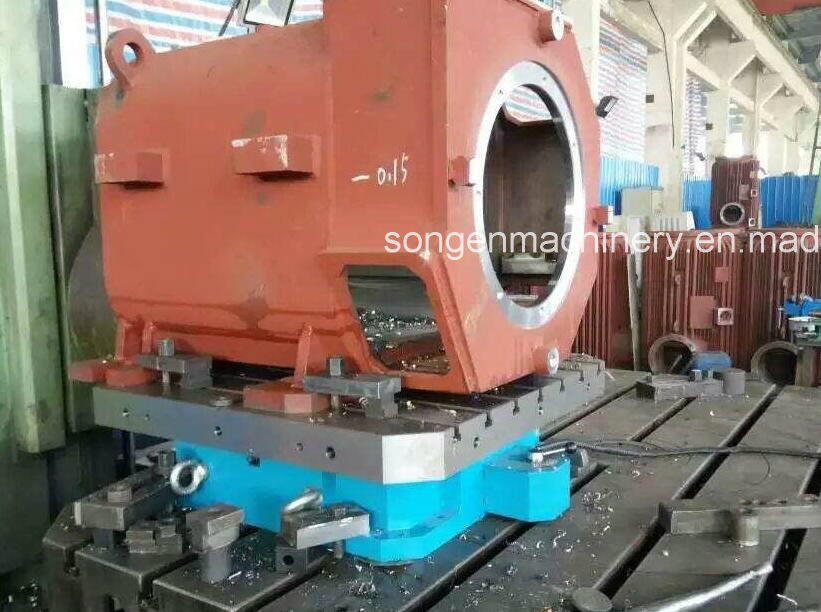

This series is widely used in various borers, millers, and grinders to achieve high-precision machining processes.
What is the minimum indexing unit available?
The RT800X800PM offers a minimum equal indexing unit of either 1 degree or 5 degrees.
