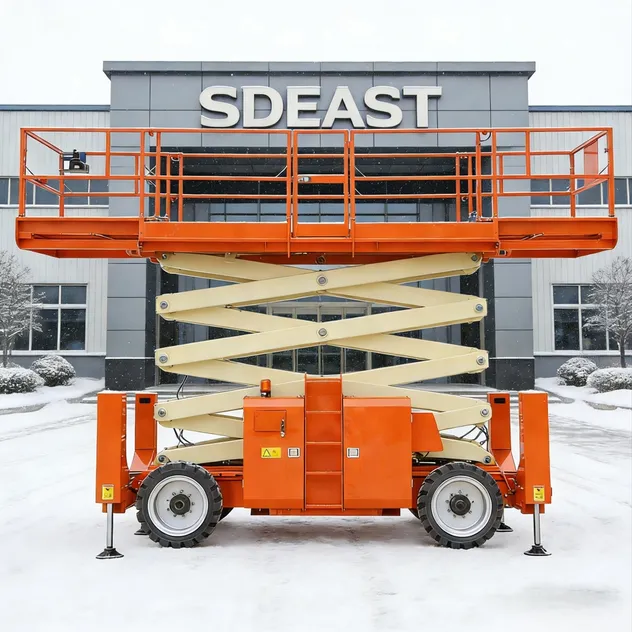

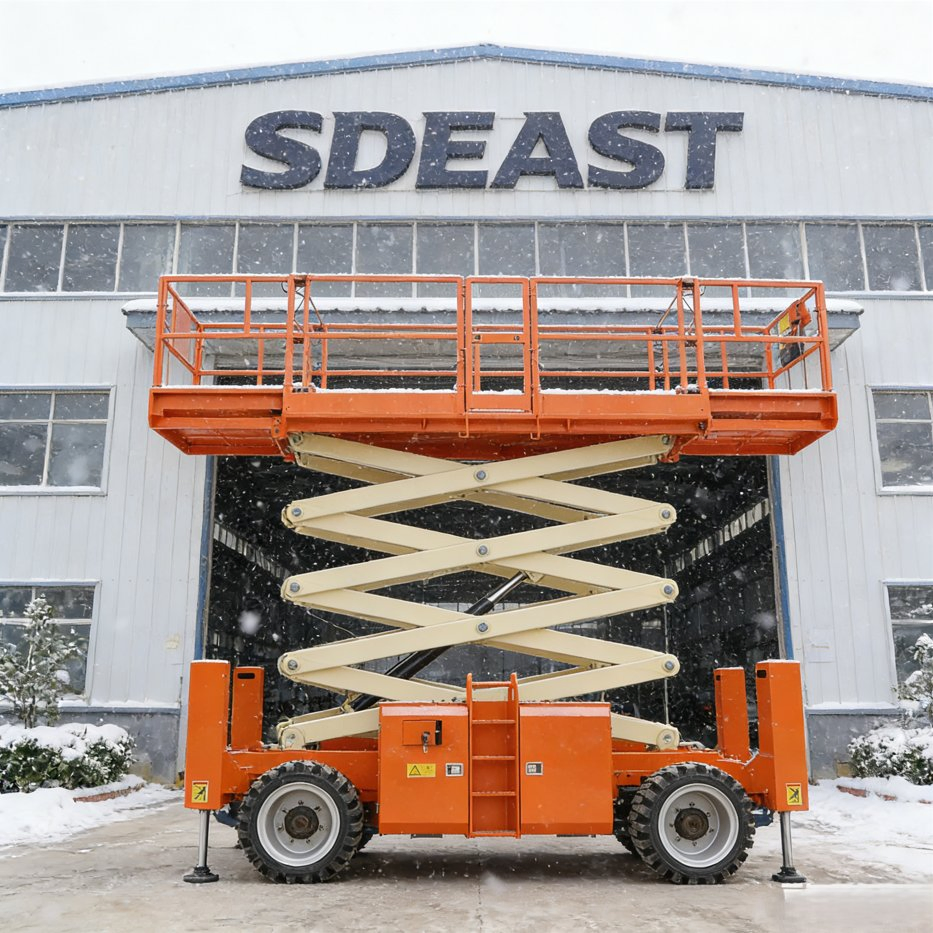

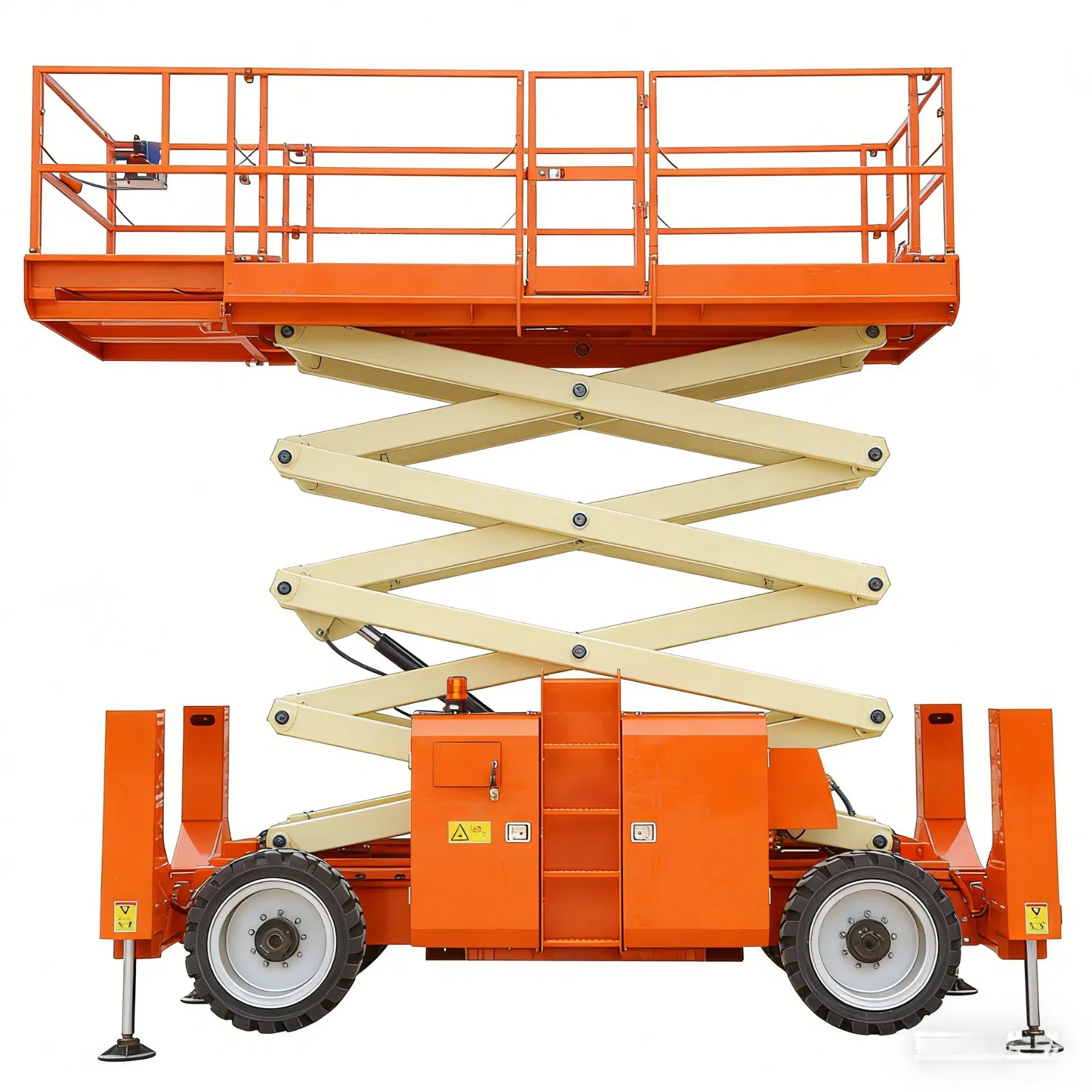

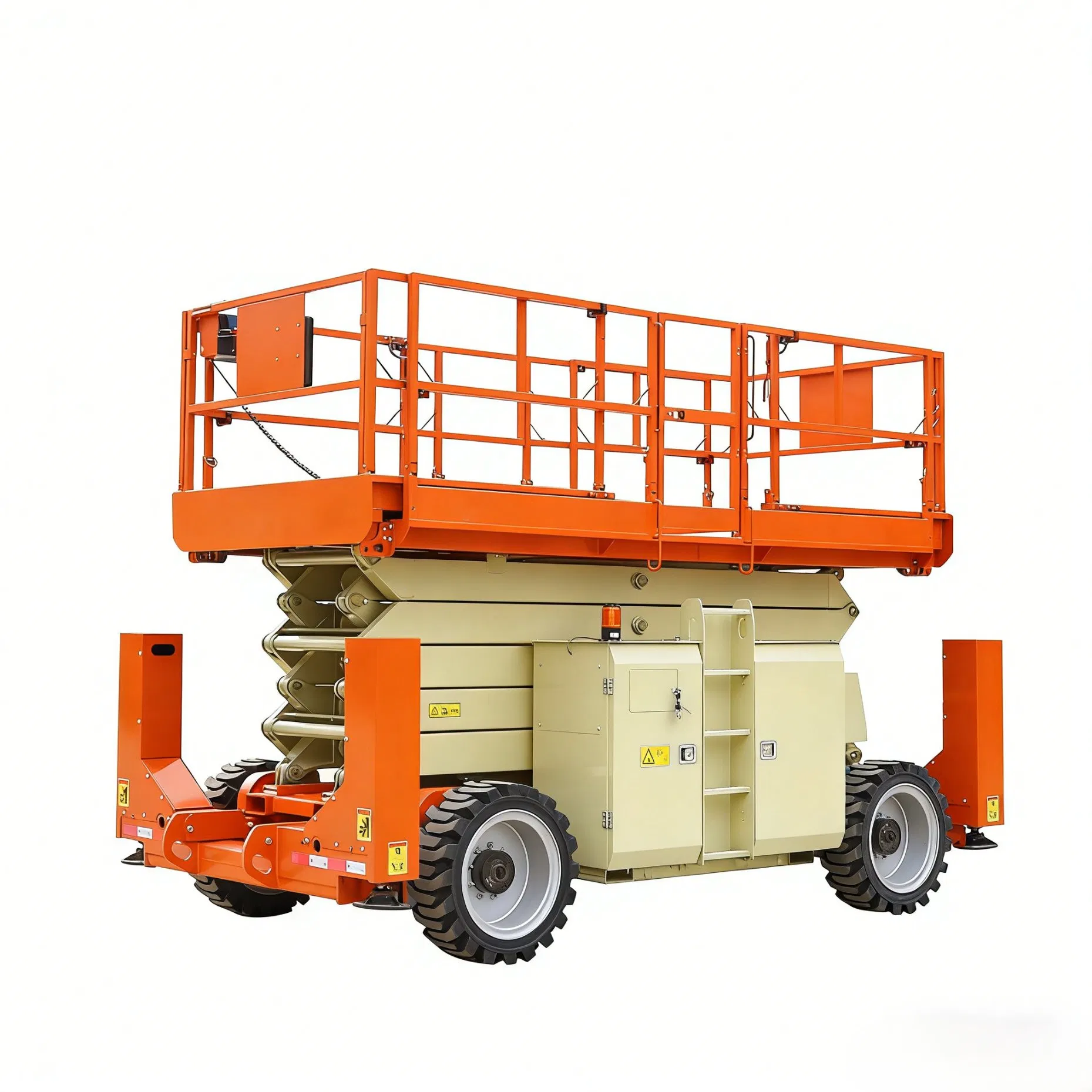

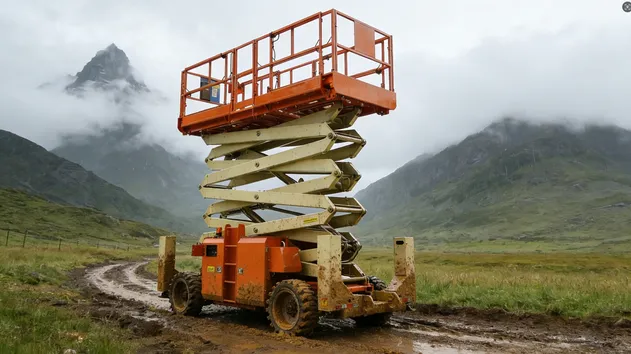

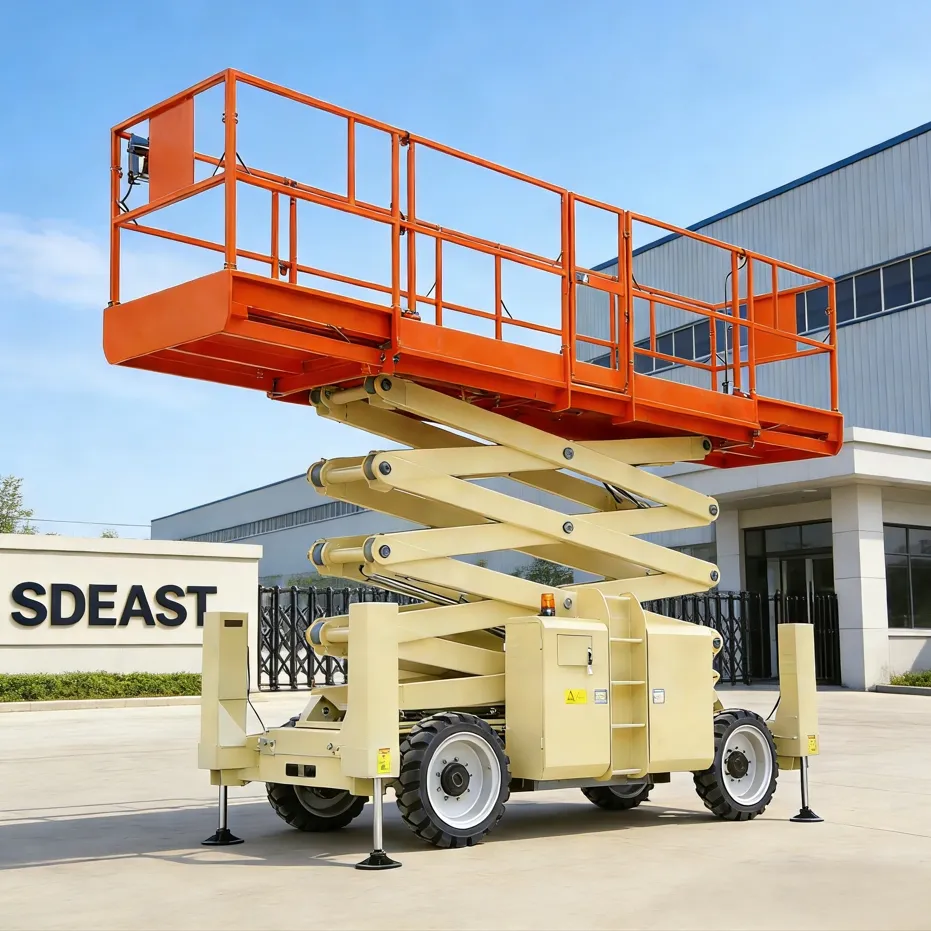

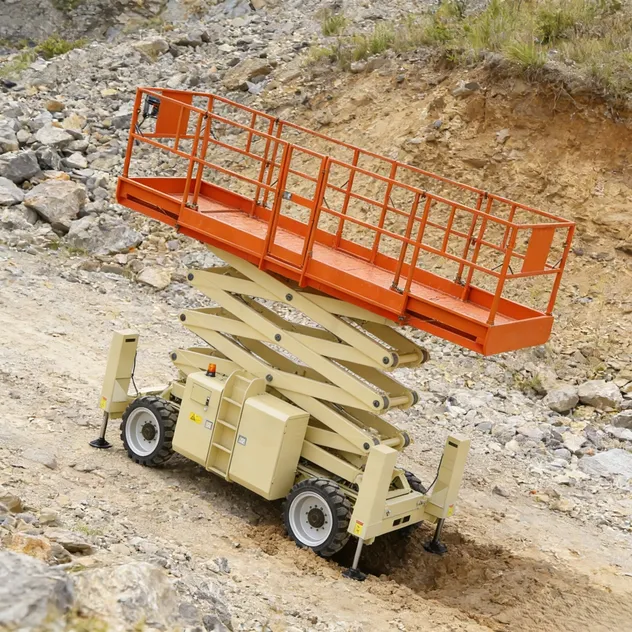

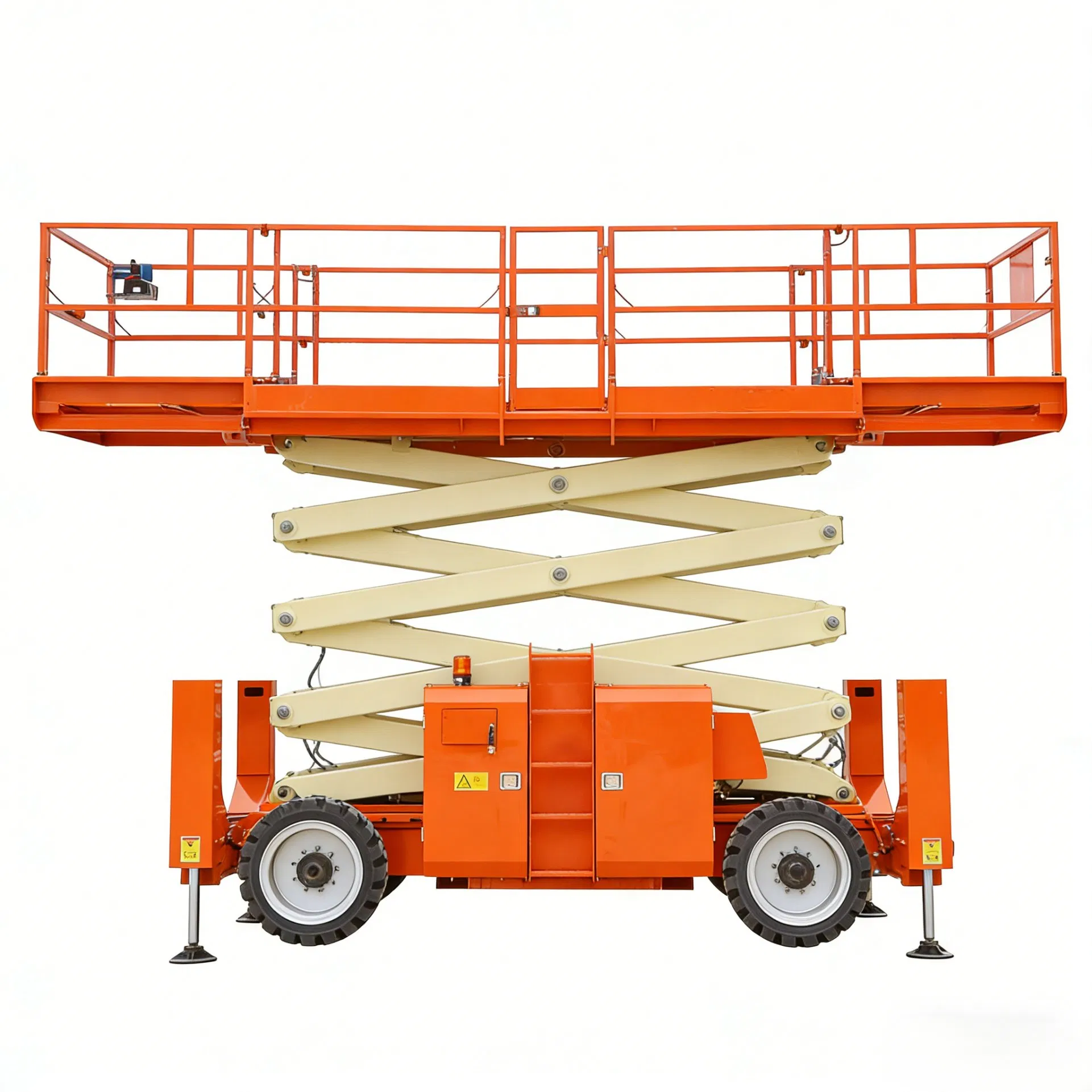

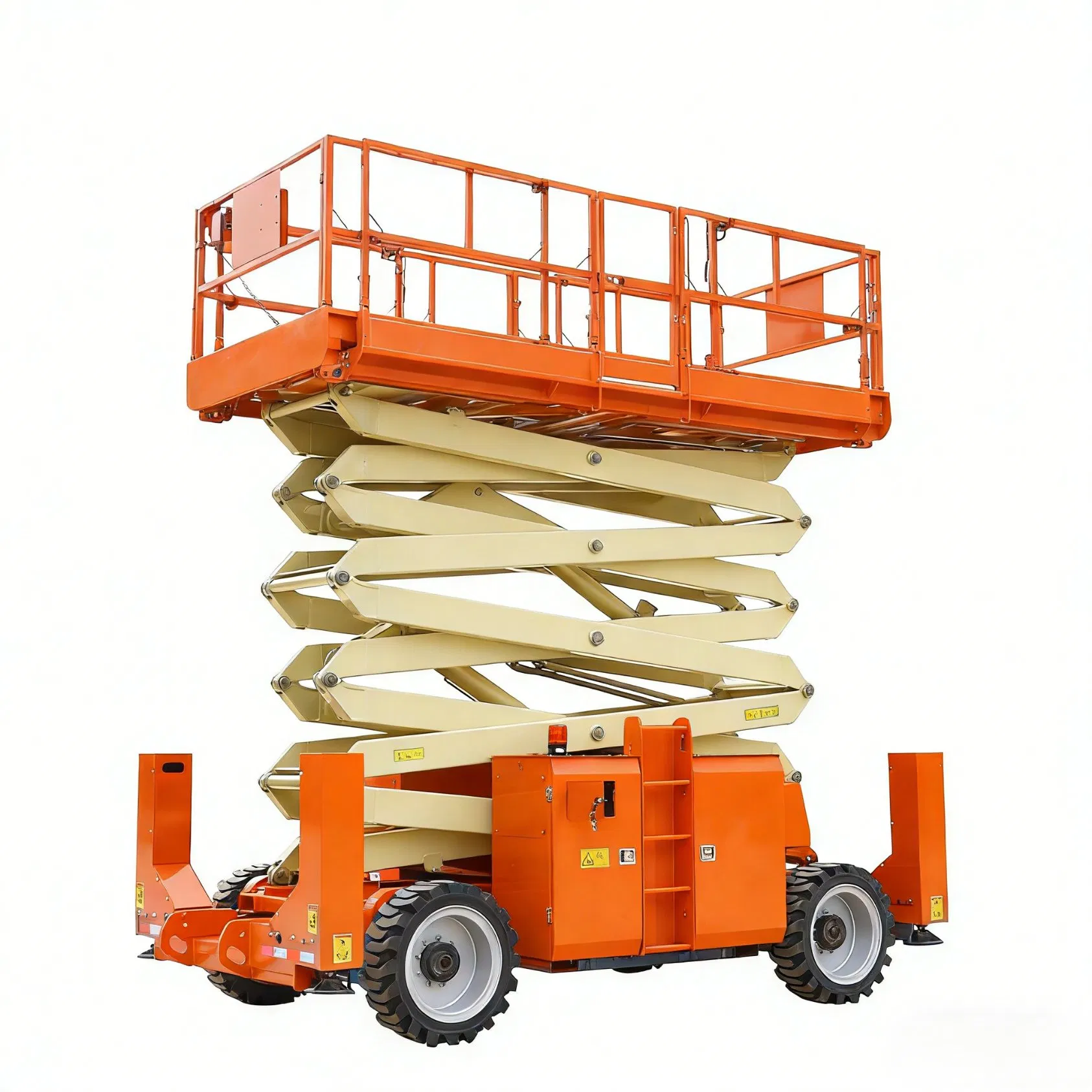

A Rough Terrain Scissor Lift is a heavy-duty aerial work platform designed for outdoor applications and uneven ground conditions. Compared with standard scissor lifts, it offers stronger stability, higher load capacity, and superior off-road performance, making it ideal for demanding job sites.
These machines are typically equipped with four-wheel drive (4WD), high ground clearance, and large off-road tires, allowing smooth movement on dirt, gravel, mud, and construction debris. A key advantage is their large and robust working platform, which can accommodate multiple operators, tools, and materials simultaneously.

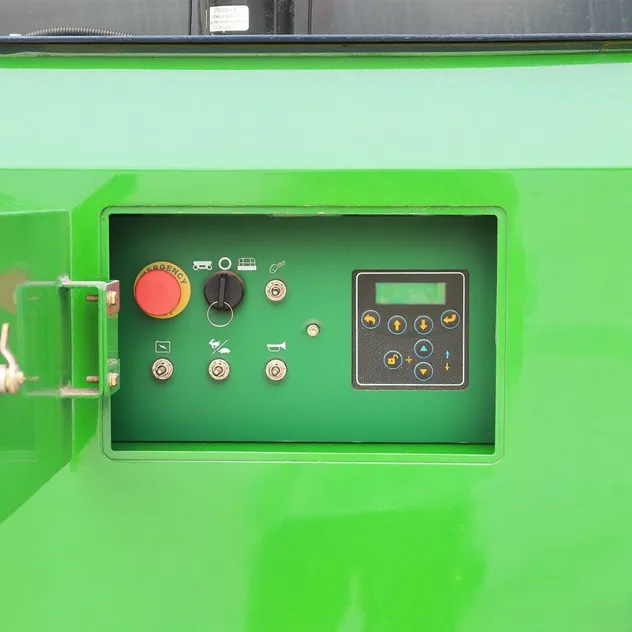

| Strong handling comfort High strength fork frame material, high fatigue resistance, smooth and stable movement; Fully proportional control. |

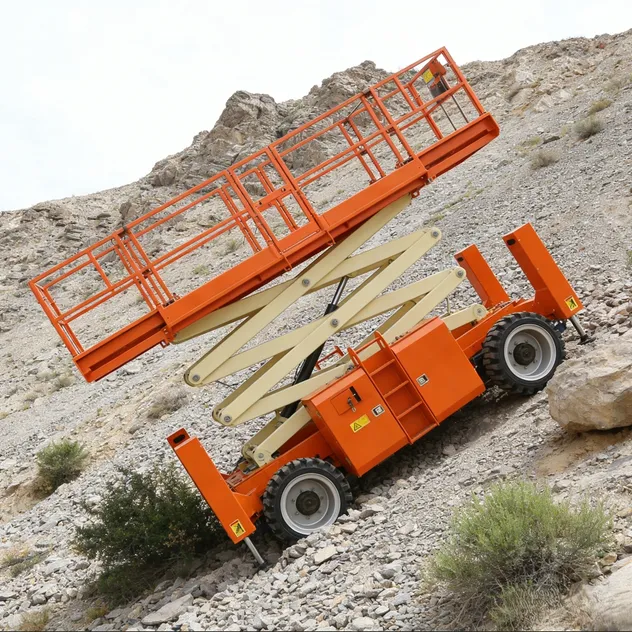

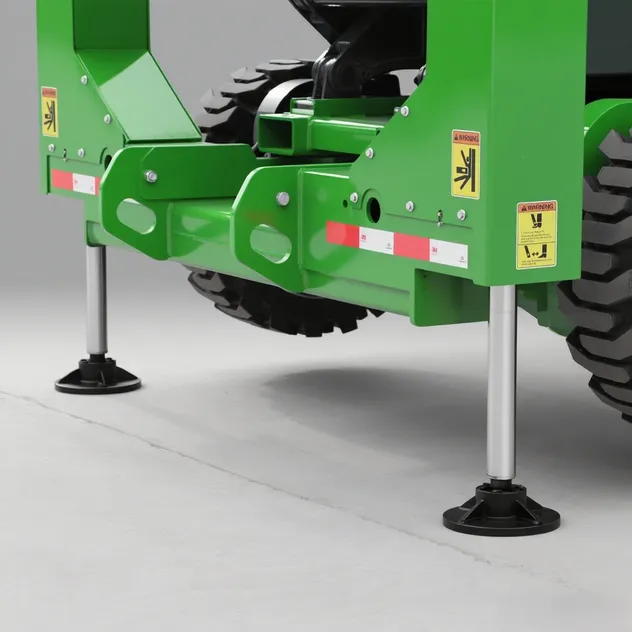

| One click leveling of support legs Achieve one click leveling on slopes (7° front/back, 12° left/right). Adaptable to complex working conditions. |
| Strong adaptability Integrated four-wheel drive system, anti-slip differential, powerful off-road capabilities for muddy roads. |

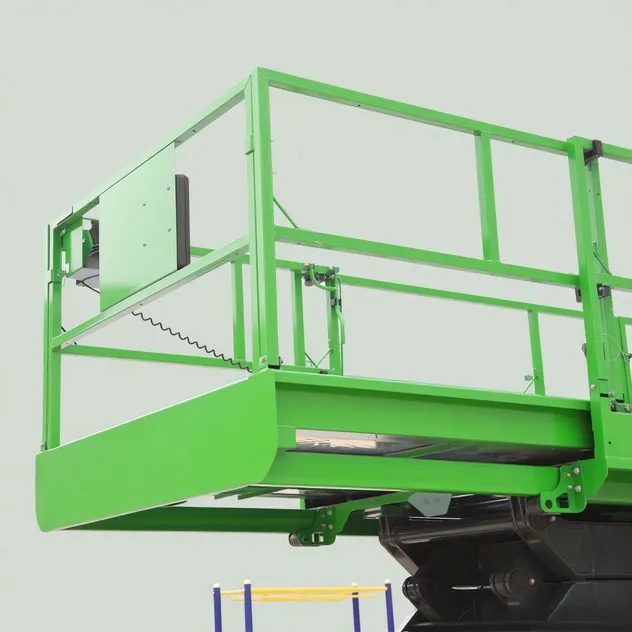

| Foldable, dual extension platform Large load capacity and space; both sides of the platform can be extended to increase the operating range. |
| Model | ESJYZRT-0810 | ESJYZRT-1214 | ESJYZRT-1618 | ESJYZRT-1820 |
| Safe Working Load | 500kg | 500kg | 500kg | 500kg |
| Max Working Height | 10m | 14m | 18m | 20m |
| Max Platform Height | 8m | 12m | 16m | 18m |
| Overall Length | 2900mm | 3000mm | 4880mm | 3800mm |
| Overall Width | 2200mm | 2200mm | 2200mm | 2300mm |
| Platform Size | 2700x1300mm | 2700x1300mm | 3500x1300mm | 3800x1300mm |
| Engine | Diesel/Battery | Diesel/Battery | Diesel/Battery | Diesel/Battery |
| Overall Weight | ≈4000kg | ≈4000kg | ≈7000kg | ≈7500kg |

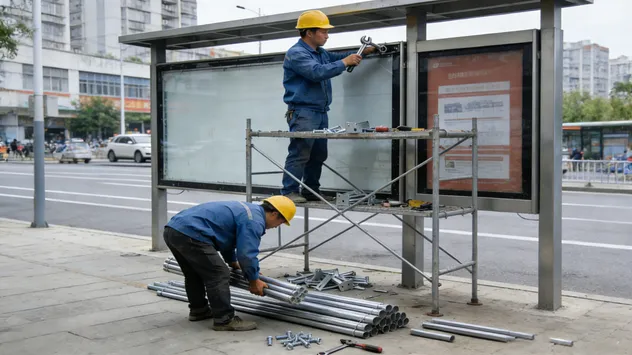

Traditional Scaffolding: Labor-intensive, time-consuming assembly, and limited mobility.

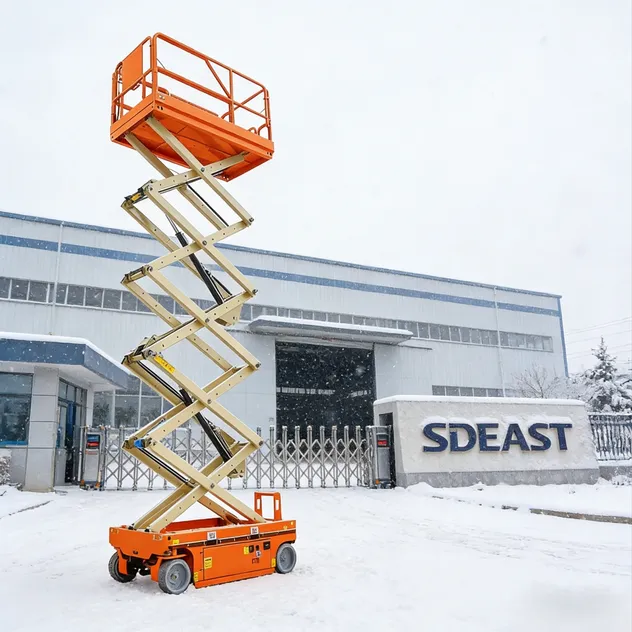

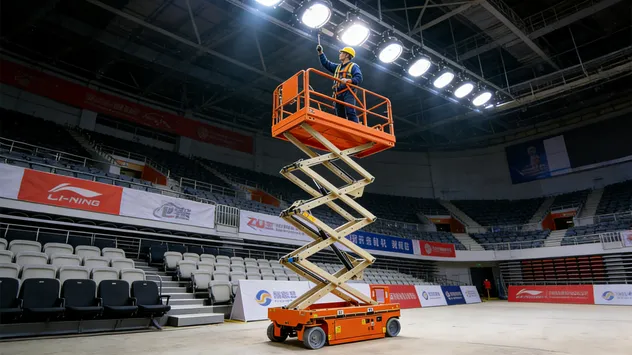

Standard Scissor Lifts: Designed for flat, paved ground; fails on rough terrain.
Rough Terrain Scissor Lifts: Purpose-built for 4WD performance, muddy ground, and high safety.

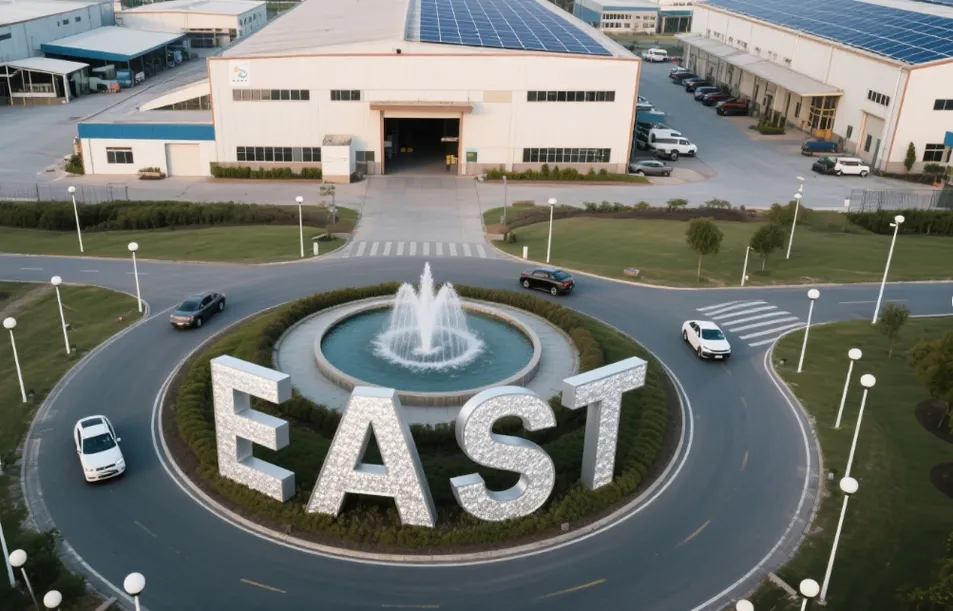

We are a professional manufacturer and supplier of aerial work platforms, scissor lifts, and lifting equipment. With 15+ years of steel trading and supply experience, we maintain a complete upstream steel resource system, ensuring high quality and cost-effective production.
Our skilled R&D team utilizes advanced technology to create high-performance, safe, and easy-to-use solutions. We follow strict international quality standards to ensure safety and durability globally.
