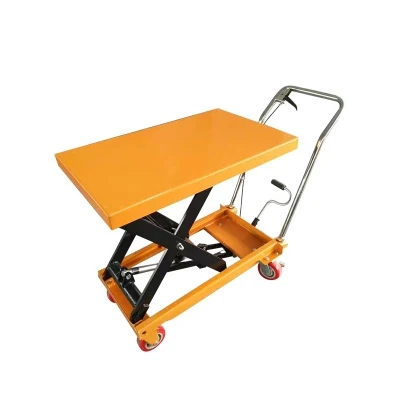

Single Scissor Double Sissor Mobile Hydraulic Lift Table

Basic Specifications

Model NO.

HBMEC

Customized

Available

Standard

International

Material

Steel / Aluminum / Stainless Steel

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating, Emergency Stop

Lifting Height

720 / 900 / 1220 / 1300 / 1500mm

Control Methods

Manual / Foot Step

Platform Size

700*450*40mm / 820*500*50mm

Anti-Corrosion

Yes

Emergency Valve

Yes

Structure

Scissor Structure

Capacity

150kg to 1000kg

HS Code

842790000

Production Capacity

1000 Pieces/Month

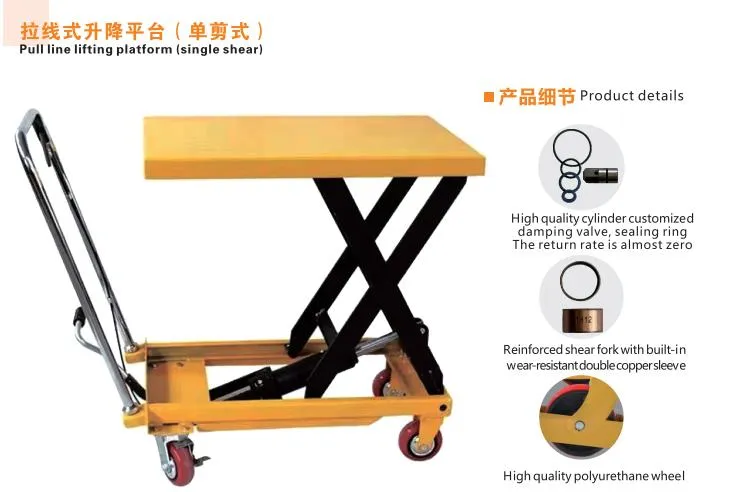

Pull Line Lifting Platform (Single Shear)

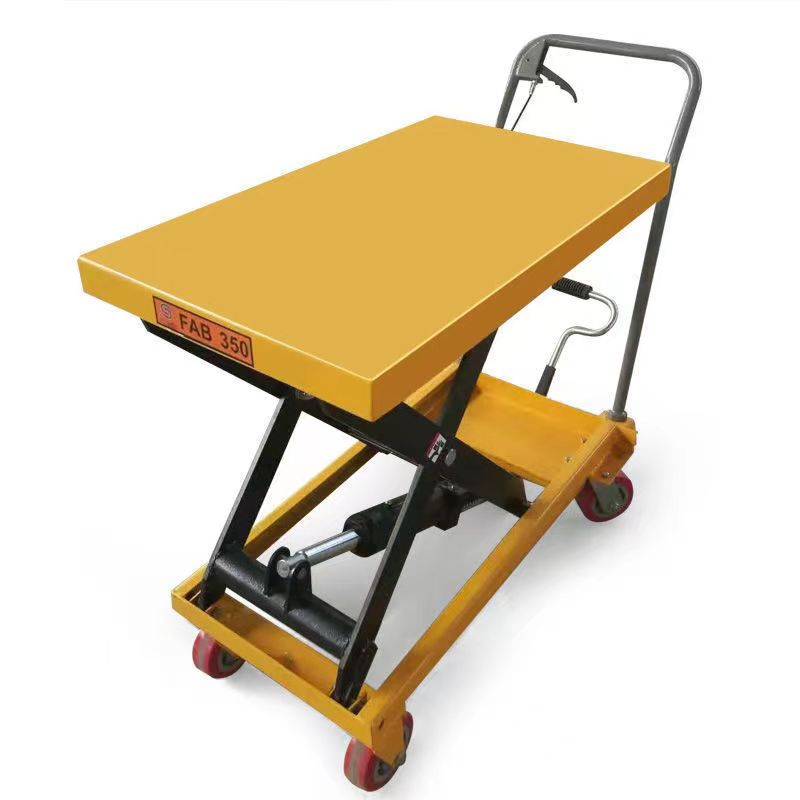

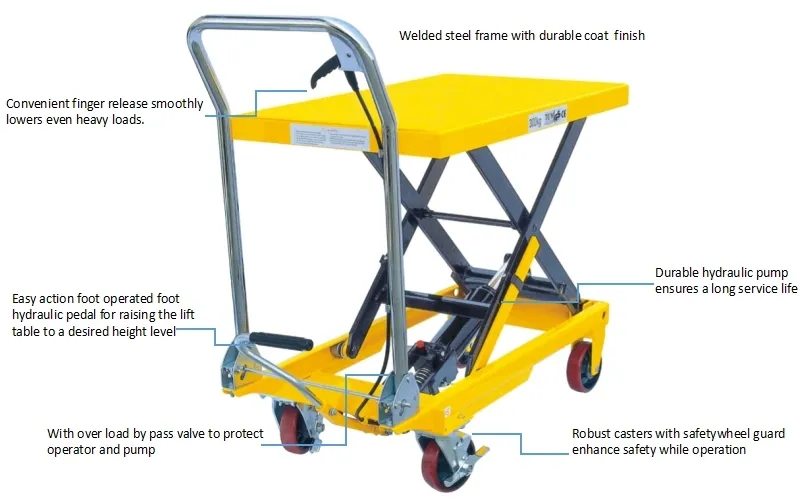

Single Scissor Mobile Hydraulic Lift Table

Product Features:

✓ The foot rod connects the hydraulic system to lift the platform precisely to the required position.

✓ Overload protection device (pressure limiting valve) automatically ensures operation within load limits to protect users.

✓ Polyurethane wheels provide anti-noise, anti-slip, and anti-wear performance.

✓ Smooth descending control via the release wrench for pressure relief.

Parameters	150kg Model	350/500kg Model
Minimum platform height	210mm	280mm
Maximum lifting height	720mm	900mm
Platform Size	70045040mm	82050050mm
Wheel Diameter	100mm	125mm
Handle Height	730mm	950mm
Self-weight	42kg	70/74kg

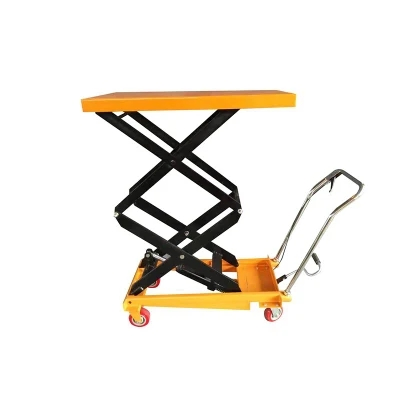

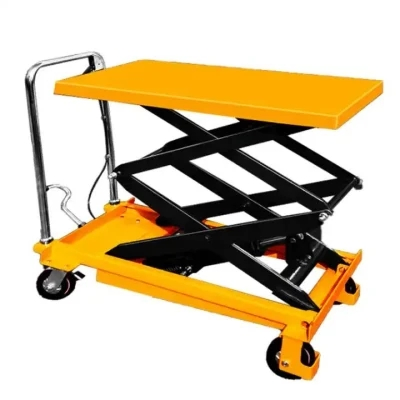

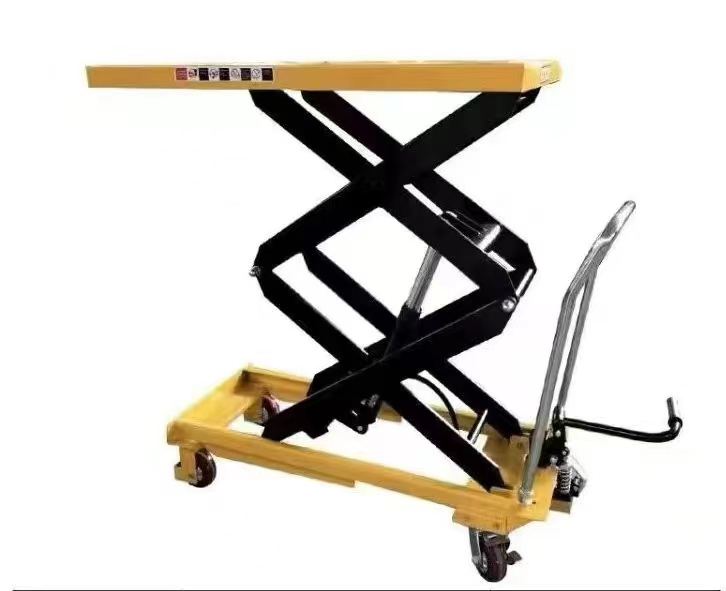

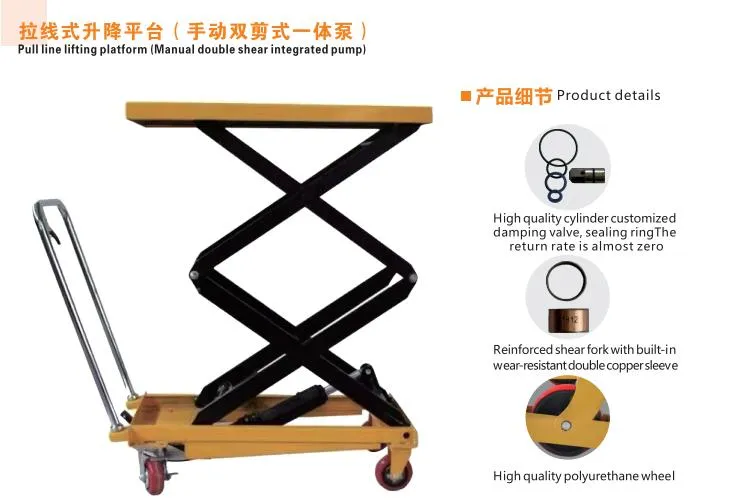

Manual Double Shear Integrated Pump

Advanced Features:

★ Simple and compact structure with high lifting stability for various cargo environments.

★ Anti-clipping scissor design to ensure operator safety during operation.

★ Ideal for production lines, workpiece assembly, and engine bracket lifting.

★ Highly configurable: different workbench forms, power modes, and control systems available.

Rated Load Capacity	150kg	350/500kg (A)	350/500kg (B)
Min Height	302mm	350mm	400mm
Max Height	1220mm	1300mm	1500mm
Platform Size	70045040mm	92050050mm	92050050mm
Wheel Diameter	100mm	125mm	125mm
Handle Height	730mm	960mm	960mm

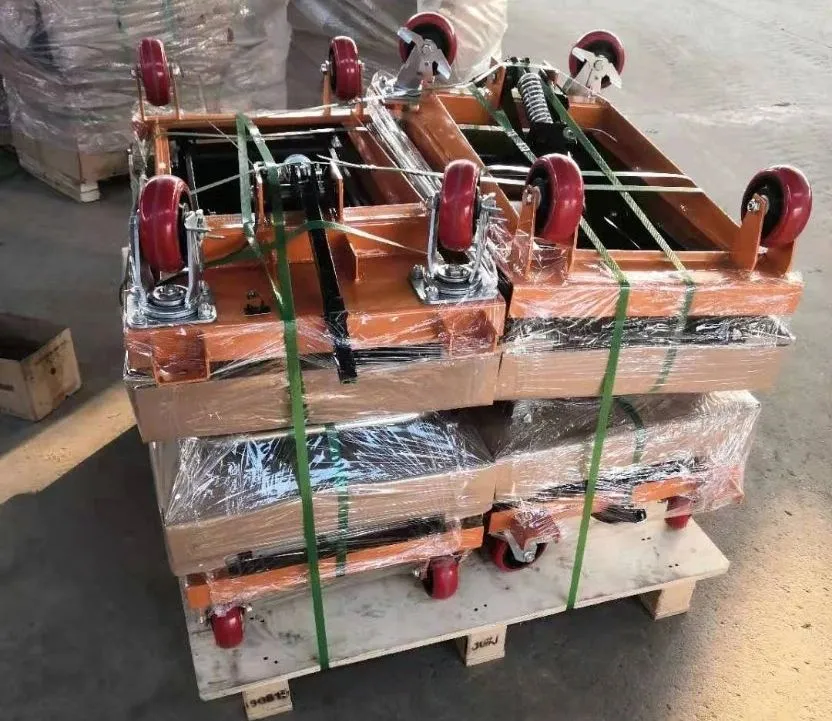

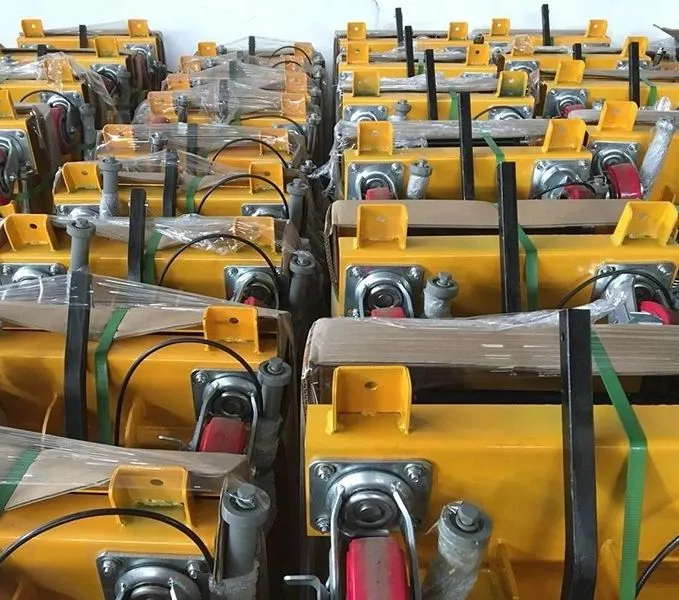

Packaging & Shipping

Customize Services

We provide comprehensive customization for steel products. If you have specific design drawings or technical requirements, we can manufacture products tailored to your needs.

If you are unsure of the specifications, simply share the intended application environment, and our engineers will provide recommended drawings and configurations.

Frequently Asked Questions

Q1: How do I request a quote for custom equipment?

Please provide technical drawings including material grade, tolerances, surface treatments, and load requirements. Our engineers typically respond within 3-5 working days.

Q2: Are samples available for quality inspection?

Yes, samples can be provided after price confirmation. The sample cost is refundable once your bulk order meets the Minimum Order Quantity (MOQ).

Q3: What safety features are integrated into the lift tables?

Our tables include overload protection (pressure limiting valves), anti-clipping scissor designs, and emergency stop/decline valves to ensure operator safety.

Q4: Can the platform material be customized?

Absolutely. We offer platforms in standard Steel, Aluminum for lightweight needs, or Stainless Steel for hygienic and anti-corrosive environments.

Q5: What are the primary applications for these hydraulic lifts?

They are widely used in factories, workshops, home garages, and shipboards for material handling, workpiece assembly, and production line transitions.

Q6: Do you offer OEM manufacturing services?

Yes, we provide full OEM services including customized product design, specific power configurations, and tailored packaging solutions.
