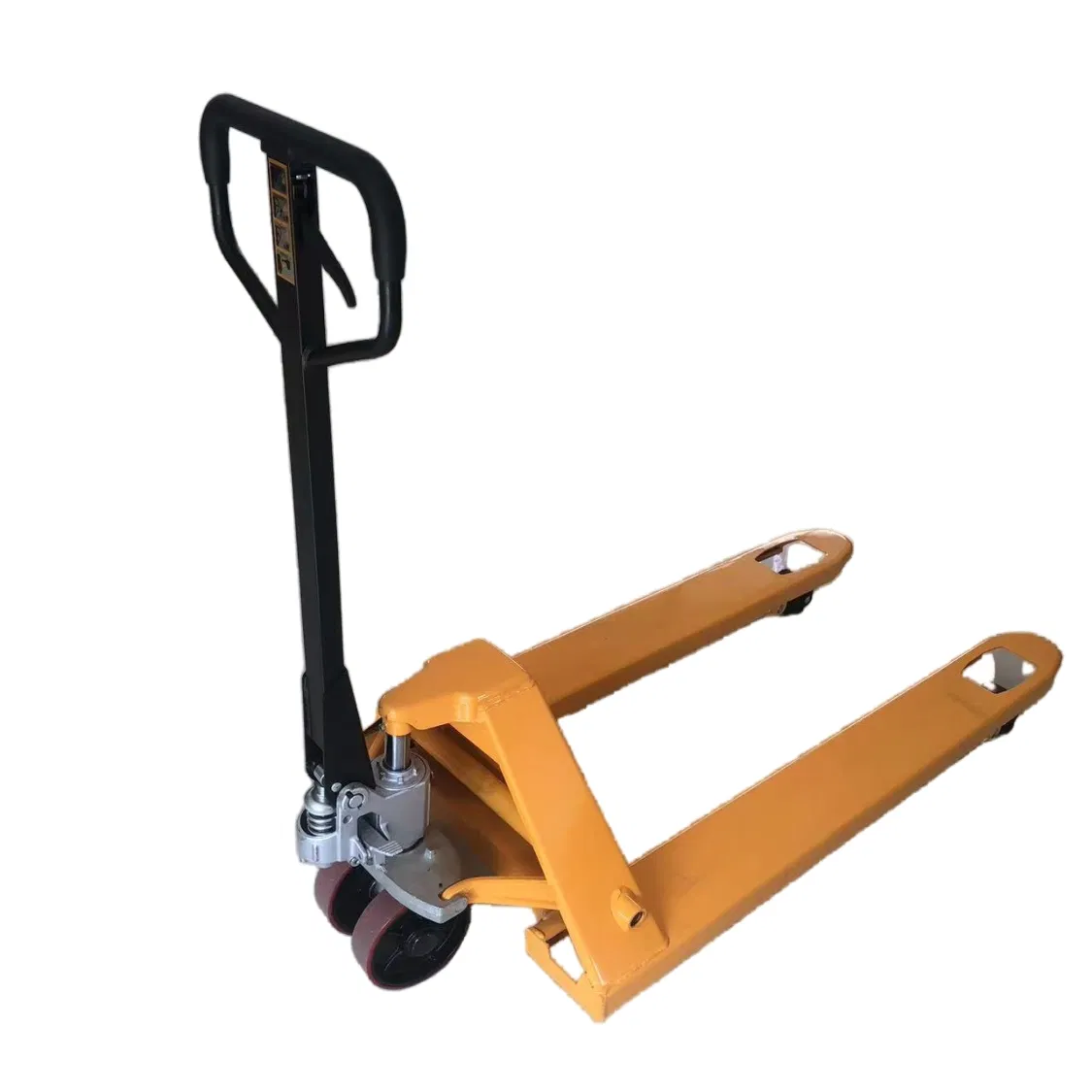

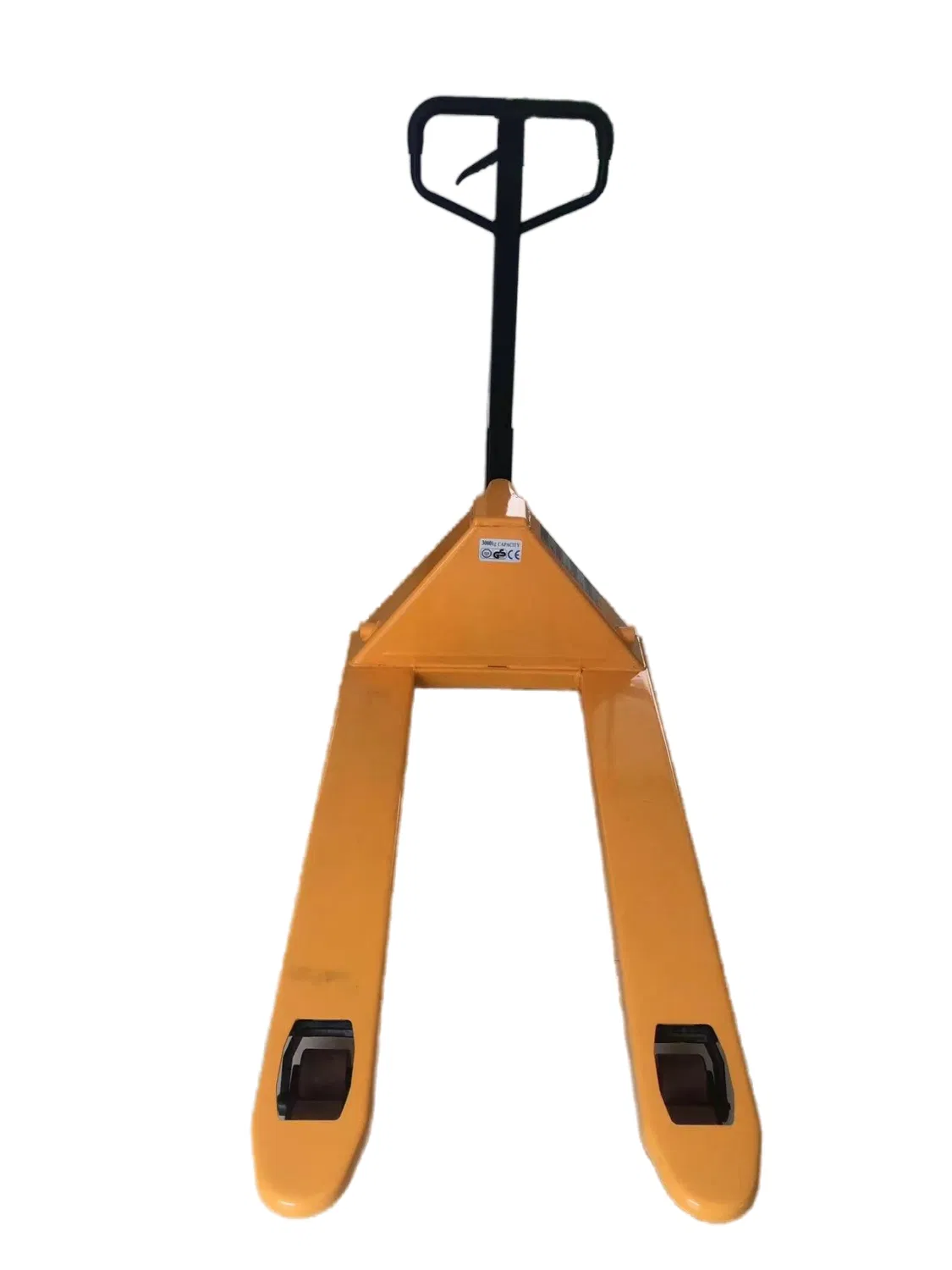

Product Description

Basic Specifications

Model NO.

SDC-A

Type

Manual Pallet Truck

Power

Hand

Load Capacity

1T - 5T

Load Center

500mm

Lift Height

85mm-195mm

Condition

New

Certificate

CE and ISO

HS Code

8427900000

Specification

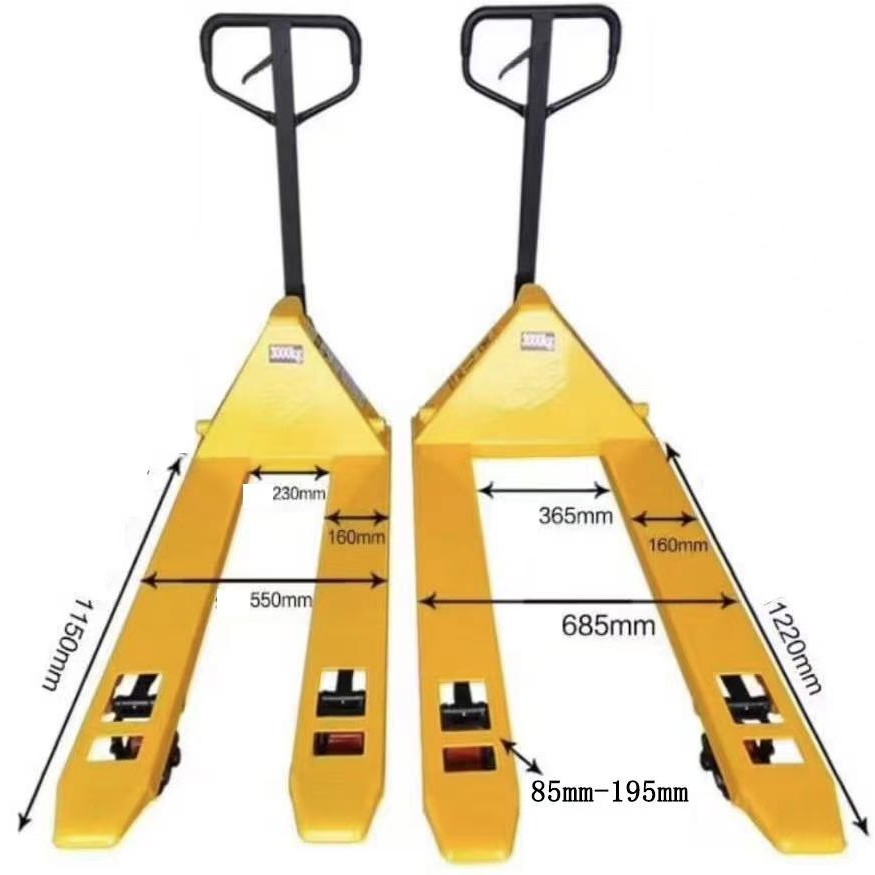

Fork width 550mm/685mm

Packaging & Delivery

Package Size

220.00cm * 70.00cm * 70.00cm

Gross Weight

420.000kg

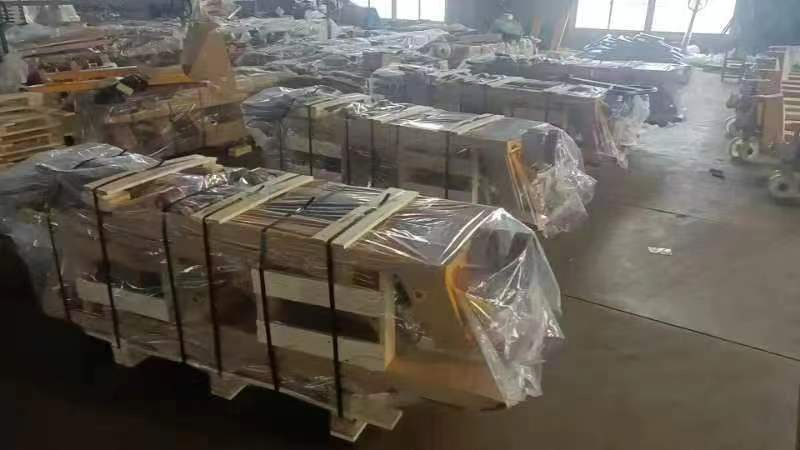

Package Type

Wooden Box or Other

Product Features

Product Application Technology Characteristics

✓The pallet truck is economical in design.

✓Standard epoxy resin powder coating, anti-fragmentation, anti-corrosion.

✓Extremely strong lightweight steel structure, the body weight is only 70kg.

✓Solder joints and reinforced fork tips for durability.

✓Three-stage handle - lifting, lowering, neutral.

✓High quality 190 degree corner setting.

✓Efficient oil pump: strokes up to 8 times, height per stroke up to 11 mm.

✓Reliable oil leakage hydraulic system.

Technology Parameter

Model	Unit	SDC-A20	SDC-A25	SDC-A30	SDC-A50
Load capacity	kg	2000	2500	3000	5000
Front wheel size	mm	φ180*50	φ180*50	φ180*50	φ180*50
Rear wheel size	mm	φ80*70	φ80*70	φ80*70	φ80*70
Lifting height	mm	85-195	85-195	85-195	85-195
Total height	mm	1250	1250	1250	1250
Overall length	mm	1480/1580	1480/1580	1480/1580	1480/1580
Fork length	mm	1150/1220	1150/1220	1150/1220	1150/1220
Outer width of fork	mm	550/685	550/685	550/685	550/685
Turning radius	mm	1265/1335	1265/1335	1265/1335	1265/1335
Net weight	kg	60-68	64-71	68-75	132-140

Product Gallery

Frequently Asked Questions

How long is the warranty of your products?

Equipment provides 12 months or 2000 working hours warranty as standard, whichever comes first.

What payment terms do you accept?

Our standard payment term is 30% in advance and 70% in balance by TT before delivery or against original B/L copy.

How long can I get my order finished?

15-20 days for classic forklift, pallet truck, and stackers. 5-10 days for spare parts.

Can you customize the configuration, logo, or color?

Yes, we provide customization services for configuration, logo, labeling, and color based on your requirements.

Do you accept small orders?

Yes, the MOQ is 1 unit for most products. For very small handling equipment, we can check case by case.

What is the standard production capacity?

The current production capacity is approximately 20,000 units to ensure timely delivery.
