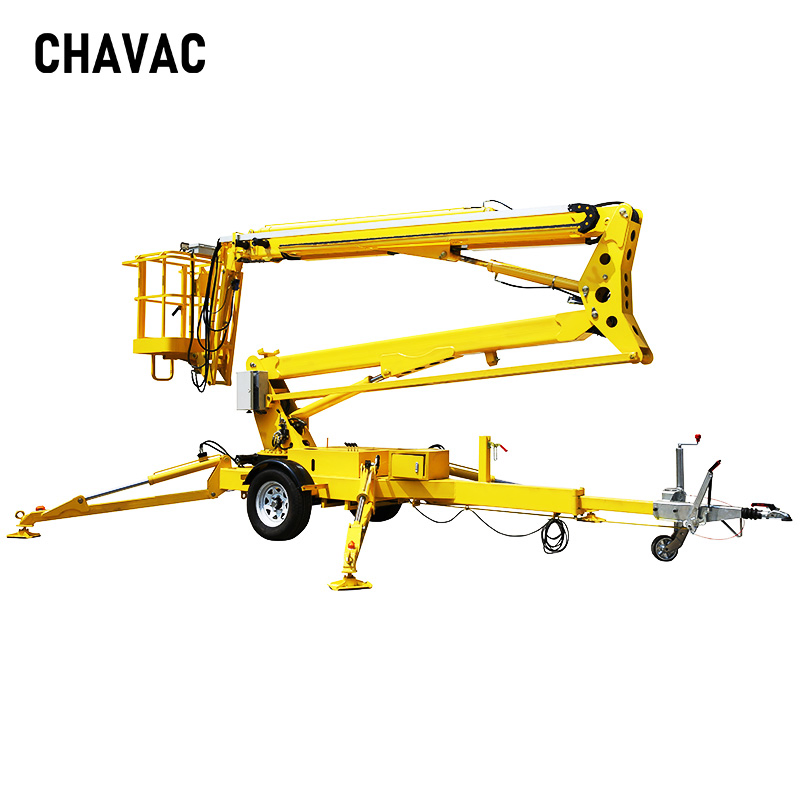

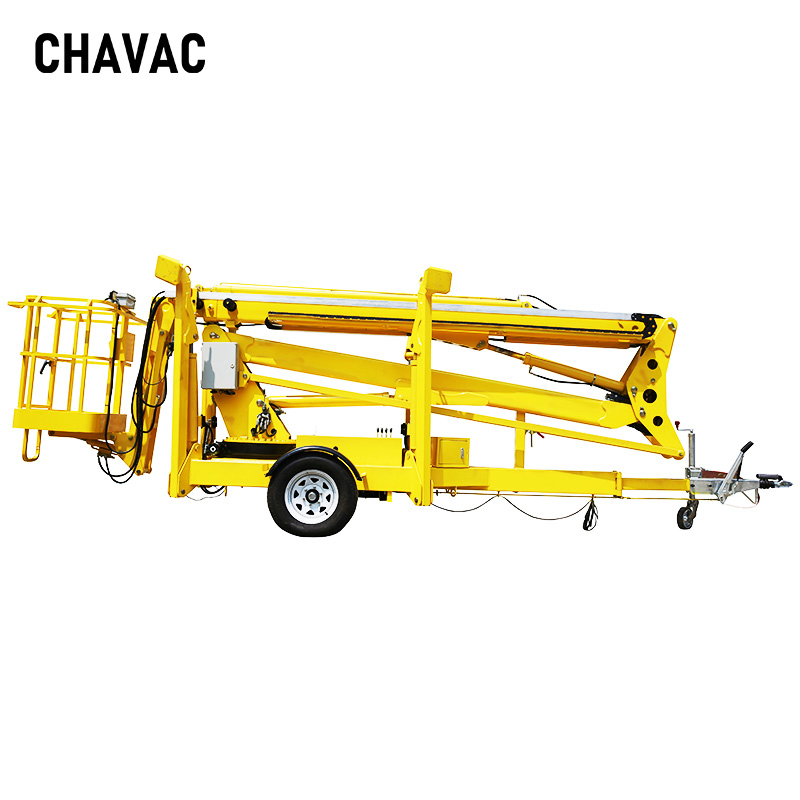

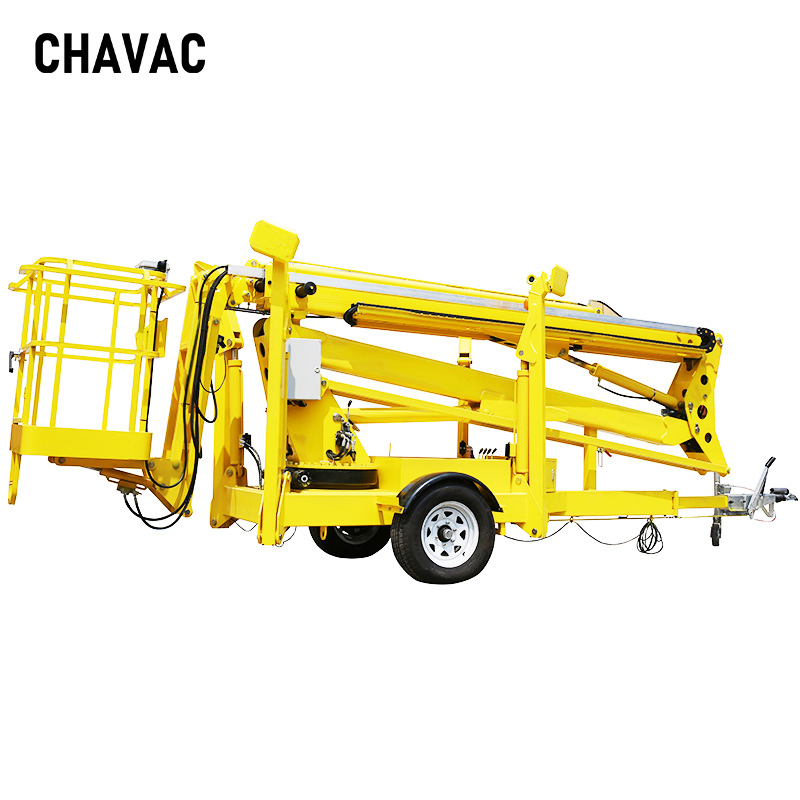

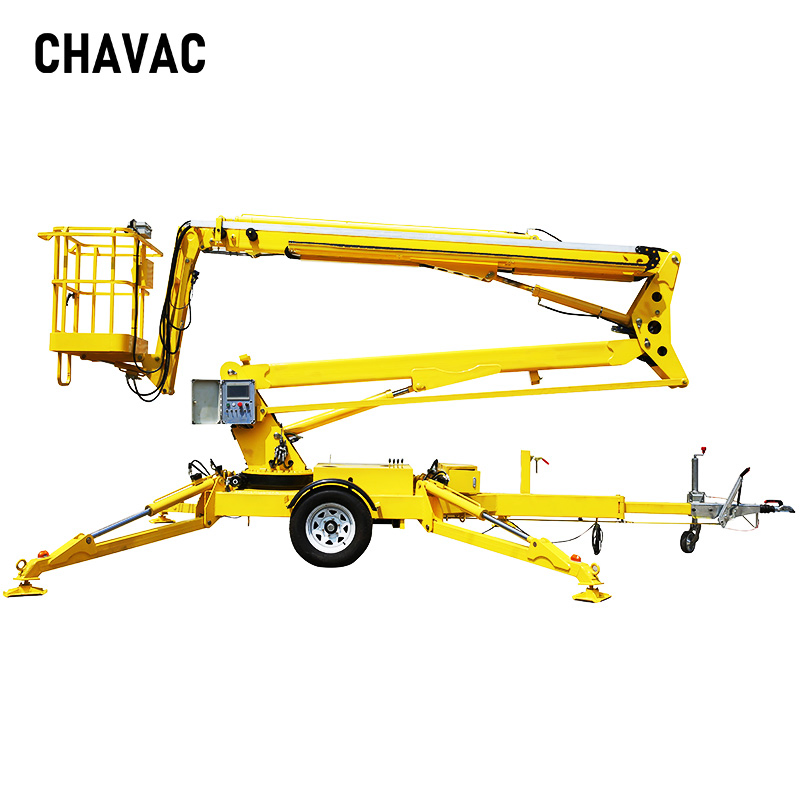

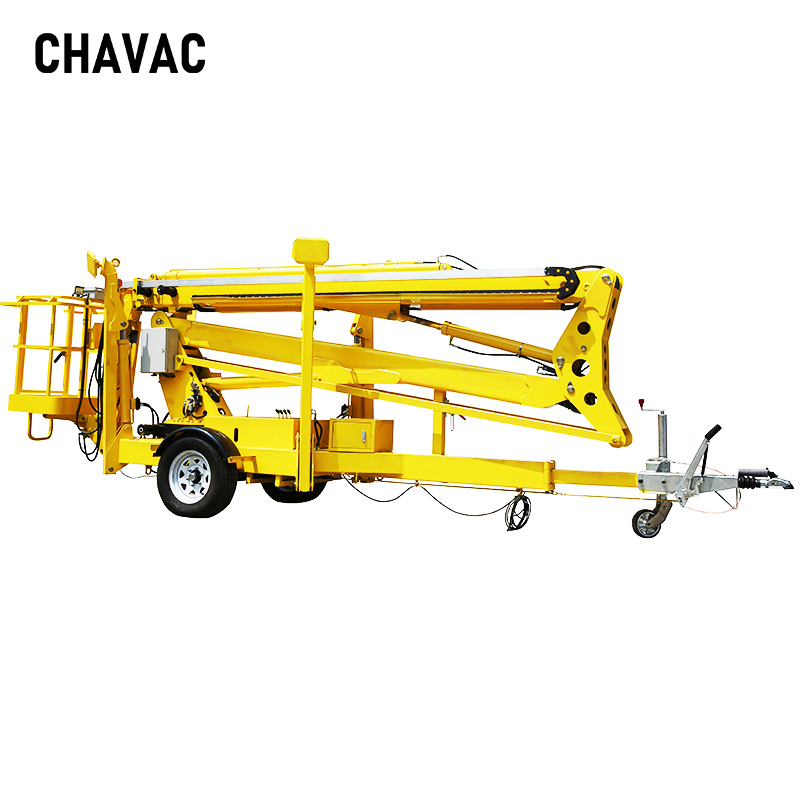

Germany Traffic Alko Axles Hydraulic Electric Trailer Cherry Picker Towable Spider Articulated Boom Lift

1 / 5

Germany Traffic Alko Axles Hydraulic Electric Trailer Cherry Picker Towable Spider Articulated Boom Lift

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Trailing Articulated Boom Lift

200kg - 300kg Capacity | EU Traffic Standard ALKO Axles & Brake System

Technical Specifications

Model

TBL Series

Application

Workshop, Shipboard, Warehouse, Building, Factory

Lift Mechanism

Articulated Lift

Certification

GS, CE, ISO 9001, SGS

Load Capacity

200kg

Lifting Height

8m, 10m, 12m to 20m

Platform Size

1100*700mm

Driven Type

DC / Diesel / Hybrid

Warranty

12 Months

Failure Rate

Extremely Low

Product Introduction

The Trailing Cherry Picker articulated boom lift is one of the most ideal aerial lift platforms for both indoors and outdoors maintenance work. It can rotate 360 degrees in the air with platform heights ranging from 6m to 16m. Its compact structure allows operation in tight spaces, making it highly convenient to be trailed by a car or tractor to any location. Widely used in neighborhood units, road light maintenance, factories, and construction sites.

Equipped with four high-strength hydraulic automatic support legs, the "Spider Boom Lift" ensures exceptional stability by jacking up the entire body during operation.

Core Features

1 360° Rotation: Full rotation of the arm for maximum working range.

2 Japan NOK Sealing: High-quality parts guaranteed for 300,000 uses without leakage.

3 Dual Controls: Operation panels located both on the ground and the platform.

4 Smooth Motion: Equipped with sliding track rollers to reduce vibration and rocking.

Detailed Model Parameters

Model Type	TBL-10A	TBL-12A	TBL-14A	TBL-16A	TBL-18A	TBL-20A
Lifting Height	10M	12M	14M	16M	18M	20M
Working Height	12M	14M	16M	18M	20M	22M
Load Capacity	200KG
Working Radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Net Weight	1855KG	2050KG	2500KG	2800KG	2800KG	2800KG

Power Options & Safety

Optional Power Supply:

Diesel Engine
Battery Power (Electric Motor)
Gasoline Engine (Honda)
AC Electricity
Hybrid / Dual Power

Safety Precautions:

Explosion-proof valves for hydraulic pipe protection.

Spillover valve for pressure adjustment.

Emergency decline valve for power-off situations.

Anti-dropping device to prevent platform falling.

Detailed Product Display

Towable Spider Articulated Boom Lift Details

Professional Services

Customized design based on specific requirements.

Professional recommendations for the most suitable models.

Global shipment arrangement to your destination port.

Comprehensive operation and maintenance videos provided.

Fast express delivery for replacement parts within 7 days.

Frequently Asked Questions

1. How can I purchase replacement parts if the lift breaks down?

The towable boom lift uses common hardware parts. You can easily purchase them from your local hardware market, or we can ship them to you via express.

2. Is the boom lift difficult to repair?

The equipment has a very low failure rate. If an issue arises, we provide detailed repair instructions and video guidance to help you resolve it quickly.

3. What is the standard quality guarantee period?

We offer a one-year quality guarantee. Within this period, if any parts fail due to quality issues, we will send replacement parts free of charge.

4. Can the lift be towed by a standard vehicle?

Yes, it is designed to be highly portable and can be easily towed by a car, truck, or tractor, making it ideal for long-distance transport between job sites.

5. What power sources are available for the TBL series?

We offer versatile options including Diesel, Battery (Electric), Gasoline, AC power, or Hybrid systems depending on your specific work environment.

6. What is the maximum working height available?

The TBL series offers various models with lifting heights ranging from 10m to 20m, providing a maximum working height of up to 22m.
