📋 Basic Information
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Production Capacity
200 Units Per Month
⚙️ Product Parameters
| Platform height maximum | 13.80m |
| Platform size outside (m) | 2.7*1.11 |
| Extend platform | 0.9m |
| Overall size (fold) (m) | 2.85*1.31*2.06 |
| Overall size (unfold) (m) | 2.85*1.31*2.6 |
| Ground clearance | 0.1/0.015m |
| Wheelbase | 2.28m |
| Capacity | 230kg |
| Drive speed - stowed | 3.5km/h |
| Drive speed - raised | 0.8km/h |
| Gradeability-stowed | 25% |
| Turning Radius (Inside/Outside) | 0 / 2.7m |
| Tyres - solid non-marking | Φ381×127mm |
| Power source | 24V/4.5kw |
| Battery | 4×6V/200ah |

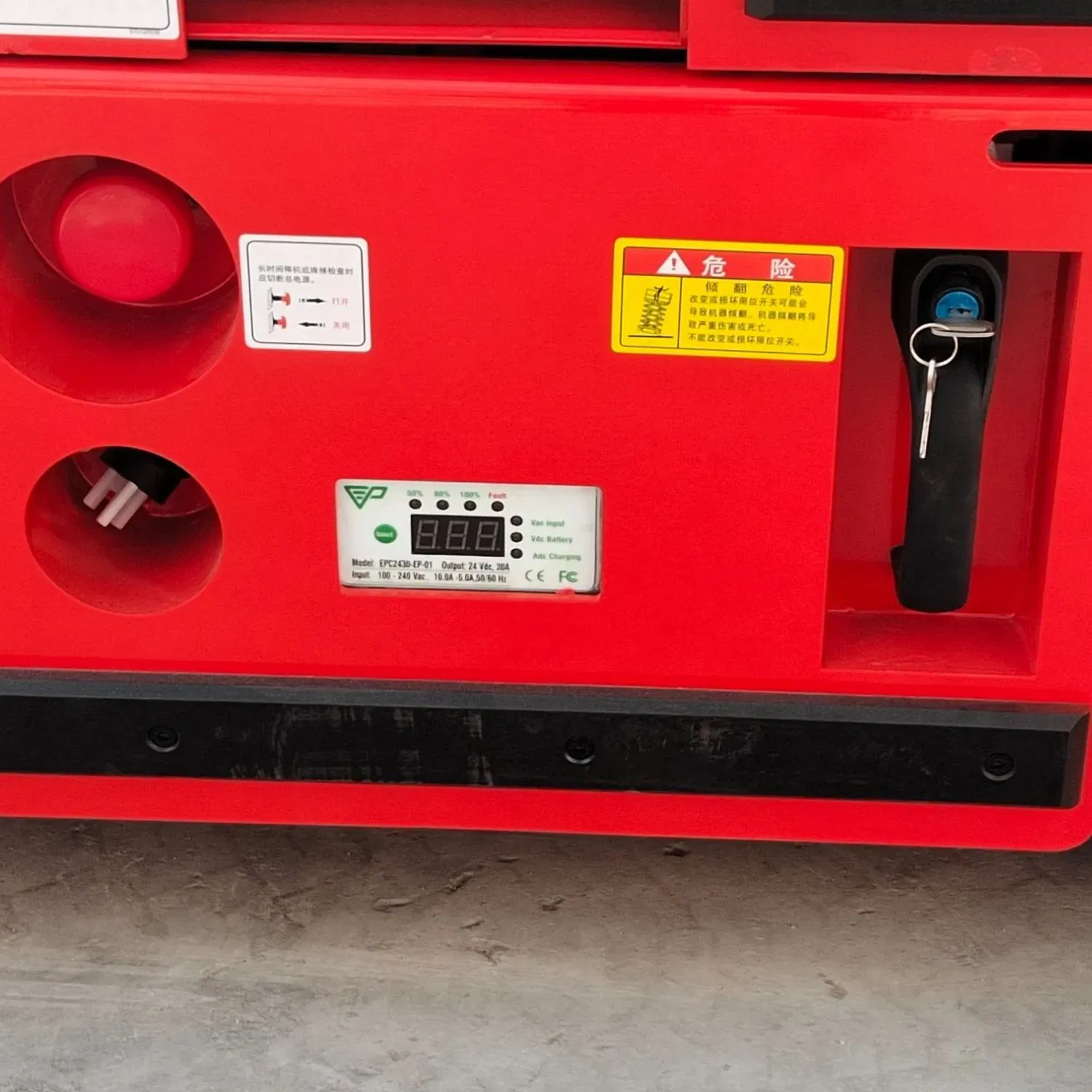

| Charger | 24V/30A |
🛠️ Product Features

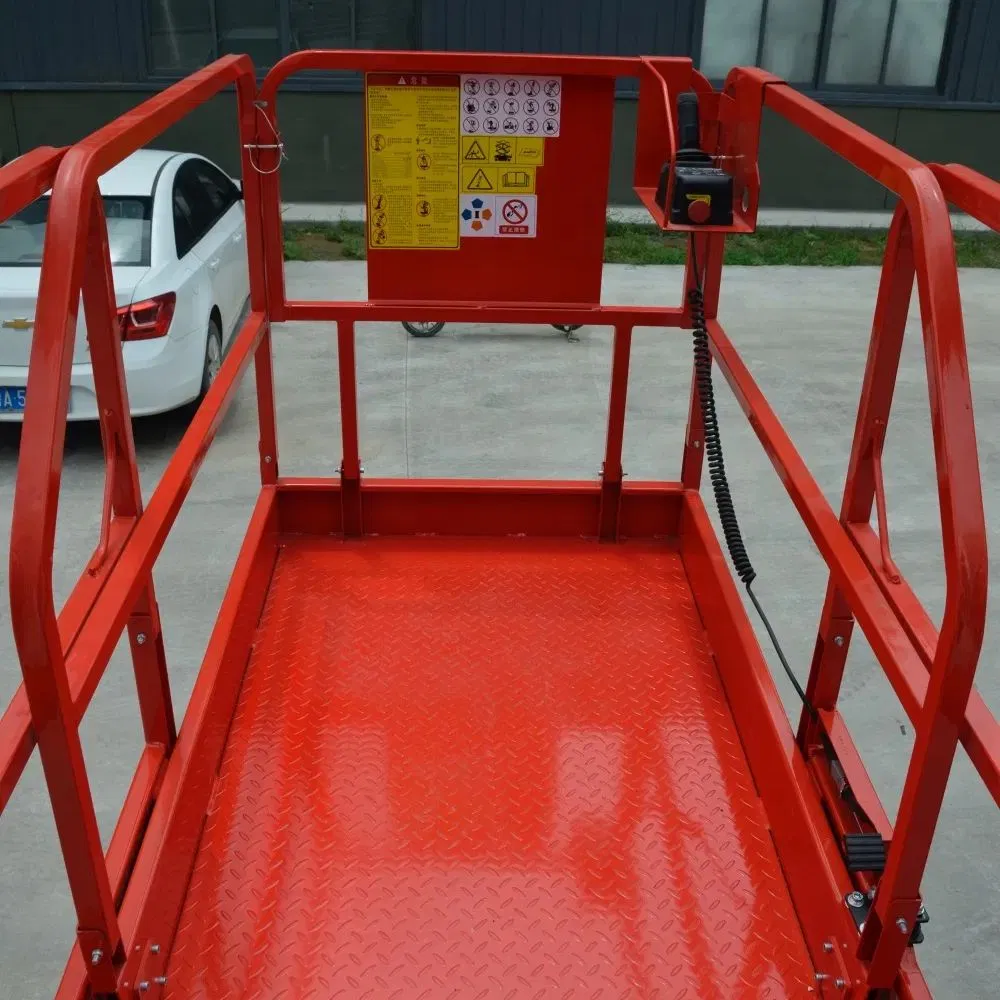

Work surface3MM flat steel plate bent 3MM pattern plate splicing and welding forming.
Guard railBend and weld 35MM*35MM*2MM square pipe for maximum safety.
Pin System40CR QBQ processing increases pin hardness and wear resistance.
Premium cylinderImported seals effectively avoid oil leakage and maintain pressure.

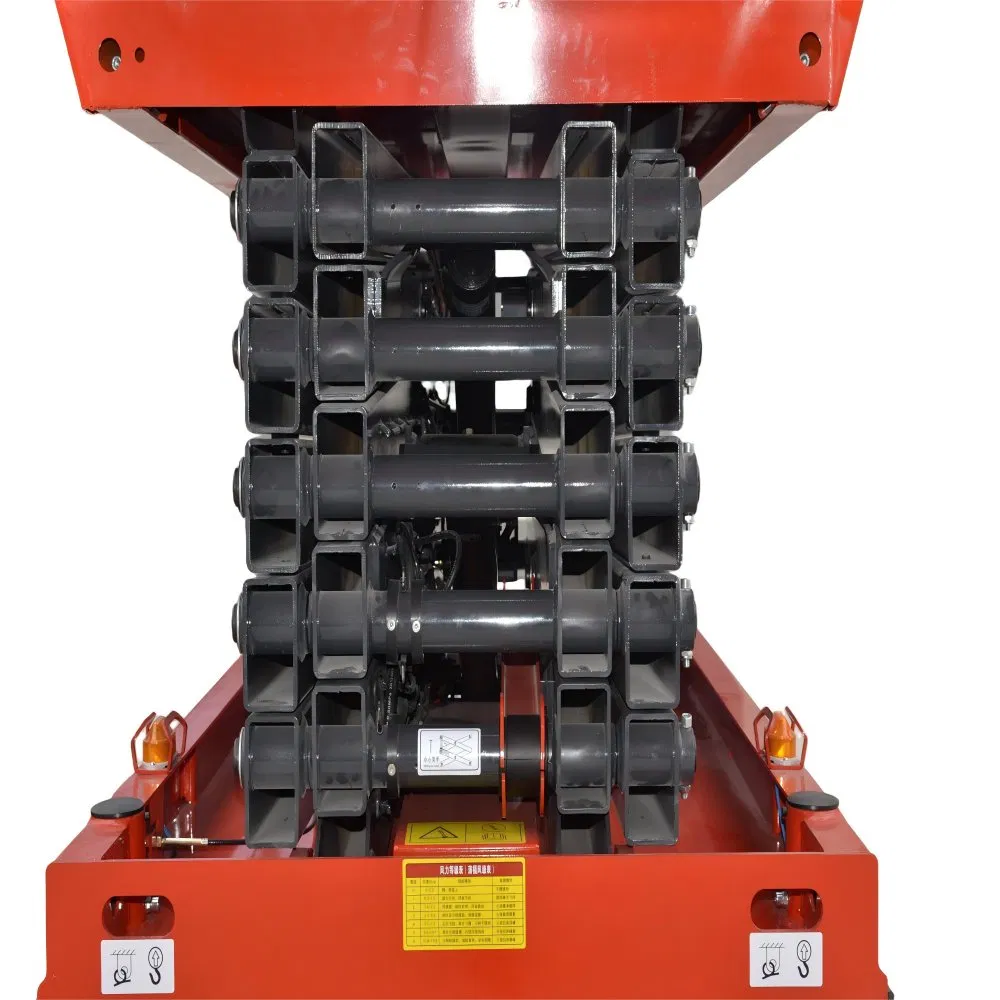

Arm bracket125MM*75MM*5MM Q355B manganese tube, laser cutting precision.
Shaft sleeveCarbon fiber wear sleeves reduce friction for smoother lifting and longer service life.
Master valveOriginal inlet valve core for precise control.

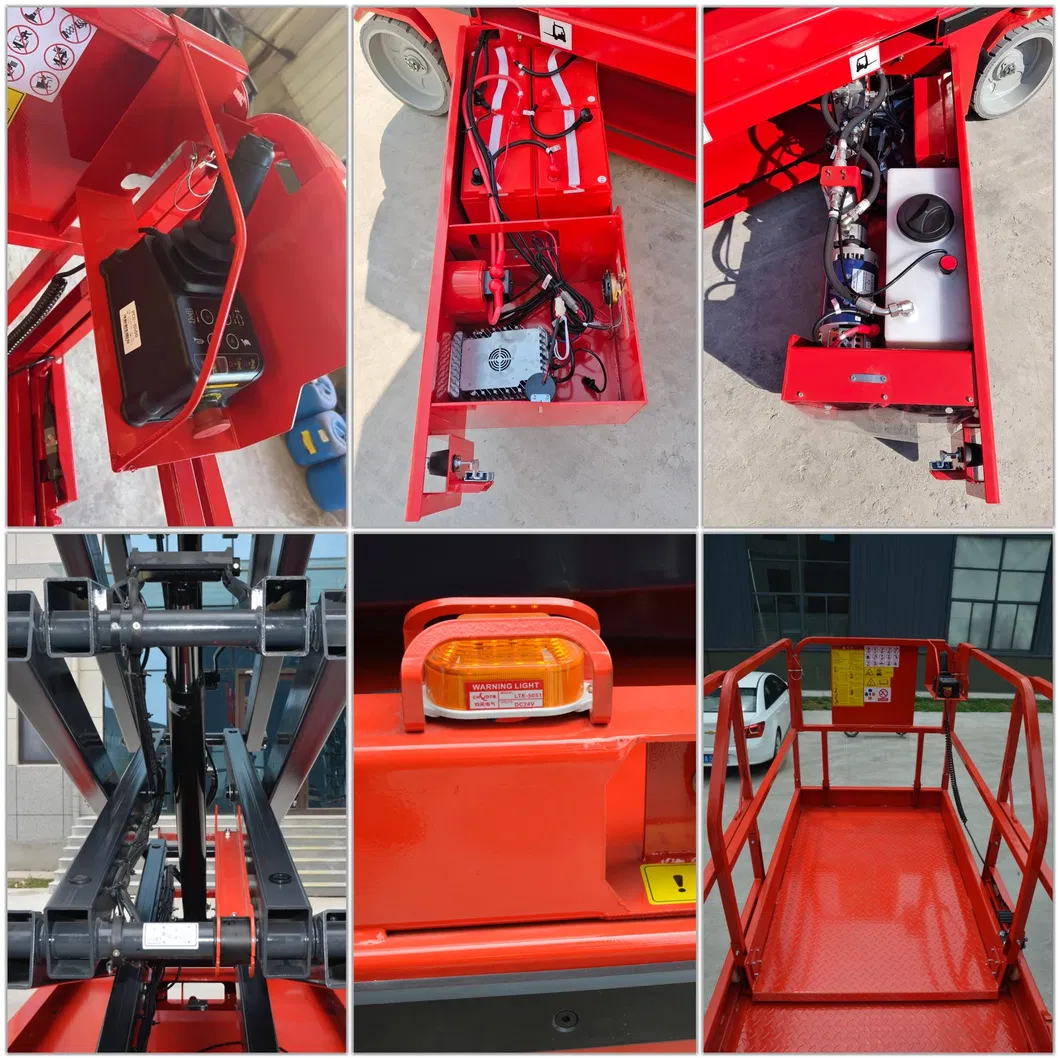

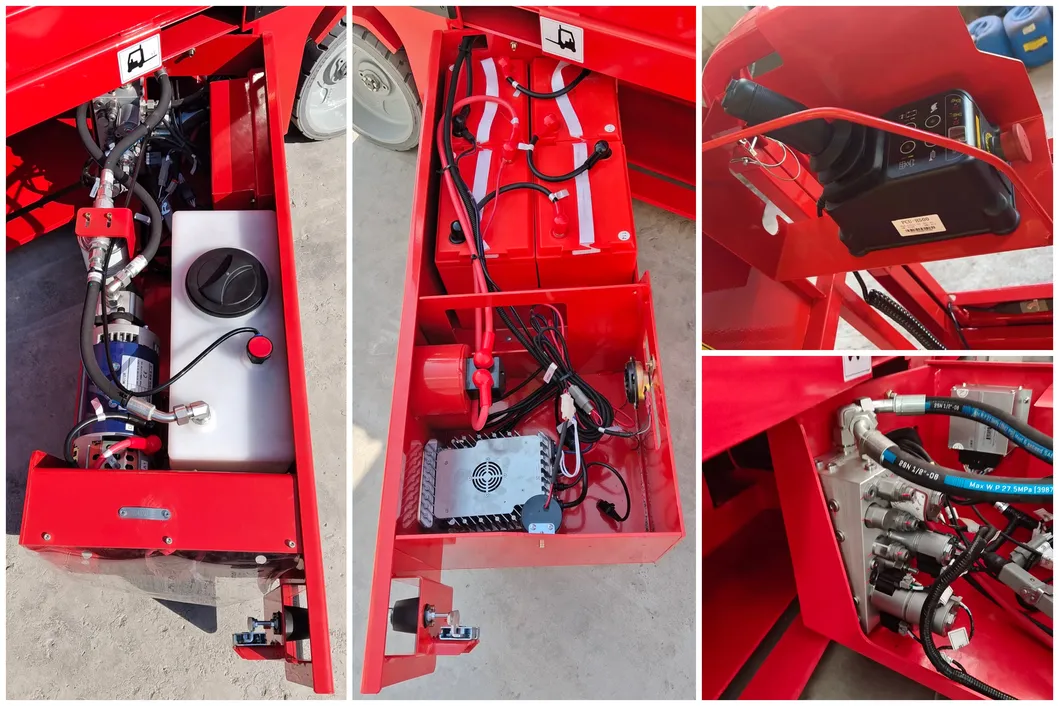

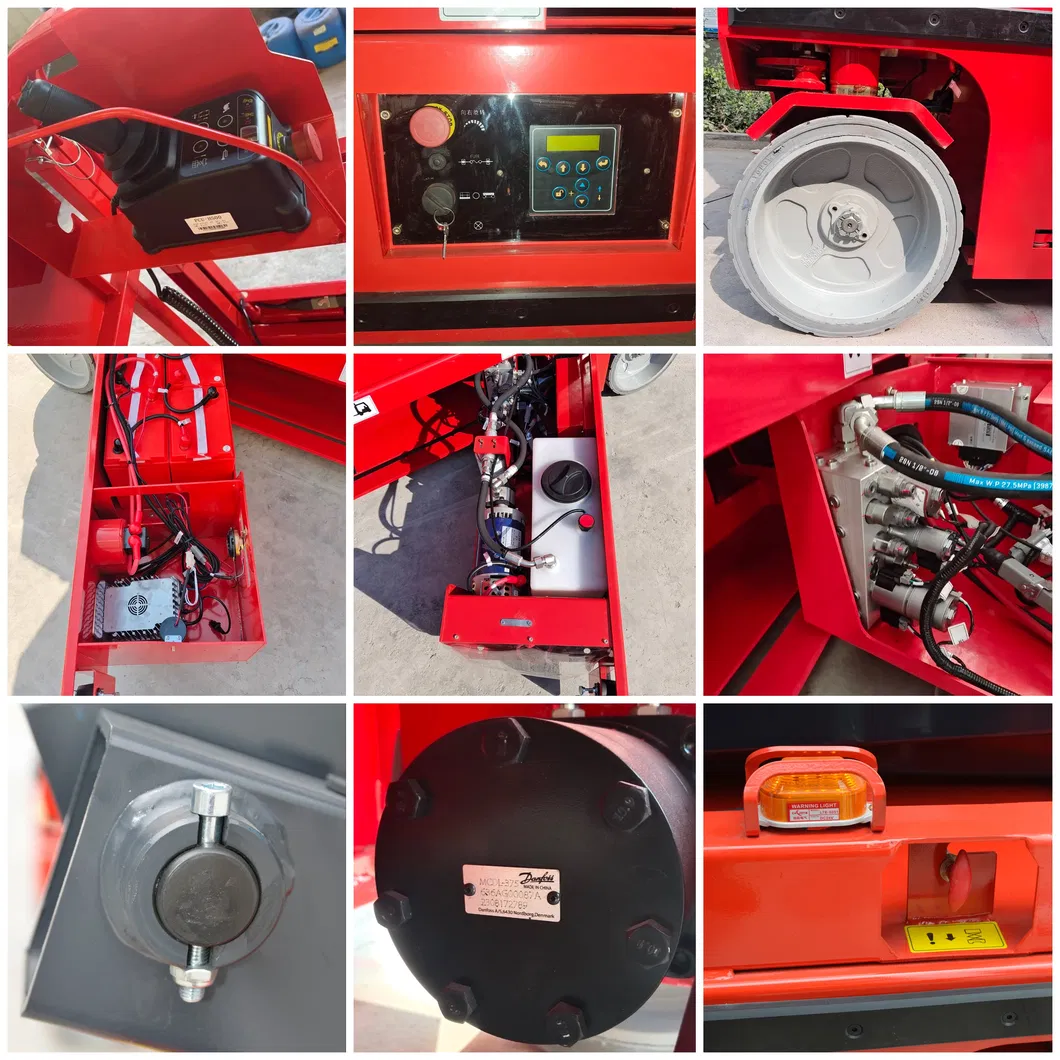

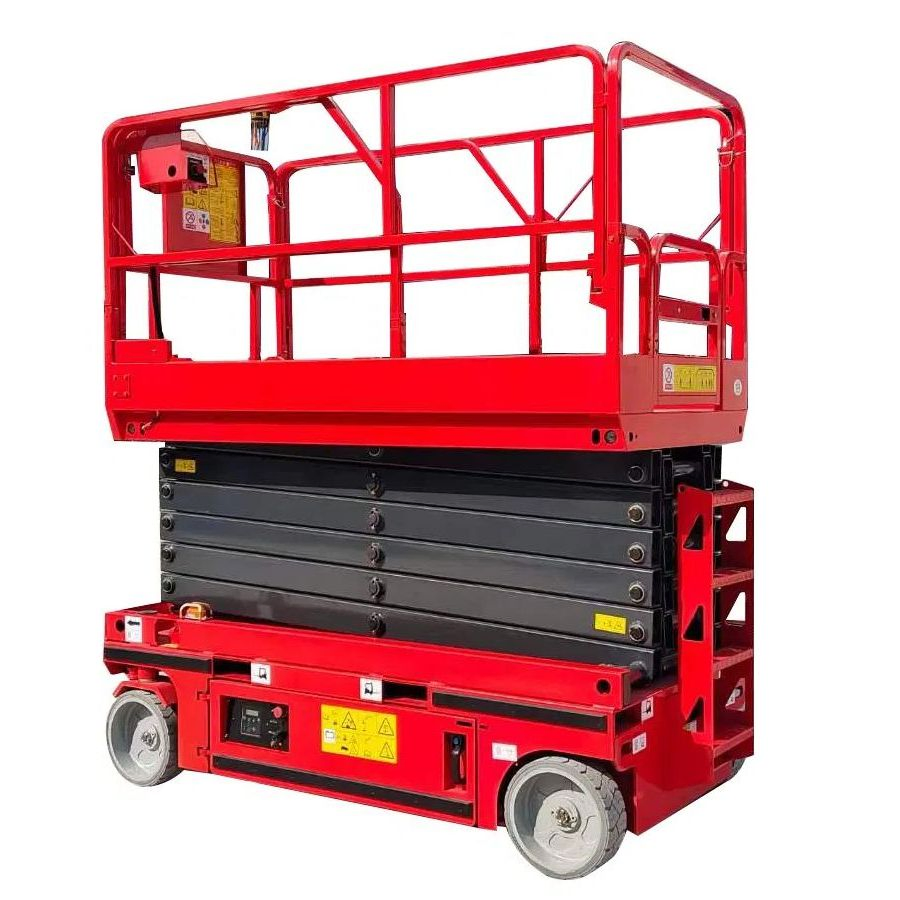

📸 Detailed Photos
🏢 Professional Profile
As a modern manufacturing enterprise specialized in aerial work platforms, we provide integrated services for design, production, sales, and after-sales. Our experienced team manages every process of design and quality control, dedicated to providing clients with excellent equipment performance.
With a business philosophy of "Quality First, Client Oriented," we pursue perfection in every detail, focusing on product innovation and process improvement. Main products include masts aerial work platforms, scissor lifts, fixed lift tables, and material pickers, widely applied in machinery, aviation, and logistics.
📦 Packaging & Shipping
🛡️ After Sales Service
✔User-friendly English manual for machine operation and maintenance.
✔One year warranty for the whole machine without man-made faults.
✔Free replacement parts provided for non-human factor problems during warranty.
✔24-hour technical support via email, telephone, or online communication.
✔Rapid response within 2 hours for any inquiries, including weekends and holidays.
❓ Frequently Asked Questions
What is the maximum working height of the GTJZ14S model?
The GTJZ14S scissor lift offers a maximum working height of 15.8 meters and a platform height of 13.8 meters.
Is this scissor lift suitable for indoor use on sensitive flooring?
Yes, it is equipped with solid non-marking tyres (Φ381×127mm), making it ideal for indoor workshop and warehouse environments without damaging the floors.
What is the carrying capacity of the platform?
The platform has a maximum lift capacity of 230kg, suitable for operators and their necessary tools.
How does the platform extension work?
The machine features an extendable platform of 0.9 meters, allowing operators to reach over obstacles or access a wider work area.
What power source does this self-propelled lift use?
It is powered by a 24V system with four 6V/200ah batteries and a 24V/4.5kw motor, providing efficient and clean electric operation.
Can it be operated in tight spaces?
Yes, with an inside turning radius of 0 and an outside turning radius of only 2.7m, it is highly maneuverable in narrow aisles and confined spaces.
