Max Height
16m - 22m
🔄
Rotation
360° Continuous
⚖️
Platform Load
200kg (2 Persons)
🛡️
Safety
Auto Locking System
📋 Product Description

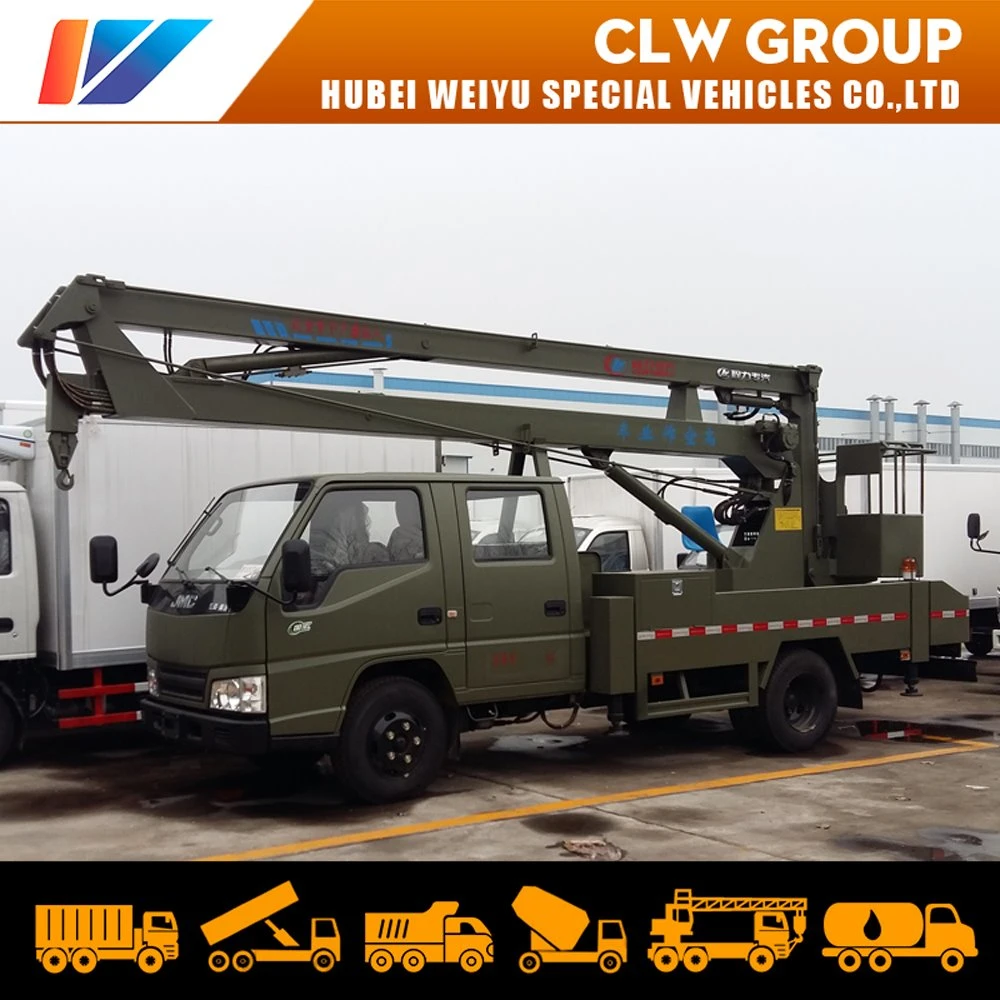

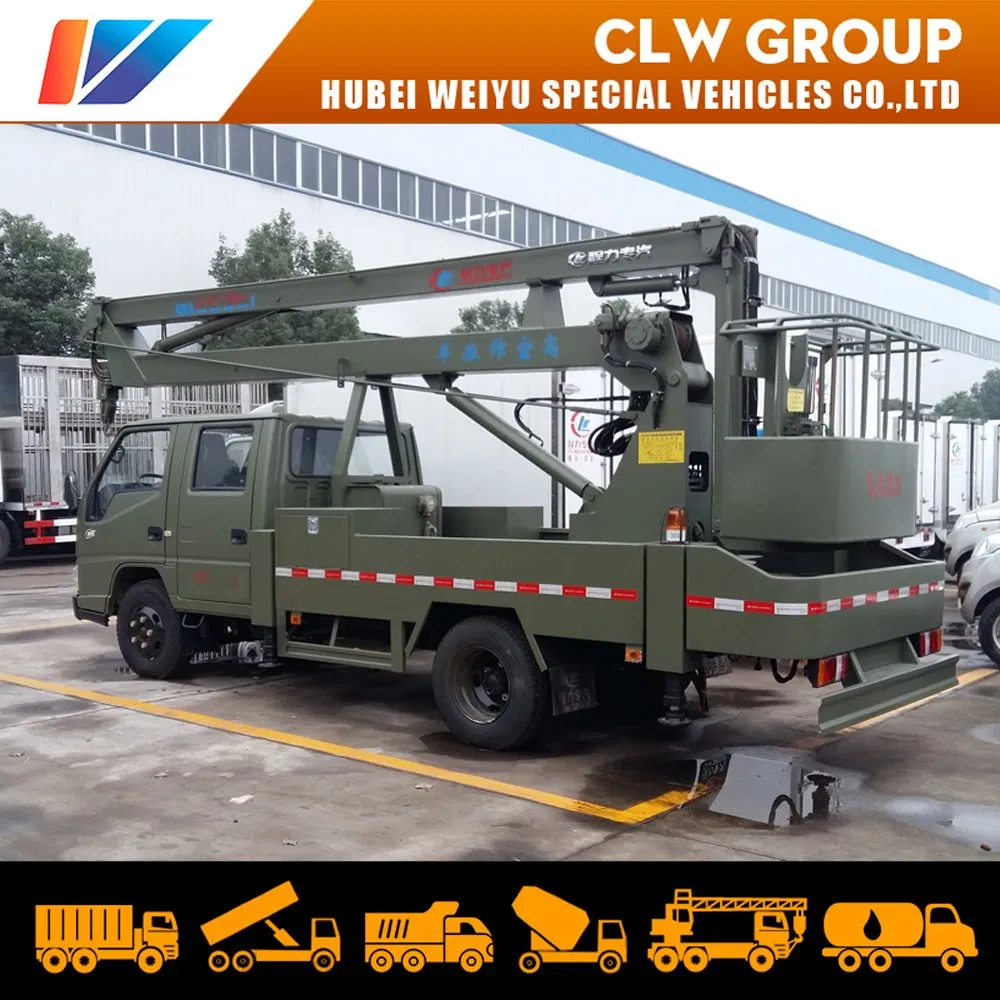

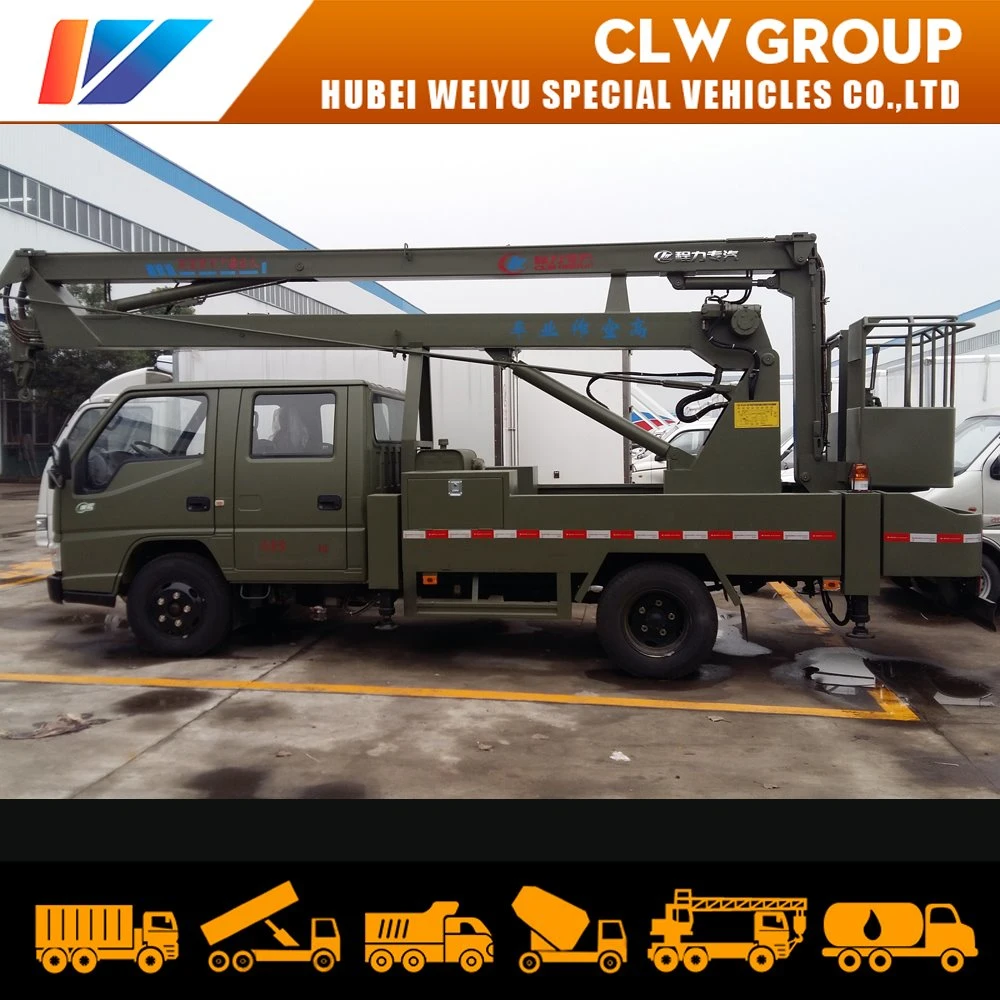

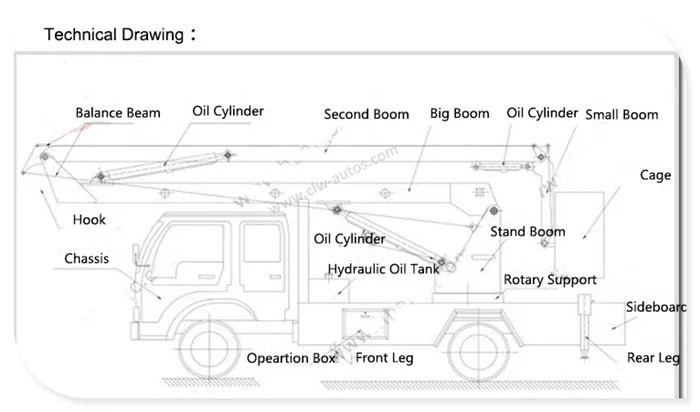

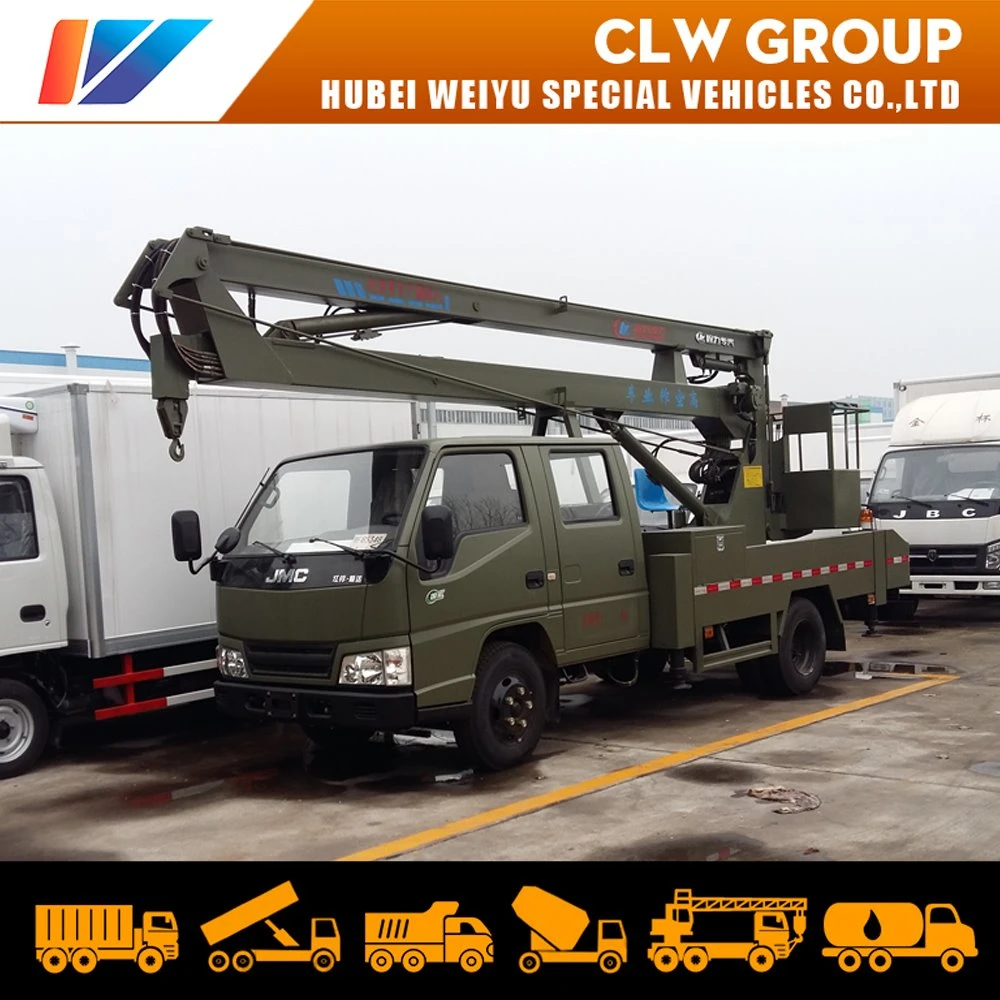

Articulated Boom Lift Cherry Picker with Aerial Work Platform

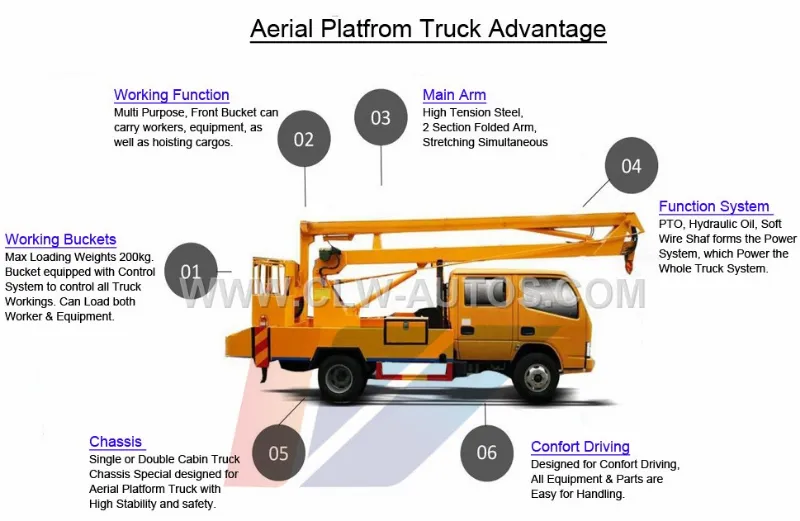

This professional-grade aerial work truck is designed for high-altitude operations with maximum safety and efficiency. It features an electronically controlled lifting arm and H-type hydraulic outriggers for superior stability.
- Electronical controlled Lifting Arm with Double Side Balance Valve.
- Four Hydraulic Cylinders Control Leg for perfect truck balance.
- 360 degree Rotation Arms for full coverage.
- Arm and H-leg Automatic Locking System for secure safety handling.
- Max Working Range up to 9.5 meters.
- Equipped with a 1000kg capacity lifting hook.
⚙️ Technical Specifications
| Model |
CLW5112GB |
Type |
Articulated Boom |
| Certification |
ISO9000, CCC, EPA, EEC |
Emission Standard |
Euro 3, 4, 5 |
| Horsepower |
180HP |
Fuel Type |
Diesel |
| Payload |
5-15 ton |
Transmission |
Manual (6-speed) |
| Drive Wheel |
4x2 |
Max Working Height |
16m, 18m, 20m, 22m |
| Platform Rated Load |
200kg |
Hook Loading |
1000kg |
| Wheelbase |
5000mm |
Tire Size |
9.00R20 |
| Outrigger Type |
H-Type Individual Adjustment |
Working Range |
9.5m |

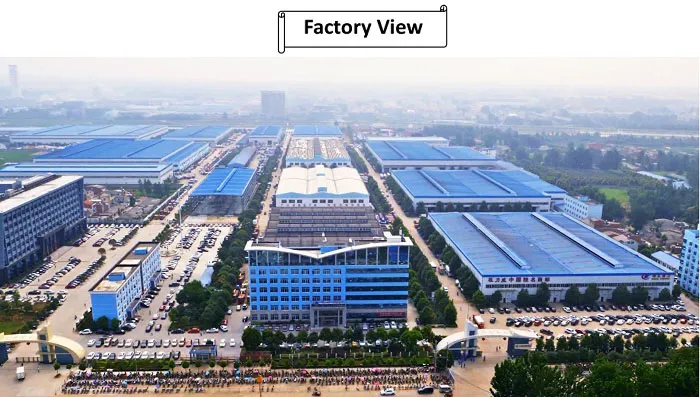

🏭 Manufacturing Excellence
Our manufacturing facility is a professional leader in special vehicle production, offering:
- Certificates: ASM, ISO, BV, SGS, CCC etc.
- 12 independent specialized workshops.
- 1000+ sets of advanced equipment and 25 assembly lines.
- 300+ senior engineers and technicians.
- 800 kinds of specialized trucks and semi-trailers.
- 20 years of professional wholesale and export experience.
- Products exported to over 90 countries worldwide.
❓ Frequently Asked Questions
What is the maximum working height of this boom lift?
The maximum working height varies by model, with options available for 16m, 18m, 20m, and up to 22m.
What is the rated load capacity for the aerial platform?
The platform is designed to carry a rated load of 200kg, which is typically sufficient for two persons and their necessary tools.
Does the boom lift support continuous rotation?
Yes, the lifting arm supports a full 360-degree rotation, allowing for flexible positioning during aerial tasks.
Which chassis brands can be used for this truck?
We offer compatibility with various world-renowned chassis brands including Isuzu, Dongfeng, Foton, and others depending on your requirements.
What safety mechanisms are integrated into the system?
The truck is equipped with double-side balance valves, four hydraulic H-type outriggers for stability, and an automatic locking system for both the arms and legs to ensure safe operation.
What is the warranty period for this vehicle?
The standard warranty time for this aerial work platform truck is 1 year from the date of delivery.
