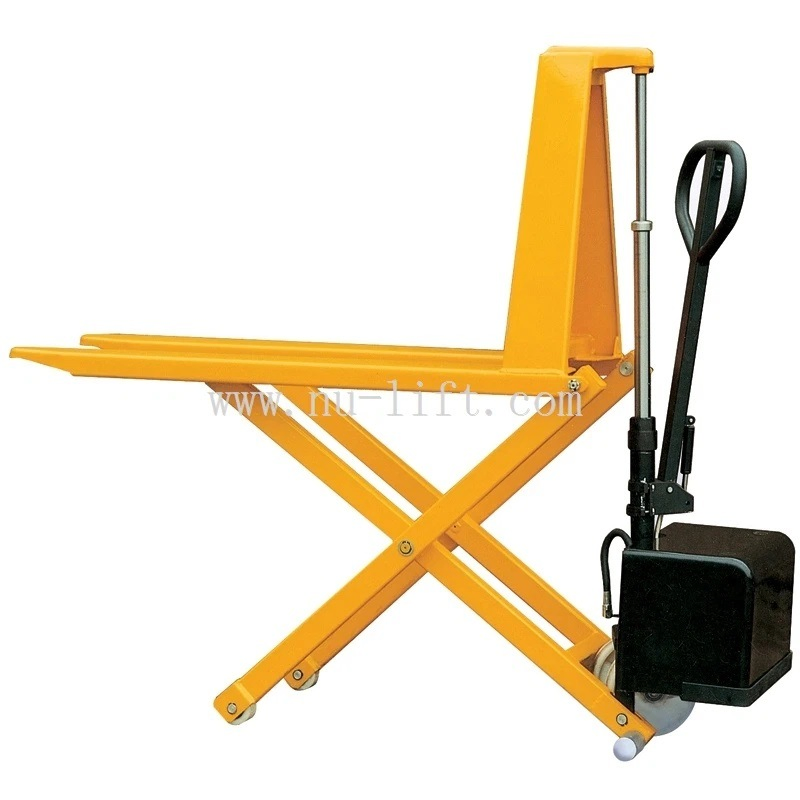

Electric High Lift Pallet Jack-HL.E series

1 / 5

Electric High Lift Pallet Jack-HL.E series

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Specifications & Basic Info

Model NO.

HL-540E, HL-680E

Type

Electric High Lift Pallet Truck

Load Capacity

1000kg (1T)

Load Center

500mm

Max Lift Height

800mm

Material

High-strength Steel

Condition

New

Delivery Time

20 Days

Product Description

✔ Electric Operation: Efficient lifting for increased productivity.

✔ Capacity: Robust handling up to 1000kg (2200lbs).

✔ Hydraulic System: Equipped with a high-quality hydraulic motor.

✔ Safety Standard: Fully conforms to EN 1757-4 regulations.

Type	Model	Capacity	Max. Fork Height	Fork Length	Overall Fork Width	Battery	Battery Charger	Net Weight
Type	Model	kg(lbs)	mm(inch)	mm(inch)	mm(inch)	V-Ah	V-A	kg(lbs)
Electric	HL-540E	1000(2200)	800(31.5)	1165(45.3)	540(21.3)	12-54	12-10	150(330)
Electric	HL-680E	1000(2200)	800(31.5)	1165(45.3)	680(26.8)	12-54	12-10	165(363)

Product Gallery

Frequently Asked Questions

What is the maximum lifting capacity of the HL-E series?

The HL-E series electric high lift pallet jack has a rated capacity of 1000kg (approximately 2200 lbs).

Does this model meet international safety standards?

Yes, it confirms to the EN 1757-4 standard, ensuring high safety and quality benchmarks for manual and semi-electric equipment.

What type of battery and charger are included?

The unit is equipped with a 12V-54Ah battery and comes with a 12V-10A battery charger for reliable operation.

What is the maximum fork height?

The maximum fork height for both HL-540E and HL-680E models is 800mm (31.5 inches).

What is the difference between HL-540E and HL-680E?

The primary difference is the overall fork width. The HL-540E has a width of 540mm, while the HL-680E is designed for wider loads with a fork width of 680mm.

How long does delivery usually take?

The standard production and delivery lead time is approximately 20 days.
