(OEM & ODM SERVICE AVAILABLE)

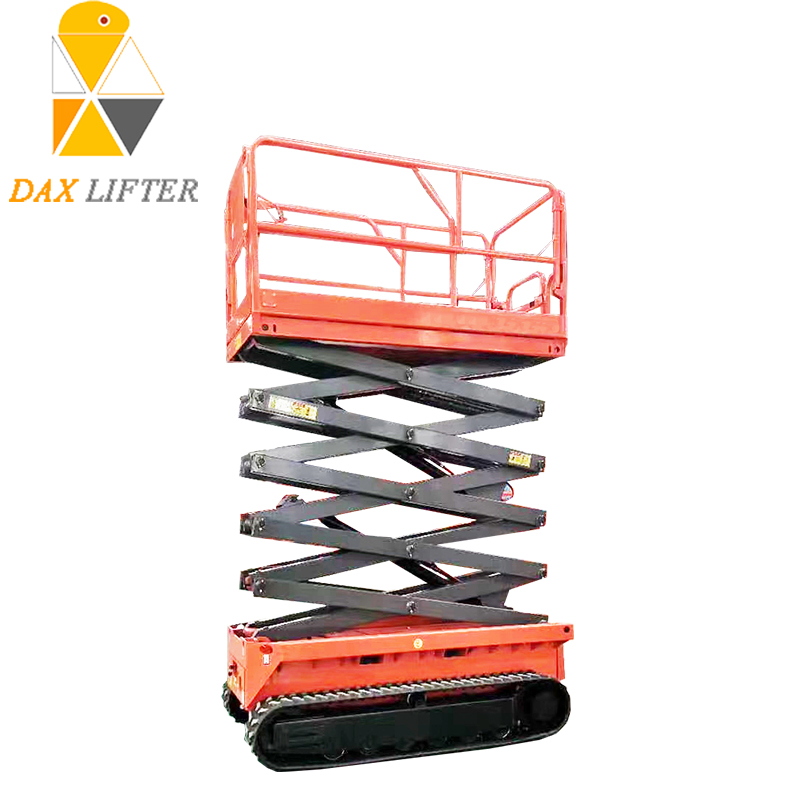

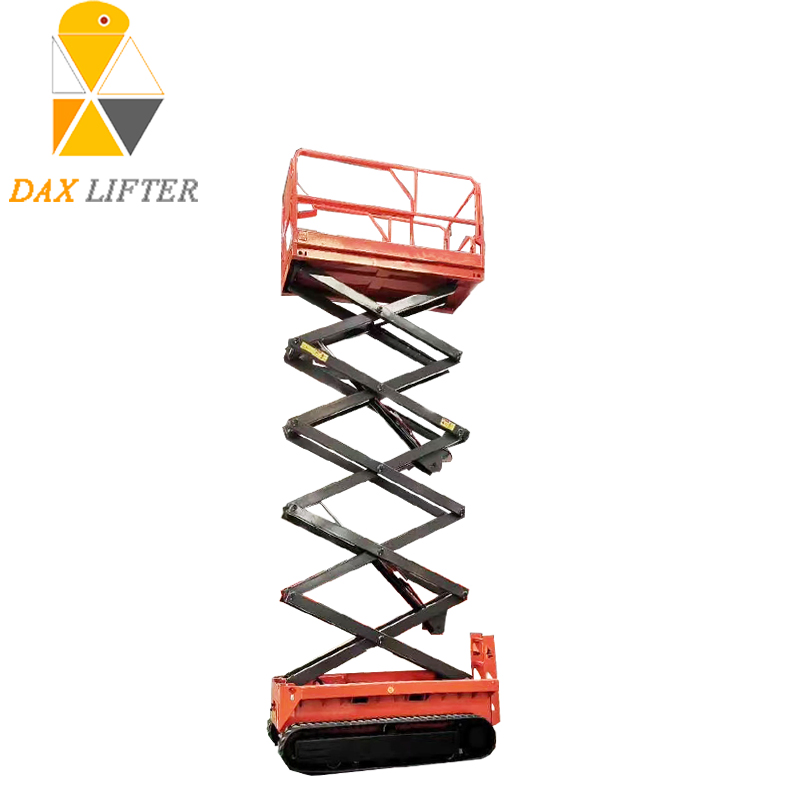

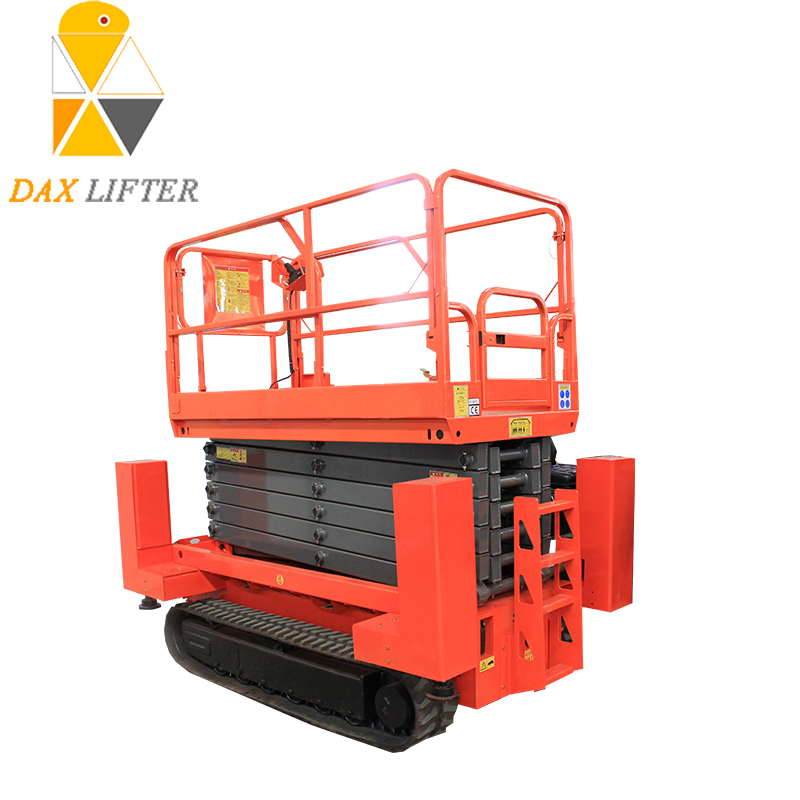

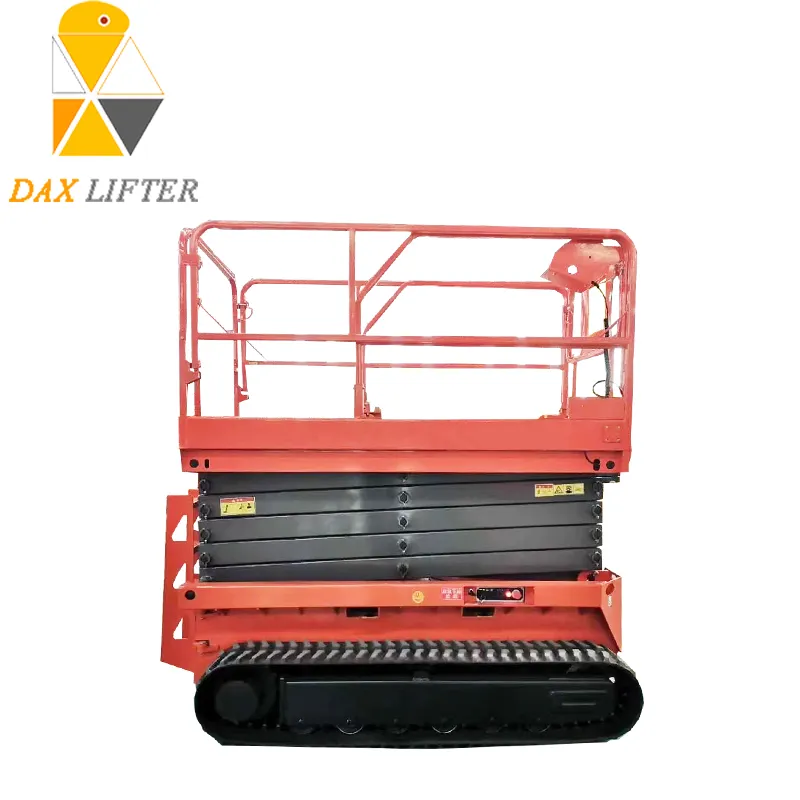

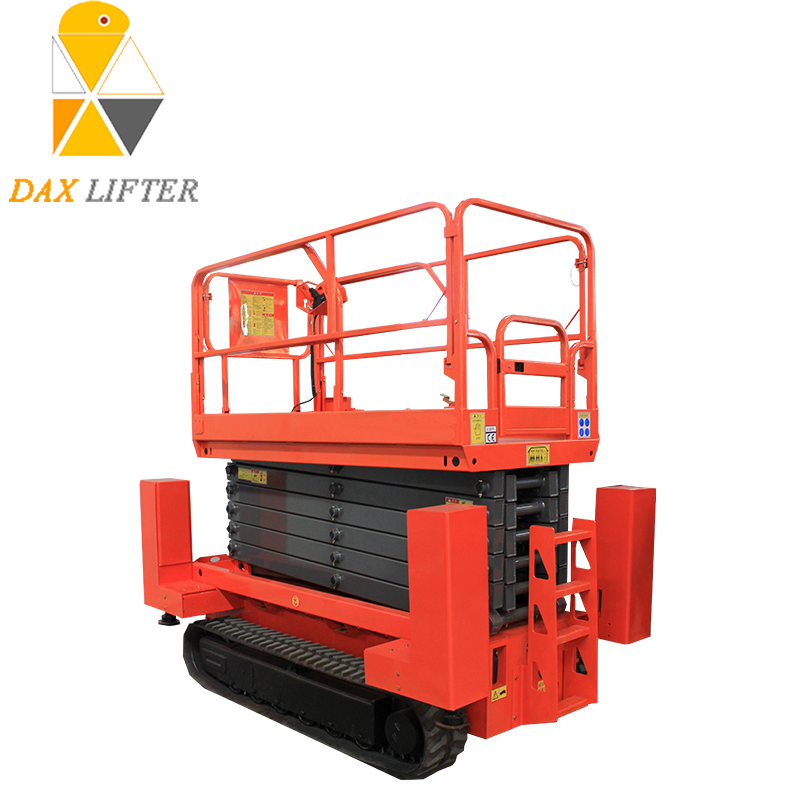

Rough Terrain Crawler Scissor Lift is specially designed for challenging work environments. The crawler track design provides excellent navigation capabilities, allowing the lift to cross rough obstacles such as grassland and uneven construction ground.
The Crawler Type Scissor Lift ensures stability and accessibility in places where traditional wheeled lifts might struggle. It adopts a robust design to maximize utility in diverse outdoor settings.
| Model | DX06LD | DX08LD | DX10LD | DX12LD |
|---|---|---|---|---|
| Capacity | 450kg | 450kg | 320kg | 320kg |
| Platform Extend Capacity | 113kg | 113kg | 113kg | 113kg |
| Max Platform Height | 6m | 8m | 9.75m | 11.75m |
| Max Working Height | 8m | 10m | 12m | 14m |
| Overall Length | 2470mm | 2470mm | 2470mm | 2470mm |
| Overall Width | 1390mm | 1390mm | 1390mm | 1390mm |
| Platform Size | 2270*1120mm | 2270*1120mm | 2270*1120mm | 2270*1120mm |
| Extendable Length | 900mm | 900mm | 900mm | 900mm |
| Ground Clearance | 150mm | 150mm | 150mm | 150mm |
| Travel Motor | 2*48v/4kw | 2*48v/4kw | 2*48v/4kw | 2*48v/4kw |
| Net Weight | 2400kg | 2550kg | 2840kg | 3000kg |
Flexible Operation: Steering and movement can be controlled by a single person using a master handle for precise positioning.
Enhanced Stability: The crawler design offers superior stability compared to wheeled models when working on soft or uneven ground.
Safety Systems: Includes an emergency lowering valve for power failures and a safety explosion-proof valve to prevent sudden drops.
Overload Protection: The hydraulic system is integrated with protection features to ensure safe weight limits are maintained.
