Kleen Lift
1 / 5
| Parameter | Metric | US |
|---|---|---|
| Working height maximum | 17.7m | 58ft |
| Platform height maximum | 16m | 52ft 6in |
| Horizontal reach maximum | 9.5m | 25ft |
| Platform length | 0.76m | 2ft 6in |
| Platform width | 1.83m | 6ft |
| Height - stowed | 2.38m | 7ft 5in |
| Length - stowed | 6.80m | 22ft 3in |
| Width | 2.29m | 7ft 5in |
| Wheelbase | 2.20m | 7ft 2in |
| Ground clearance-center | 430mm | 1ft 4in |
| Lift capacity (restricted) | 230kg | 500lbs |
| Drive speed - stowed | 6.3 km/h | 3.9 mph |
| Turning radius - inside | 3.0m | 9ft 8in |
1. Versatile Positioning
Offers multi-faceted functions for positioning upward, outward, and crossing to reach difficult locations.

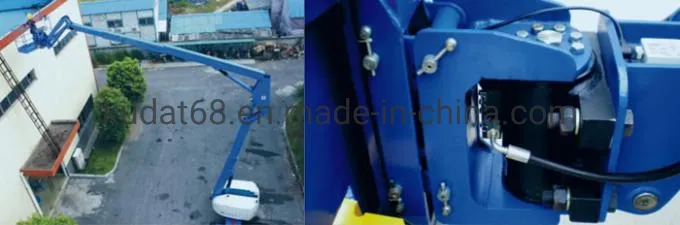

2. Safety Systems
Standard configuration includes four-link weighing, automatic speed control, and high-precision load sensors.

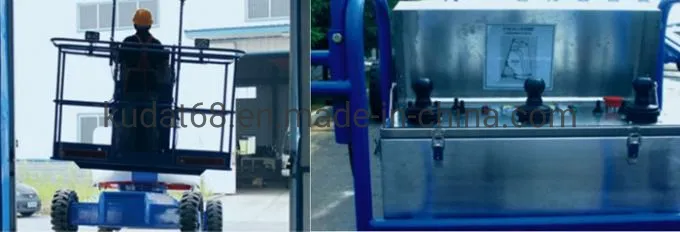

3. Intelligent Control
Equipped with full proportion joysticks, CAN bus, and PLC control systems for high positioning accuracy.
4. Flexibility & Stability

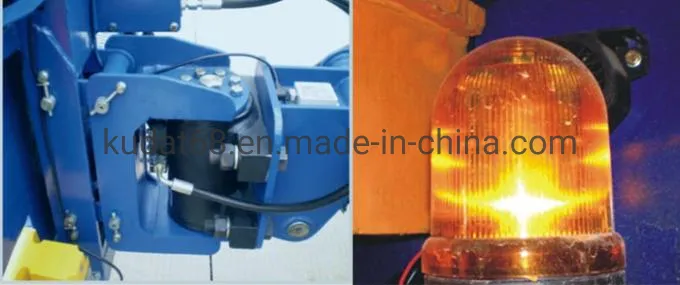

Features a rotary platform (±80°) and active oscillation axle to maintain traction on uneven ground.
5. High-Performance Hydraulics
Closed-circuit system with double value core circuits for enhanced safety and smooth speed adjustment.

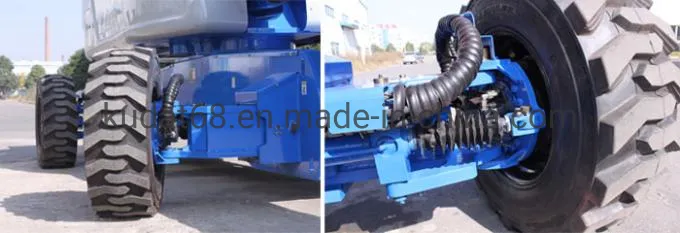

6. Powerful Drive (Optional 4x4)
The four-wheel drive configuration provides excellent gradeability for tough terrains.
