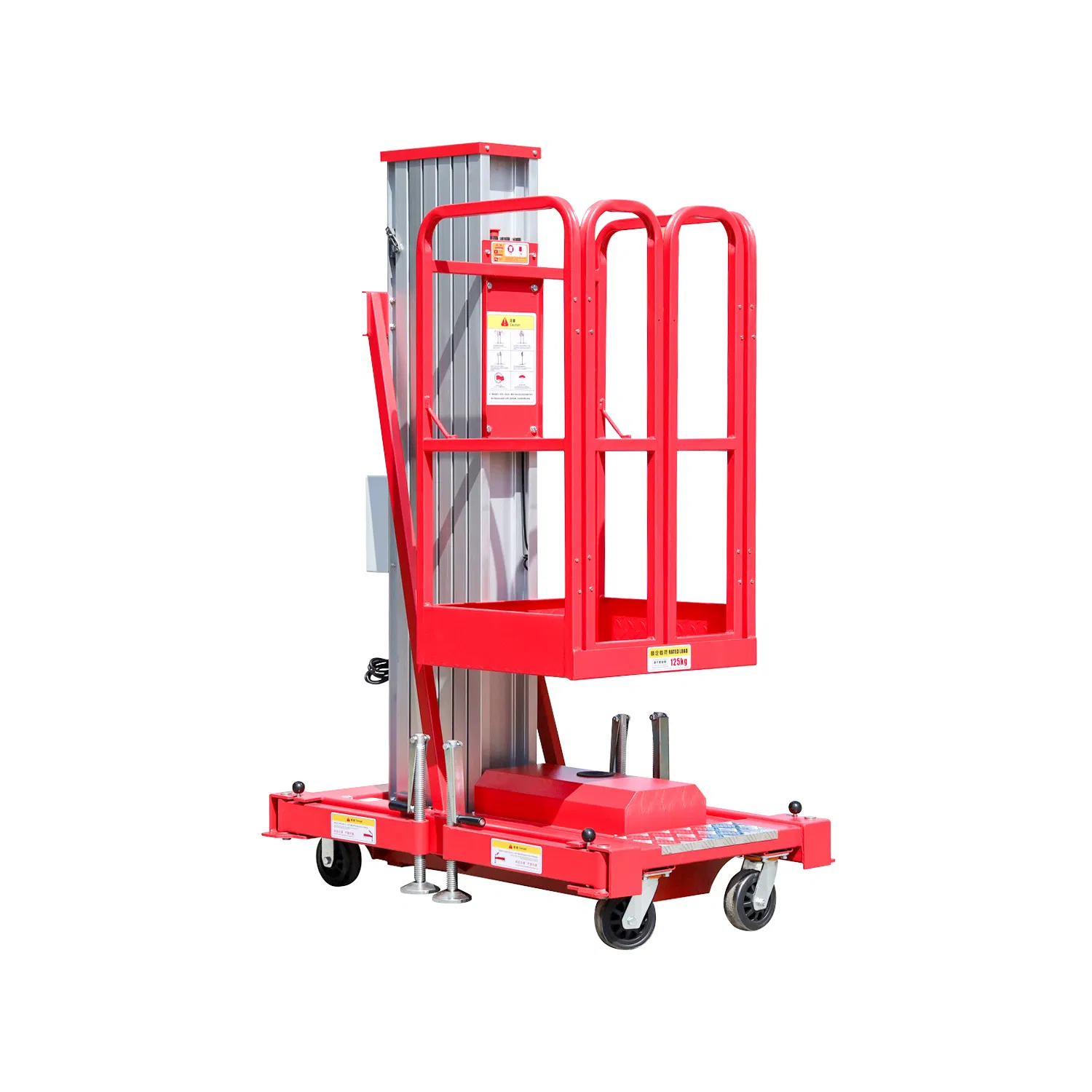

Single Mast Lift for Aerial Working (Max Height 6m)

1 / 5

Single Mast Lift for Aerial Working (Max Height 6m)

Customization:	Available
After-sales Service:	24 Hours Online After-Sales Service
Warranty:	12 Months Apart From Man-Made Faults

Send Inquiry

Product Description

📋Basic Specifications

Model NO.

GTWY6-100

Lift Mechanism

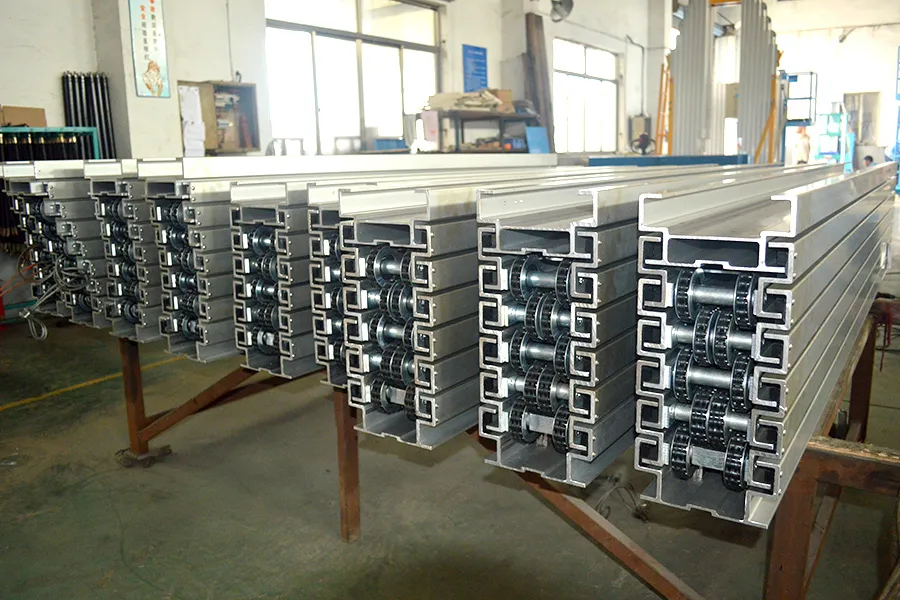

Lift Chain

Max Platform Height

Working Height

7.7m

Driven Type

AC (220V)

Material

Aluminium Alloy

Certification

CE, ISO 9001

Platform Size

0.6 * 0.55m

🏗️Product Overview

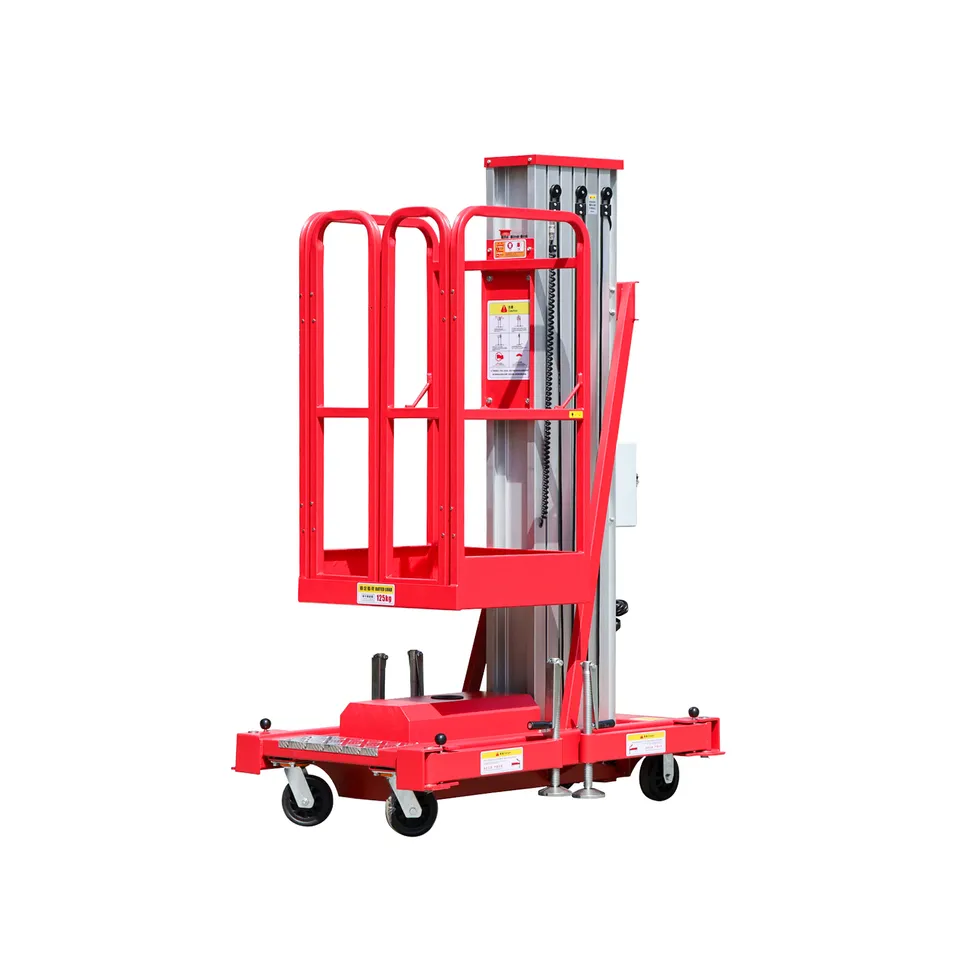

Single Mast Aerial Work Platform
The single mast lift is a top-performing solution in the aerial work market, highly acclaimed by professional buyers. With over 22 years of industry manufacturing expertise, this equipment provides high-quality performance and enhanced security for various high-level tasks.

Key Applications:

Hotels and Grand Halls
Sports Stadiums and Factories
Warehouses and Granaries
Airports and Railway Stations
Gas Stations and Aerial Pipelines

🌟Key Features & Benefits

Compact Design Small footprint and low weight allow for easy movement and access through limited passageways.

One-Person Operation Integrated up and down control systems make it convenient for a single operator to manage the platform.

Enhanced Safety Ideal equipment to replace traditional ladders or riggers with significantly higher efficiency and safety.

Stable Performance Equipped with leveling outriggers, emergency lowering systems, and stroke protection blocks.

🎬Operation Demonstration

⚙️Standard Configuration

Leveling of platform guaranteed by adjusting screw outriggers.

Electric limit switch to cut off power at maximum height.

Dual control modes: Ground and Platform controls available.

Built-in hydraulic cylinder stroke protection.

Equipped with emergency lowering system and antiskid staircase.

Integrated leveling indicator for precise setup.

📸Multi-Angle View

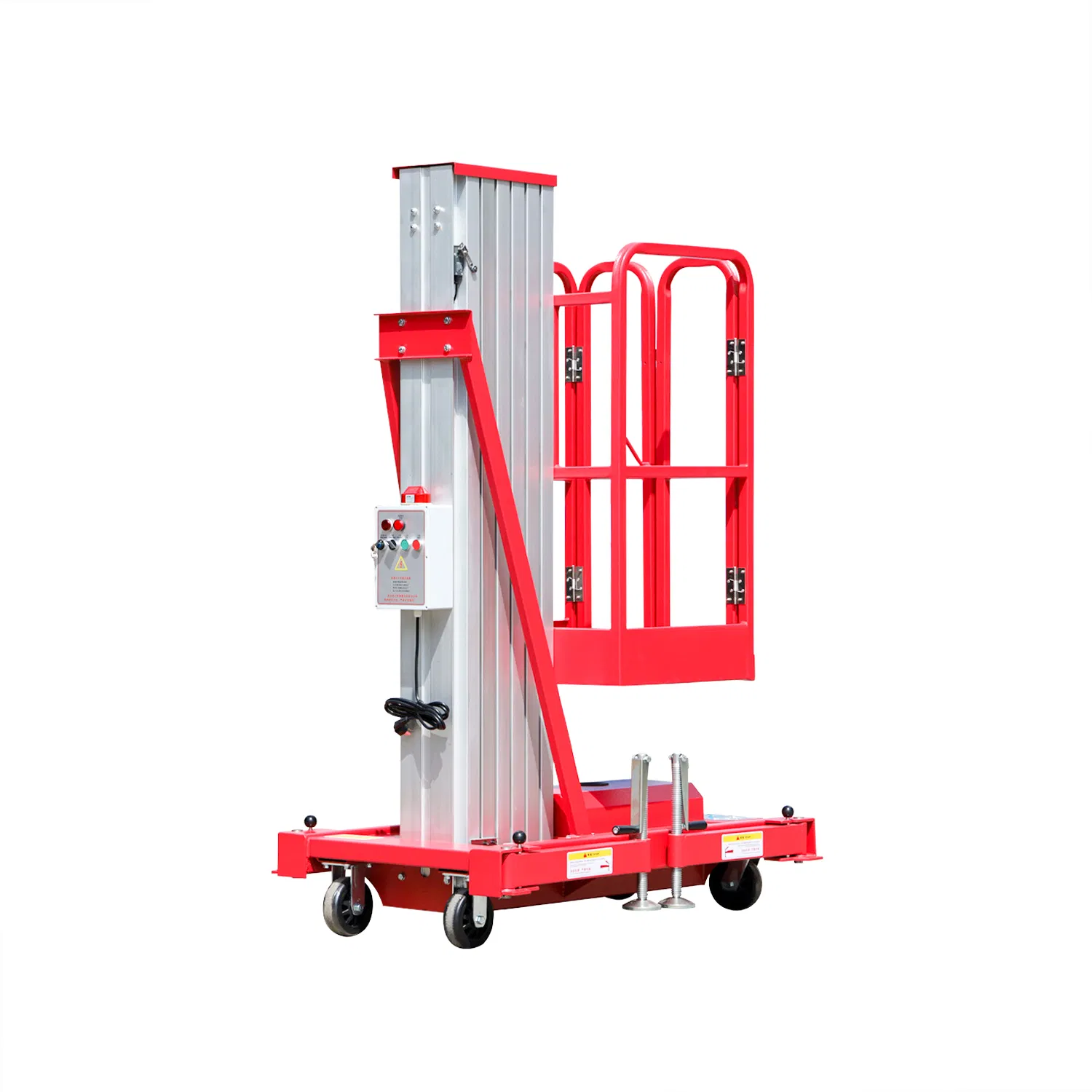

Right Elevation

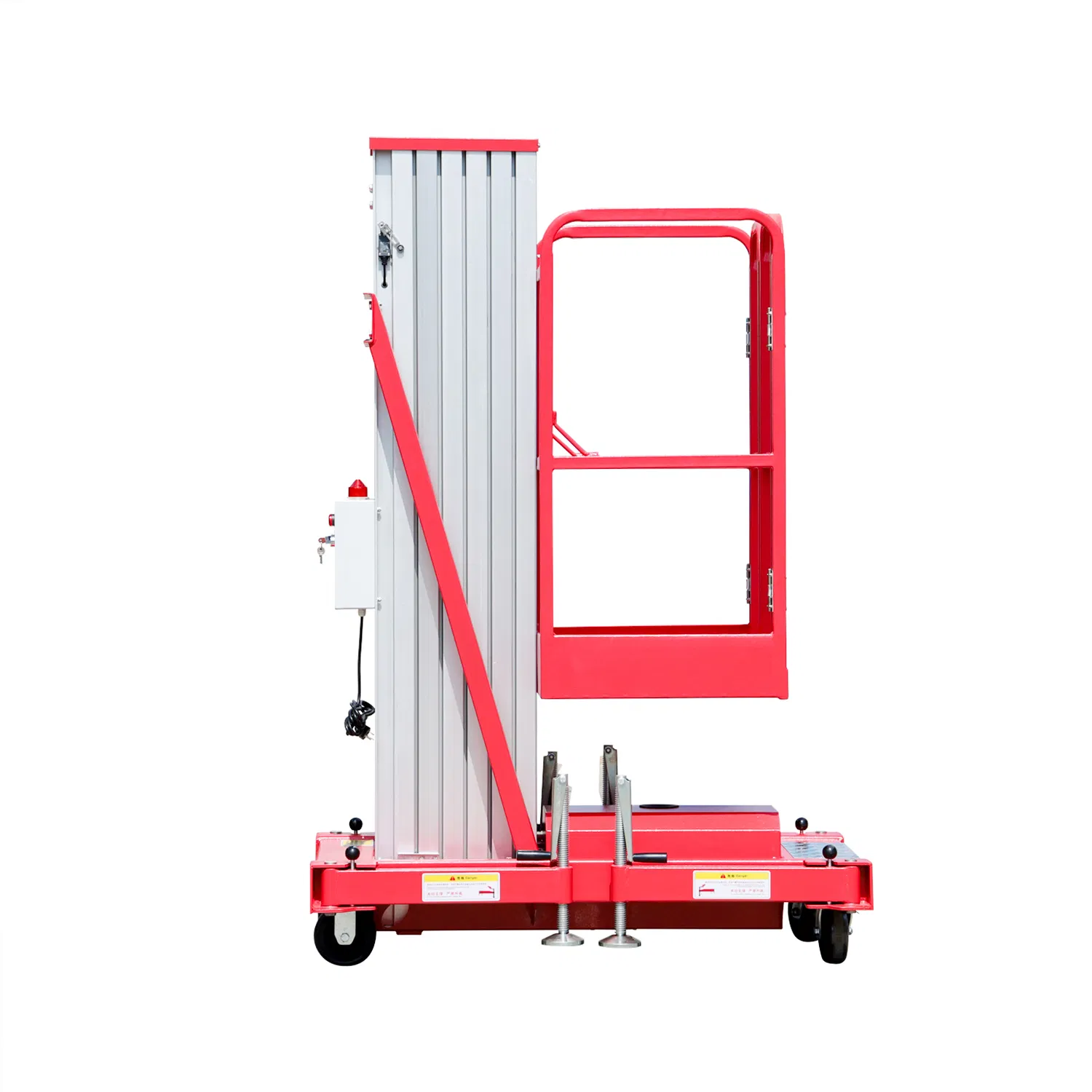

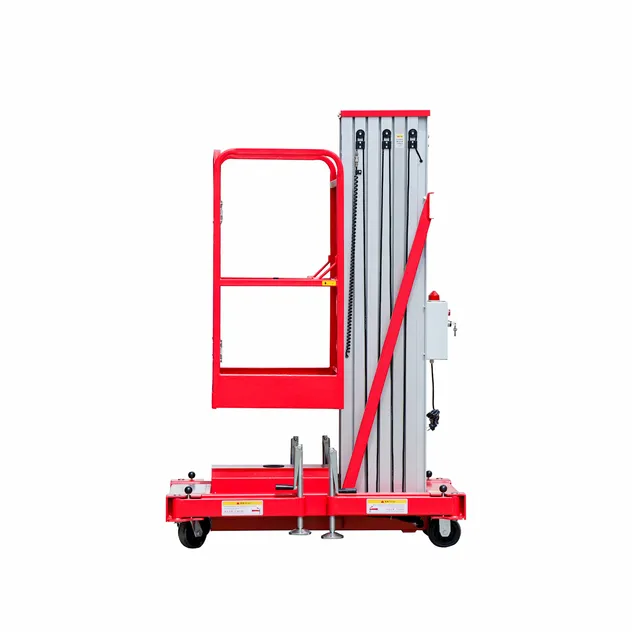

Left Elevation

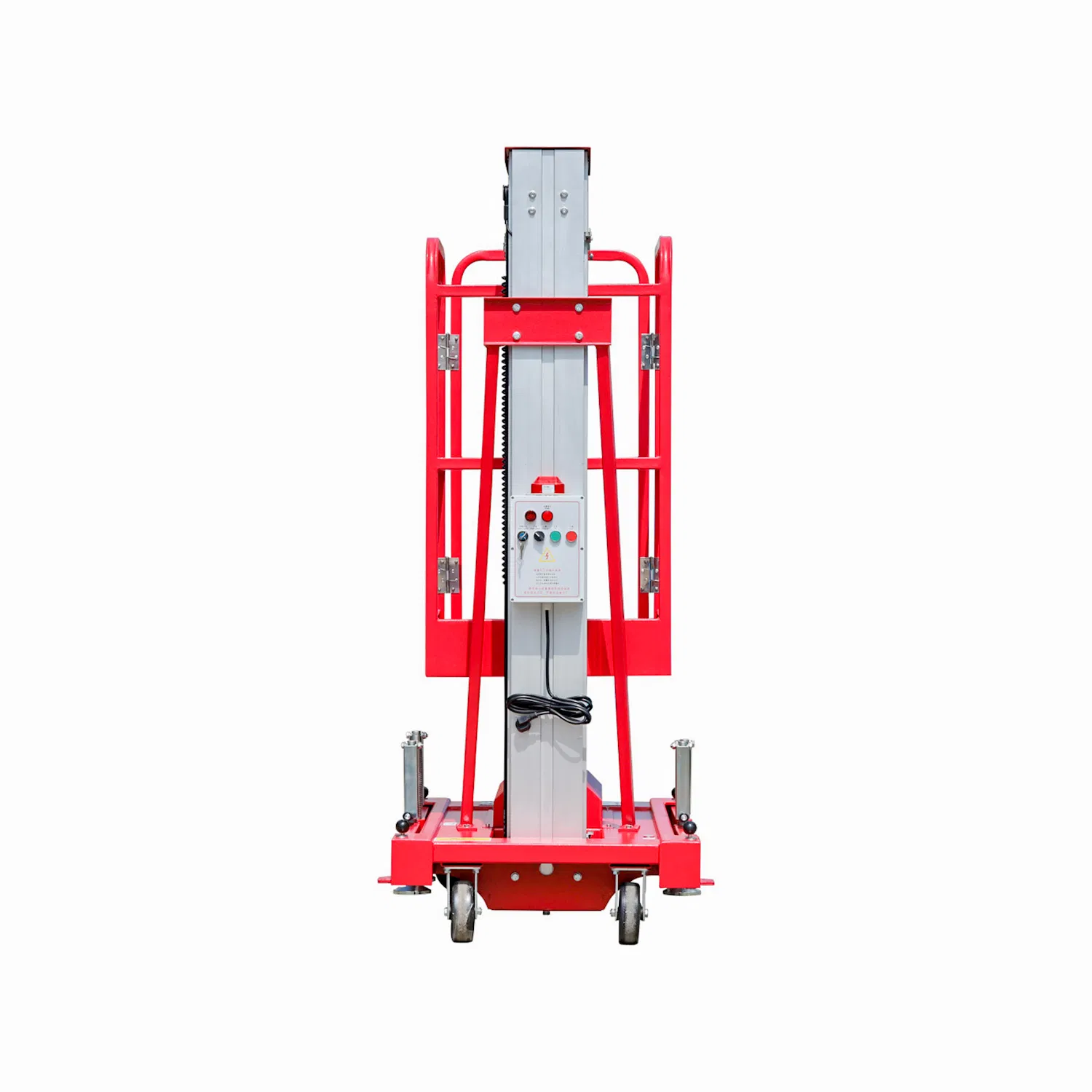

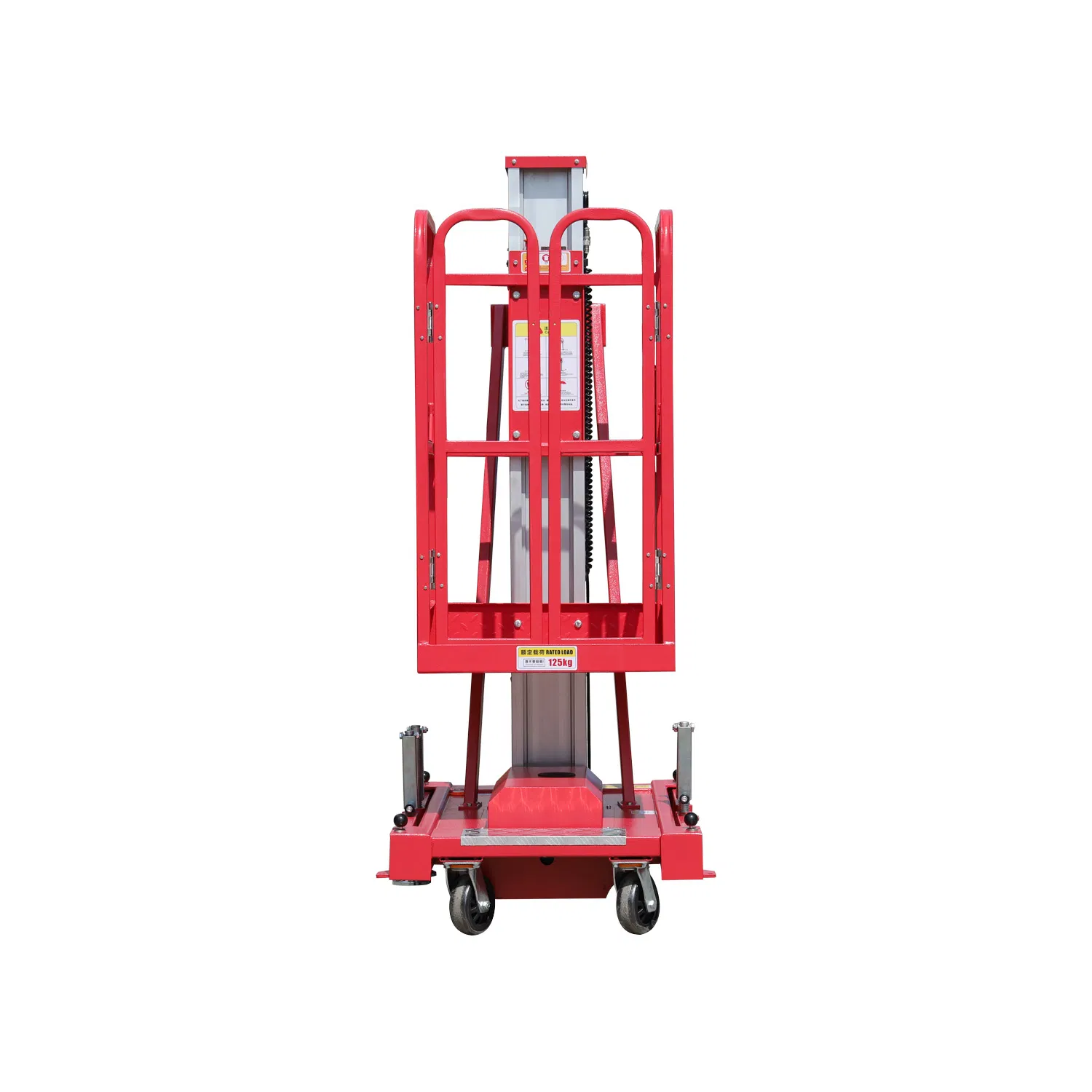

Front Elevation

📊Technical Parameters

Model	Max Platform Height (m)	Rated Load (kg)	Weight (kg)	Platform Size (m)	Dimensions LWH (m)	Power (VAC/kw)
GTWY4-100	4	125	220	0.64*0.58	1.250.821.65	220/0.75
GTWY6-100	6	125	260	0.64*0.58	1.310.821.65	220/0.75
GTWY8-100	8	125	300	0.64*0.58	1.310.821.98	220/0.75
GTWY9-100	9	125	320	0.64*0.58	1.370.821.98	220/0.75
GTWY10-100	10	125	350	0.64*0.58	1.370.821.98	220/0.75

🏢About the Manufacturer

We are a leading professional manufacturer of lifting equipment with over 20 years of expertise. Certified with ISO 9001 and CE, we focus on providing stable, high-quality aerial work platforms to the global market.

❓Frequently Asked Questions

What is the standard delivery time for orders?

Standard models are usually ready within 7–10 days; customized units typically require 15–20 days.

What power supply is required for the lift?

The standard power supply is single-phase AC (220V). Custom voltages can be discussed based on your requirements.

Are customized platform sizes available?

Yes, we can accommodate requests for customized platform sizes to meet specific operational needs.

What kind of warranty is provided?

We offer a 1-year standard warranty for the equipment along with 24/7 technical assistance and spare parts supply.

Is the equipment easy to move through narrow doors?

Yes, the single mast design is specifically engineered for a small footprint and lightweight maneuverability, allowing it to pass through standard doors and limited passageways.

What safety documents are provided for export?

We provide a full export documentation package, including Commercial Invoice, Packing List, Bill of Lading, and CE/COC certificates.
