Application
Workshop, Shipboard, Warehouse, Building Crane
Carrying Capacity
Light Level
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Transport Package
PVC Film Wrapped in Pallet
Specification
1.36*0.79*2.08m
Production Capacity
3000 Units Per Year

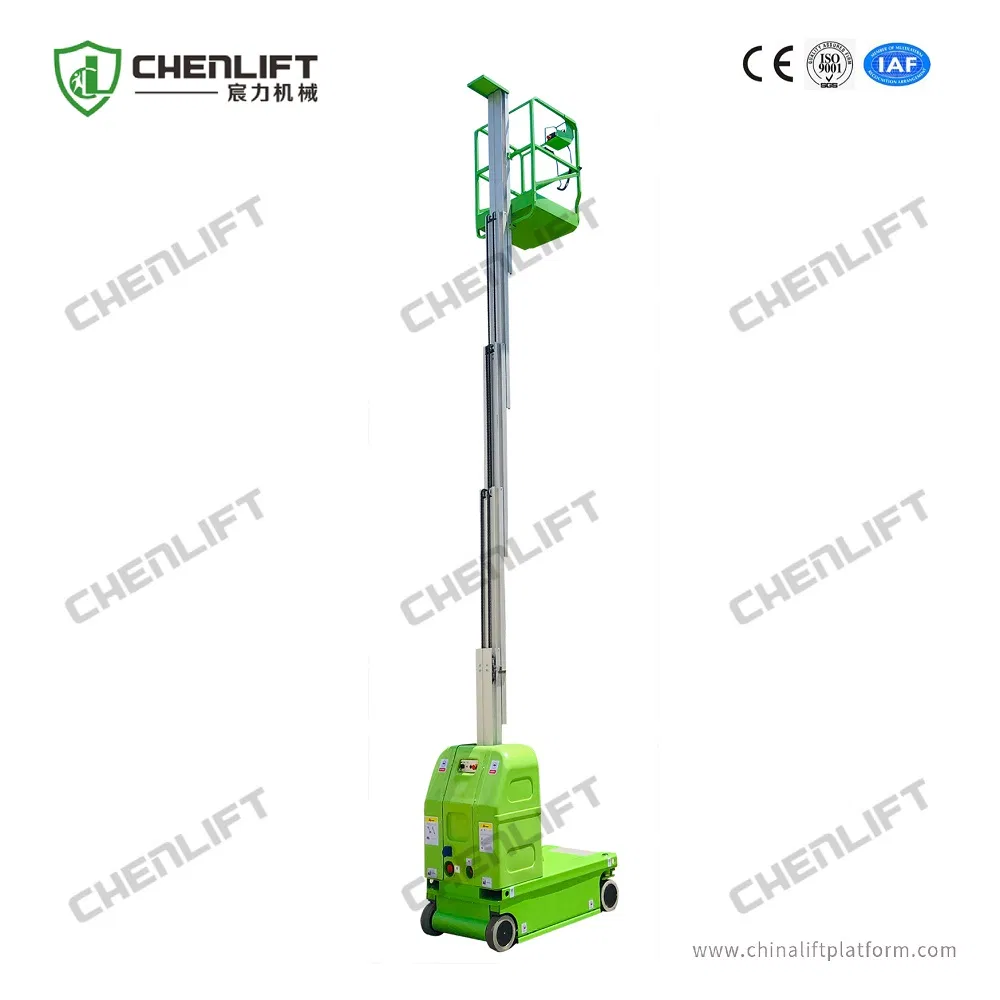

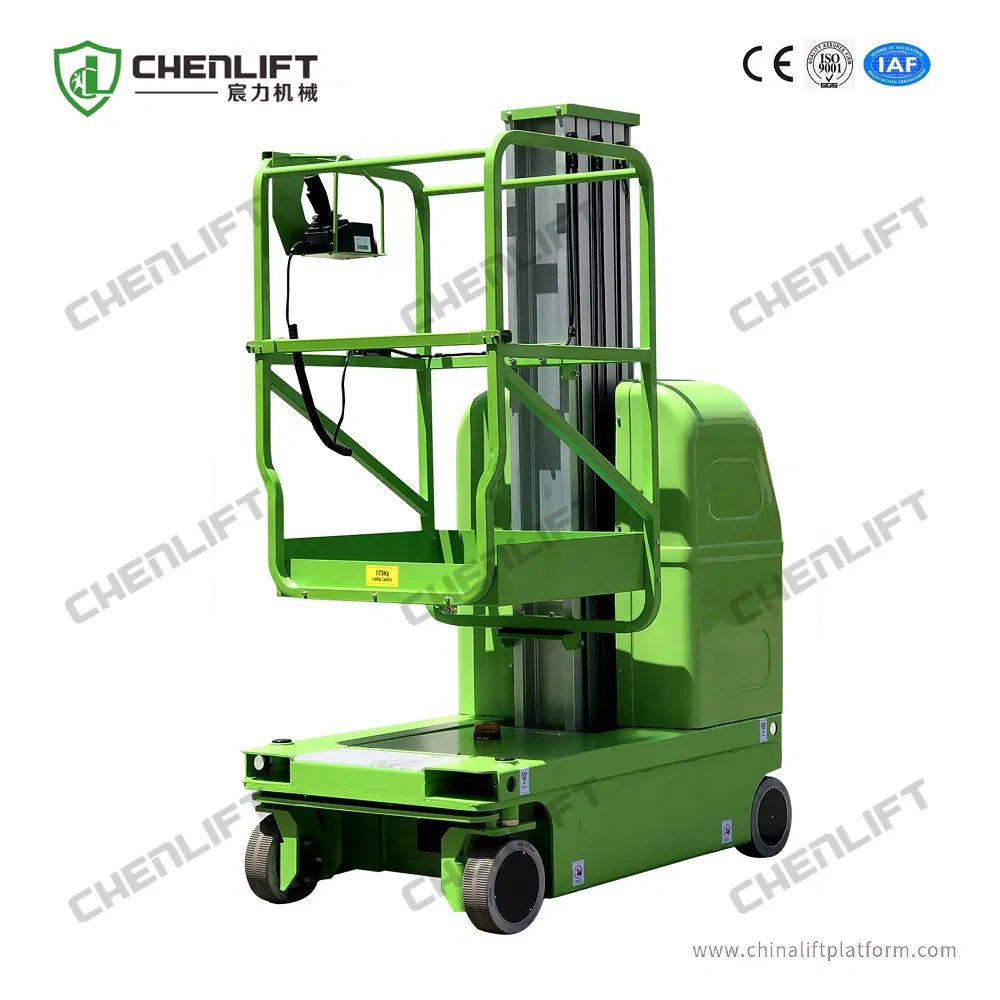

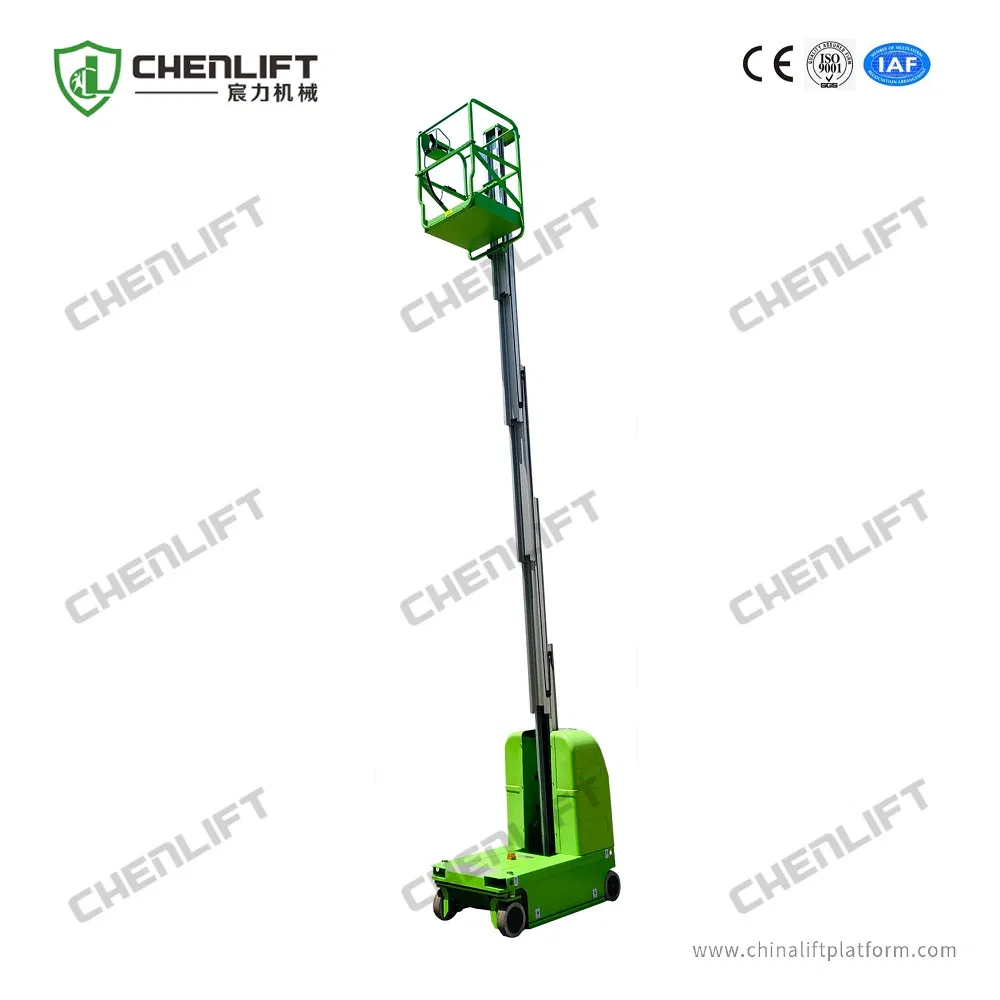

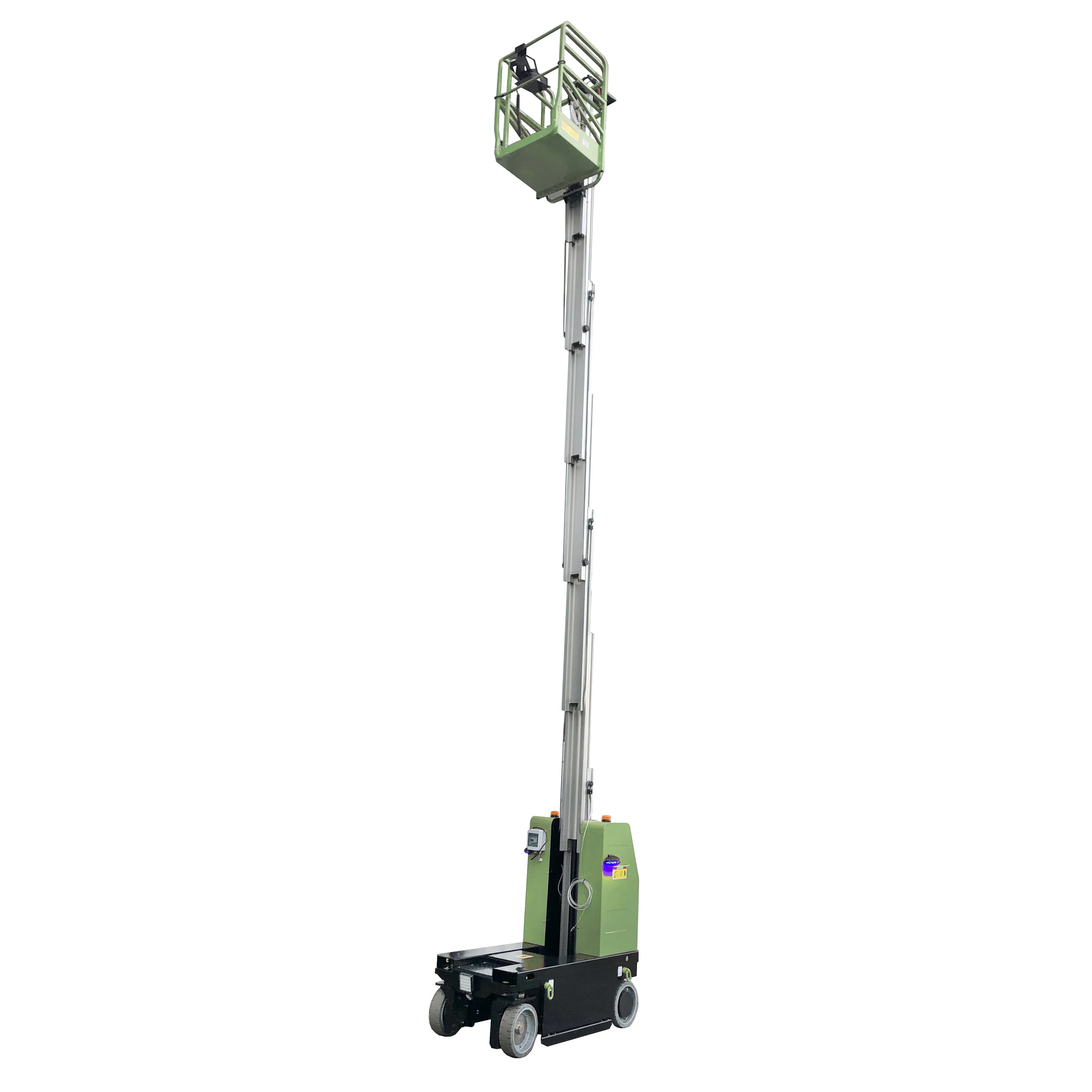

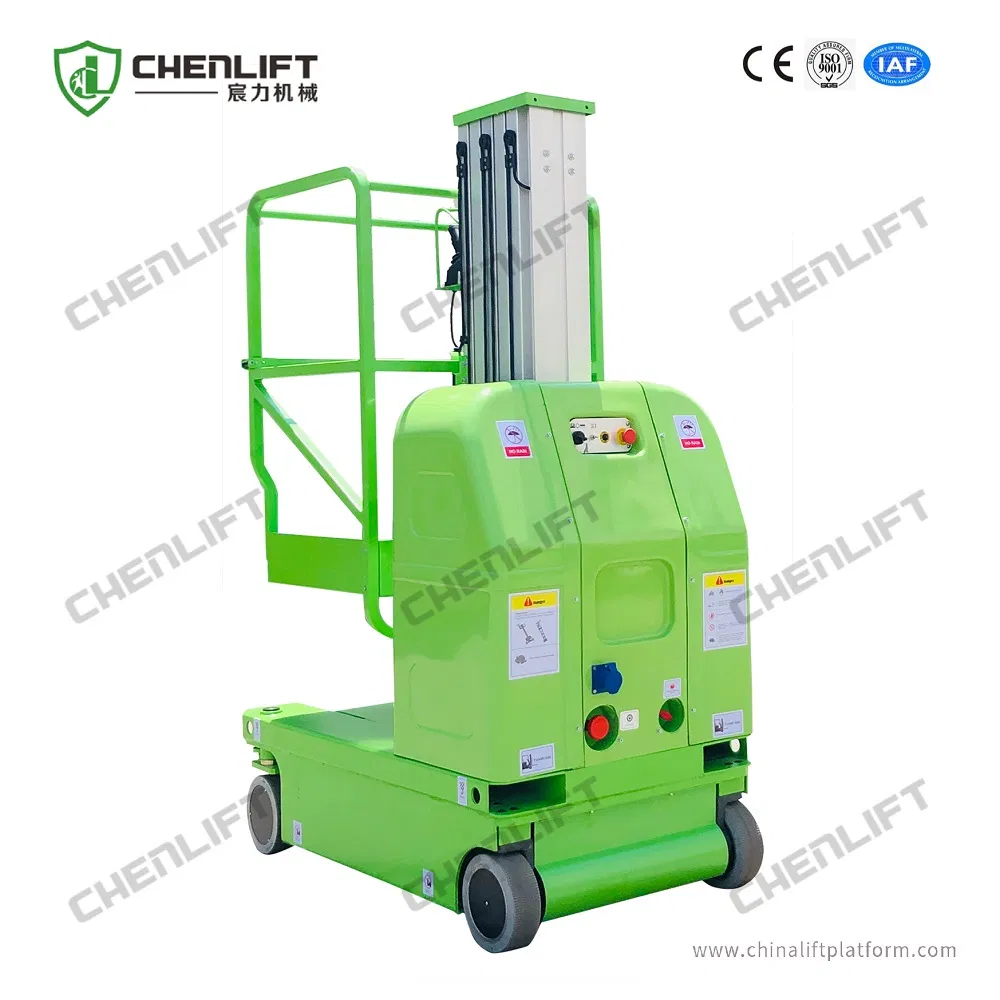

Self-Propelled Economical Vertical Lift
Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.

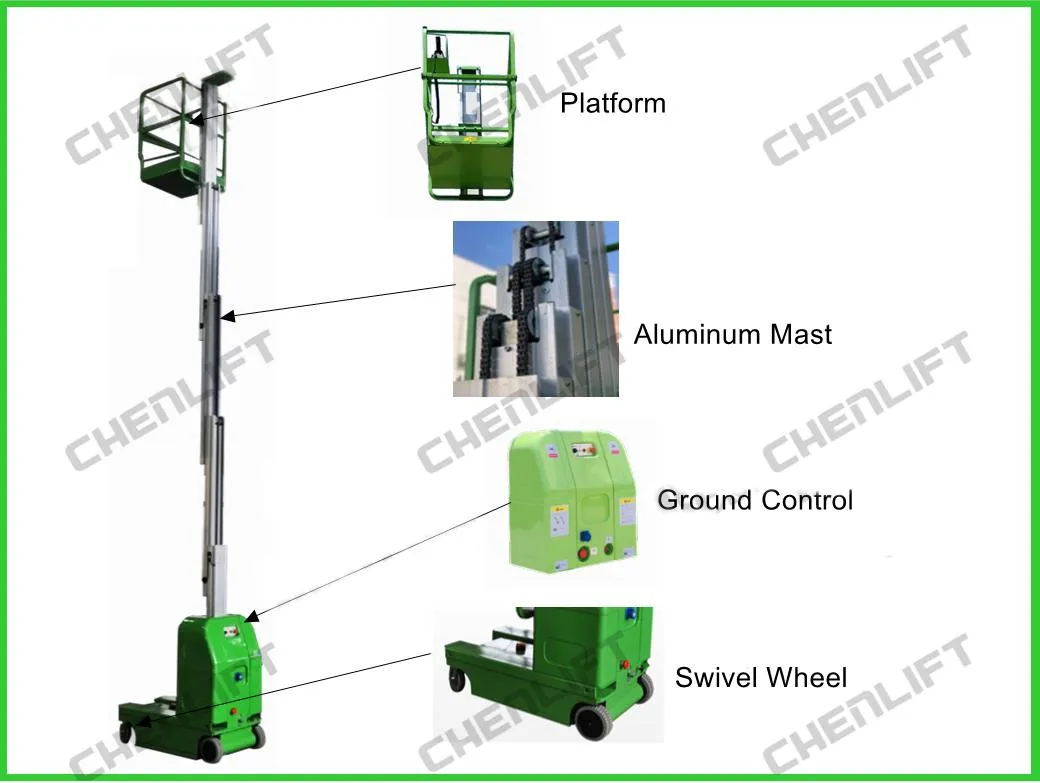

Swivel Turning Type Overview

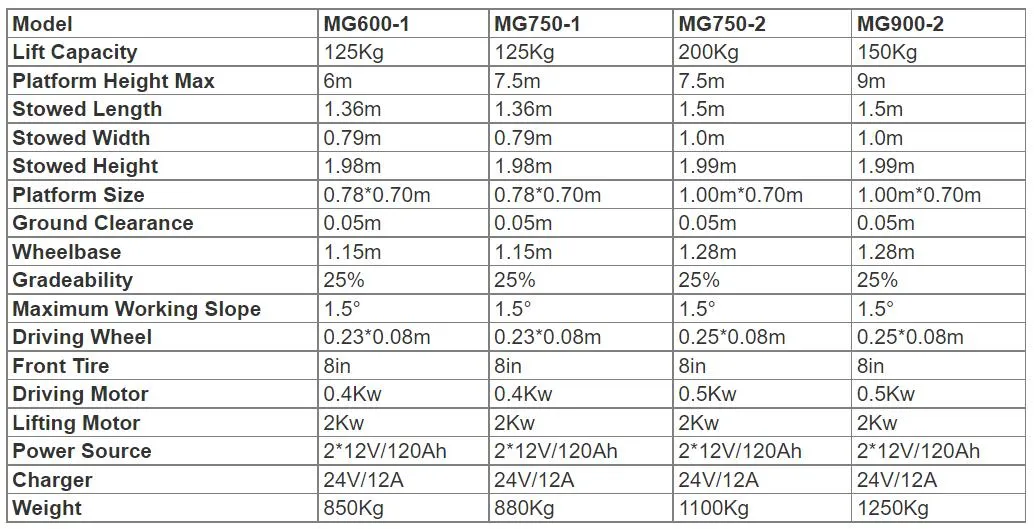

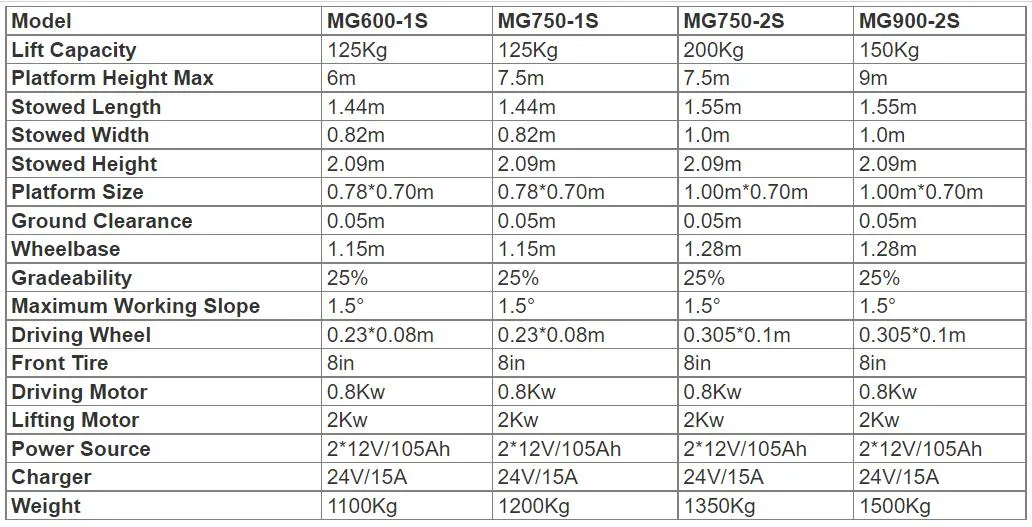

Technical Details
Swivel Turning Type

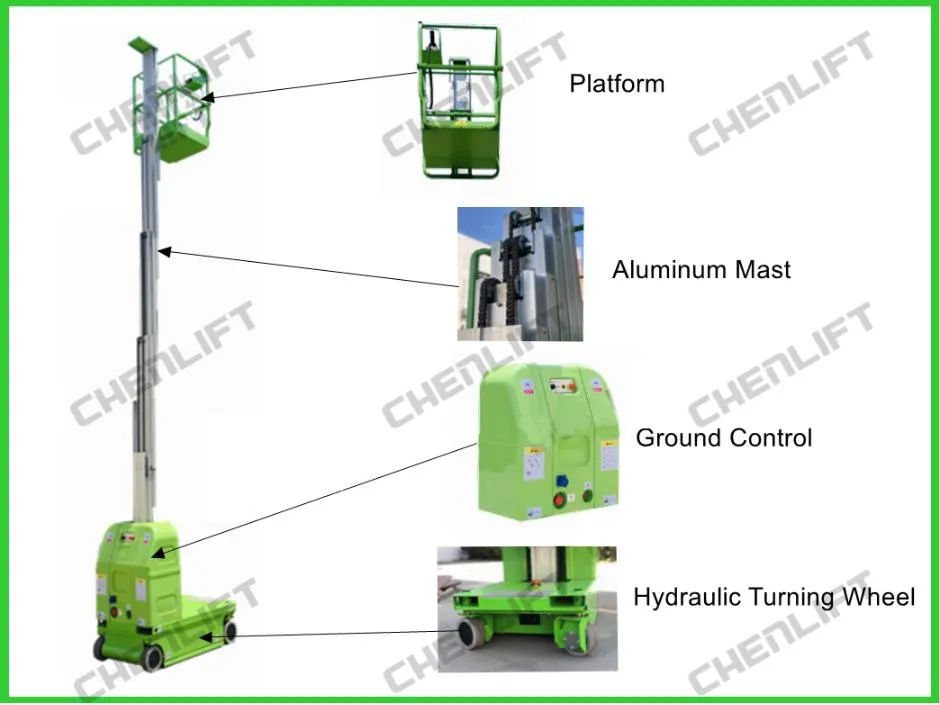

Hydraulic Turning Type
●Proportional controls
●DC power supply
●Drivable at full height
●Beacon
●Non marking tyre
●2WD
●Automatic braking system
●Anti burst valve on cylinder
●Emergency stop button
●Auxiliary lowering
●On board Diagnostic system
●Tilt sensor with alarm
●Forklift pockets
●Charger protection
●All motion alarm
●Horn
●Double wheel brake
●Hydraulic braking release
●Anti-dust cover on the mast
●Powder coating painting
Optional Configuration
○AC power to platform
○Overload sensor with alarm
○Platform working light
○Air tube to the platform
○Platform extension
○Self-lock gate on platform
○Hour meter
○Machine Body cover
○Wireless tracking
The Self-propelled Aerial Order Picker must be stored in a horizontal position, in order to prevent the oil and the electrolyte will overflow, when transporting and storing. When stores it, it must be kept clean and keep far away from the damp and bad climate. The temperature of environment should not be more than 40ºC. If the battery isn't worked for a long time, it should be recharged timely.
P

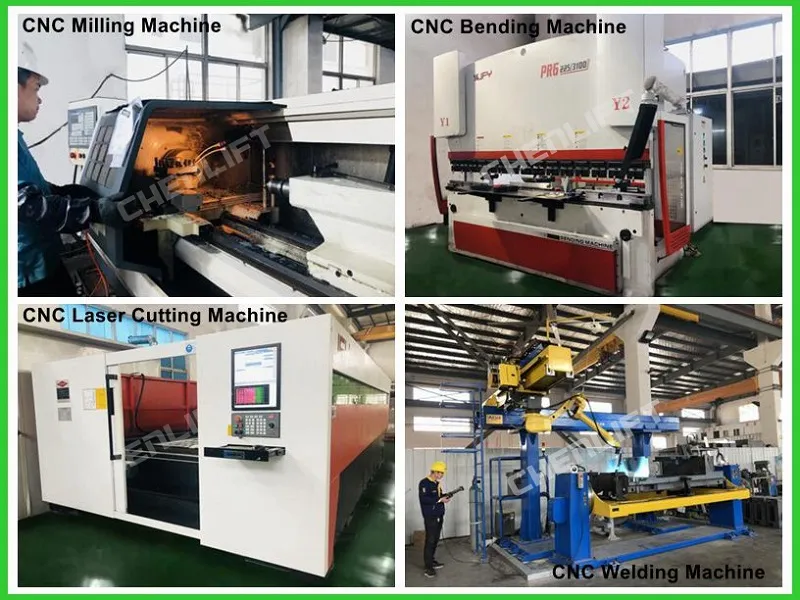

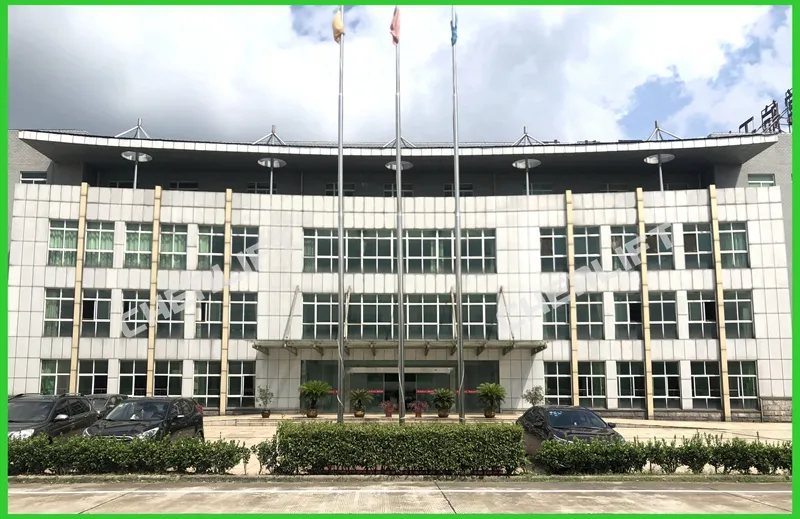

Factory & Quality Display
?
Frequently Asked Questions
What is the maximum working height of the MG600-1S?
The MG600-1S vertical lift provides a platform height of 6 meters, reaching a maximum working height of 8 meters.
What is the loading capacity of this vertical lift?
It is designed for light-level carrying with a maximum loading capacity of 125kg, suitable for one person and their tools.
Can the lift be driven while the platform is raised?
Yes, the standard configuration allows the unit to be drivable at full height for increased efficiency during maintenance tasks.
What kind of power source does it require?
The lift is powered by a DC system consisting of two 12V/115ah batteries and comes with an integrated 24V/12A charger.
Is this equipment suitable for indoor use on finished floors?
Absolutely. It features non-marking tires and a lightweight design that allows it to operate without damaging the ground, making it perfect for hotels and hospitals.
What safety features are included?
Standard safety features include an automatic braking system, anti-burst valves, emergency stop buttons, tilt sensors with alarms, and a pothole protection device.
